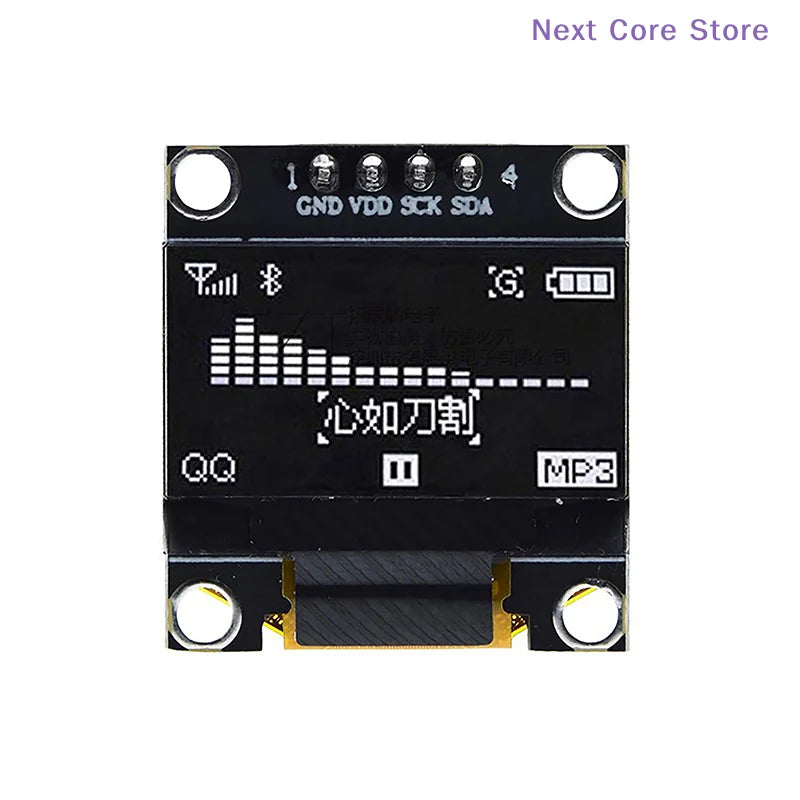

0.96 Inch OLED Display Module – 128x64 IIC/I2C Serial Screen
This compact 0.96-inch OLED display module features a crisp 128x64 pixel resolution and ultra-low power consumption, making it an ideal choice for Arduino, Raspberry Pi, and DIY electronics projects. Available in White, Blue, or Yellow display colors, this IIC/I2C module connects with just 4 pins and is compatible with a wide range of microcontrollers.
Made in Mainland China.
Key Features
- High Resolution: 128 x 64 pixel OLED panel for sharp, clear text and graphics
- Ultra-Low Power: Full screen power draw of just 0.08W — great for battery-powered projects
- Wide Compatibility: Works with 51 Series, MSP430 Series, STM32/2, CSR IC, and more
- Simple 4-Pin IIC/I2C Interface: Pin definitions: GND, VCC, SCL (SCK), SDA — easy to wire up
- Adjustable Brightness & Contrast: Super-high brightness with software-adjustable contrast

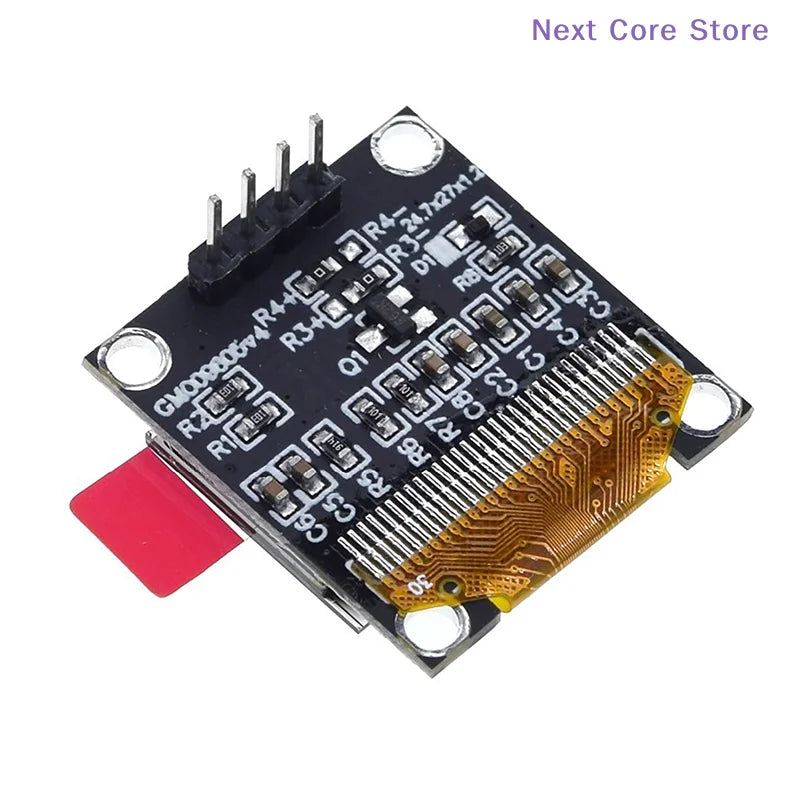

- Embedded Driver/Controller: Onboard SSD1306/SSD1315 driver IC for seamless integration
- Wide Voltage Range: Operates on 3V–5V DC, compatible with 3.3V and 5V systems
- Wide Operating Temperature: -30°C to 70°C for versatile use environments
Technical Specifications
| Screen Size | 0.96 Inch |
| Resolution | 128 x 64 pixels |
| Interface | IIC / I2C (4-pin) |
| Pin Definitions | GND, VCC, SCL(SCK), SDA |
| Operating Voltage | 3V – 5V DC |
| Power Consumption | 0.08W (full screen) |
| Drive Duty | 1/64 Duty |
| Driver IC | SSD1306 / SSD1315 |

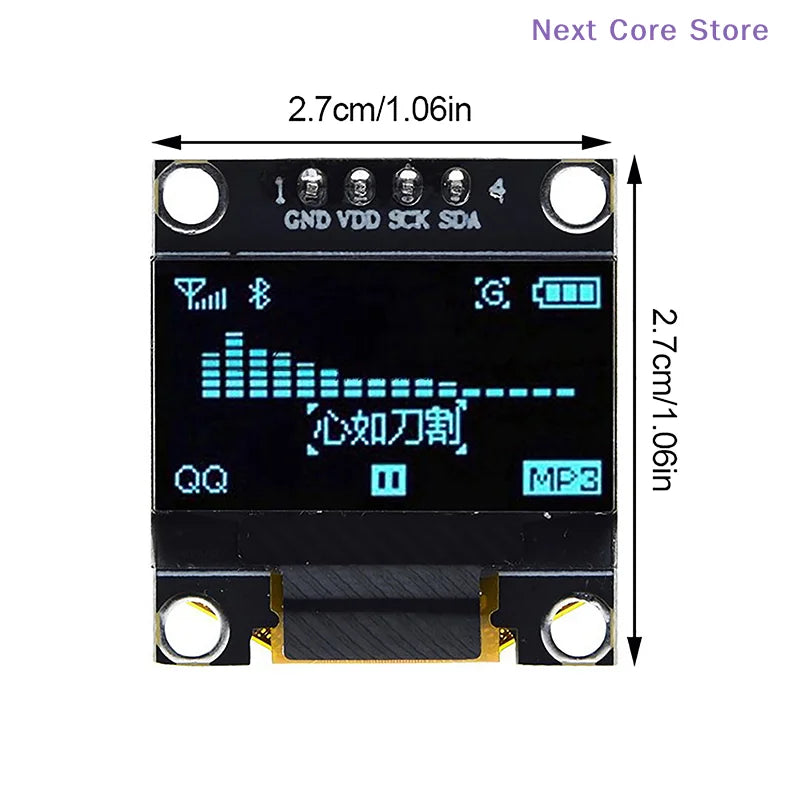

| Panel Dimensions | 26.70 x 19.26 x 1.85mm (approx. 1.03 x 0.76 x 0.07 in) |
| Active Area | 21.74 x 11.2mm (approx. 0.86 x 0.44 in) |
| Working Temperature | -30°C to 70°C |
| Available Colors | White, Blue, Yellow |
What's in the Box
- 1 x 0.96" OLED LCD Screen Board
Perfect for makers and electronics enthusiasts who want a reliable, compact display for sensors, clocks, menus, and data readouts. Pair it with your favorite microcontroller and get started quickly with widely available libraries.
Looking for other DIY and craft supplies? Check out our Pottery Clay Sculpting Tools Set or explore our 10-Piece Gardening Tool Kit for more hands-on project essentials.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What microcontrollers is this OLED display module compatible with?
A: This 0.96-inch OLED display module is fully compatible with a wide range of microcontrollers, including 51 Series, MSP430 Series, STM32/2, CSR IC, Arduino, and Raspberry Pi boards. Its standard IIC/I2C interface makes it easy to integrate with most development platforms.

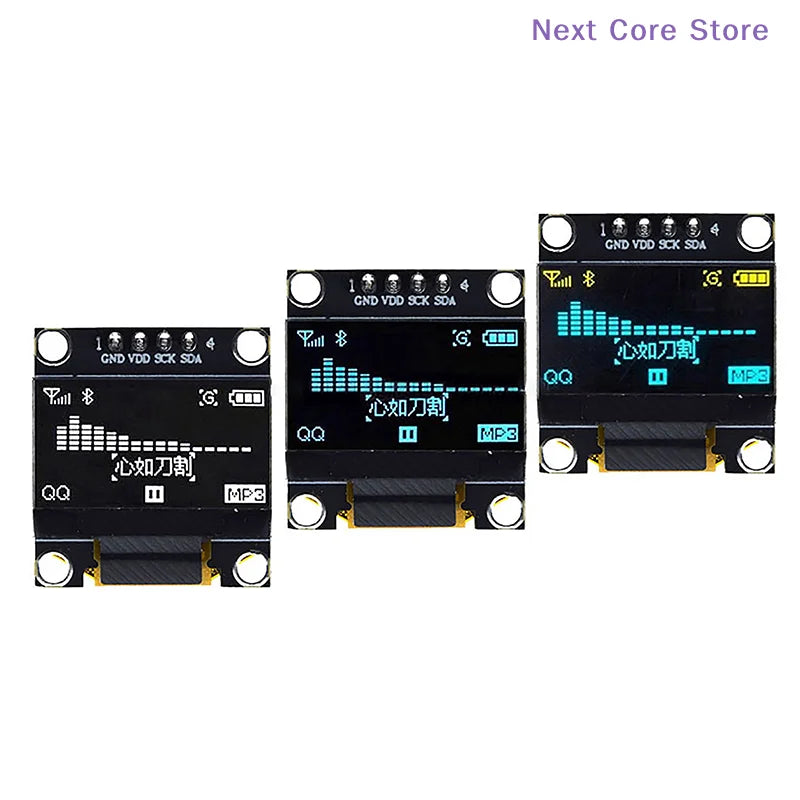

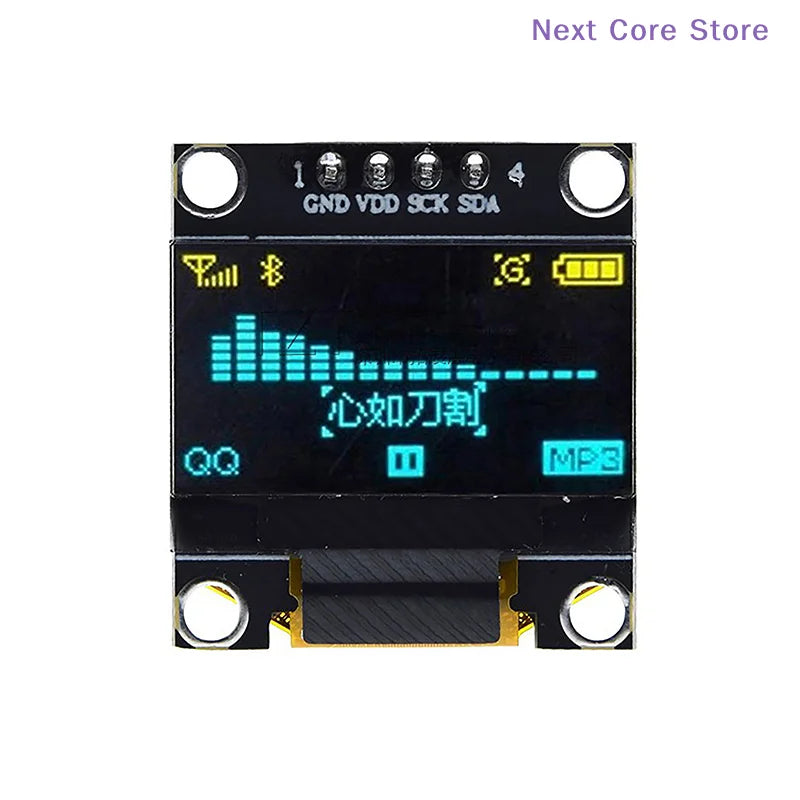

Q: What is the difference between the White, Blue, and Yellow display options?
A: The color refers to the pixel emission color of the OLED panel. White pixels appear white on a black background, Blue pixels emit blue light, and Yellow typically appears as a yellow-on-black display. All variants share the same 128x64 resolution, driver IC, and I2C interface — the choice is purely aesthetic.
Q: Does this module work with 3.3V systems like Raspberry Pi?
A: Yes! The module supports an operating voltage range of 3V to 5V DC, making it compatible with both 3.3V systems (such as Raspberry Pi) and 5V systems (such as standard Arduino boards) without the need for a level shifter.
Q: Is any additional software library required to use this display?
A: Most users program this module using the popular Adafruit SSD1306 or U8g2 libraries, which are freely available for Arduino IDE and other development environments. These libraries provide simple functions for drawing text, shapes, and bitmaps on the 128x64 display.
