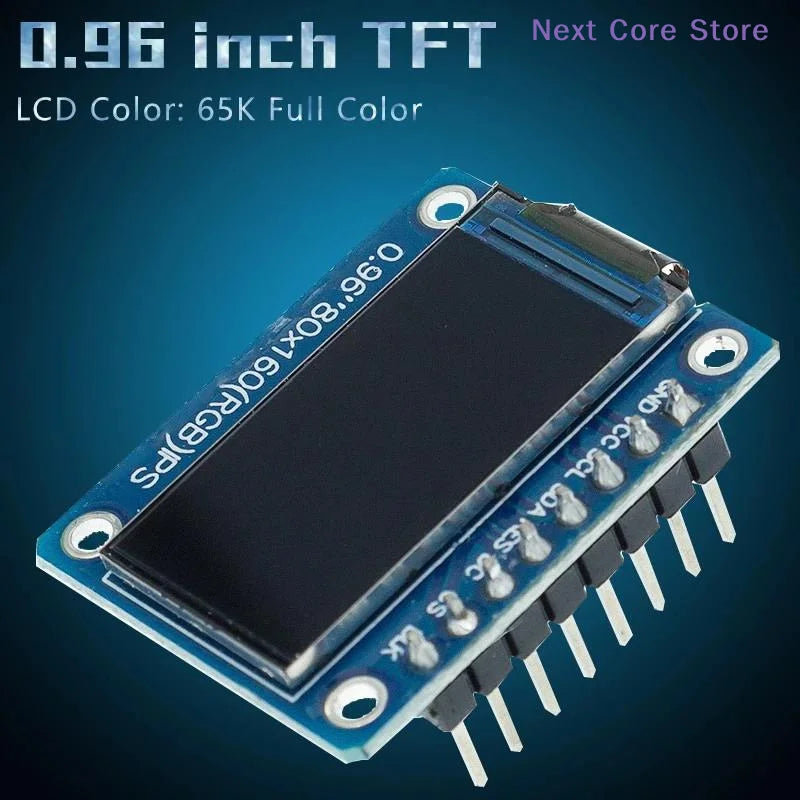

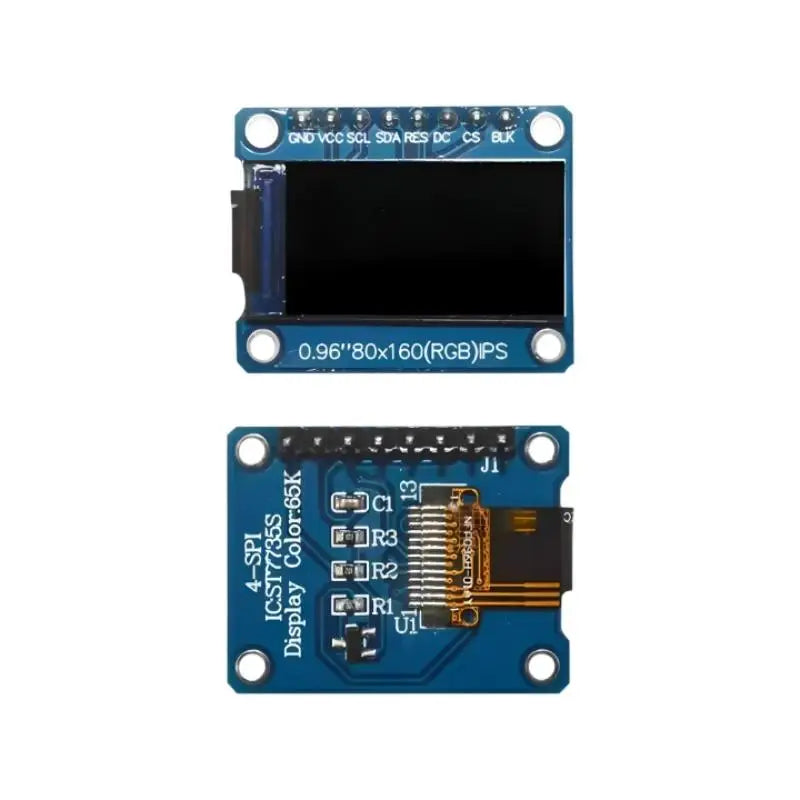

0.96 Inch IPS LCD TFT Display Module – 160×80 HD 65K Color, SPI Interface, ST7735S Driver
Take your DIY electronics projects to the next level with this compact 0.96 inch IPS LCD TFT Display Module. Featuring a crisp 160×80 pixel resolution, 65K rich colors, and an all-viewing-angle IPS panel, this little screen delivers impressive clarity in a tiny footprint. Compatible with Raspberry Pi, Arduino, STM32, and other microcontrollers, it's a versatile pick for makers, hobbyists, and engineers alike.
Made in Mainland China.
Key Features
- Screen Size: 0.96 inch IPS LCD TFT (Normally Black)
- Resolution: 80 RGB × 160 dots (160×80 px)
- Color Depth: 65K colors for vivid, sharp imagery

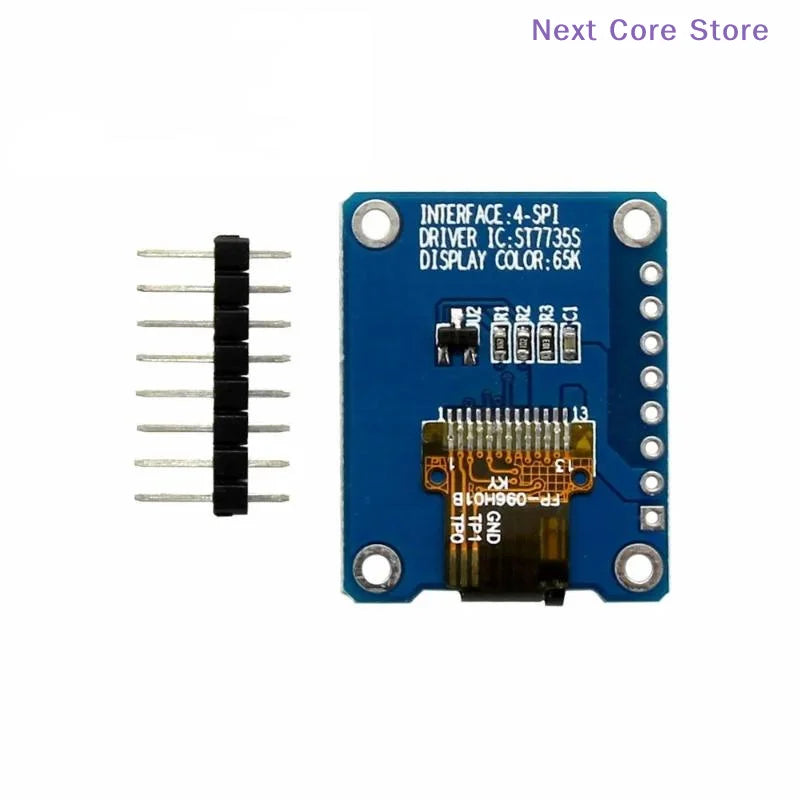

- Driver IC: ST7735S
- Interface: SPI (Serial Peripheral Interface) — high-speed, minimal pin usage
- Operating Voltage: 3.3V

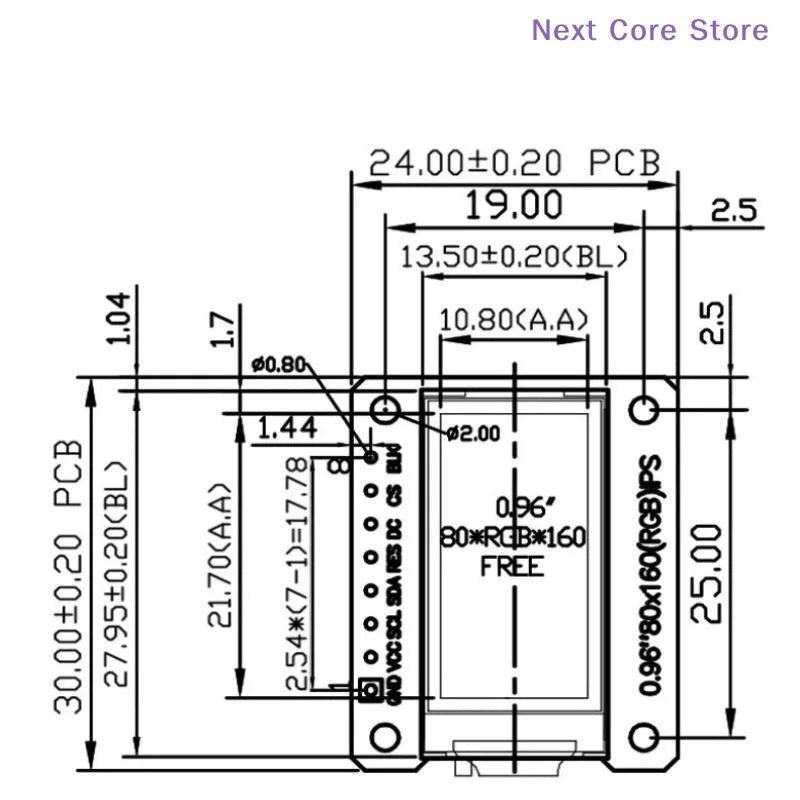

- Active Display Area: 10.8 (W) × 21.7 (H) mm

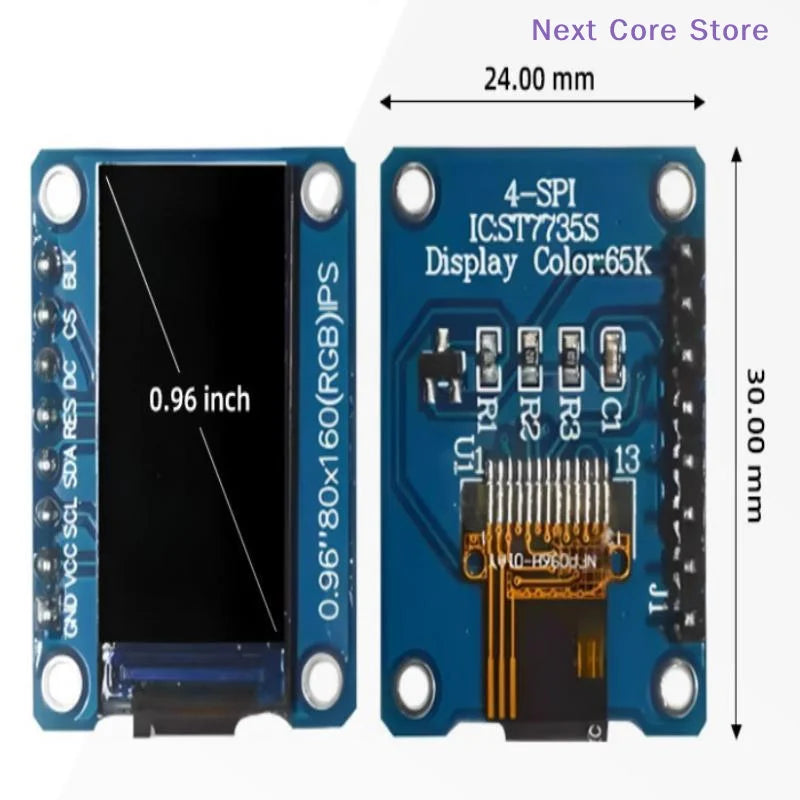

- Module Dimensions: 24 (W) × 30 (H) × 2.8 ±0.1 (T) mm
- Dot Pitch: 0.135(H) × 0.1356(V) mm
- Viewing Direction: All-view (IPS panel)
- Operating Temperature: -20°C to 70°C

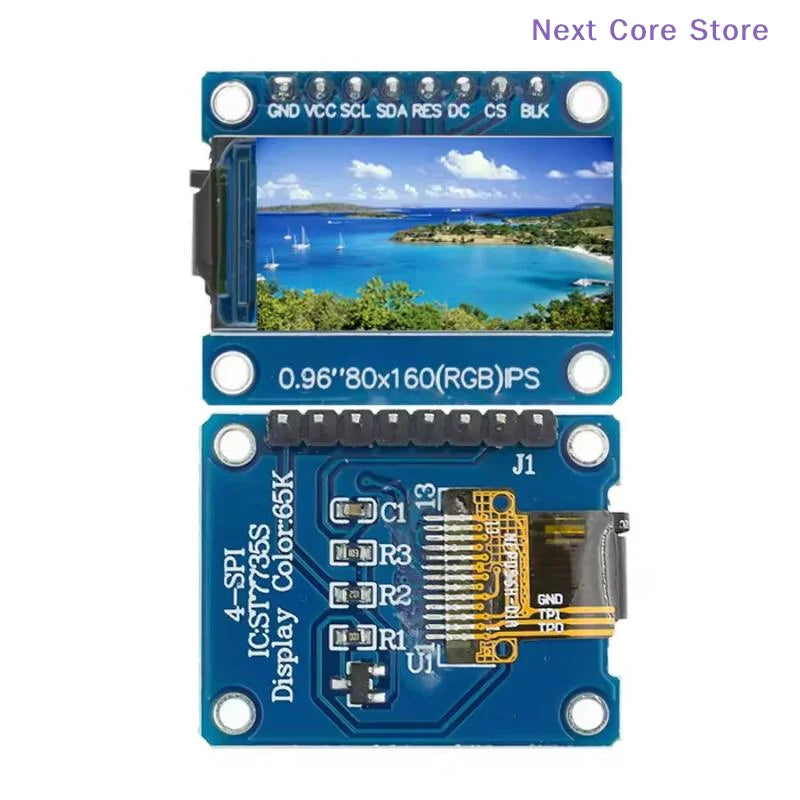

Pin Descriptions
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Ground |
| 2 | VCC | Power – 3.3V |
| 3 | SCL | Serial Clock Pin |
| 4 | SDA | Serial Data Input |
| 5 | RES | LCM Reset Pin – Pull high during normal operation |
| 6 | DC | Data / Command Control |
| 7 | CS | Chip Select |
| 8 | BLK | Backlight Control Pin |
What's in the Box

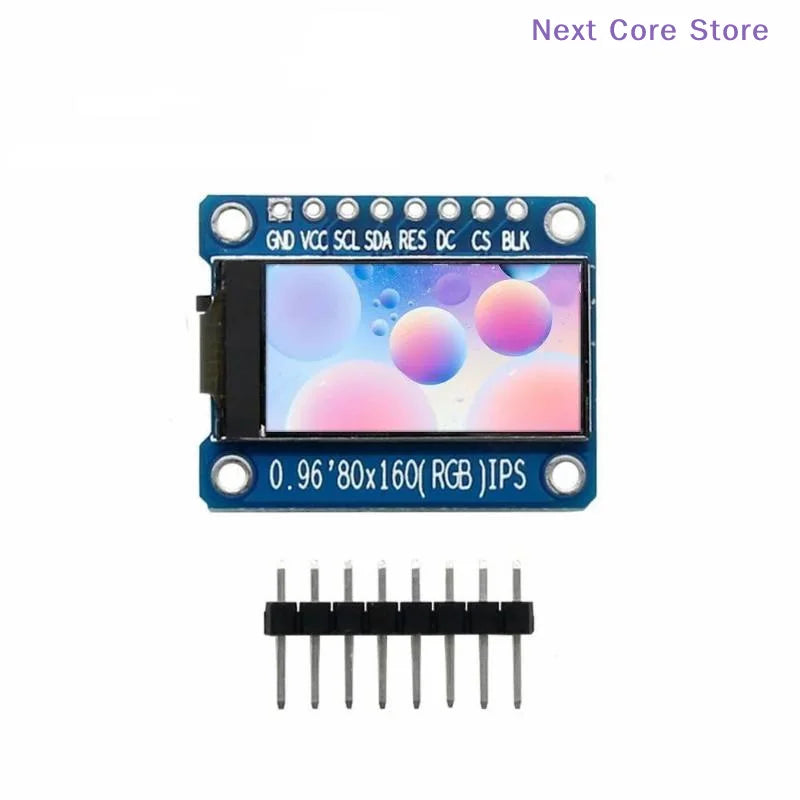

- 1 × 0.96" IPS LCD TFT Display Module (ST7735S, SPI, 3.3V)
Great for DIY Projects Like
- Raspberry Pi dashboards and status monitors
- Arduino-based wearables and gadgets
- Industrial automation readouts
- Custom embedded system displays
- IoT sensor data visualization
Looking for more tools and components for your build? Check out our 105° Right Angle Driver with 1/4" Hex Screwdriver Bit or browse our 10-Piece Gardening Tool Kit for other handy project accessories.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Is this 0.96" IPS LCD TFT Display Module compatible with Raspberry Pi and Arduino?
A: Yes! The module uses a standard SPI interface and operates at 3.3V, making it compatible with Raspberry Pi, Arduino (with a level shifter if needed), STM32, ESP32, and most popular microcontroller platforms used in DIY projects.
Q: What driver IC does this TFT display use, and where can I find libraries for it?
A: This module uses the ST7735S driver IC. Libraries for ST7735S are widely available for Arduino (e.g., Adafruit ST7735 library) and Python/MicroPython environments for Raspberry Pi. Simply search "ST7735S library" on GitHub or the Arduino Library Manager.
Q: What is the operating voltage and can I use it with a 5V microcontroller?
A: The module operates at 3.3V. If you're using a 5V microcontroller (such as a standard Arduino Uno), you will need a logic level converter or voltage divider on the data lines to avoid damaging the display.
Q: What resolution and color depth does this display support?
A: The display supports a resolution of 160×80 pixels (80 RGB × 160 dots) with a color depth of 65K colors (16-bit), ensuring bright and vivid visuals despite its compact 0.96 inch size.
