10-Pack 1S 3.7V 3A Li-ion BMS PCM Battery Protection Boards for 18650 Cells

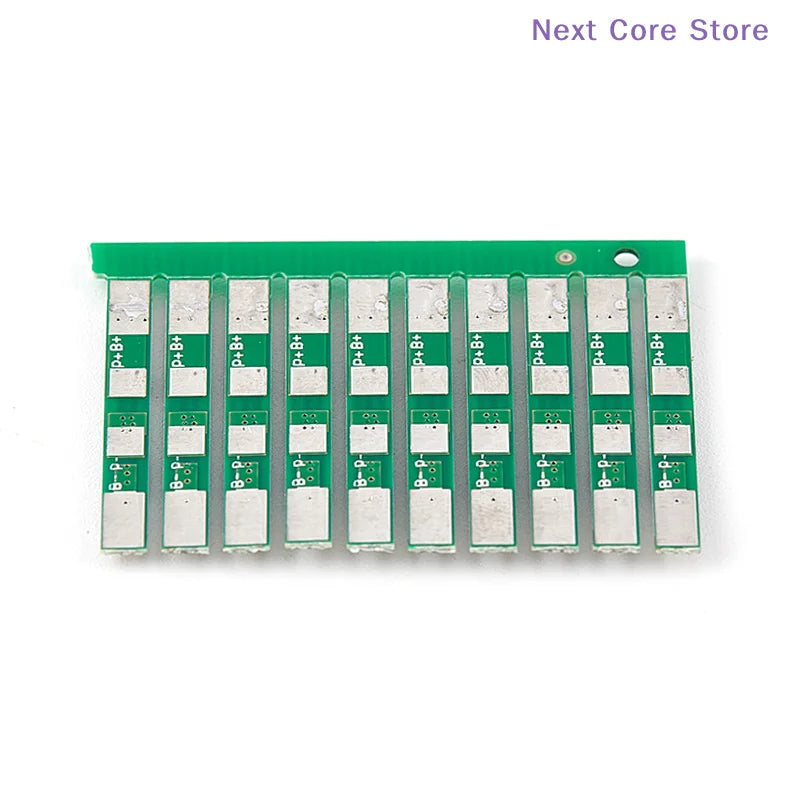

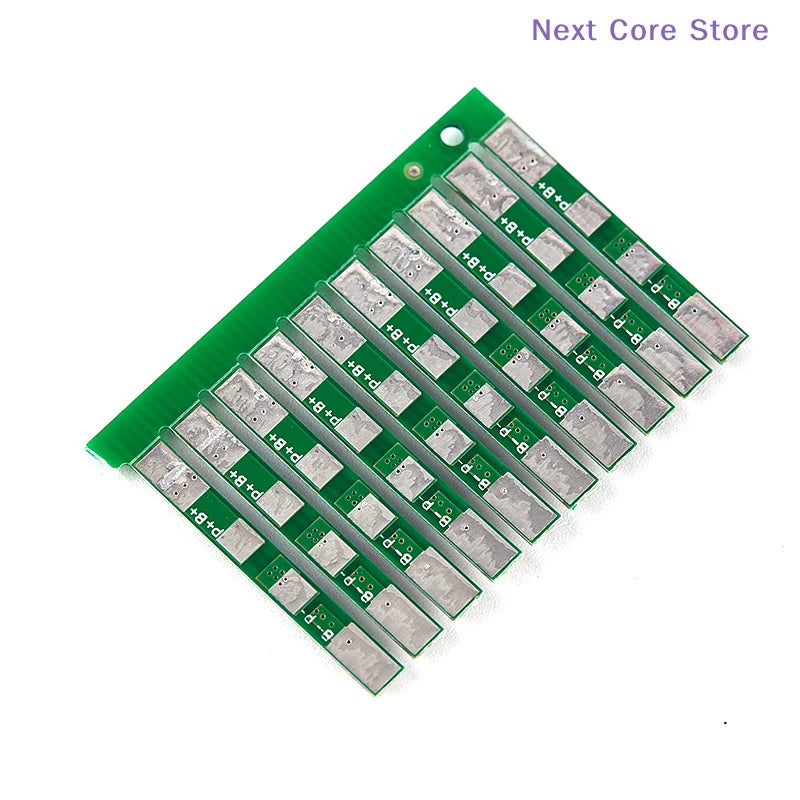

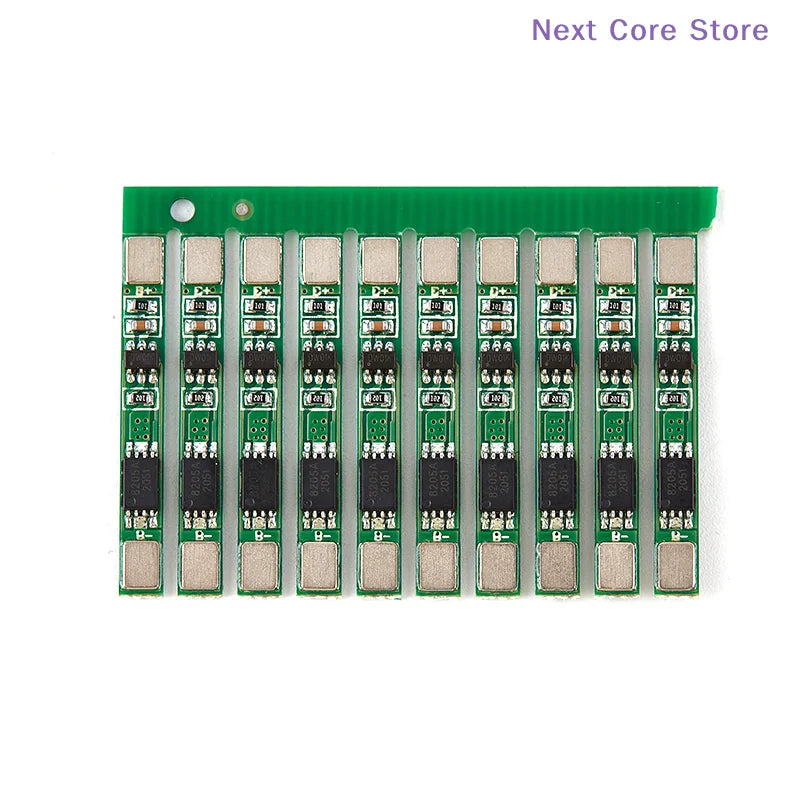

Keep your single-cell lithium-ion batteries running safely and efficiently with this 10-pack of 1S 3.7V 3A Battery Management System (BMS) protection boards. Designed for 18650 and similar li-ion cells, each compact PCM board delivers high-accuracy voltage monitoring, three-stage over-current detection, and MOS transistor-controlled charge/discharge management — all in one reliable circuit.
Whether you're building a DIY power bank, repairing a flashlight, or prototyping electronics, these BMS boards are an essential safeguard for your lithium battery projects. Made in Mainland China.
Key Features
- High-Accuracy Voltage Detection: Precisely monitors cell voltage to prevent overcharging and over-discharging.
- High-Voltage Charger Terminal: Compatible with standard li-ion charger inputs using a high-voltage rated terminal.
- Three-Stage Over-Current Detection: Built-in protection covers over-current level 1, over-current level 2, and load short-circuit events.
- MOS Transistor Control: Intelligently manages both charging and discharging cycles for extended battery life.
- Pack of 10: Great value — stock up for multiple builds or repairs.
Technical Specifications
- Configuration: 1S (Single Series Cell)
- Nominal Voltage: 3.7V
- Overcharge Protection Voltage: 4.25 ± 0.05V
- Overcharge Release Voltage: 4.23 ± 0.05V
- Over-Discharge Protection Voltage: 2.54 ± 0.1V
- Max Continuous Charging Current: 2A
- Over-Current Protection: 3A
- Compatible Batteries: 18650 li-ion / lithium-ion cells
- Quantity: 10 pieces per pack
- Battery Included: No
- Country of Origin: Mainland China
What's in the Box?
- 10 × 1S 3.7V 3A BMS PCM Battery Protection Boards
Related Products You May Like
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What type of batteries are these BMS protection boards compatible with?
A: These 1S 3.7V BMS PCM boards are designed for single-cell 18650 lithium-ion (li-ion) batteries and similar 3.7V lithium cells used in DIY electronics, flashlights, power banks, and more.
Q: Does the BMS board include a cell balancing function?
A: No — these boards are designed for single-series (1S) configurations and do not include a balancing function, as balancing is only needed for multi-cell (2S+) packs.
Q: What protections do these boards provide?
A: Each board provides overcharge protection (triggers at 4.25V), over-discharge protection (triggers at 2.54V), and a three-stage over-current detection system covering over-current level 1, over-current level 2, and load short-circuit scenarios.
Q: How many boards are included in the pack?
A: You receive 10 individual BMS PCM protection boards per order — ideal for bulk DIY projects, repairs, or restocking your electronics workbench.
