10G Dual Port Network Card X540-T2 PCIe X8/X16 RJ45 for NAS & PC
10G Dual Port Network Card X540-T2 PCIe X8/X16 RJ45 for NAS & PC
OULLX X540-T2 Dual Port 10G Ethernet Network Adapter – PCIe X8/X16 RJ45
Supercharge your server, NAS, or desktop PC with blazing-fast 10 Gigabit connectivity. The OULLX X540-T2 dual-port network adapter is built on the proven Intel X540 chipset, delivering two independent RJ45 ports at up to 10Gbps each — perfect for Synology NAS, home lab servers, and high-throughput workstations that demand maximum bandwidth.
Key Specifications
- Chipset: Intel X540-AT2
- Max Transfer Rate: 10 Gbps per port
- Ports: 2 × RJ45 (supports 1G and 10G; does not support 2.5G)
- Interface: PCIe X8 (fully compatible with PCIe X16 slots)
- Installation: Internal add-on card
- Required Cable: CAT6 or higher for 10G speeds
Compatibility at a Glance
Best compatibility: ATX / MATX / EATX motherboards — newer platforms such as B150, B650, X570, X99, Z97, H410, Q370, B360 have been validated to work well.
Limited / poor compatibility: ITX motherboards and older platforms such as B75, B85, H61, H81, H67 — these may not recognise the card or may prevent the system from booting.
Not supported: macOS / Mac PCs. Linux installation requires advanced technical knowledge; please ensure you are comfortable with Linux driver management before purchasing.
Supported Operating Systems
- Windows 7 / 8 / 10 / 11 (driver installation required)
- Windows Server 2012, 2012 R2, 2016, 2019, 2022
- VMware ESXi 6.5 / 6.7 / 7.0
- Red Hat 7.6–7.9, 8.1–8.3 (64-bit)
- SUSE 12.5, 15.2, 15.3 (64-bit)
- Ubuntu Desktop 18.04 / 20.04 (64-bit)
Important Notes Before You Buy
- To achieve full 10G speeds, your network cable (CAT6+), switch/router, and broadband connection must all support 10G.

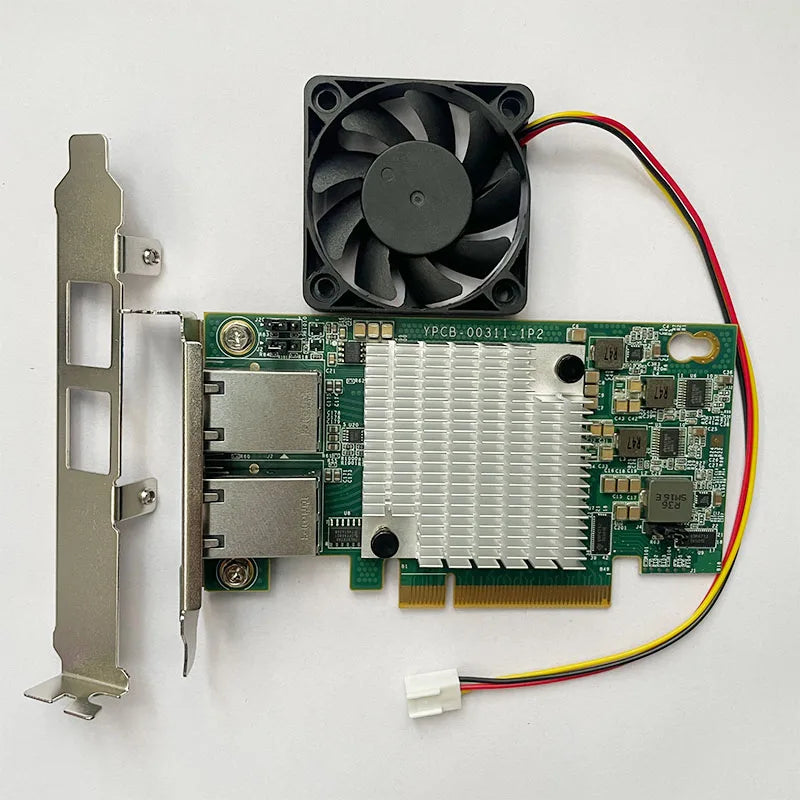

- This card runs warm under load — additional case airflow or a dedicated cooling fan is strongly recommended, especially in home desktop environments.
- After installation, download and install the appropriate driver for your OS from the official Intel support page (search "Intel X540-AT2 driver").
- Verify your motherboard's PCIE slot type before purchase. Preferably use a PCIE X8 or X16 slot managed by the platform controller hub for best results.
- Some GIGABYTE motherboards may require specific BIOS settings to recognise the card — refer to product images for guidance.
Why Choose the X540-T2?
- ✅ Two independent 10G ports for link aggregation, failover, or multi-device connectivity
- ✅ Backward-compatible with 1G networks — no need to upgrade your entire infrastructure at once
- ✅ Ideal for Synology NAS, TrueNAS, Proxmox, and virtualisation environments
- ✅ Wide OS support including Windows Server and major Linux distributions
Made in Mainland China.
Related Products You May Like
- 10-Pc Hex Nut & Bolt Extractor Kit – HIP Tools
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is the X540-T2 dual port network card compatible with Synology NAS devices?
A: Yes — the X540-T2 PCIe network adapter is widely used with Synology NAS enclosures that feature an available PCIe expansion slot. It provides two RJ45 10G ports, enabling high-speed file transfers and network-attached storage performance. Always verify your specific Synology model's expansion slot specifications before purchasing.
Q: Do I need to install drivers for this 10G Ethernet card on Windows 10 or Windows 11?
A: Yes. Windows 7, 8, 10, and 11 all require a driver to be installed after fitting the card. You can download the official Intel X540-AT2 driver from Intel's support website. The card will not function correctly without the appropriate driver for your operating system version.
Q: What type of network cable is required to achieve 10G speeds with this adapter?
A: You must use at least a CAT6 (Category 6) Ethernet cable to achieve 10 Gigabit speeds. CAT6A or CAT7 cables are recommended for longer cable runs. Note that the card supports 1G and 10G only — it does not support 2.5G or 5G intermediate speeds.
Q: Does this PCIe network card fit in an X16 slot even though it is designed for X8?
A: Yes. The X540-T2 is designed for a PCIe X8 slot but is physically and electrically compatible with a PCIe X16 slot. It will operate correctly in either slot type, making it easy to install in most ATX, MATX, and EATX desktop motherboards.
