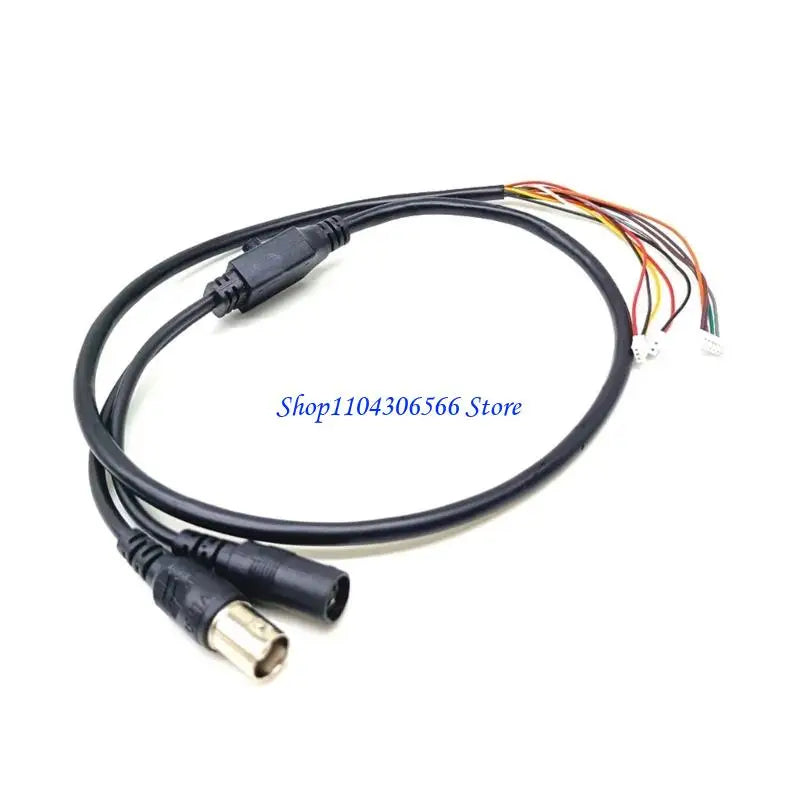

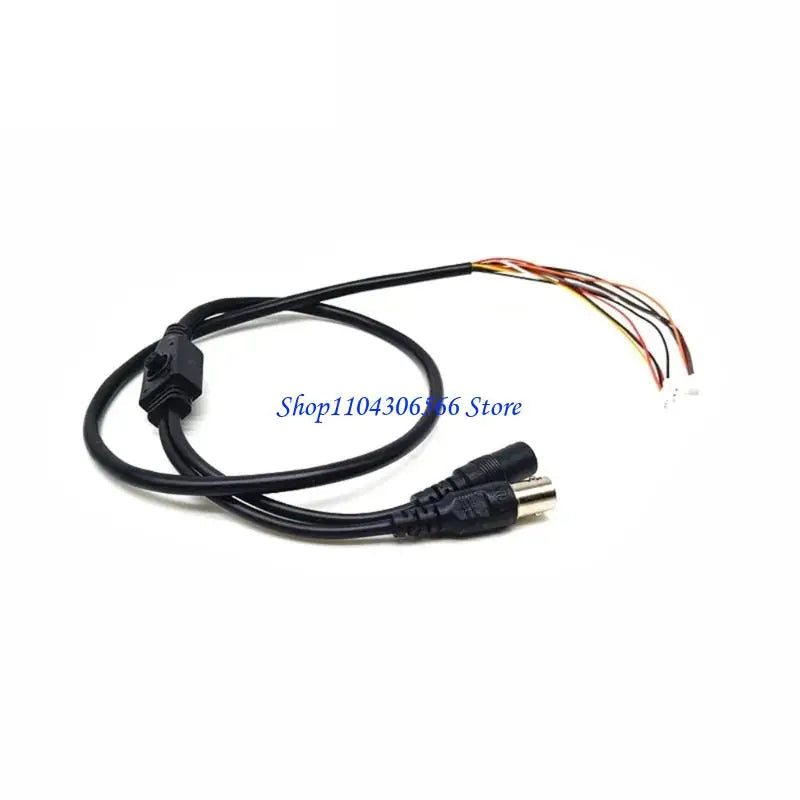

11-Pin OSD Menu Button Cable for CCTV Camera Boards
Upgrade your security camera setup with this versatile 11-core OSD menu button cable. Designed for CCTV camera boards, it combines power input, BNC video output, and OSD (On-Screen Display) control into one tidy, flexible cable — making wiring cleaner and installation faster for security technicians, installers, and DIY enthusiasts alike.
Key Features
- 3-in-1 connectivity: Integrates power input, BNC video output, and OSD button control in a single 11-core cable

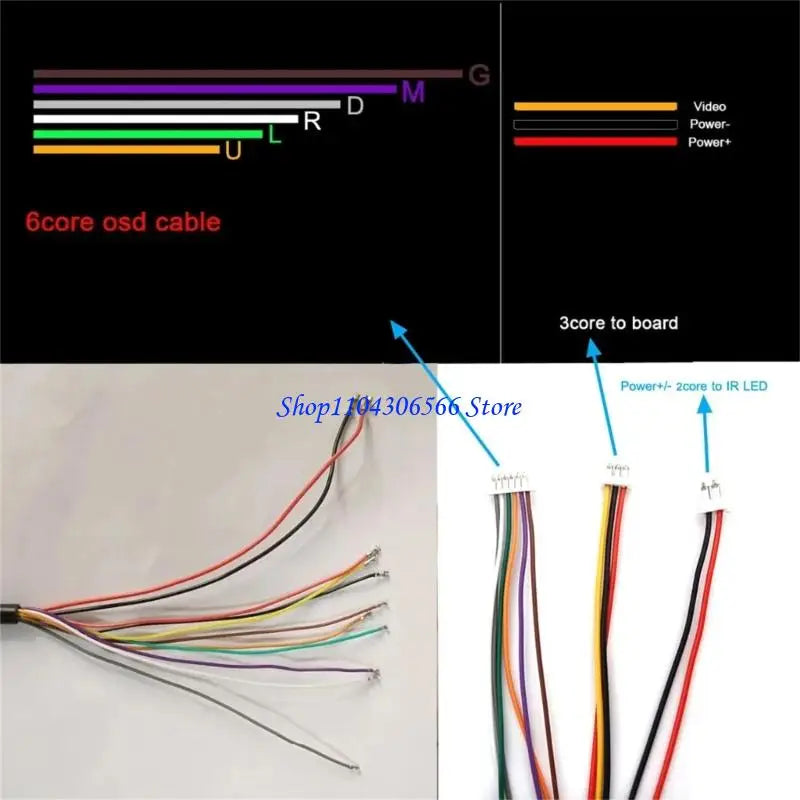

- Multi-connector design: Includes 6-pin (1.25mm pitch), 3-pin (1.5mm pitch default), and 2-pin (2.0mm pitch) connectors for broad camera board compatibility
- Flexible & durable construction: Made from plastic and flexible materials, allowing easy bending and routing through tight spaces
- Waterproof protection: Built to handle demanding indoor and outdoor surveillance environments
- Customizable pin sequencing: Arrange pin order to match your specific camera module's requirements for optimal performance

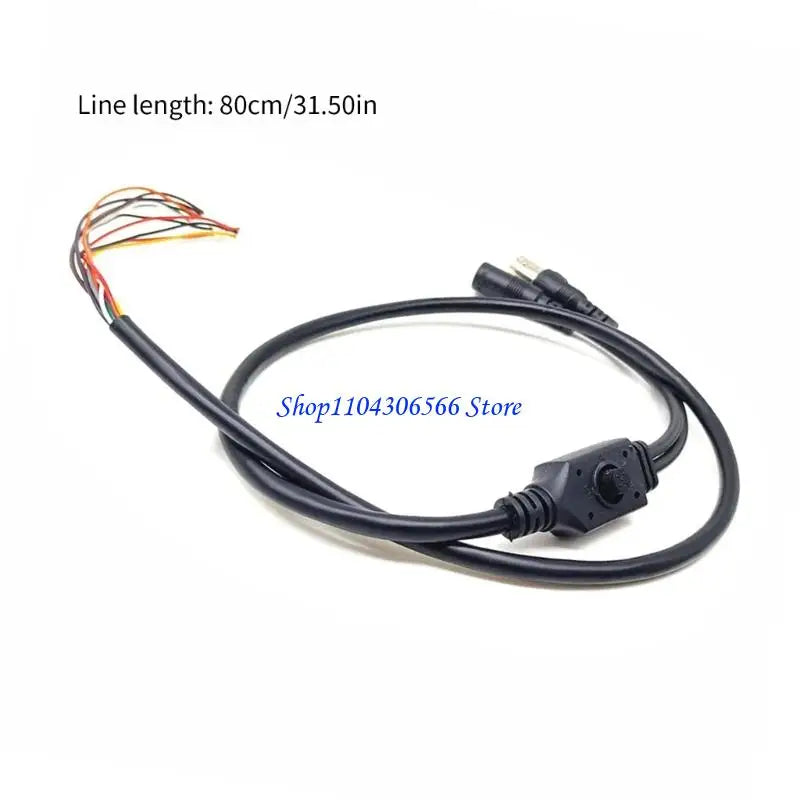

- 80cm cord length: Generous length for versatile placement and routing within camera housings or enclosures
- No assembly required: Ready to connect straight out of the package
Specifications
- Material: Plastic & flexible cable
- Color: Black
- Cord Length: 80cm (~31.5 inches)
- Connectors: 6-pin (1.25mm), 3-pin (1.5mm), 2-pin (2.0mm)
- Cores: 11
- Quantity: 1 PC (Split Type optional)
- Model Number: 02DD13AC1204053
- Made in Mainland China
What's in the Box
- 1 × 11-Core OSD Menu Button Cable
Ideal For
- CCTV camera board installations
- Commercial and residential surveillance systems
- Security technicians and system installers
- DIY home security projects
- Public area monitoring setups
Looking for more tools and accessories for your projects? Check out our 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel or our 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle for your workshop needs.
Note: Please allow 0–1cm variance due to manual measurement. Colors may vary slightly depending on your monitor's display settings.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What camera boards is this 11-pin OSD cable compatible with?
A: This OSD menu button cable is designed to work with a wide range of CCTV camera boards that use standard 6-pin (1.25mm), 3-pin (1.5mm), and 2-pin (2.0mm) connectors. It is compatible with most common security camera module boards that require OSD control, BNC video output, and power input. Always verify your camera board's connector specifications before purchasing.
Q: Can I customize the pin sequence on this cable?
A: Yes. The cable supports customizable pin sequencing, allowing you to arrange the pin order to match the specific requirements of your camera module for optimal signal and power performance.
Q: Is this cable suitable for outdoor CCTV installations?
A: The cable features waterproof protection and is constructed from flexible, durable materials, making it suitable for use in both indoor and outdoor surveillance environments. Ensure connectors are properly sealed when used outdoors for best results.
Q: What is the total length of the OSD cable?
A: The cord length is 80cm (approximately 31.5 inches), providing ample reach for routing within camera housings, junction boxes, or enclosures.
