12V 20Ah LiFePO4 Deep Cycle Battery with BMS & Display
12V 20Ah LiFePO4 Deep Cycle Battery with BMS & Display

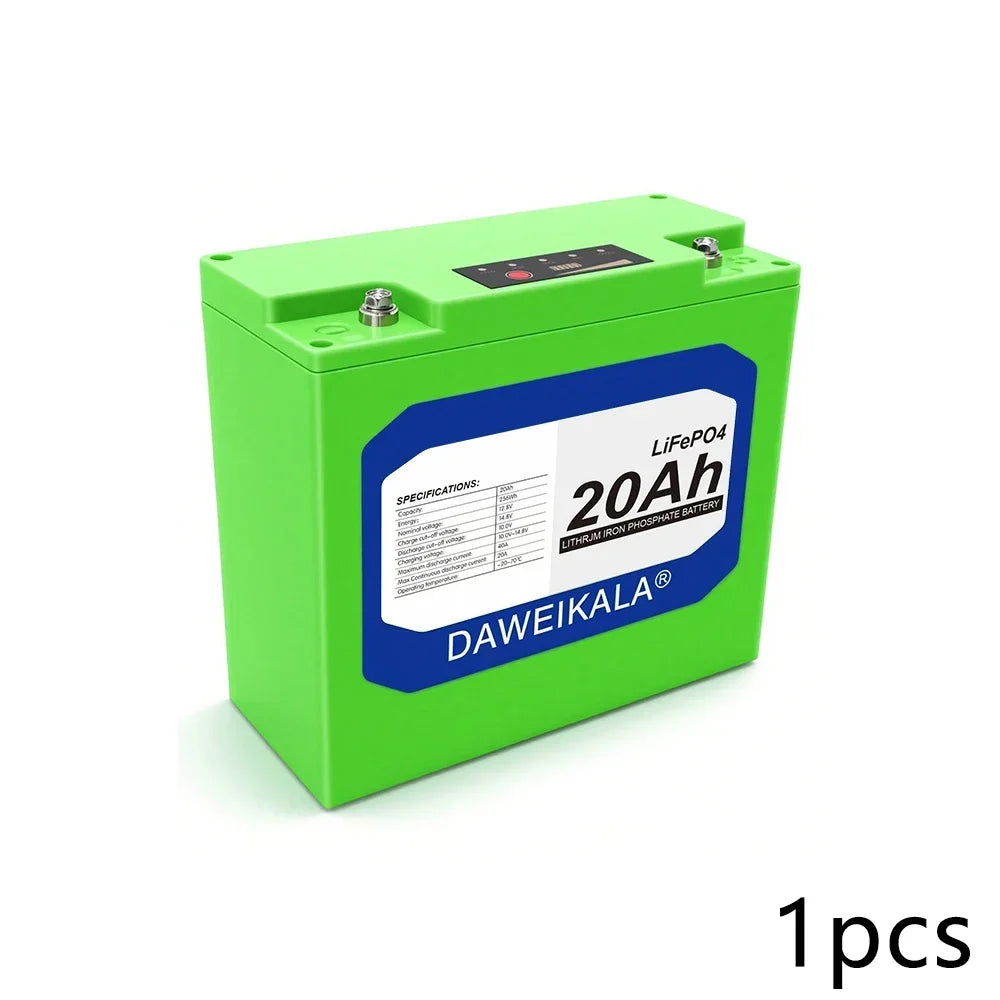

DAWEIKALA 12V 20Ah LiFePO4 Deep Cycle Battery
Power your adventures with the DAWEIKALA 12V 20Ah LiFePO4 Lithium Battery — a high-performance, deep-cycle power solution built for demanding applications. Featuring a built-in 30A Battery Management System (BMS) and a convenient LED power display, this battery delivers stable, long-lasting energy for fish finders, power wheels, marine lighting, solar storage, and more.
Made in Mainland China.
Why Choose This LiFePO4 Battery?
- 4000+ Charge Cycles: Exceptional longevity — up to 4,000 cycles at 0.2C, far outlasting traditional lead-acid batteries.
- Built-in 30A BMS: Intelligent Battery Management System protects against overcharge, over-discharge, over-current, and short circuit.

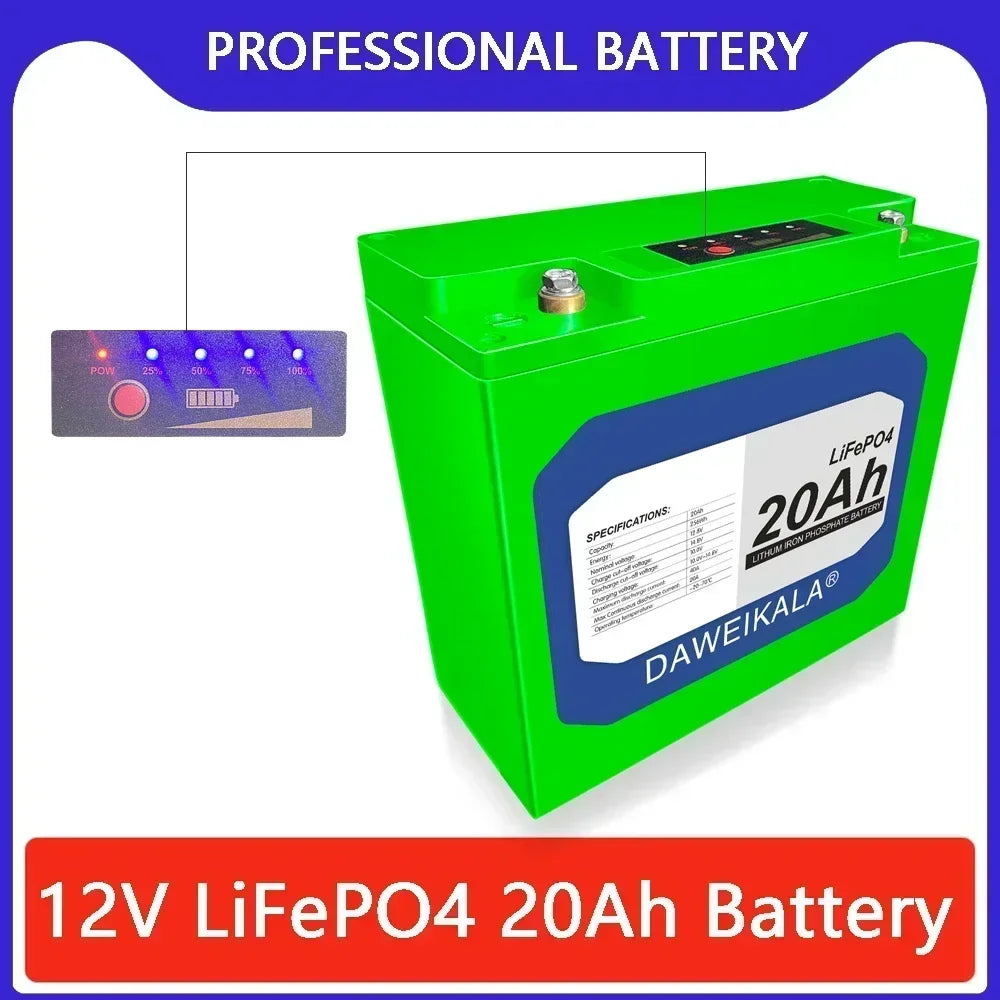

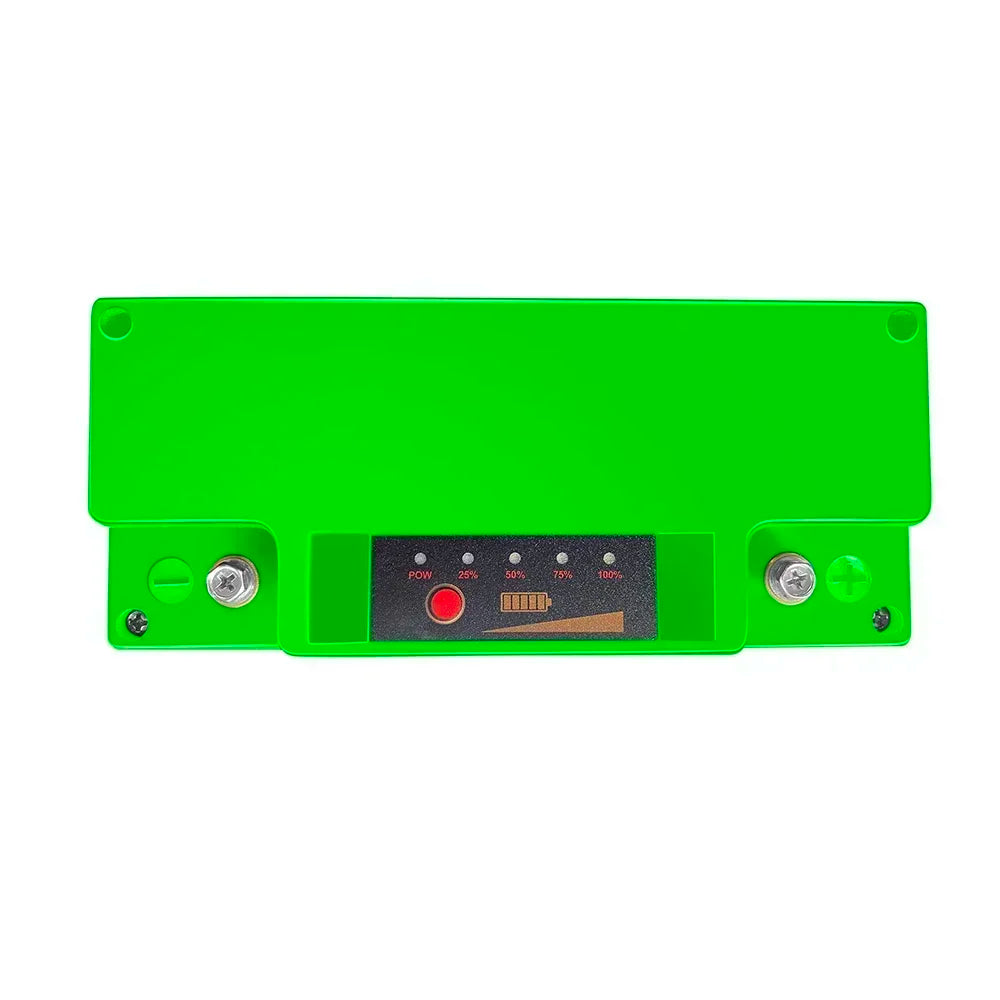

- LED Power Display: Instantly check remaining battery capacity at a glance — no guesswork required.
- Lightweight & Compact: Weighing only ~1.65 kg with a compact 150mm × 80mm × 170mm footprint, it fits in tight spaces with ease.
- Wide Temperature Range: Discharges reliably from -20°C to 60°C (-4°F to 140°F) — dependable in all seasons.
- IP5 Water & Dust Resistance: Durable ABS casing offers protection against moisture and dust for outdoor and marine use.
- Certified Safe: CE, FCC, RoHS, UL, and KC certified for your peace of mind.
Full Technical Specifications
| Nominal Voltage | 12.8V |
| Nominal Capacity | 20Ah (0.2C) |
| Energy | 256Wh |
| Built-in BMS | 4S / 20A |
| Cycle Life | >4,000 cycles at 0.2C |
| Charge Voltage | 14.6 ± 0.2V |
| Suggested Charge Current | 0.5C (10A) |
| Max Discharge / Charge Current | 20A |
| Max Pulse Current | 40A (<3 seconds) |
| Discharge Cut-off Voltage | 10.0V |
| Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | 0°C to 45°C (32°F to 113°F) |
| Water & Dust Resistance | IP5 |
| Case Material | ABS |
| Dimensions (L×W×H) | 150mm × 80mm × 170mm |
| Weight | Approx. 1.65 kg |
| Certifications | CE, FCC, RoHS, UL, KC |
Ideal Applications
- Fish Finders & Marine Electronics
- Power Wheels & Ride-on Vehicles
- RV & Camping Power Supply
- Solar Energy Storage Systems
- Trolling Motors & Marine Boats
- Outdoor Lighting Systems
- Electric Bicycles
Related Products You May Like
Explore more tools and gadgets from our store:
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What is a LiFePO4 battery and why is it better than lead-acid for deep cycle use?
A: LiFePO4 (Lithium Iron Phosphate) batteries offer a far superior cycle life (4,000+ cycles vs. ~300–500 for lead-acid), are significantly lighter, charge faster, and maintain a more consistent voltage throughout discharge. This makes them ideal for deep cycle applications like fish finders, solar storage, and marine electronics.
Q: What does the built-in BMS do?
A: The Battery Management System (BMS) continuously monitors and protects the battery from overcharging, over-discharging, over-current draw, and short circuits — extending battery life and keeping your devices safe.
Q: What charger should I use with this 12V 20Ah LiFePO4 battery?
A: You should use a LiFePO4-compatible charger with a charge voltage of 14.6V (±0.2V) and a suggested charge current of 10A (0.5C). Standard lead-acid chargers are not recommended, as they may not terminate charging correctly for lithium chemistry.
Q: Is this battery suitable for outdoor and marine environments?
A: Yes! The battery features an IP5-rated ABS casing that provides resistance against water splashes and dust, making it well-suited for marine, fishing, and outdoor applications. It also performs reliably in a wide discharge temperature range from -20°C to 60°C.
Q: How do I read the LED power display?
A: The integrated LED power display shows the remaining charge level of the battery at a glance — simply press the indicator button (if equipped) or check the display during use to monitor your available capacity without needing any external tools.
