12V 24V LED Mirror Touch Dimmer Switch – CCT Adjustable
12V 24V LED Mirror Touch Dimmer Switch – CCT Adjustable

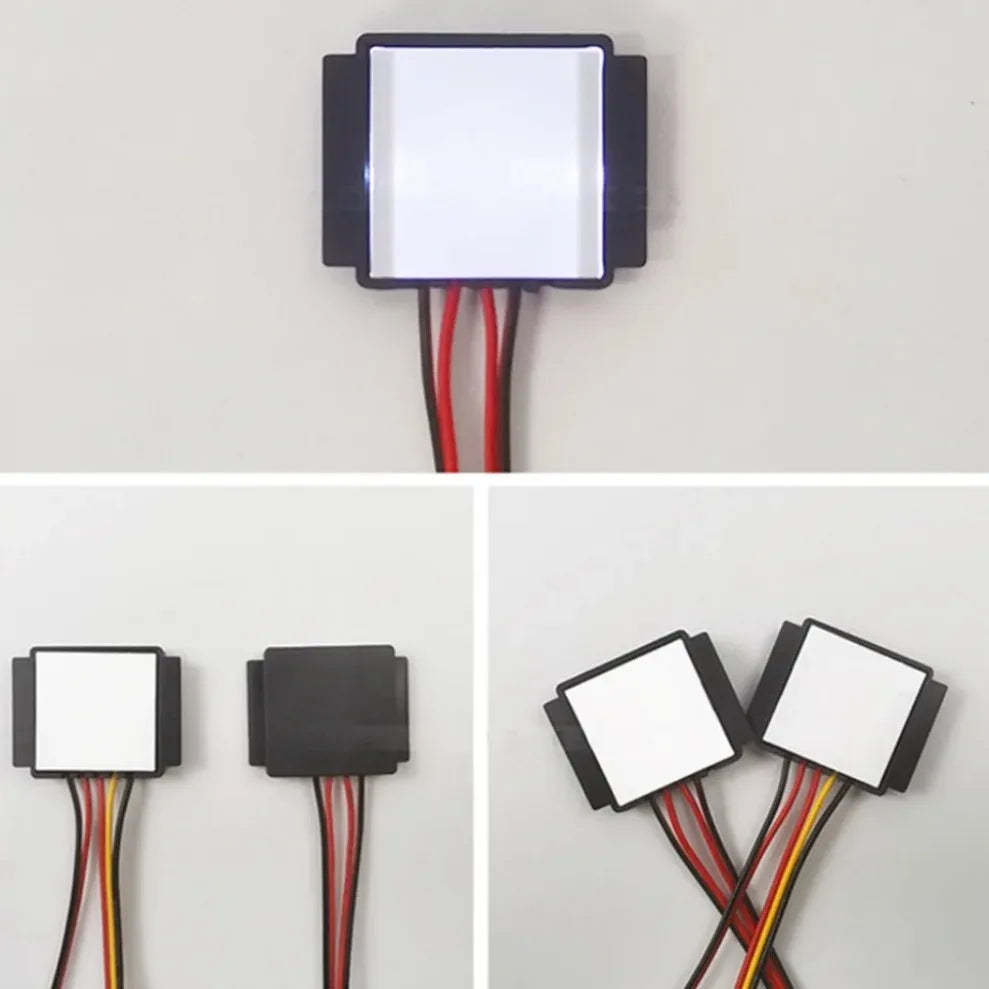

12V/24V Capacitive Touch LED Dimmer Switch for Bathroom Mirrors
Upgrade your bathroom or vanity mirror with this sleek capacitive touch sensor switch. Designed specifically for LED mirror lighting, this compact module mounts invisibly behind glass, plastic, or ceramic surfaces — no visible hardware, just a seamless touch-activated experience. Adjust brightness from 10% to 100% and toggle between warm, cool, or dual-color light modes with a simple tap.
Key Features
- Capacitive Touch Sensing: Responds to touch through surfaces up to 3–5mm thick — works through glass, acrylic, and ceramic mirror panels.
- Infinite Dimming: Smoothly step through 10%, 50%, and 100% brightness levels to suit any task — from bright task lighting to a soft ambient glow.
- Dual-Color (CCT) Control: Switch between warm white, cool white, and mixed tones (dual-color models only).
- Wide Voltage Compatibility: Operates on DC 12V–24V, making it compatible with most LED mirror driver systems.
- Long Service Life: Rated for up to 300,000 switching cycles and 2,000,000 mechanical operations.
- Compact & Discreet: Measures just 43 × 34 × 8mm — mounts neatly behind the mirror surface, completely out of sight.
- Safe Materials: PP flame-retardant shell with copper conductive contacts; IP20 protection rating.
Specifications
| Working Voltage | DC 12V – 24V |
| Switching Current | 3A |
| Max Load Power | ≤ 60W |

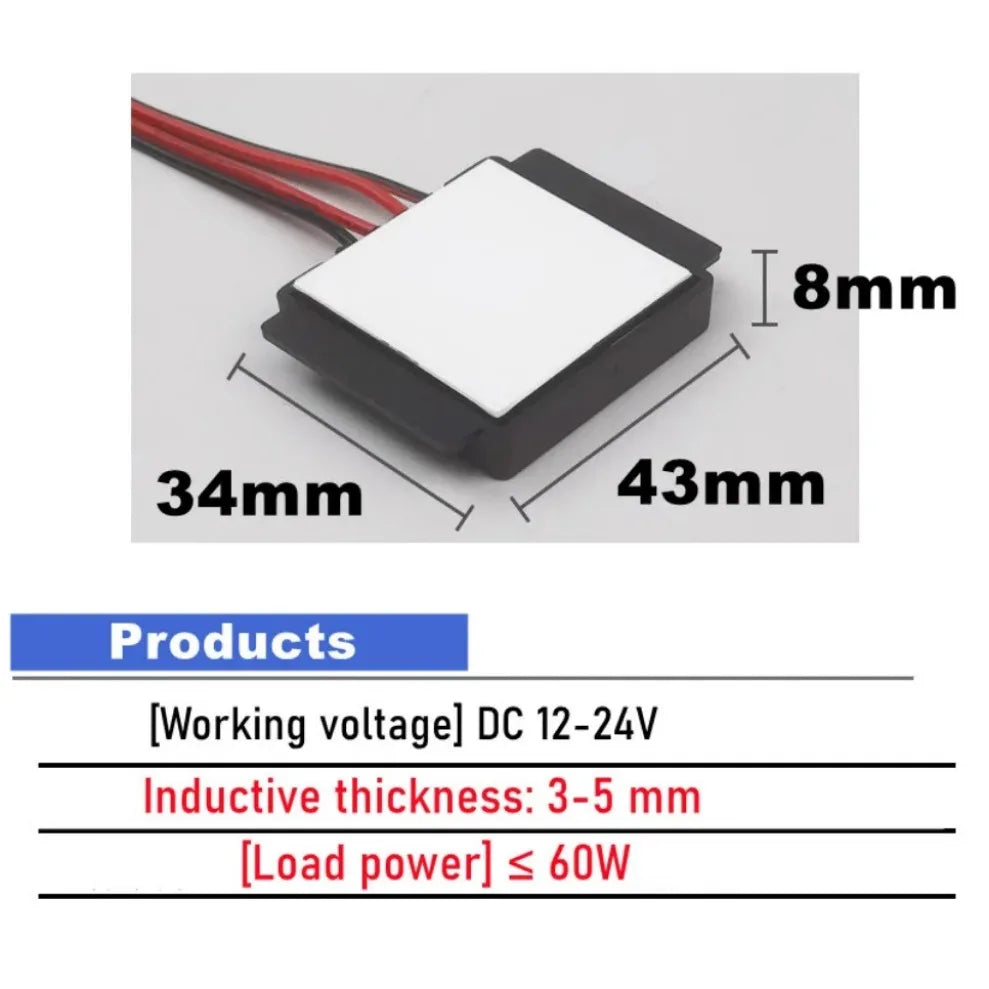

| Switch Size | 43 × 34 × 8mm |
| Inductive Thickness | 3–5mm |
| Sensing Method | Capacitive Touch |
| Shell Material | PP Flame Retardant |
| Conductive Material | Copper |
| Line Length | ~140mm |
| Protection Rating | IP20 |
| Electrical Life | 300,000 cycles |
| Mechanical Life | 2,000,000 operations |
| Country of Origin | Made in China |

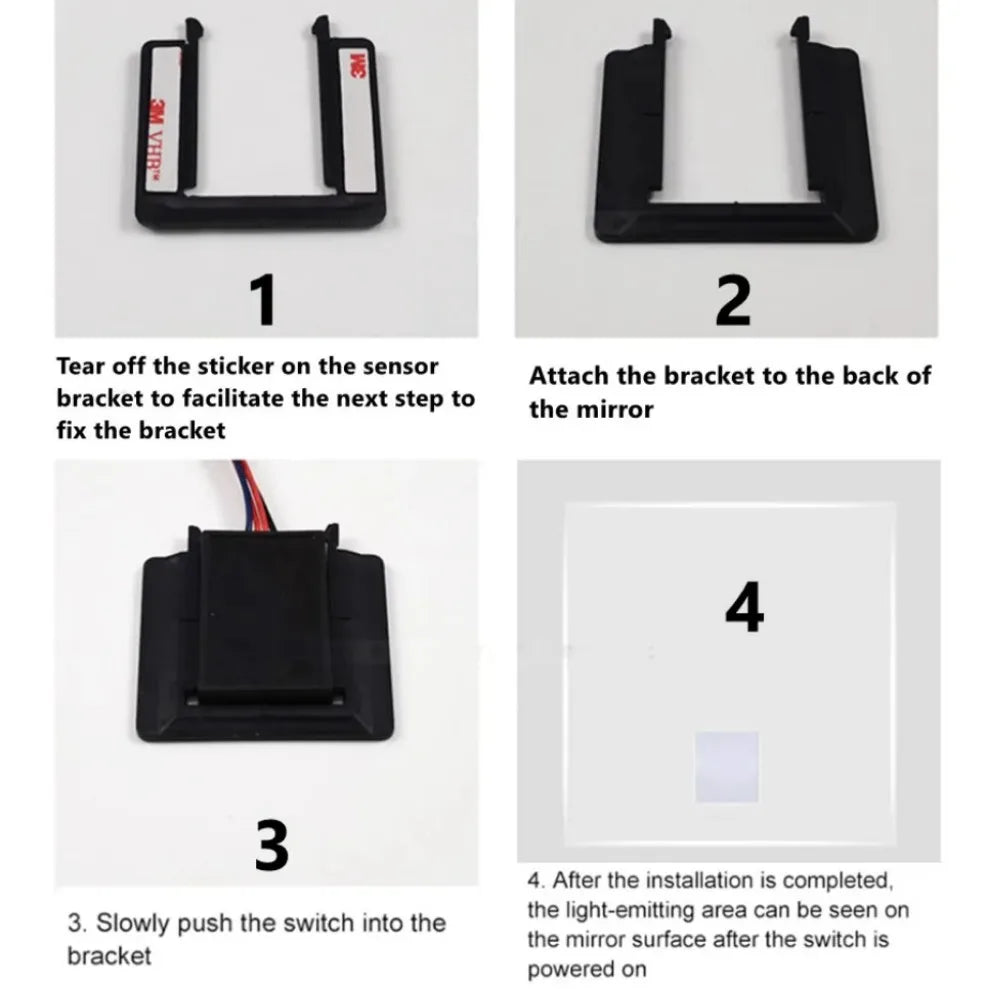

How to Install
- Peel the adhesive backing from the touch switch module.
- Align the module with the switch indicator mark on the back of your mirror.
- Press firmly to adhere and connect the wiring to your DC power supply.
- Touch the marked area on the mirror surface to control on/off and brightness.

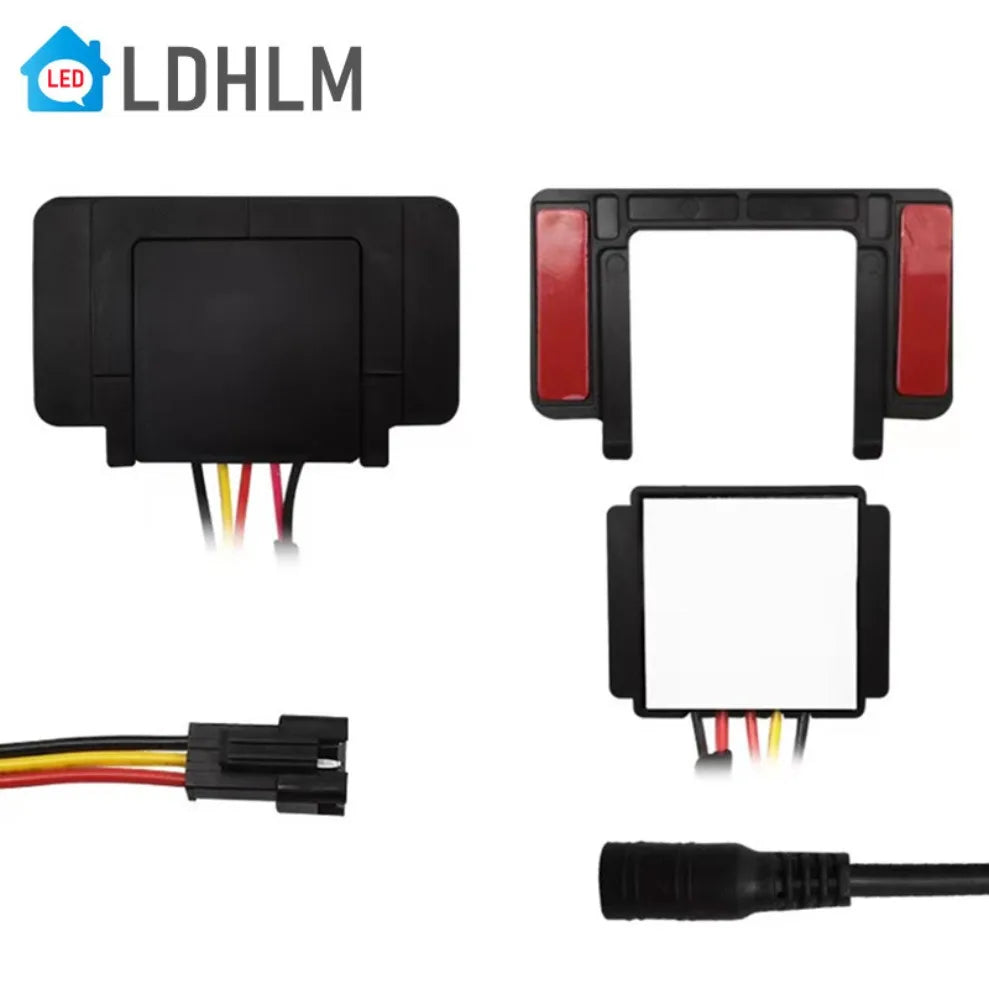

What's in the Box

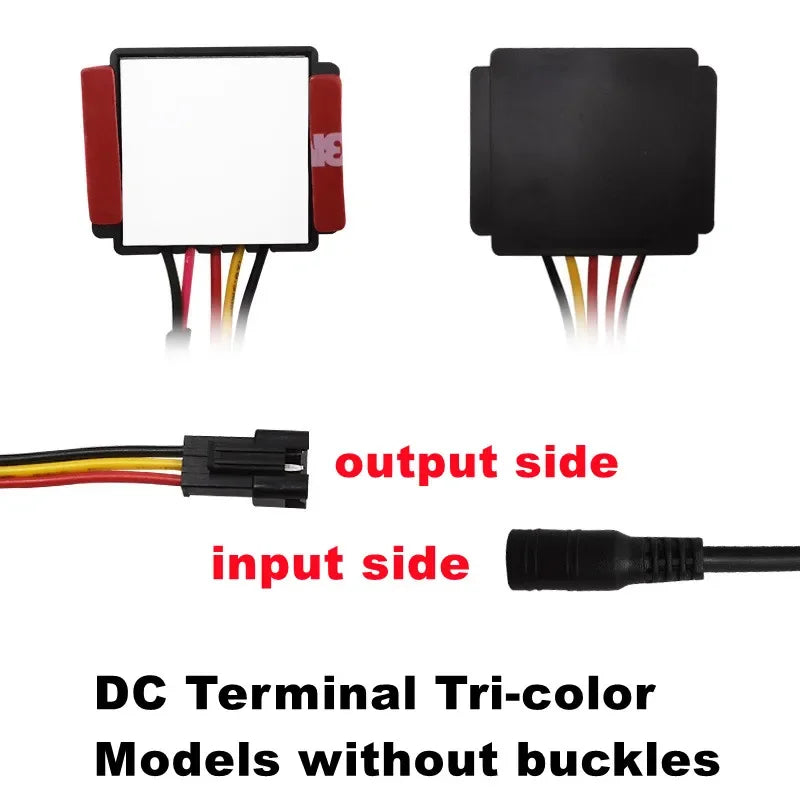

- Touch Switch Module × 1
- Mounting Buckle × 1 (buckle package variant)
You May Also Like
- "Enjoy Life" Floral Non-Slip Doormat – Entryway & Bath Mat
- 1-to-2 USB Splitter Hub – Compact Charging Adapter
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What surfaces is this LED mirror touch switch compatible with?
A: This capacitive touch sensor switch is designed to work through non-metallic surfaces including glass, plastic (acrylic), and ceramic up to 3–5mm thick. It is ideal for bathroom mirrors, vanity mirrors, and LED-backlit decorative mirrors.
Q: Does this switch support color temperature adjustment?
A: Yes — the dual-color (CCT) model supports switching between warm white, cool white, and a blended tone. The single-color model supports infinite dimming (10%, 50%, 100%) only. Please select the correct variant for your LED strip type.
Q: Can I use this switch with 24V LED systems?
A: Absolutely. This switch is rated for DC 12V to 24V, so it is fully compatible with both 12V and 24V low-voltage LED drivers commonly used in mirror lighting setups.
Q: How is the touch switch installed — does it require wiring expertise?

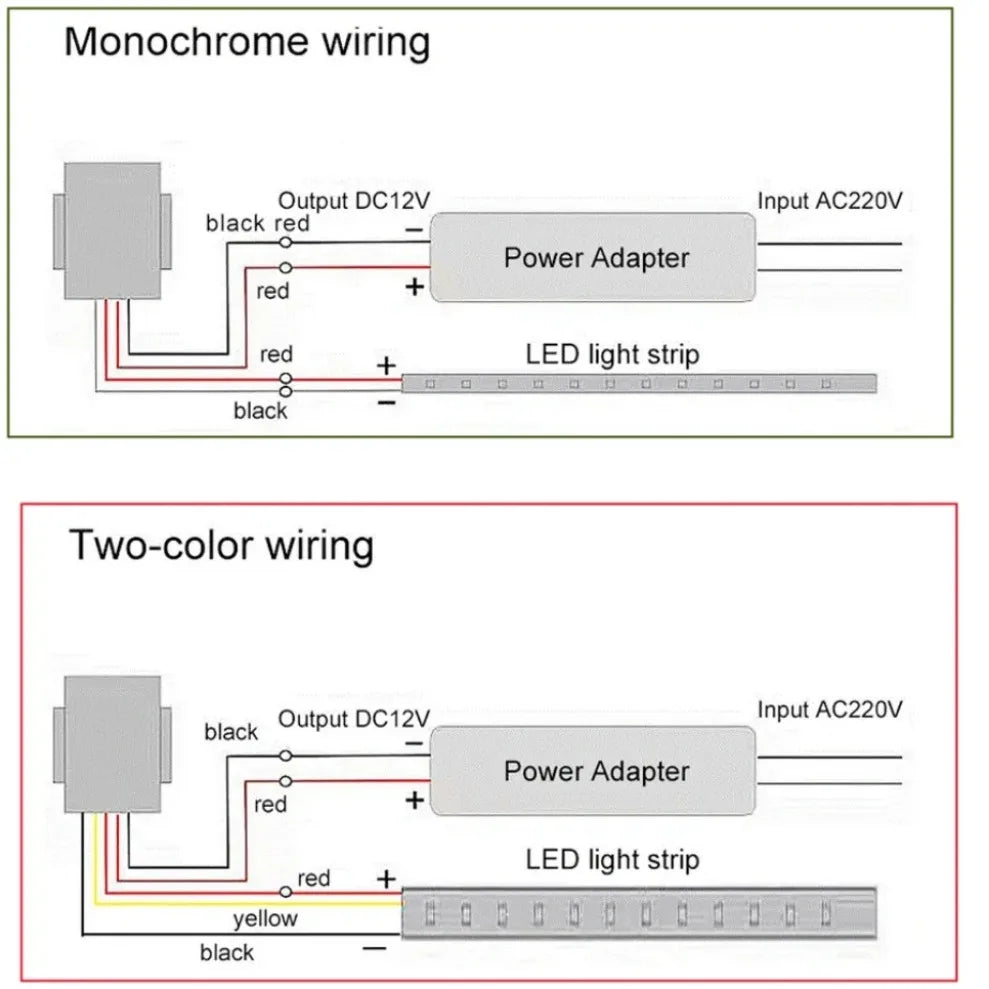

A: Installation is straightforward. Simply peel the adhesive backing, stick the module to the back of the mirror at the marked switch position, and connect the wires to your DC power supply using the universal wiring method. No complex electrical work is required for standard mirror lighting setups.
