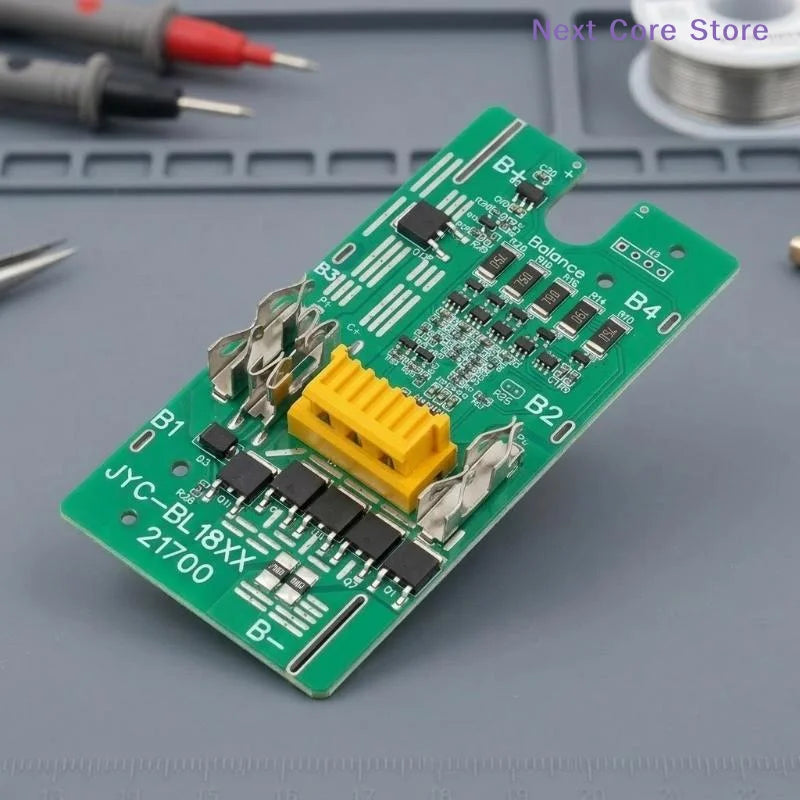

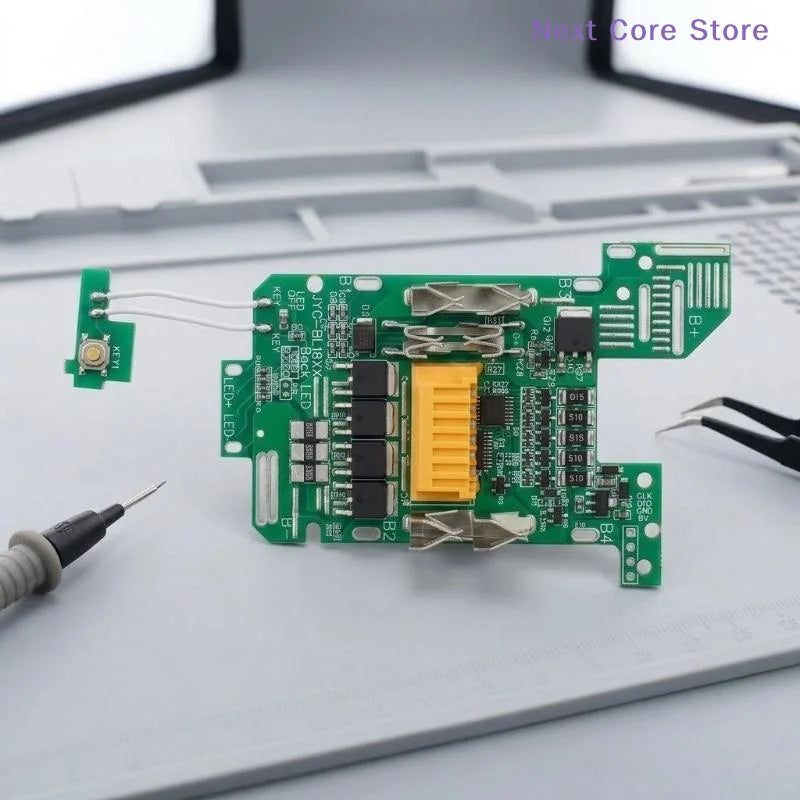

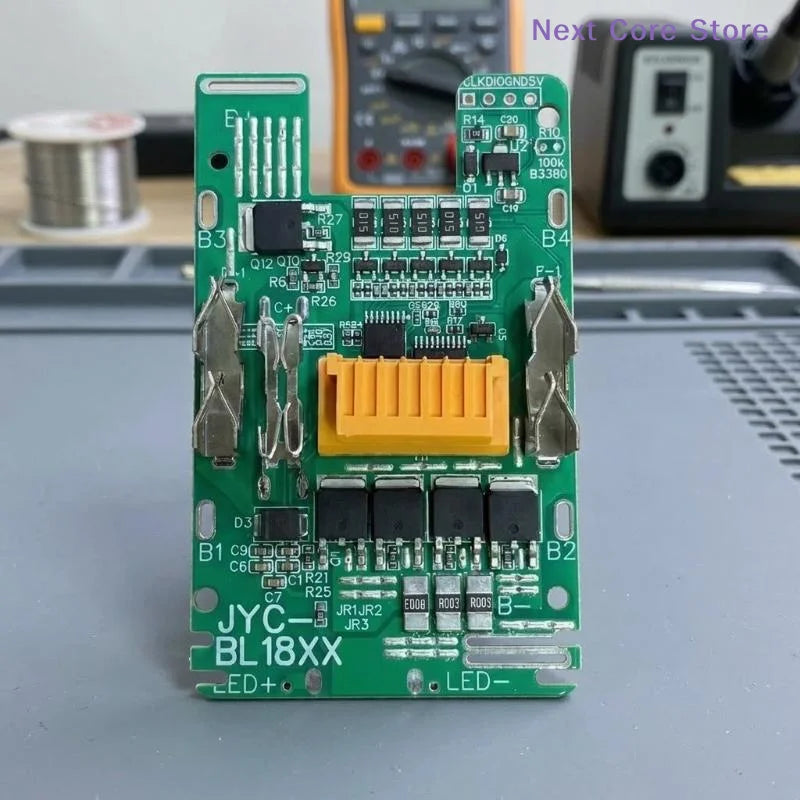

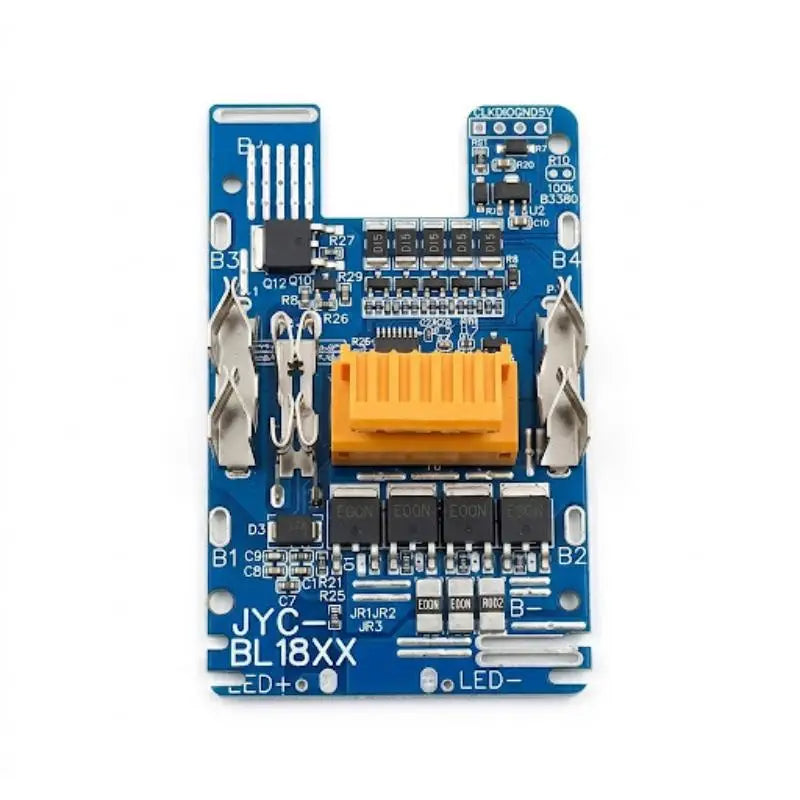

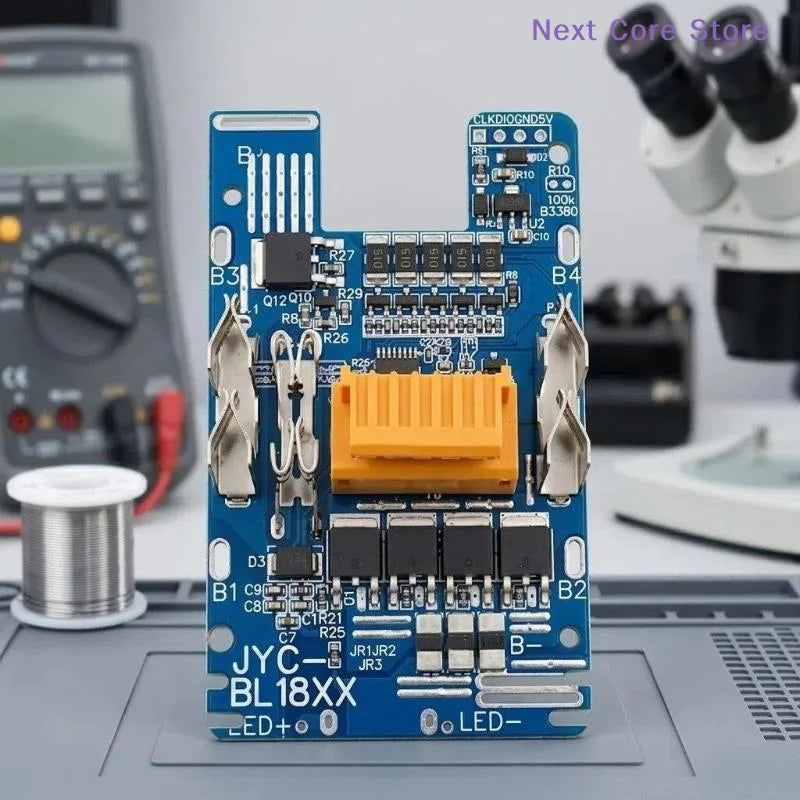

18V Li-Ion BMS Protection Circuit Board for BL1830 / BL1860 / BL1890 Battery Packs
Keep your 18V lithium-ion power tool battery packs running at peak performance with this precision-engineered Battery Management System (BMS) PCBA. Designed as a direct-fit replacement circuit board for compatible BL1830, BL1860, and BL1890 battery cases, this board delivers intelligent balance charging and multi-layer electronic protection in a compact, easy-to-install form factor.
Made in Mainland China.
Key Features
- Multi-Layer Protection: Built-in safeguards against overcharge, over-discharge, short circuit, overload, and overheating automatically cut power under unsafe conditions — helping extend overall battery longevity.
- Balanced Cell Charging: The active balance charging circuit distributes charge evenly across all cells, maximizing capacity and ensuring consistent, stable output from your battery pack.
- Stable Long-Term Performance: Engineered for reliable, uninterrupted operation so your power tools maintain consistent performance without unexpected power interruptions.
- Energy-Efficient Design: An integrated power management system minimizes unnecessary energy draw, helping your battery run longer between charges.
- Compact & Lightweight: Slim-profile PCB design adds no meaningful bulk or weight to your existing battery case — drop-in installation with no modifications required.
- Great Value: Professional-grade battery protection and management at an accessible price point — an economical upgrade for DIYers and power tool enthusiasts alike.
Specifications
| Compatible Battery Voltage | 18V Li-Ion |
| Compatible Models | BL1830, BL1860, BL1890 battery cases |
| Board Type | BMS PCBA (Balance Charging Circuit) |
| Material | Plastic / PCB |
| Package Contents | 1 × BMS Protection Circuit Board |
| Battery Included | No |
| Charger Included | No |
What's in the Box?
- 1 × BMS PCBA Circuit Board
Note: Screen color calibration and lighting conditions may cause slight color variation from product images. Minor dimensional tolerances of ±1–2mm may apply due to manual measurement.
You May Also Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Which battery models is this BMS circuit board compatible with?
A: This BMS PCBA is designed to fit 18V lithium-ion battery cases compatible with the BL1830, BL1860, and BL1890 battery pack form factors. Always verify your battery case dimensions and connector layout before installation.
Q: Does this board come with batteries or a charger?
A: No — this listing includes only the BMS PCBA circuit board (1 piece). Batteries and chargers are sold separately.
Q: What protections does the BMS board provide?
A: The board includes built-in electronic protection against overcharge, over-discharge, short circuits, overload conditions, and overheating — automatically interrupting the circuit when any unsafe condition is detected to help safeguard your battery cells.
Q: Is this circuit board difficult to install?
A: The compact, slim-profile board is designed for straightforward installation inside compatible 18V battery cases. Basic electronics knowledge and soldering skills are recommended for best results.
