18W/mK M.2 Silicone Thermal Pad – Non-Conductive SSD Cooler
18W/mK M.2 Silicone Thermal Pad – Non-Conductive SSD Cooler
18W/mK Silicone M.2 Thermal Pad – High-Performance Heat Dissipation
Keep your laptop, SSD, CPU, and LED components running cool and efficiently with this professional-grade 18W/mK Silicone Thermal Pad. Engineered from a unique Nano Silicon Grease material, it delivers exceptional thermal conductivity and electrical insulation — making it the ideal heat transfer solution for M.2 2280 SSDs, CPUs, heatsinks, and other high-output electronic components.
Made in Mainland China.
Key Features
- High Thermal Conductivity: 18W/mK coefficient ensures rapid and efficient heat transfer away from sensitive chips and components.
- Non-Conductive & Safe: Breakdown voltage of 9.8KV — fully electrically insulating so there's zero risk of shorts.
- Nano Silicon Grease Material: Specially formulated for superior thermal diffusion performance on high-heat electronic parts.
- Soft & Flexible: Low Shore hardness (55 ± 5) and excellent ductility allow the pad to conform perfectly to uneven SSD and heatsink surfaces.
- Low Viscosity: Won't damage warranty labels or leave sticky residue — easy to install and remove.
- Wide Temperature Range: Operates reliably from -40°C to 200°C for extreme-use environments.
- Durable Construction: Corrosion resistant, tear resistant, extendable, and non-toxic.
- Multiple Thickness Options: Available in 0.5 / 1.0 / 1.5 / 2.0 / 2.5 / 3.0mm to suit various build requirements.
Technical Specifications

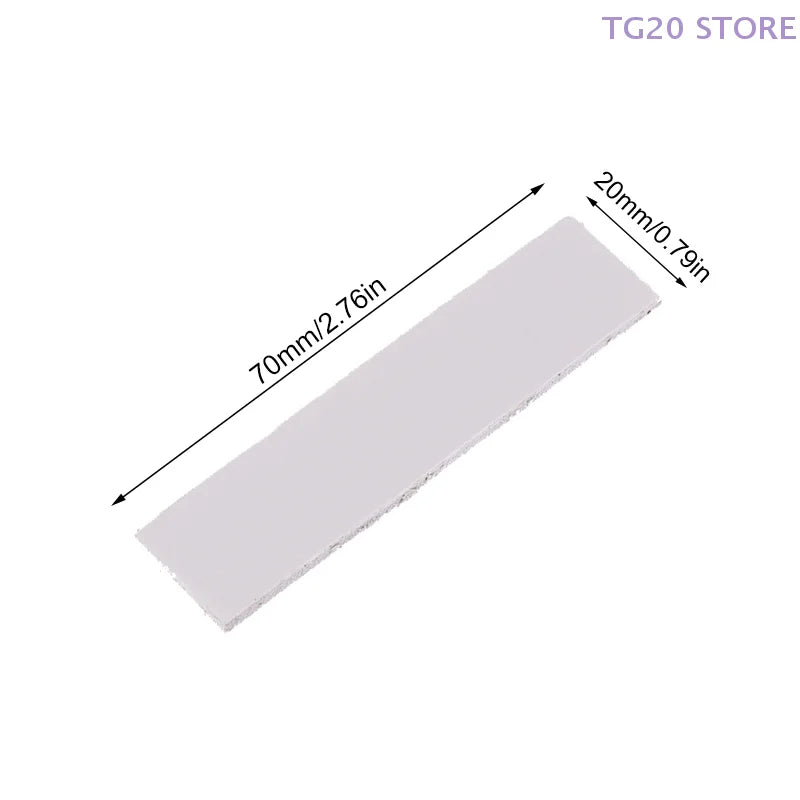

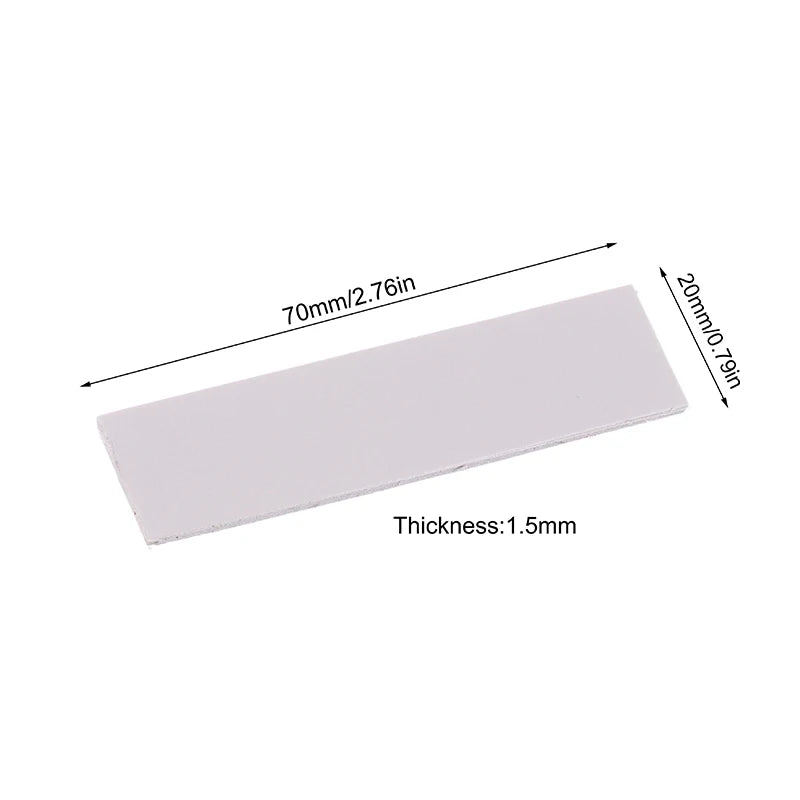

| Dimensions | 70 x 20mm (fits M.2 2280 SSD heatsinks) |
| Thermal Conductivity | 18 W/mK |
| Working Temperature | -40°C to 200°C |
| Density | 3.2 g/cc |
| Thickness Options | 0.5 / 1.0 / 1.5 / 2.0 / 2.5 / 3.0mm |
| Shore Hardness | 55 ± 5 |
| Breakdown Voltage | 9.8KV |
| Tensile Strength | 15 |
| Composition | High thermal conductive powder + silicone |
How to Use
- Select the correct thickness for your heatsink gap.
- Peel the protective film from both sides of the thermal pad.
- Place the pad between the M.2 SSD and the heatsink.
- Secure the heatsink as normal — no mess, no residue.
What's in the Box
- 1 × M.2 Silicone Thermal Pad (70 x 20mm)
You May Also Like
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What size M.2 SSD is this thermal pad compatible with?
A: This 70 x 20mm silicone thermal pad is specifically designed to fit M.2 2280 SSD heatsinks (22 x 80mm form factor), making it ideal for most standard M.2 SSDs used in laptops and desktop builds.
Q: Is this thermal pad electrically safe to use near circuit boards?
A: Yes. This pad is fully non-conductive with a breakdown voltage of 9.8KV, meaning it provides excellent electrical insulation and poses no risk of short circuits on your motherboard or SSD.
Q: What thickness should I choose for my build?
A: The correct thickness depends on the gap between your M.2 SSD and the heatsink. Common gaps are 1.0mm or 1.5mm. We recommend measuring the gap before ordering. Available options include 0.5, 1.0, 1.5, 2.0, 2.5, and 3.0mm.
Q: Will this thermal pad damage my SSD's warranty sticker?
A: No. The low-viscosity formulation ensures the pad does not bond aggressively to the SSD surface, so it can be removed without tearing or damaging warranty labels.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
