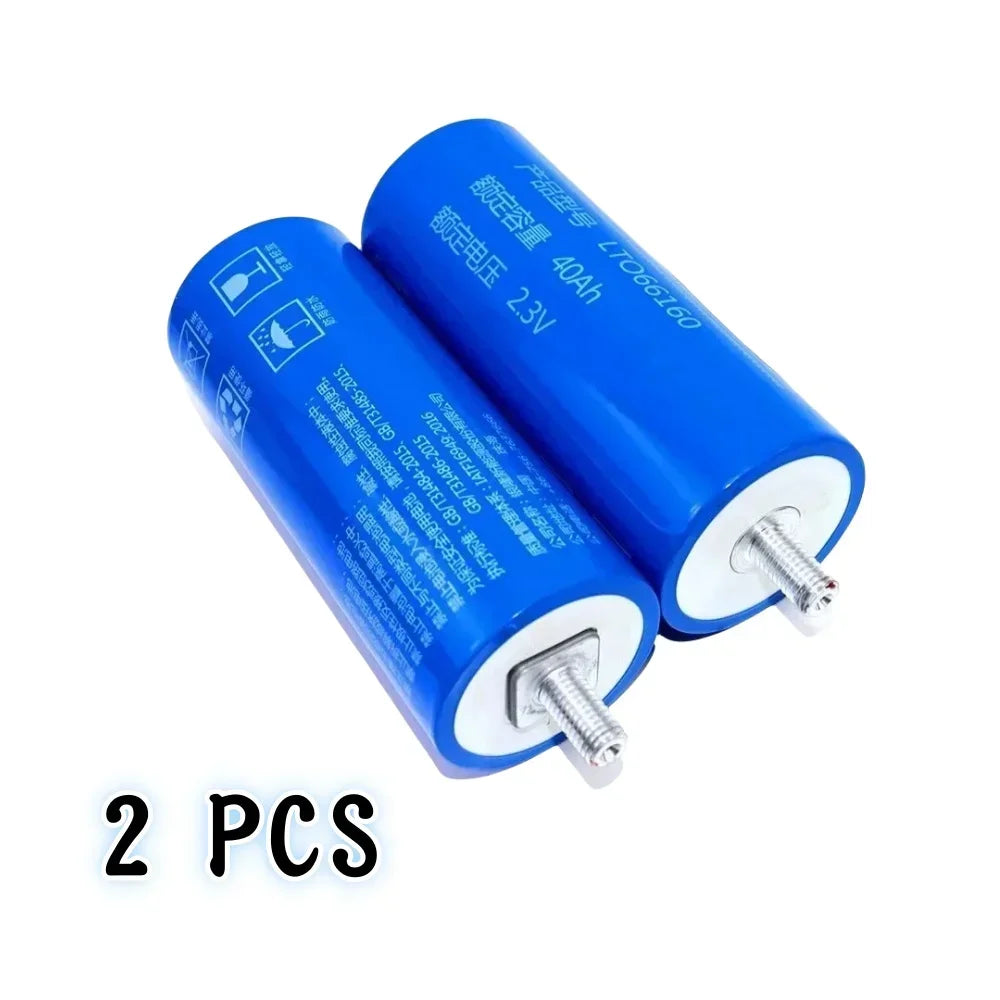

2.3V 40Ah LTO Lithium Titanate Battery Cell – Yinglong 66160
2.3V 40Ah LTO Lithium Titanate Battery Cell – Yinglong 66160
2.3V 40Ah LTO Lithium Titanate Battery Cell – Yinglong 66160
Power your car audio system, solar energy setup, electric vehicle, or DIY battery pack with the Yinglong 66160 LTO (Lithium Titanate) 2.3V 40Ah Battery Cell. Engineered for extreme durability and high-rate discharge, this CE-certified LTO cell delivers outstanding performance across a massive temperature range — making it one of the most versatile and long-lasting battery technologies available today.
Made in Mainland China.
Why Choose LTO (Lithium Titanate) Technology?
- Ultra-Long Cycle Life: 20,000+ charge/discharge cycles — outlasting conventional lithium-ion cells many times over.
- Extreme Temperature Range: Charges from -40°C to 45°C and discharges from -40°C to 60°C — reliable in harsh cold or heat.
- High-Rate Discharge: Continuous 5C (200A) discharge; peak 15C (600A) max — ideal for high-demand applications.
- Fast Charging: Standard 10A charge; fast charge up to 30A per cell.
- Low Internal Resistance: Under 3 mΩ, ensuring efficient energy transfer and minimal heat generation.
- Safe Chemistry: No high-concern chemicals — CE certified for safety and compliance.
Full Battery Specifications
| Battery Type | LTO (Lithium Titanate / LiTiO) |
| Model Number | LTO66160 / Yinglong 66160 |
| Nominal Capacity | 40Ah |
| Nominal Voltage | 2.3V |

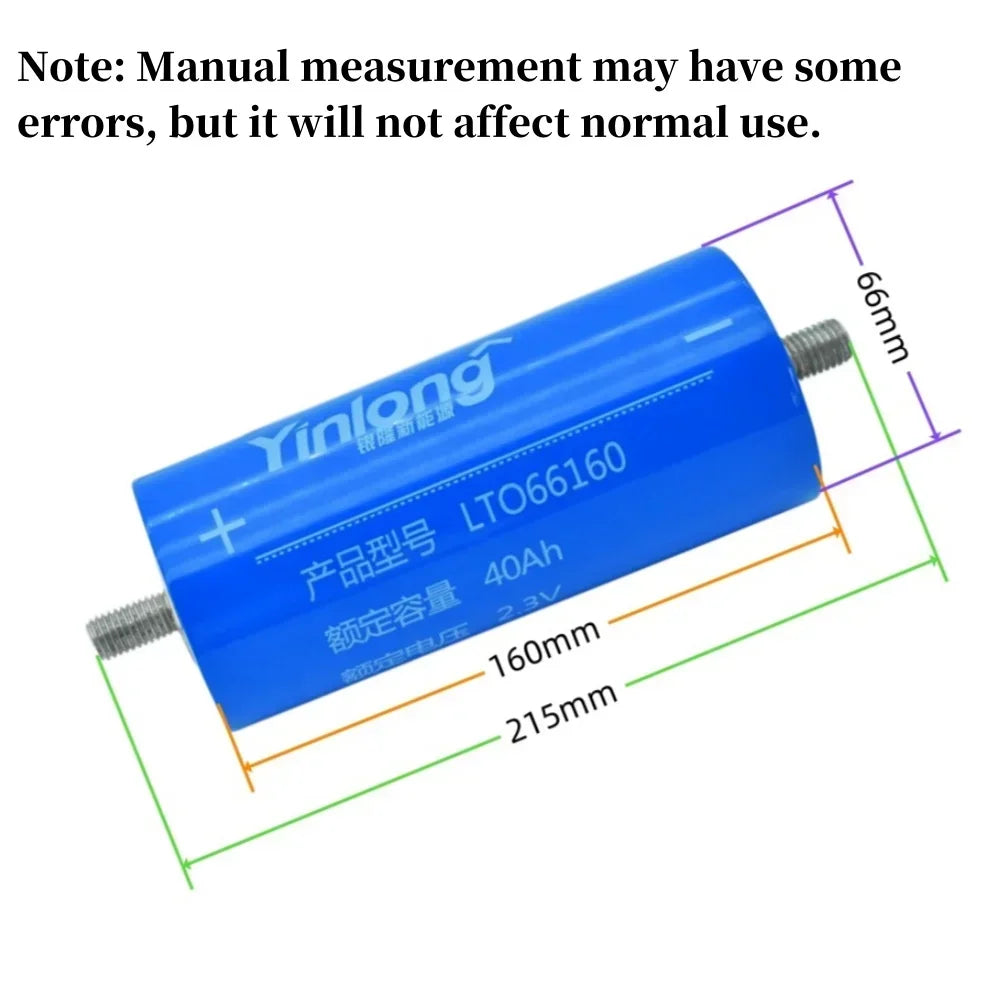

| Dimensions | 66 × 160 mm (without lugs) / 215 × 66 mm overall |
| Weight | ~1.2 kg (1200g) |
| Internal Resistance | < 3 mΩ |
| Cycle Life | 20,000+ cycles |
| Charging Voltage | 2.80V/cell |
| Standard Charge Current | 10A (fast: up to 30A) |
| Continuous Discharge | 5C / 200A |
| Max Discharge | 15C / 600A |
| Cut-off Voltage | 1.5V/cell |
| Charging Temp. | -40°C to 45°C |
| Discharge Temp. | -40°C to 60°C |
| Storage Temp. | -40°C to 45°C |
| Series Combinations | 5S, 10S, 15S, 20S and more |
| Certification | CE |
| Origin | Made in Mainland China |
Wide Range of Applications
This LTO cell is suitable for a broad range of power-hungry and long-duty-cycle applications, including:
- Car audio systems and automotive aftermarket builds
- Solar energy storage and solar panel battery banks
- Electric vehicles (EVs), e-bikes, tricycles, scooters, and golf carts
- Wheelchairs and mobility aids
- Power tools and electric tools
- Inverters and household backup power
- LED lighting systems and RC hobby vehicles
- Emergency and backup power devices
Explore More from Our Store
Looking for complementary tools and electronics? Check out these related products:
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What makes LTO (Lithium Titanate) batteries different from regular lithium-ion batteries?
A: LTO (Lithium Titanate) batteries use a lithium titanate anode instead of graphite, which gives them exceptional advantages: an extremely long cycle life (20,000+ cycles vs. ~500–2,000 for standard Li-ion), the ability to charge and discharge in temperatures as low as -40°C, a higher safe discharge rate, and improved overall safety. They are ideal for applications that demand longevity, high current, and reliability in extreme conditions.
Q: How many cells do I need to build a 12V or 24V battery pack with these 2.3V LTO cells?
A: To build a nominal 12V pack, you would connect 5 cells in series (5S × 2.3V = 11.5V nominal; 5 × 2.8V = 14V fully charged). For a nominal 24V pack, connect 10 cells in series (10S). The cells support 5S, 10S, 15S, 20S, and other series configurations to suit your target voltage.
Q: Can this LTO battery cell be used for solar energy storage?
A: Yes — the Yinglong 66160 40Ah LTO cell is an excellent choice for solar energy storage. Its wide operating temperature range, fast charge capability (up to 30A), and 20,000+ cycle life make it well-suited to absorb and discharge solar energy day after day without significant capacity degradation over many years.
Q: What is the maximum discharge current for this cell?
A: The cell supports a continuous discharge rate of 5C (200 Amps) and a peak/maximum discharge rate of 15C (600 Amps), making it suitable for high-demand car audio builds, EV motor starts, and other high-current burst applications.
