2.5" 15W IPX5 Waterproof Bass Speaker Unit – Rubber Surround
2.5" 15W IPX5 Waterproof Bass Speaker Unit – Rubber Surround
2.5-Inch 15W IPX5 Waterproof Speaker Unit with Curved Rubber Surround
Upgrade your portable audio build with this compact yet powerful 2.5-inch 15W speaker unit. Designed for DIY enthusiasts and audio builders, it combines an IPX5 water-resistant construction, a curved rubber surround for deep low-frequency response, and a 4Ω low-impedance design — making it ideal for outdoor speakers, bathroom audio installs, bike sound systems, and more.
Key Features
- IPX5 Water Resistance: Sealed gaskets and a treated diaphragm protect against water splashes from all directions — perfect for outdoor, beach, or bathroom speaker builds.

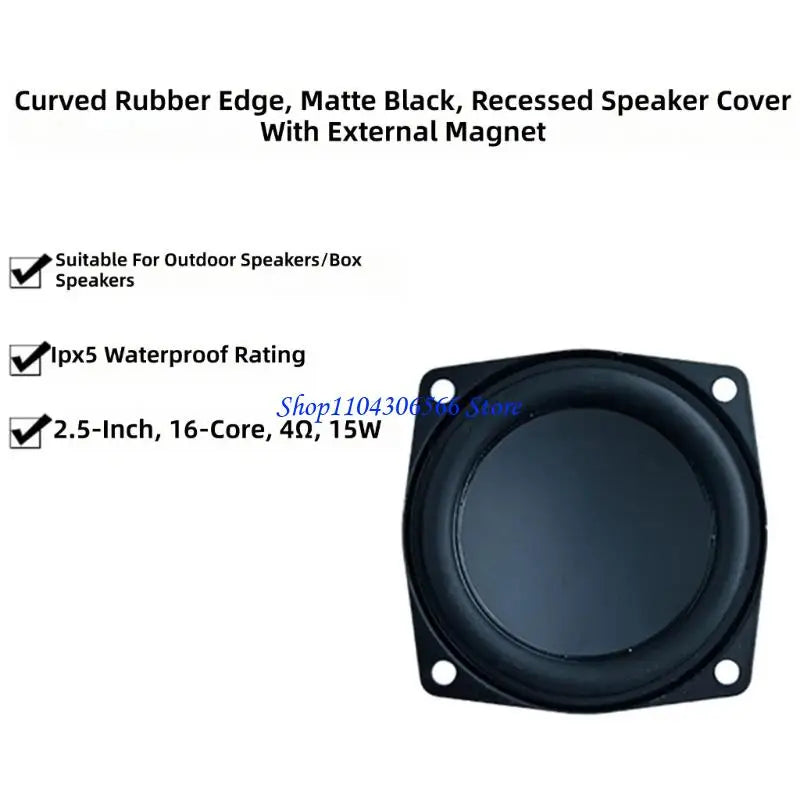

- Curved Rubber Surround: The arched rubber border enhances low-frequency output and long-term durability. UV and aging resistant, it won't crack with prolonged outdoor exposure.
- 15W Output with Ferrite Magnet: Delivers balanced audio clarity and smooth frequency blending across a 130Hz–15kHz range in a compact 67mm footprint.
- 4Ω Low Impedance Design: Works efficiently with common wireless amplifier circuits (e.g., AC6925, JL7016) and can be powered by single or paired lithium cells for extended run time.

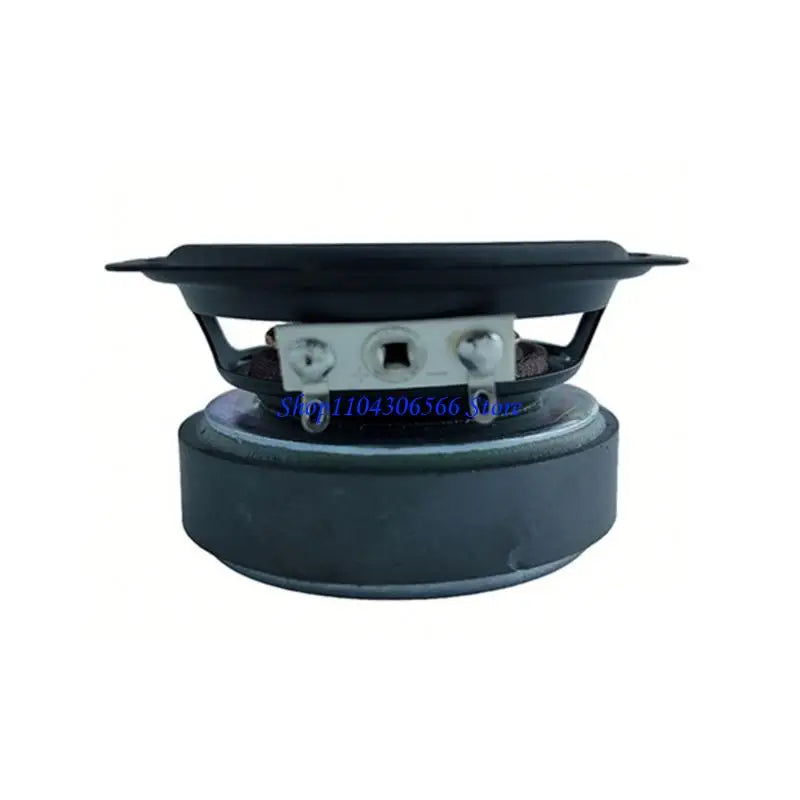

- 16-Wire KSV Coil: Polyimide base voice coil withstands heat effectively, paired with a treated iron frame and solder tabs for easy integration into most 2.5-inch portable speaker molds.
Specifications

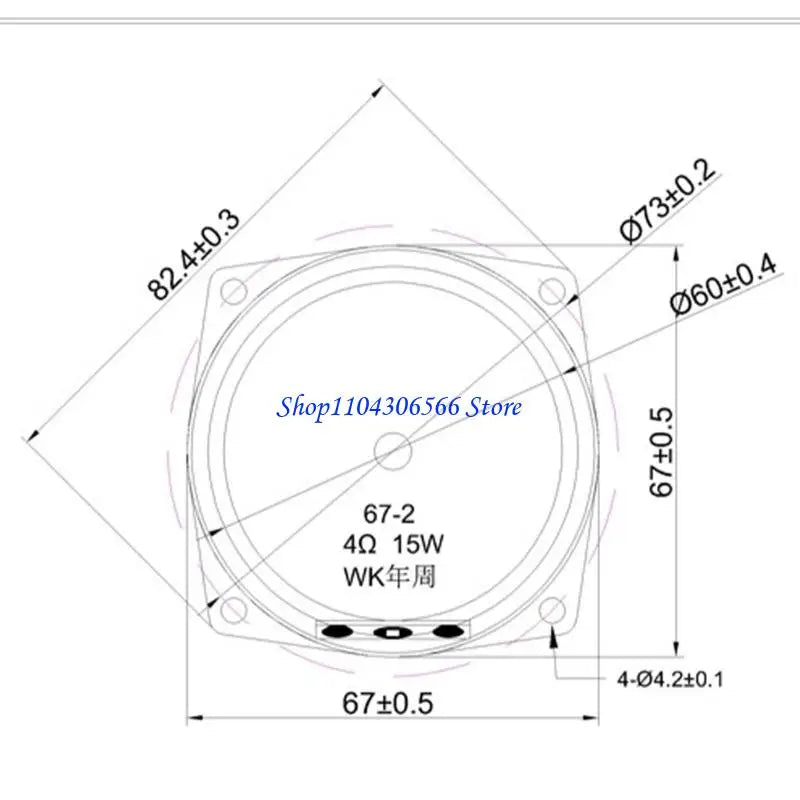

| Diameter | 67mm (2.5 inches) |
| Power (Rated) | 15W |
| Power (Max) | 20W |

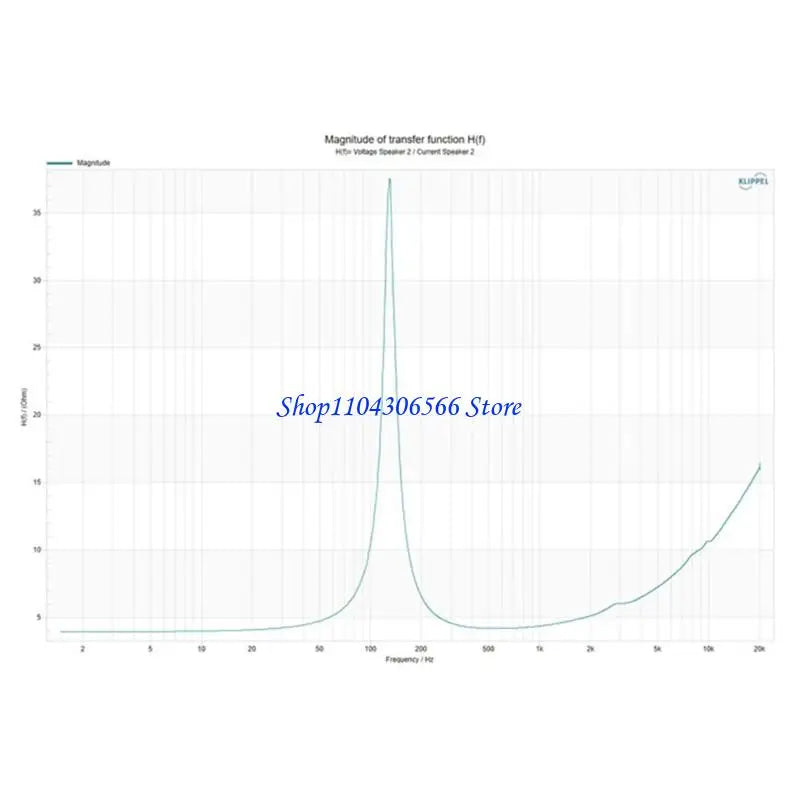

| Impedance | 4Ω |
| Sensitivity | 83 ±3 dB |

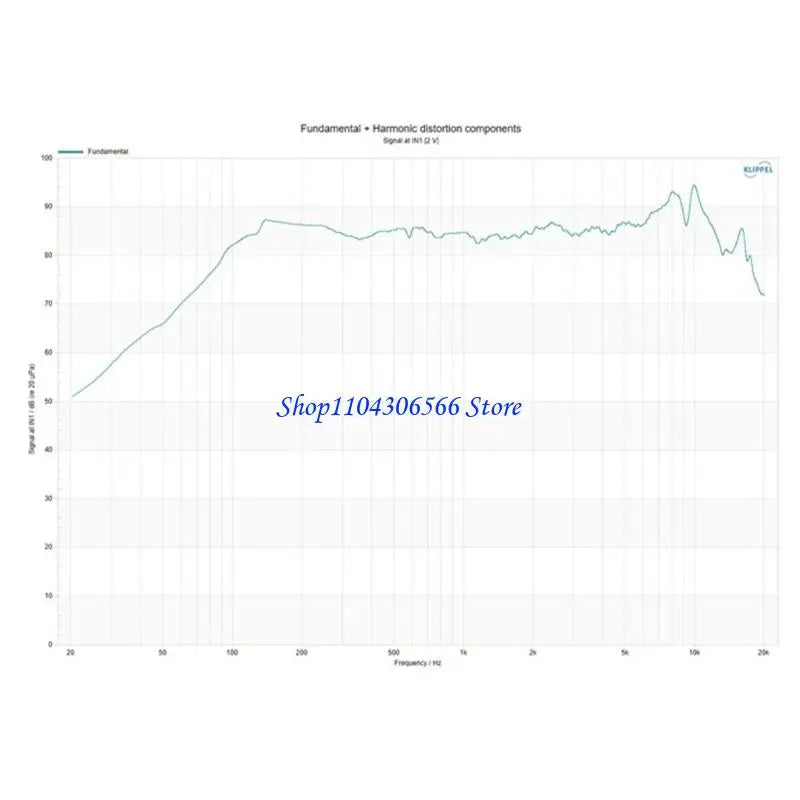

| Frequency Response | 130Hz – 15kHz |
| Total Harmonic Distortion | ≤5% |
| Water Resistance | IPX5 |
| Working Temperature | -18°C to 60°C |
| Weight | 282g |
| Material | Metal frame with rubber surround |
Package Includes
- 1 × 2.5-inch 16-core 4Ω 15W Curved Rubber Surround Loudspeaker Unit
Made in Mainland China.
Note: Please allow 1–3mm tolerance due to manual measurement. Colors may vary slightly from screen to screen.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Is this 2.5-inch speaker unit truly waterproof for outdoor use?
A: Yes — this speaker unit carries an IPX5 rating, meaning sealed gaskets and a treated diaphragm protect it against water jets and splashes from all directions. It's well-suited for outdoor bike audio rigs, beach setups, and moist bathroom installations.
Q: What amplifier boards are compatible with this 4Ω speaker unit?
A: The 4Ω low-impedance design works effectively with common wireless amplifier ICs such as the AC6925 and JL7016. It can be efficiently powered by a single or paired lithium cell, making it a great choice for compact portable speaker projects.
Q: What is the difference between the 15W and 20W power ratings listed?
A: The 15W figure is the rated (continuous) power — the recommended operating level for consistent, distortion-free performance. The 20W is the peak (maximum) power the unit can handle in short bursts. For best longevity and audio quality, operate within the 15W rated limit.
Q: Will the rubber surround hold up with long-term outdoor exposure?
A: The curved rubber surround is formulated to resist UV degradation and aging, so it won't crack or stiffen over time the way foam surrounds typically do. This makes it ideal for permanent outdoor or semi-outdoor audio enclosures.
