2-Pack 20mm Round 12V Rocker Switch SPST ON/OFF with Wires
2-Pack 20mm Round 12V Rocker Switch SPST ON/OFF with Wires
Upgrade your vehicle's electrical setup with these compact, reliable 20mm Round 12V Rocker Switches. Sold as a pack of 2, these SPST (single pole, single throw) ON/OFF switches are built for automotive, marine, RV, and DIY electronics projects. With a snap-in panel mount design and pre-attached quick-connect wires, installation is fast and hassle-free — no soldering required.
Made in Mainland China.
Key Features
- SPST ON/OFF Function: Simple 2-pin single pole single throw design for straightforward circuit control.
- 10A 12V DC Rating: Handles up to 10 amps at 12V DC — suitable for a wide range of automotive and marine accessories.
- Snap-In Panel Mount: Easy press-fit installation into a standard 20mm round panel cutout — no tools needed.
- Anti-Rotation Keyhole Slot: Built-in keyhole prevents unwanted rotation once mounted, keeping the switch secure and stable.

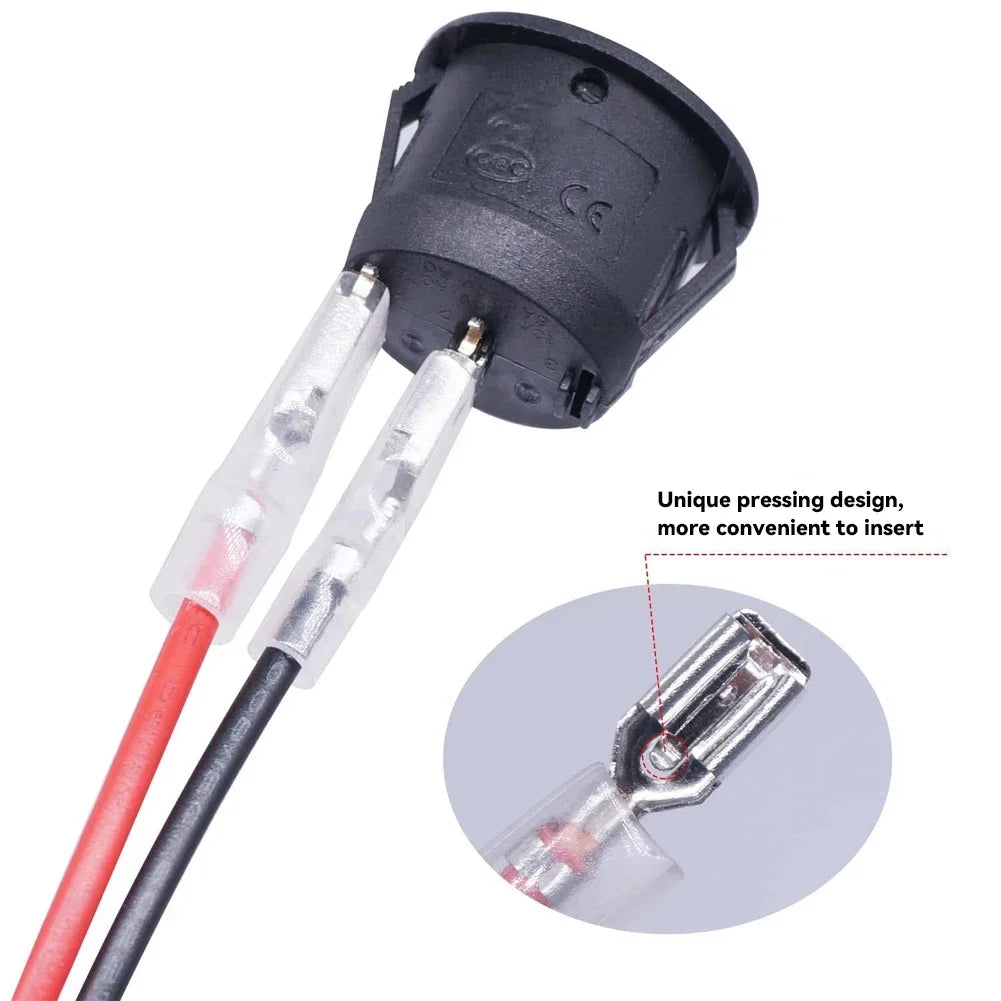

- #187 Quick-Connect Wires Included: Each switch comes with pre-attached terminal wires for speedy, secure connections.
- CE Certified: Meets CE safety standards for low-voltage electrical components.
- Long Service Life: Rated for ≥10,000 operating cycles, ensuring lasting dependability.
- Versatile Applications: Ideal for cars, trucks, RVs, boats, marine vessels, and custom electronics modifications.
Technical Specifications
| Rating | 10A 12V DC |
| Function | SPST 2-Pin ON/OFF |
| Shape & Color | Round, Black |
| Material | Plastic |

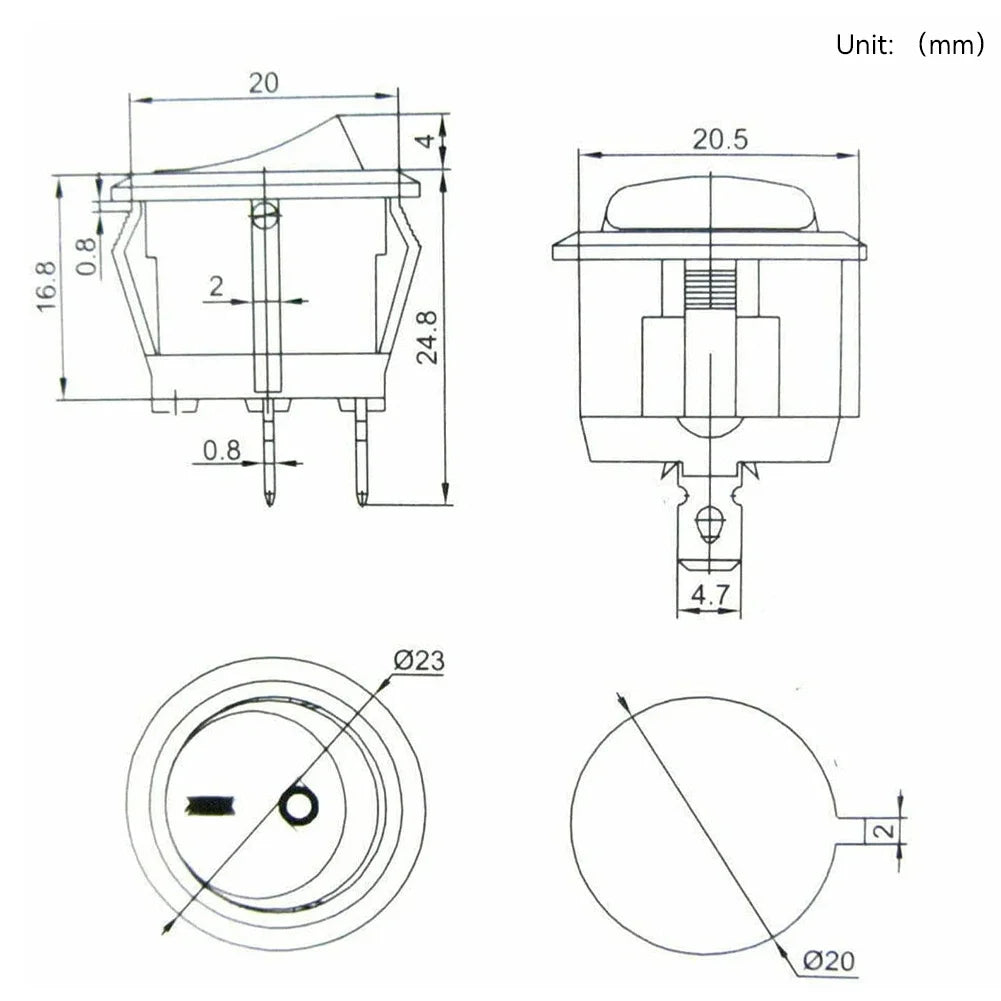

| Size | 2.48 cm × 2.3 cm (0.97" × 0.91") |
| Insulated Resistance | ≥ 100 MΩ |
| Contact Resistance | ≤ 50 mΩ |
| Dielectric Strength | ≥ 1500V AC / 5S |
| Operating Temperature | T85 |
| Electrical Life | ≥ 10,000 Cycles |
| Certification | CE |
What's in the Box

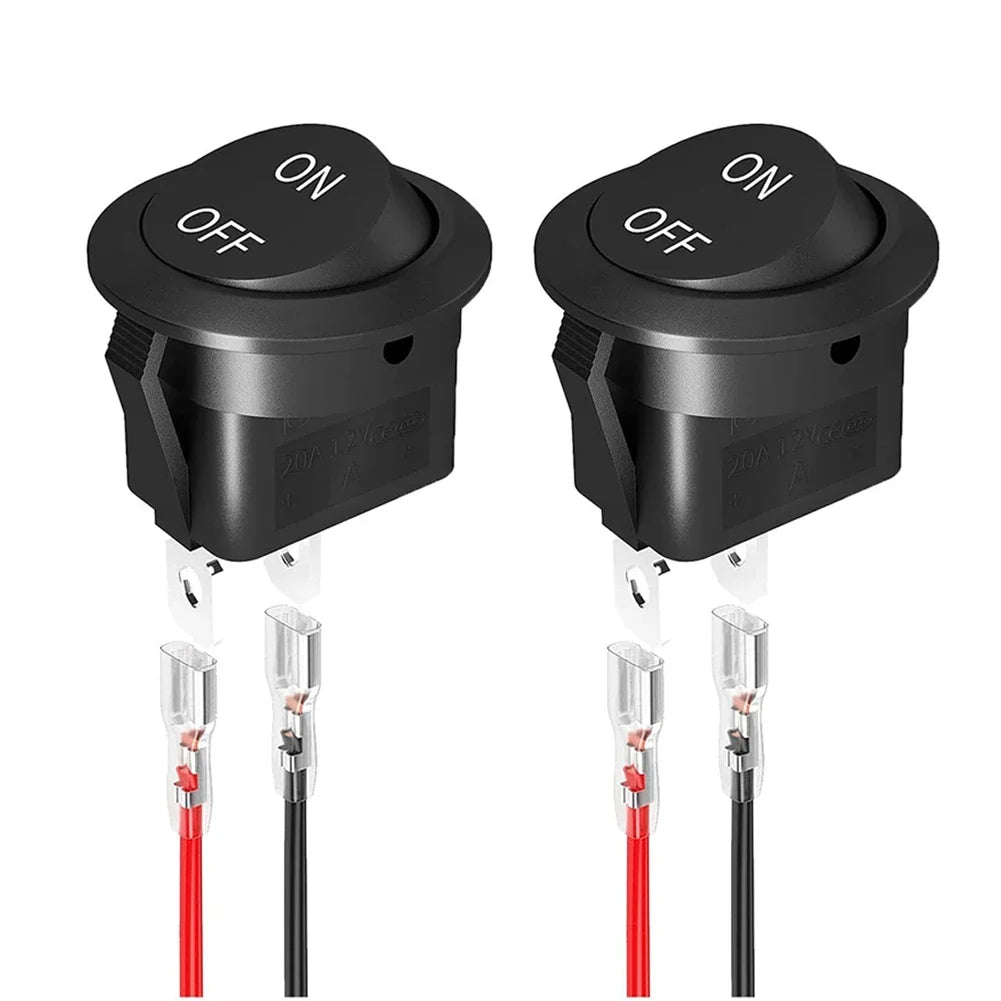

- 2 × 20mm Round 12V Rocker Switches (with pre-attached quick-connect terminal wires)
No retail box. Packed safely in a protective bubble bag.
You May Also Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
Learn more: FuelEconomy.gov on vehicle maintenance
Frequently Asked Questions
Q: What panel cutout size is needed to mount these 20mm rocker switches?
A: These switches are designed for a standard 20mm round panel cutout. The snap-in design means they press firmly into place without additional fasteners, making DIY installation quick and straightforward.
Q: Are the wires already attached, or do I need to wire these switches myself?

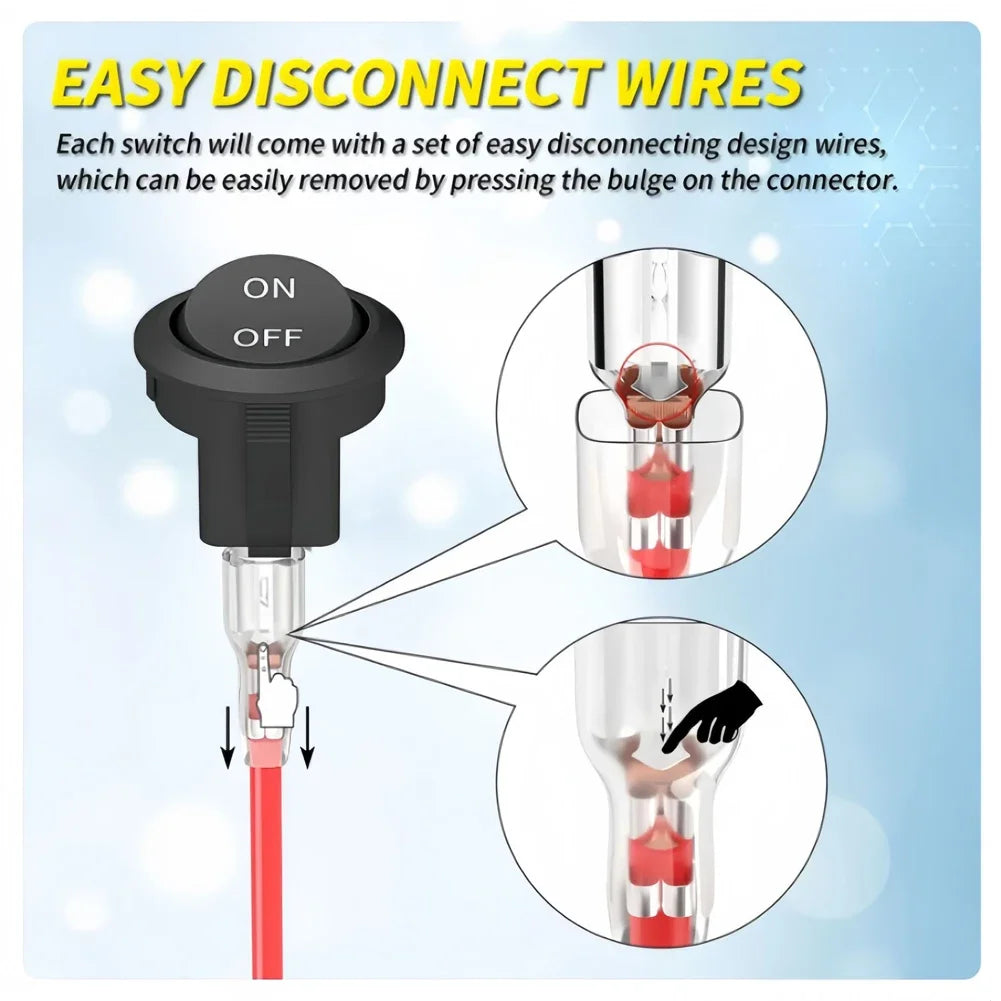

A: Each switch comes with pre-attached #187 quick-connect terminal wires, so you can connect them to your circuit immediately without soldering. Simply crimp or plug the connectors into your wiring harness.
Q: Can these switches be used on boats and marine applications?
A: Yes! These 12V rocker switches are well-suited for marine, boat, RV, car, and general automotive DIY applications. Their plastic housing and secure snap-in design make them a practical choice for a variety of 12V DC electrical setups.
Q: What is the maximum current these switches can handle?
A: Each switch is rated at 10A at 12V DC. Ensure your circuit does not exceed this rating to maintain safe and reliable operation.
