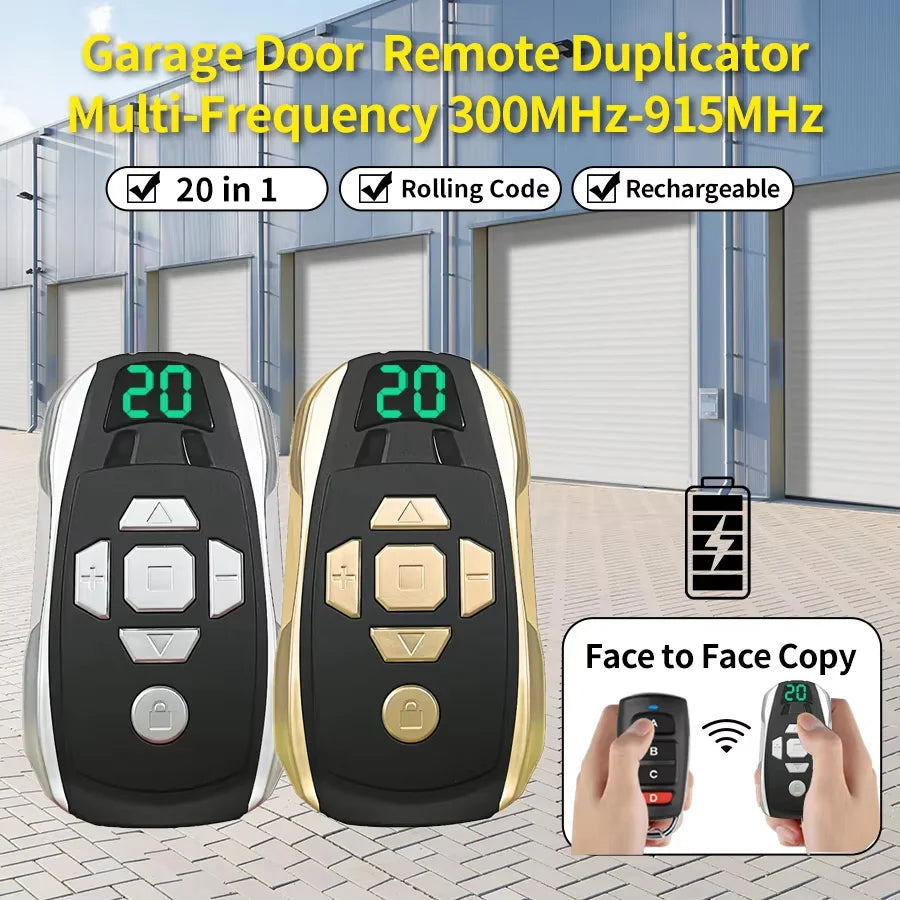

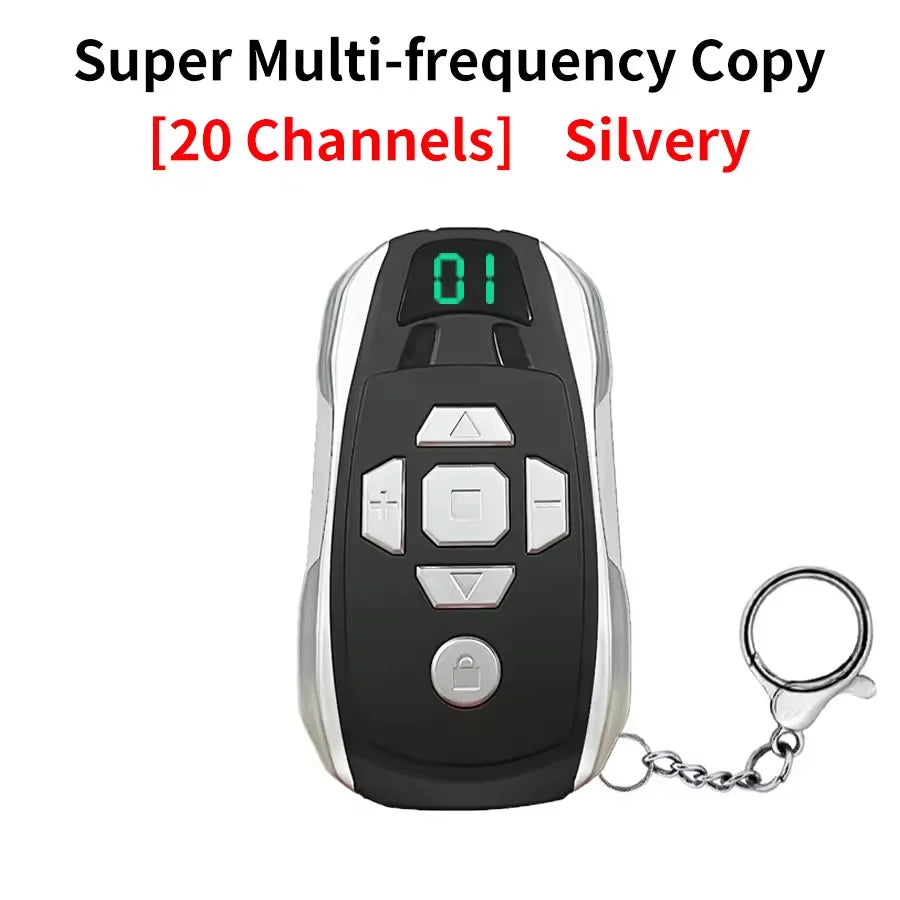

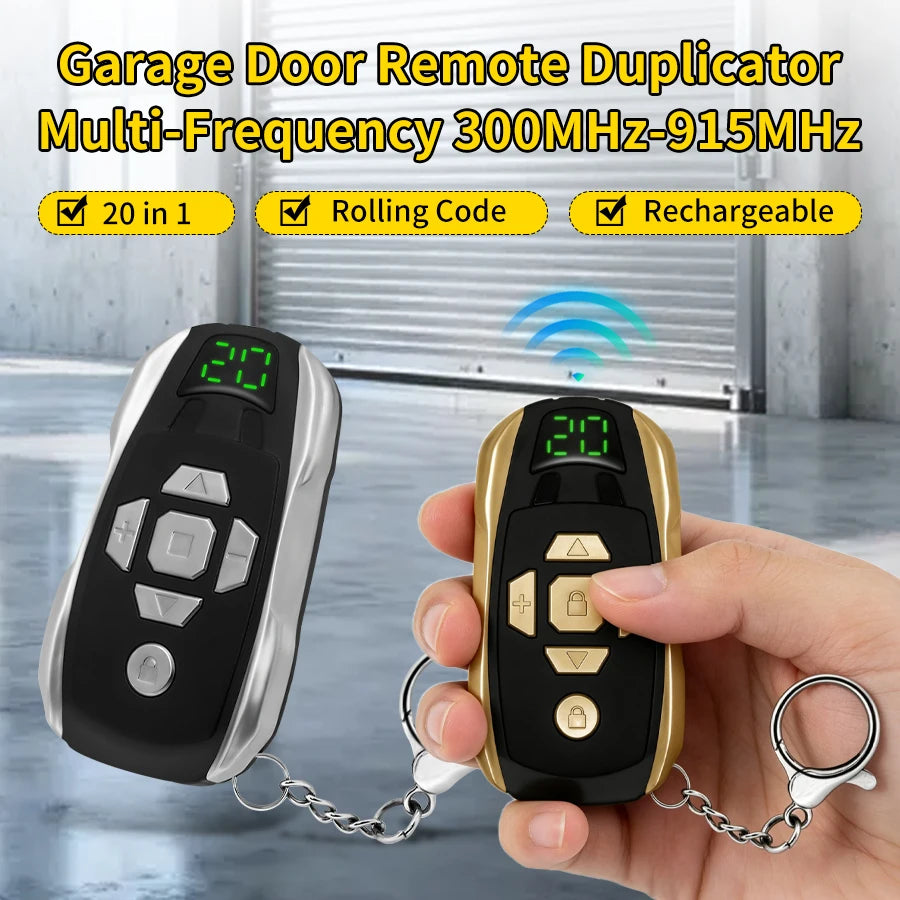

20-Channel Universal Garage Door Remote Duplicator 300–915MHz
20-Channel Universal Garage Door Remote Duplicator 300–915MHz
Copy Up to 20 Garage Door & Gate Remotes — One Rechargeable Device
The HIP M9 20-Channel Universal Remote Duplicator makes replacing or backing up your garage door and gate remotes effortless. Supporting over 16 frequency bands across the 300–915 MHz range, this compact, rechargeable device copies fixed codes (e.g. 2262), learning codes (e.g. 1527), rolling codes (e.g. HC301), and many non-standard encrypted remotes — all stored safely across 20 independent channels.
Made in Mainland China.
Key Features
- 20 Storage Channels: Duplicate and store up to 20 separate remote signals in one device.
- Wide Frequency Coverage: Copies signals across 300–915 MHz, supporting 16+ frequency bands.
- Multi-Code Compatibility: Works with fixed codes, learning codes, rolling codes, and select non-standard encrypted remotes.
- Smart Memory Chip: Data is retained even when the battery is replaced; accidentally cleared codes can be recovered with a simple button sequence.
- Channel Lock: Lock individual channels to prevent accidental overwrites.
- USB-C Rechargeable: Built-in rechargeable battery charged via a standard 5V Type-C cable — no disposable batteries needed.
- 30–50m Range: Reliable signal reach for driveways, garages, and gate systems.
- CE & RoHS Certified
Technical Specifications
- Model: M9
- Receiving Frequency: 300–915 MHz
- Transmit Power: 13 dBm
- Operating Voltage: 3.7V
- Operating Current: 30 mA
- Remote Control Distance: 30–50 m
- Charging Interface: 5V Type-C
- Encoding Method: Fixed Code
- Certification: CE, RoHS

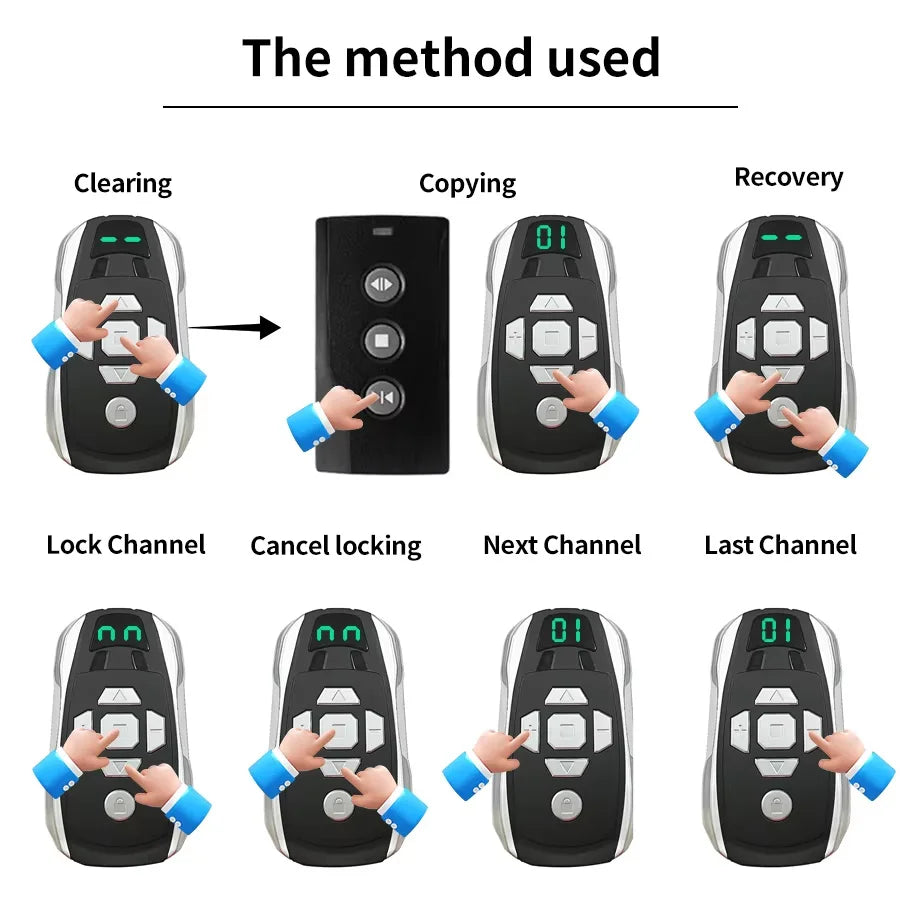

How to Use
- Clear a Channel: Select a channel with the +/– buttons, then hold buttons 1 & 2 (△□) simultaneously for 2 seconds until the LED flashes rapidly and shows "– –".
- Copy a Remote: Select a channel, place the original remote next to the M9, then press and hold the corresponding button on both remotes simultaneously for 3 seconds. The channel LED will light up to confirm. Repeat for additional buttons.
- Restore Last Code: If a code is accidentally cleared, hold buttons 3 & 4 (▽🔒) simultaneously for 2 seconds to restore it.

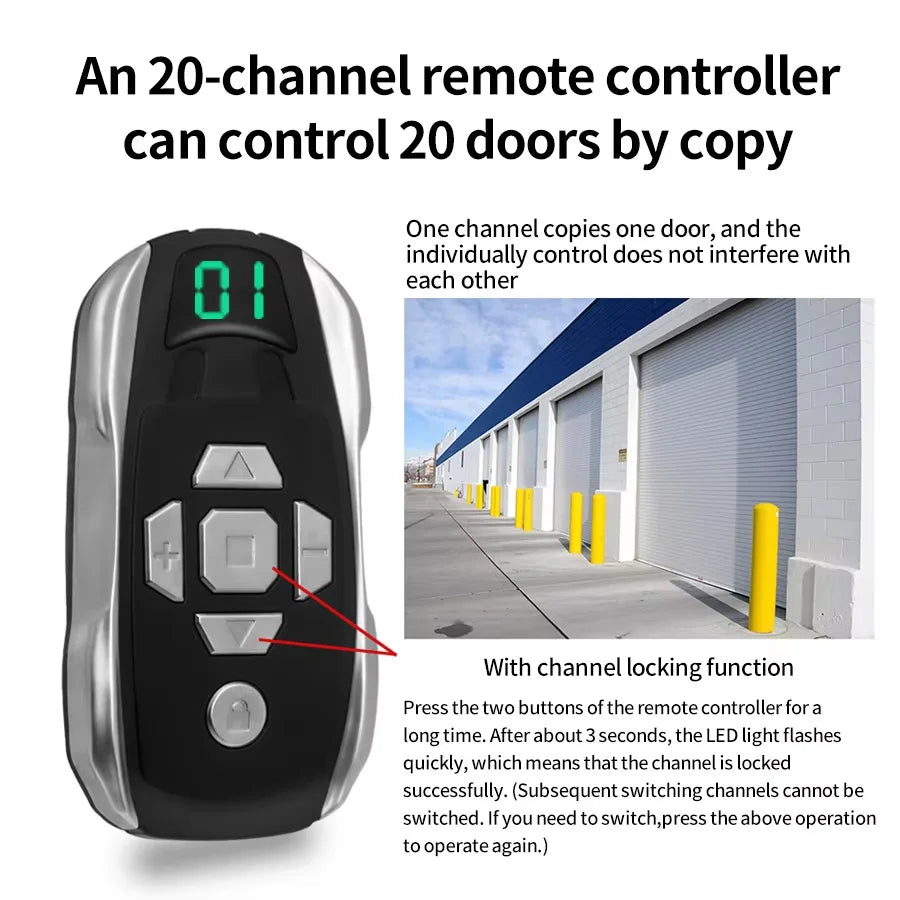

- Lock / Unlock a Channel: Select the channel, then hold buttons 2 & 3 (□▽) simultaneously for 2 seconds. The LED will blink rapidly to confirm lock status.
⚠ Important Notes:
- Not compatible with all brands — particularly those using advanced encryption chips.
- Do not use this device to copy remote controls for motorcycles or cars.
Explore More from Our Store
Looking for other handy tools and gadgets? Check out our 10-Pc Hex Nut & Bolt Extractor Kit, our 105° Right Angle Driver with 1/4" Hex Screwdriver Bit, and our 10-Piece Gardening Tool Kit for all your home and property needs.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of remote codes can the M9 20-Channel Duplicator copy?
A: The M9 can duplicate most common fixed codes (such as 2262), learning codes (such as 1527), rolling codes (such as HC301), and many non-standard encrypted remote signals. It supports over 16 frequency bands within the 300–915 MHz range, making it compatible with a wide variety of garage doors and gate controllers.
Q: Will I lose my stored codes if the battery dies or I need to recharge?
A: No — the M9 features a high-quality memory chip that retains all stored data even when the battery is replaced or the device is recharged. If a code is accidentally cleared, you can restore it by holding buttons 3 and 4 simultaneously for 2 seconds.
Q: How do I charge the M9 remote duplicator?
A: The M9 charges via a standard 5V Type-C USB cable (not included). Simply connect it to any compatible USB charger or power bank to recharge the built-in battery.
Q: Can this duplicator copy car or motorcycle remotes?
A: No. The M9 is designed for garage door openers and gate controllers only. It is not intended to copy remote controls for cars or motorcycles, and attempting to do so is not recommended.
