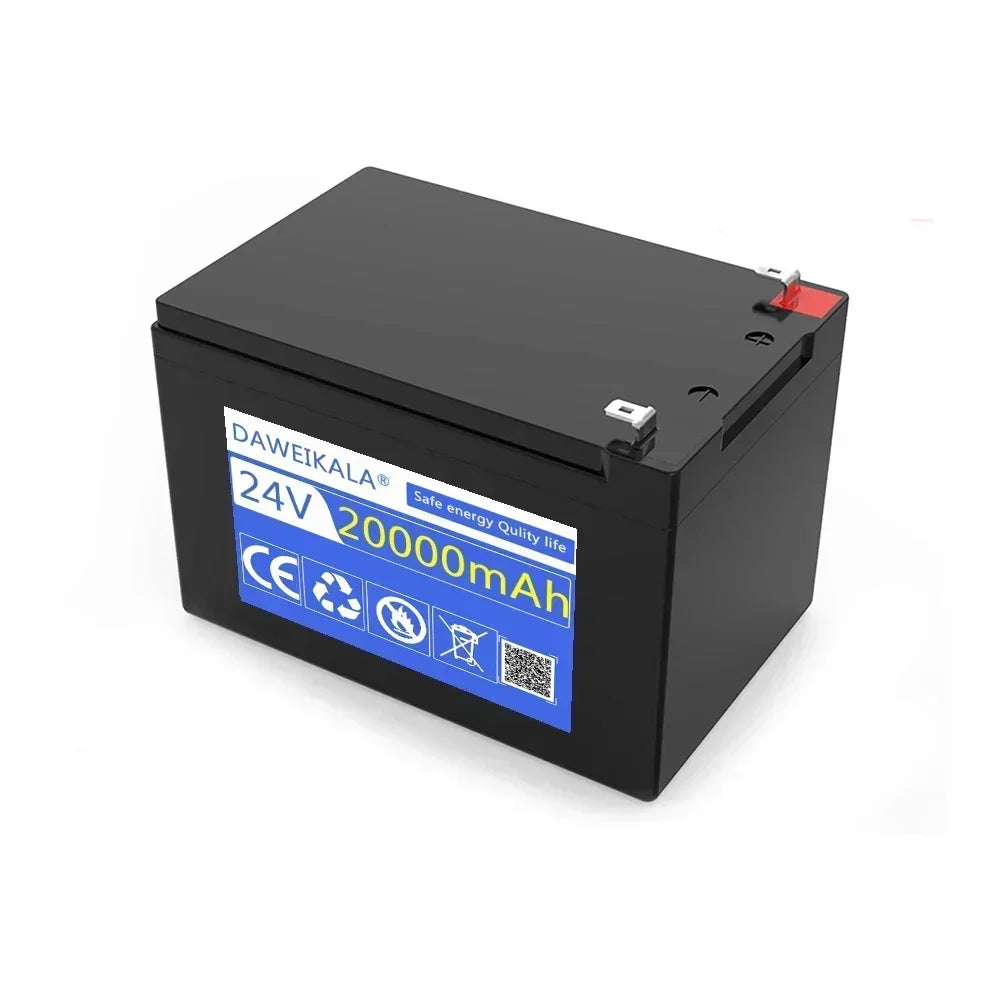

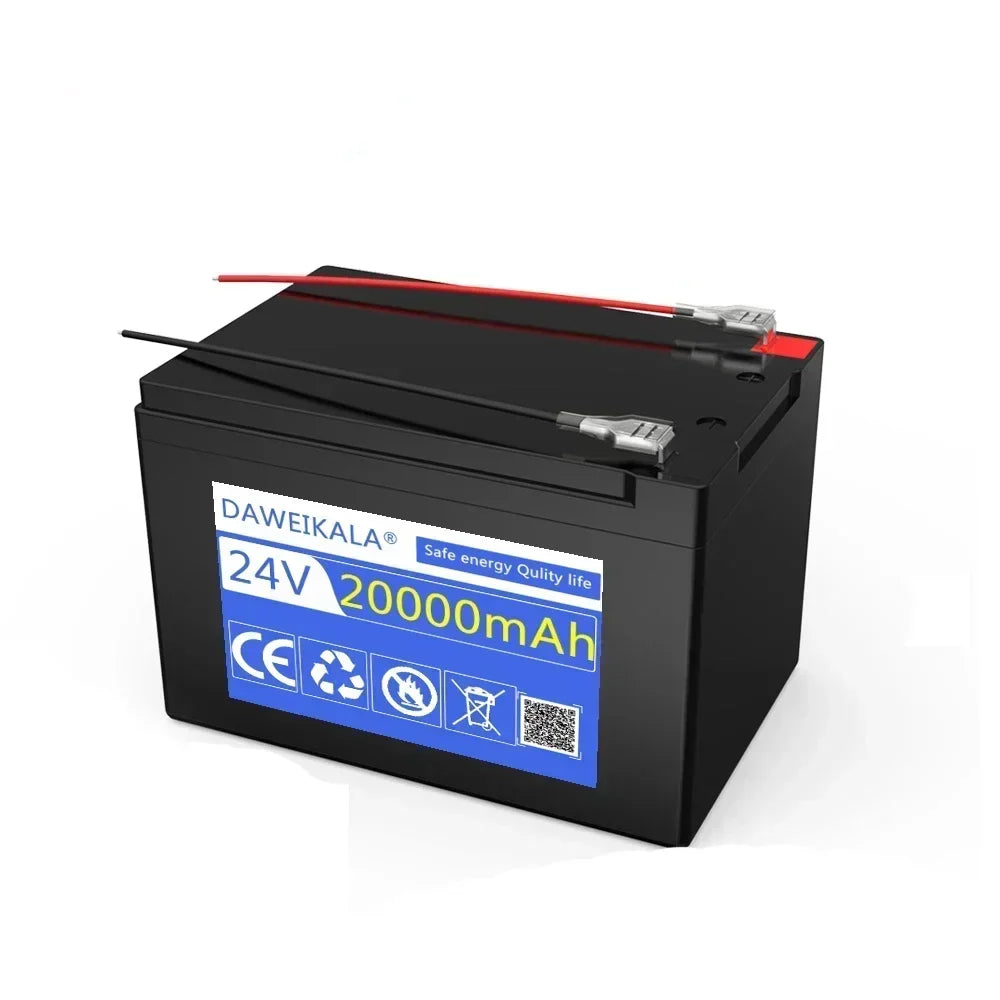

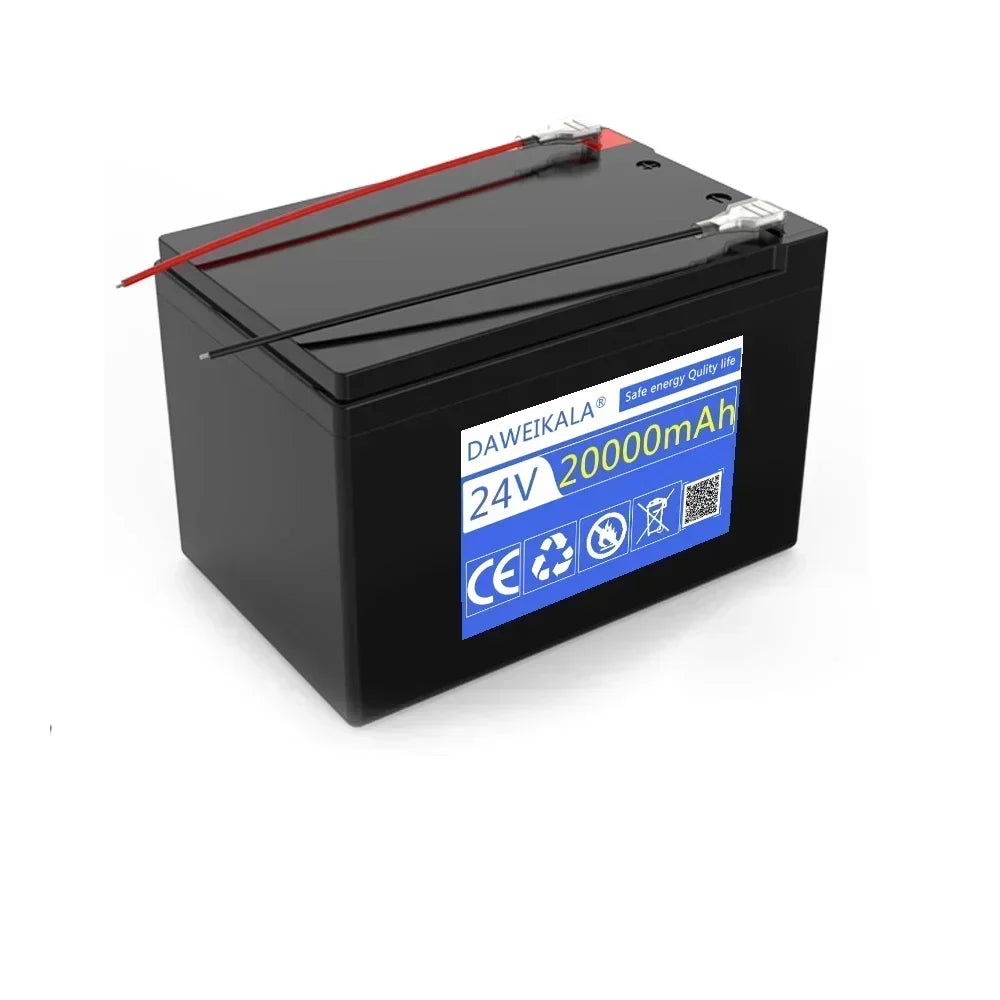

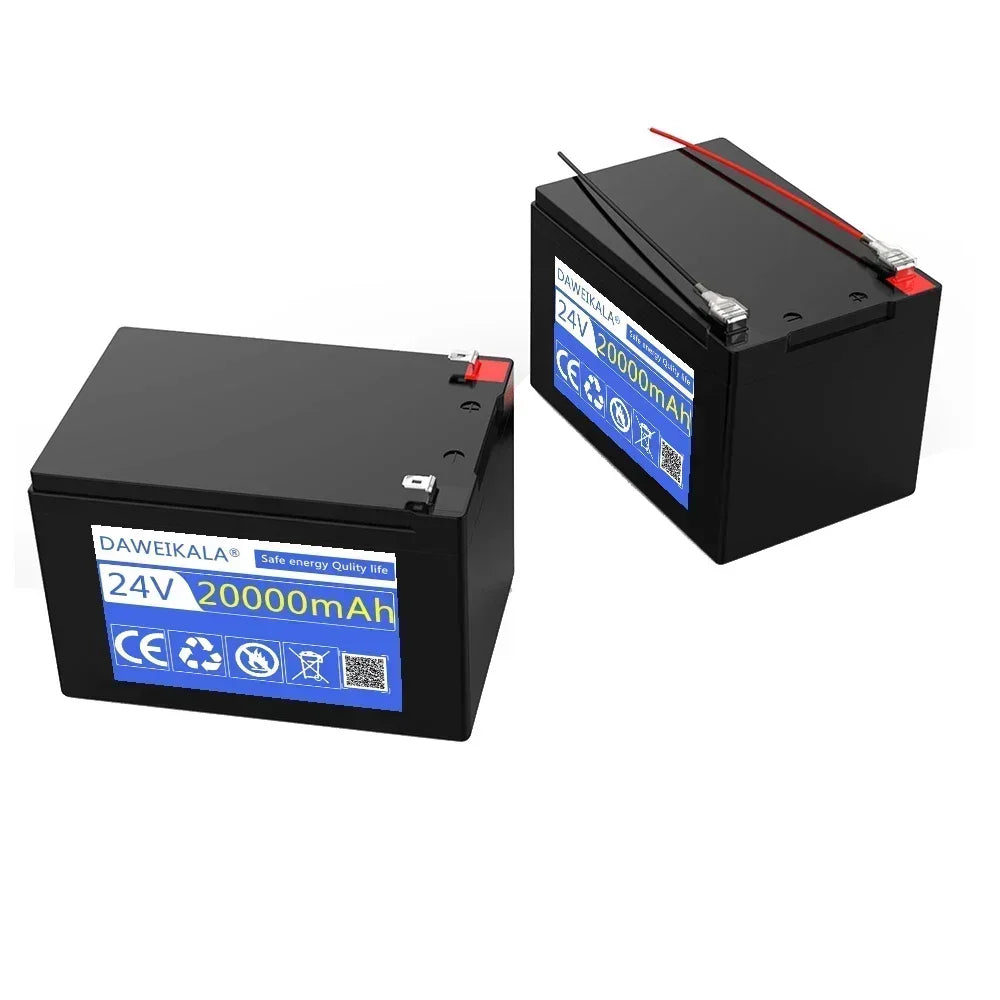

24V 20Ah LiFePO4 Lithium Battery Pack 18650 with BMS
24V 20Ah LiFePO4 Lithium Battery Pack 18650 with BMS
24V 20Ah LiFePO4 Lithium Battery Pack with Built-in BMS
Power your electric vehicles, tools, solar systems, and more with this high-capacity 24V 20Ah LiFePO4 Lithium Battery Pack. Built with premium 18650 lithium-ion cells, this battery delivers reliable, long-lasting power with a built-in 30A Battery Management System (BMS) for safe, efficient operation across a wide range of applications.
Key Features
- High Capacity: 20,000mAh (20Ah) combined capacity for extended run times
- Built-in BMS Protection: Integrated 30A BMS guards against overcharge, over-discharge, overcurrent, and short circuit — keeping your battery and devices safe
- Long Cycle Life: Rated for 2,000+ charge cycles at 80% depth of discharge (DOD), delivering years of dependable use

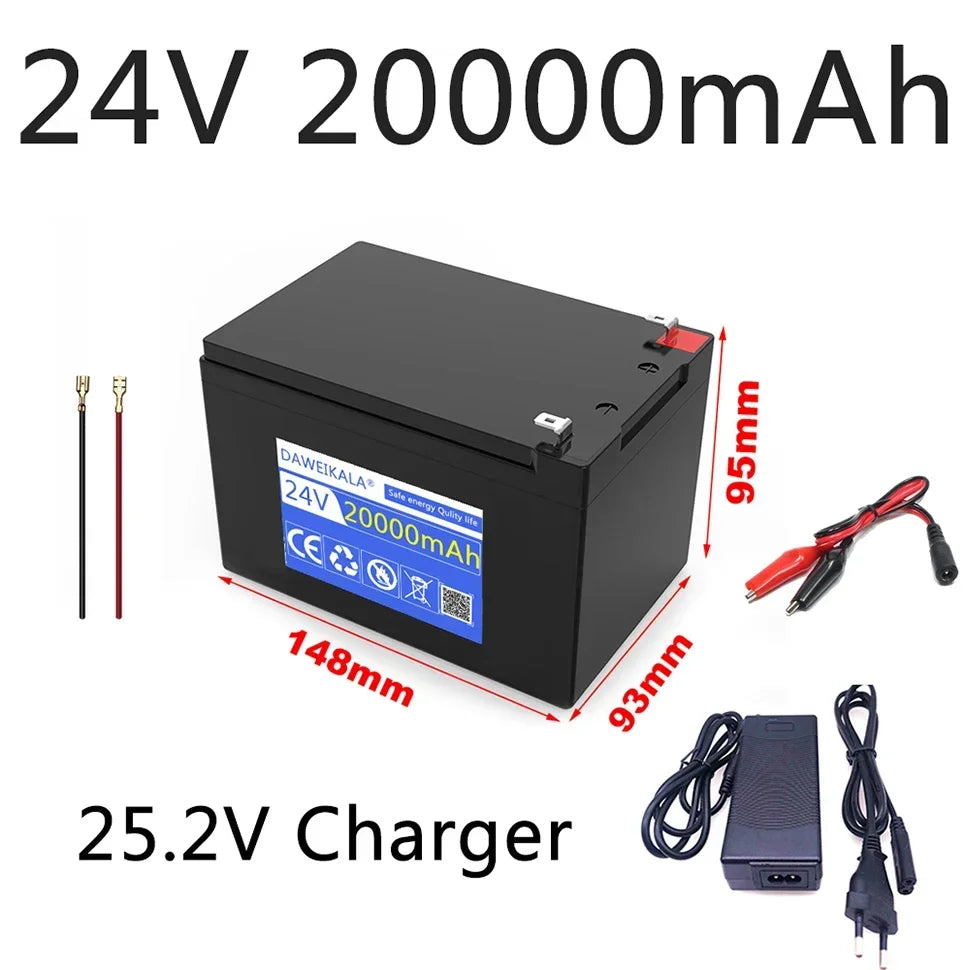

- Fast Charging Support: Accepts standard 2A or fast 5A input charging current (input charging voltage: 25.2V)
- Wide Temperature Range: Operates in discharge temperatures from -20°C to 60°C; charges between 0°C and 45°C
- Certified & Compliant: CE, FCC, RoHS, UL, and KC certified for quality and safety assurance
- Compact & Lightweight: Dimensions 148mm × 93mm × 95mm; weighs just 1.2kg
Technical Specifications
| Battery Type | Lithium-Ion (LiFePO4) |
| Battery Model | 18650 |
| Nominal Voltage | 25V |
| Nominal Capacity | 20Ah (20,000mAh) |
| Input Charging Voltage | 25.2V |
| Charging Current | Standard 2A / Fast 5A |
| Continuous Discharge Current | 20A |
| BMS Peak Current | 30A |
| Cycle Life | 2,000+ cycles (80% DOD) |
| Charging Temperature | 0°C ~ 45°C |
| Discharge Temperature | -20°C ~ 60°C |
| Storage Temperature | -20°C ~ 45°C |

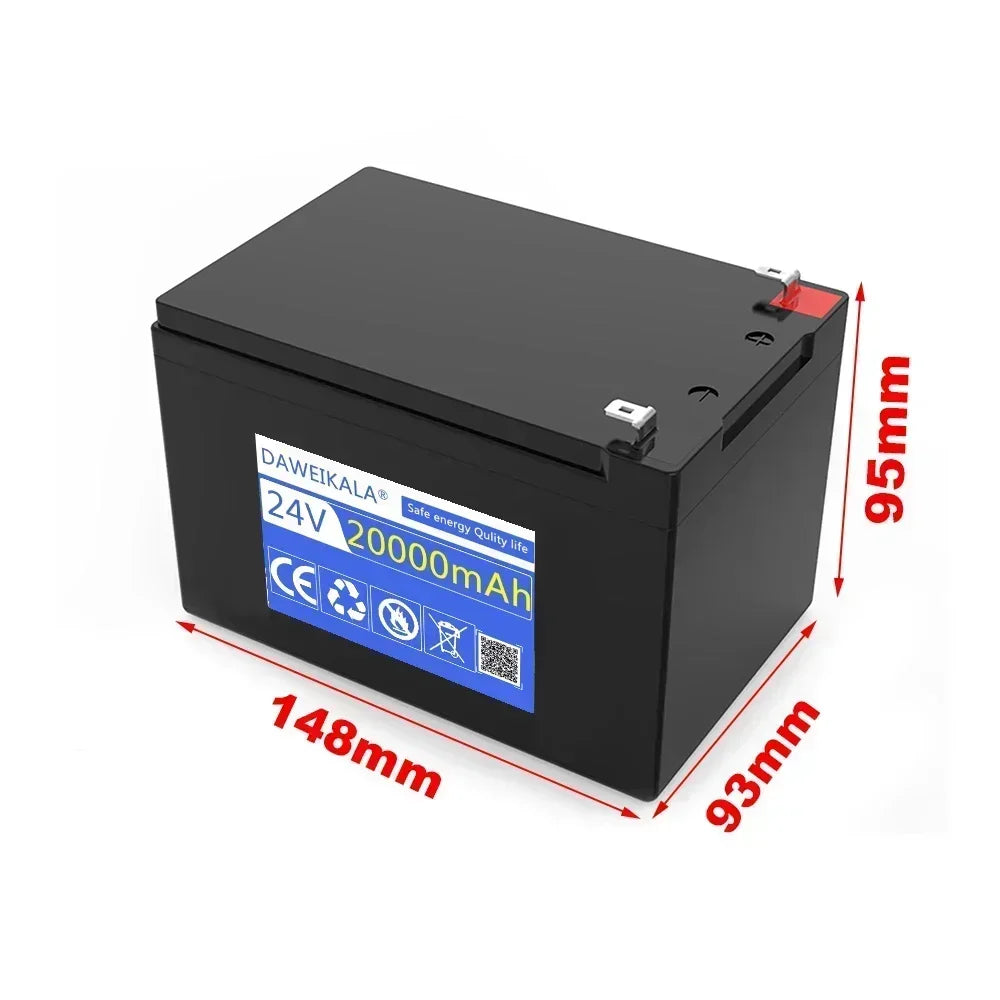

| Dimensions | 148mm × 93mm × 95mm |
| Weight | 1.2kg |
| Model Number | 24V 1688-A |
| Certifications | CE, FCC, RoHS, UL, KC |
Wide Range of Applications
This versatile battery pack is compatible with a broad variety of devices and systems, including:
- Electric bicycles, scooters, tricycles, and electric boats
- Golf carts, trolleys, and wheelchairs
- Solar energy supply and energy storage systems
- Power tools and instruments
- LED lighting equipment
- Remote-control toys and inverters
- Household appliances and emergency backup equipment
Made in Mainland China.
Looking for more tools and equipment for your projects? Check out our 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel or explore our 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle for your next build.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What devices is the 24V 20Ah LiFePO4 battery pack compatible with?
A: This 24V 20Ah LiFePO4 lithium battery pack is compatible with a wide range of 24V devices, including electric bicycles, scooters, golf carts, solar energy storage systems, power tools, LED lighting, inverters, and emergency backup equipment, among others.
Q: What does the built-in BMS protect against?
A: The integrated Battery Management System (BMS) provides overcharge, over-discharge, overcurrent, and short circuit protection, helping to extend battery life and maintain safe operation across all supported applications.
Q: How long does this battery last, and what is the cycle life?
A: This LiFePO4 battery pack is rated for more than 2,000 charge/discharge cycles at 80% depth of discharge (DOD), making it a long-lasting and cost-effective power solution for everyday use.
Q: Can this battery be charged quickly?
A: Yes. The battery supports both standard 2A charging and fast 5A charging at an input voltage of 25.2V, giving you the flexibility to choose between a slower, gentle charge or a faster top-up depending on your needs.
