25A 12V BMS Battery Protection Circuit Board with Cell Balancing

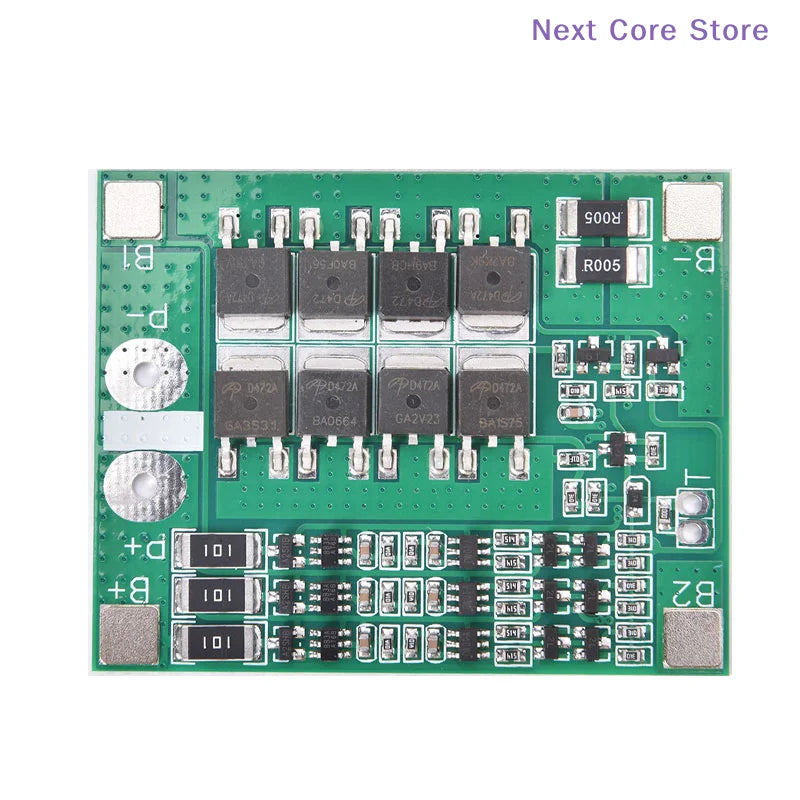

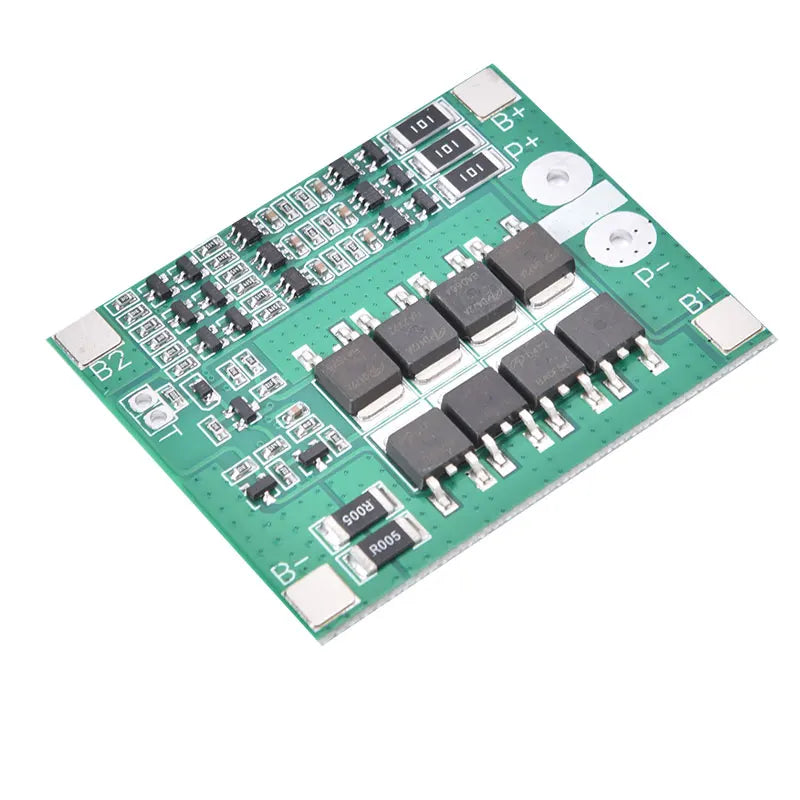

Keep your lithium battery pack running safely and efficiently with this high-quality 25A 12V Battery Management System (BMS) Protection Circuit Board. Engineered with precision, this PCM board features multi-stage protection circuitry to guard against overcharge, over-discharge, overcurrent, and short circuits — extending battery life and ensuring stable, reliable performance across a wide range of applications.
Made in Mainland China.
Key Features
- High-Accuracy Voltage Detection: Precision voltage monitoring circuit ensures cells stay within safe operating limits at all times.
- High-Voltage Charger Terminal: Charger interface utilizes robust high-voltage components for durability and compatibility.
- Three-Stage Overcurrent Detection: Built-in protection logic covers Overcurrent Level 1, Overcurrent Level 2, and load short-circuit events.
- MOS Transistor Charge/Discharge Control: MOSFET switching enables efficient, precise management of both charging and discharging cycles.
- Ultra-Low Standby Current: Only 50µA standby draw minimizes parasitic drain when idle.
- Short-Circuit Protection: Self-recoverable short-circuit protection — simply reconnect the charger to reset.
- Long Service Life: Rated for more than 30,000 hours of operation.
Technical Specifications
| Max Working Current | 25A |
| Max Peak Current | 35–40A |
| Overcharge Voltage | 4.25–4.35V ± 0.05V |
| Over-Discharge Voltage | 2.3–3.0V ± 0.05V |
| Standby Current | 50µA |
| Internal Resistance | <100mΩ |
| Working Temperature | -40°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Service Life | >30,000 hours |

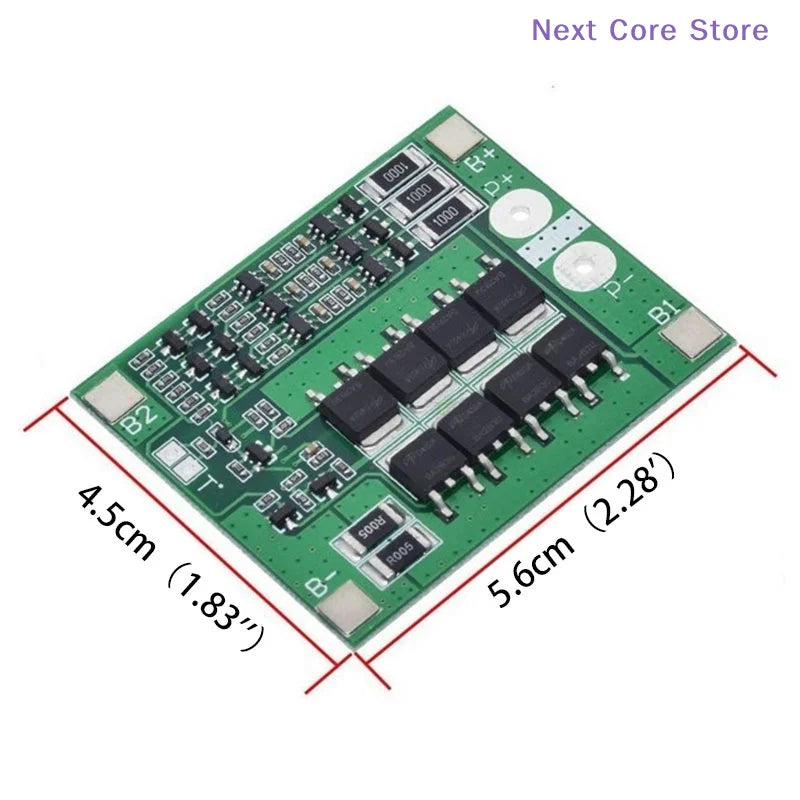

| Board Dimensions | 56 × 45 × 4.0 mm |
What's in the Box
- 1 × Battery Protection Circuit Board (BMS PCM)
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What type of battery is this BMS protection board compatible with?

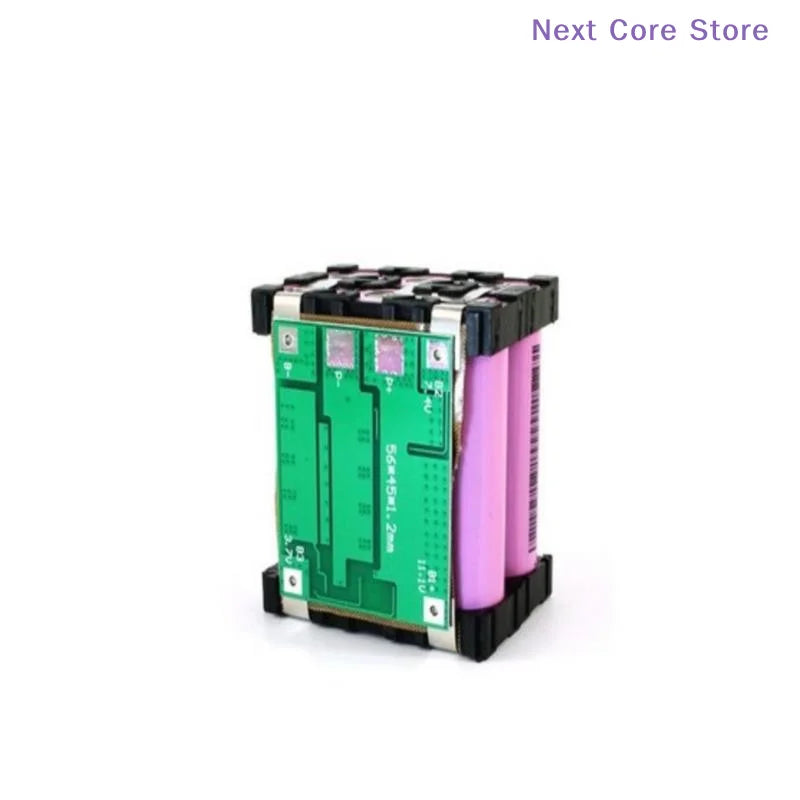

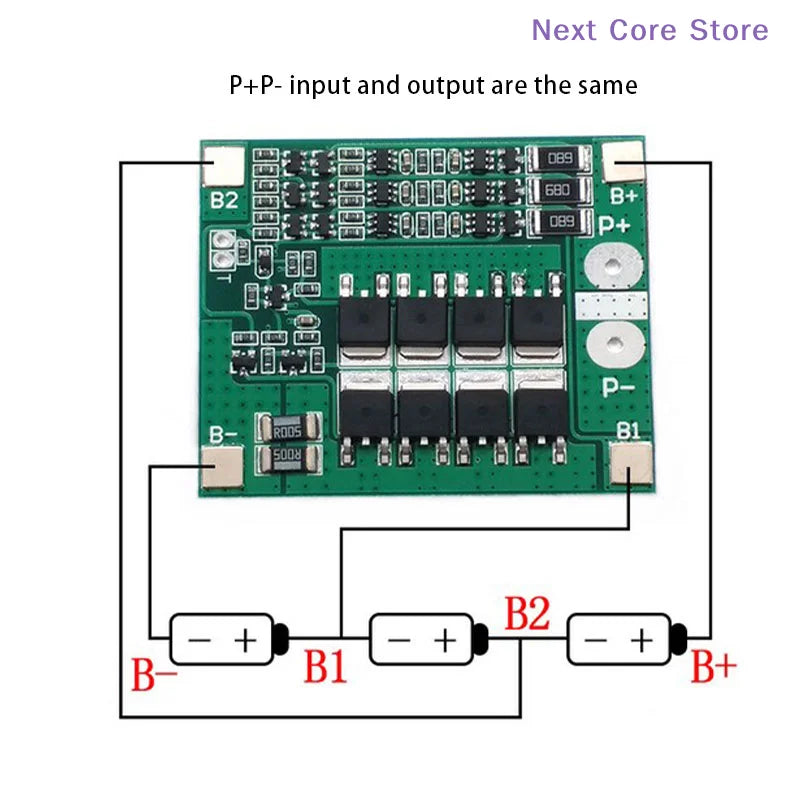

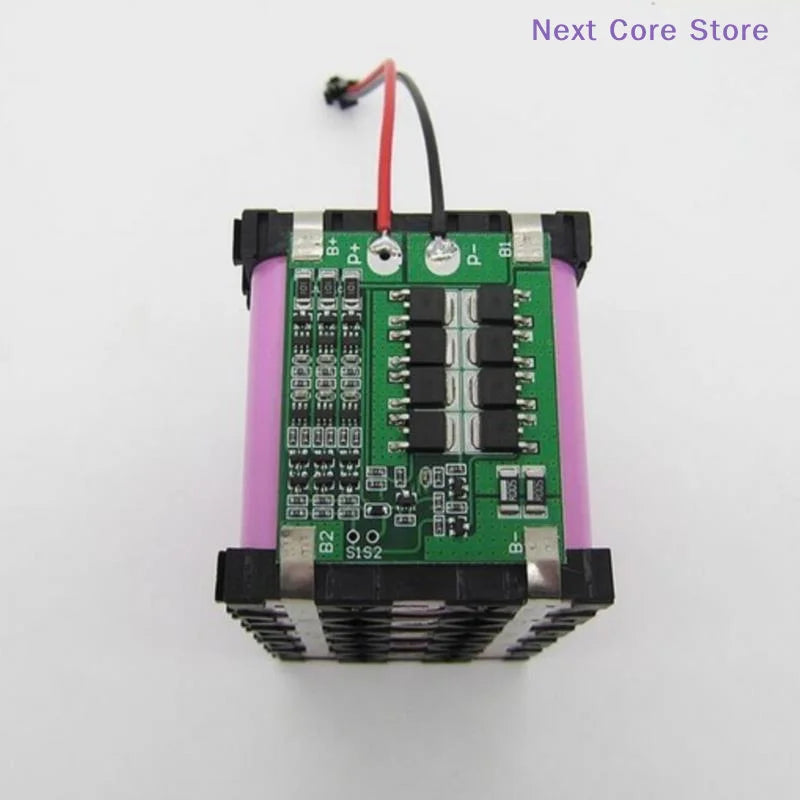

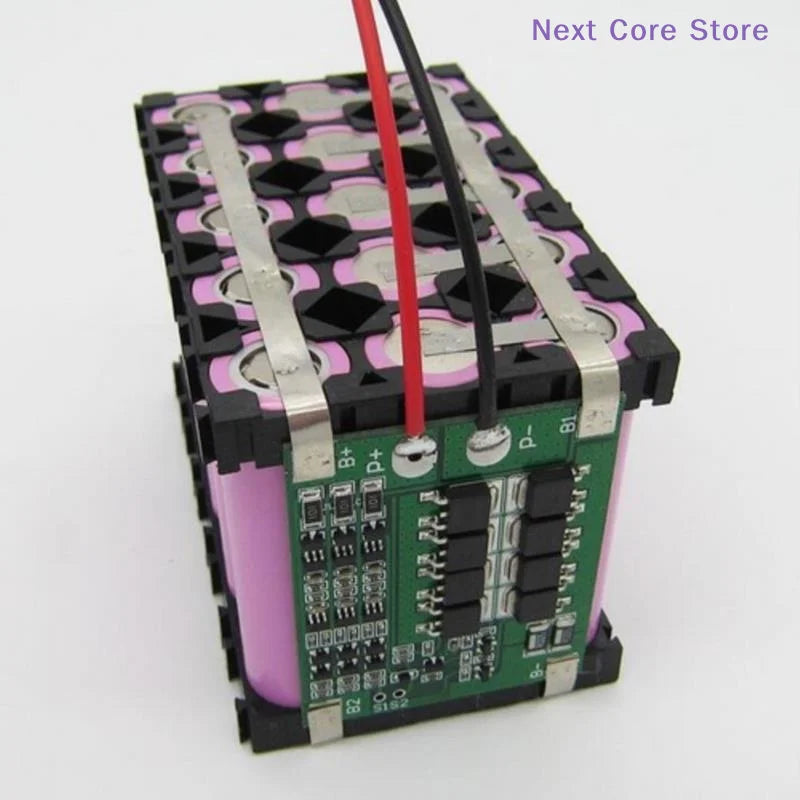

A: This 25A 12V BMS protection circuit board is designed for use with lithium-ion (Li-ion) battery packs. It is suitable for 3-cell (3S) configurations operating at a nominal 12V, and is commonly used in DIY battery packs, e-bikes, power tools, and other portable power applications.
Q: What happens when a short circuit is detected?
A: The board automatically cuts off the circuit to protect both the battery and connected devices when a short circuit is detected. Protection is self-recoverable — simply reconnect the charger to restore normal operation without needing to replace any components.
Q: What is the difference between the Max Working Current (25A) and Max Current (35–40A)?
A: The Max Working Current of 25A is the continuous rated current the board can handle during normal operation. The Max Current of 35–40A refers to the short-duration peak current capacity before the overcurrent protection circuit triggers a cutoff, protecting your battery from damage during sudden load spikes.
