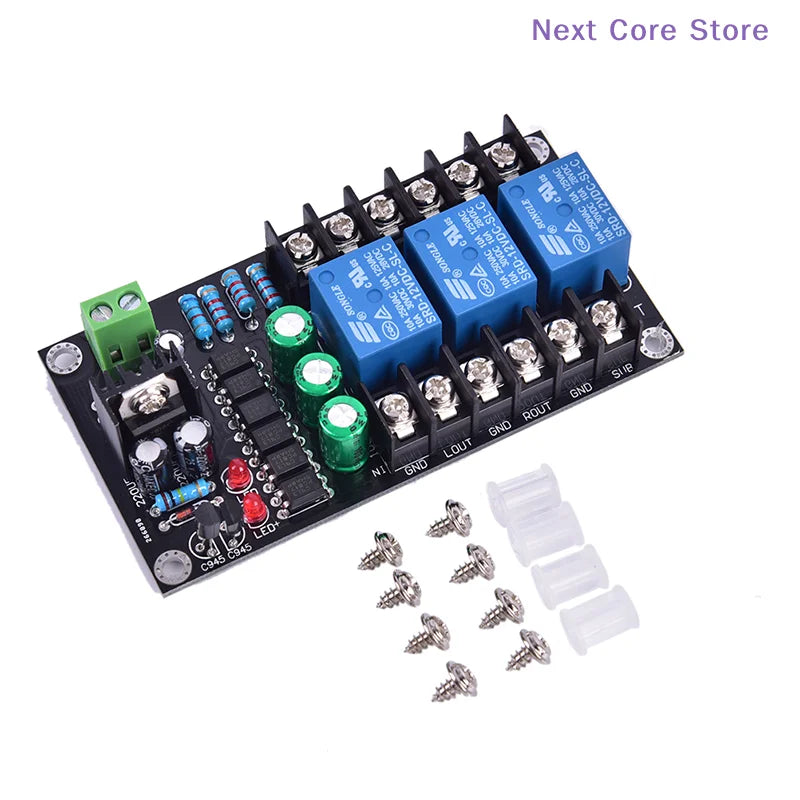

Keep your audio system running cleanly and safely with this 300W 2.1 Channel Relay Speaker Protection Board. Designed for DIY audio builders, home theater enthusiasts, and electronics hobbyists, this board provides delay startup and DC offset protection to guard your speakers from potentially damaging signals. Made in Mainland China.
Key Features
- Delay & DC Protection: Built-in startup delay and DC offset detection (default 1.8V control, adjustable DC sensitivity) prevent unwanted transients from reaching your speakers.
- Optocoupler Isolation: Uses an optocoupler for input/output isolation, providing excellent electrical insulation and strong anti-interference capability with unidirectional signal transmission.
- Common Mode Suppression: The low-resistance current-type input of the optocoupler delivers superior common mode rejection for a cleaner audio signal path.

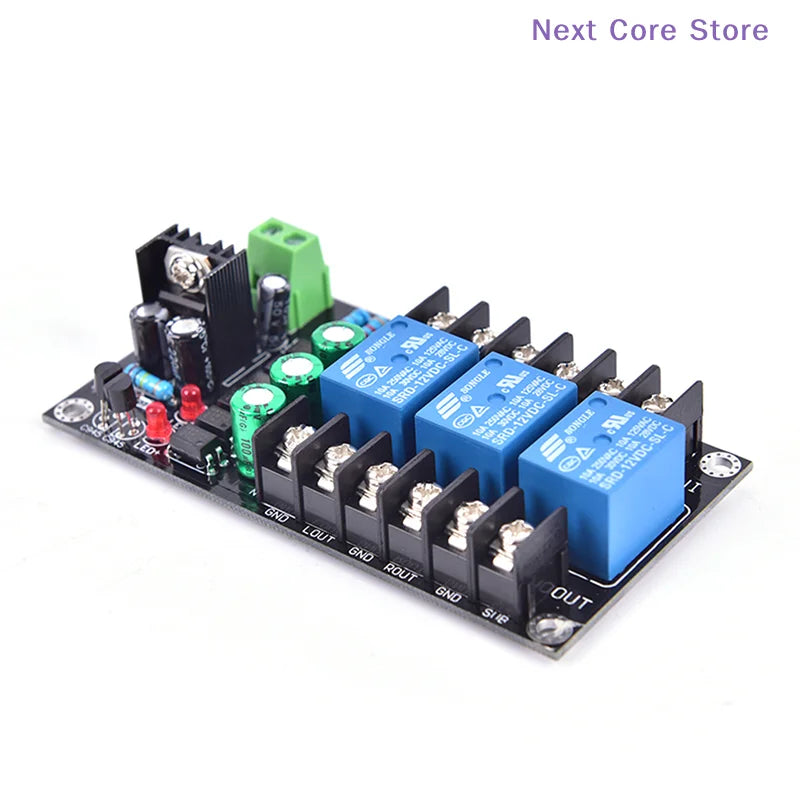

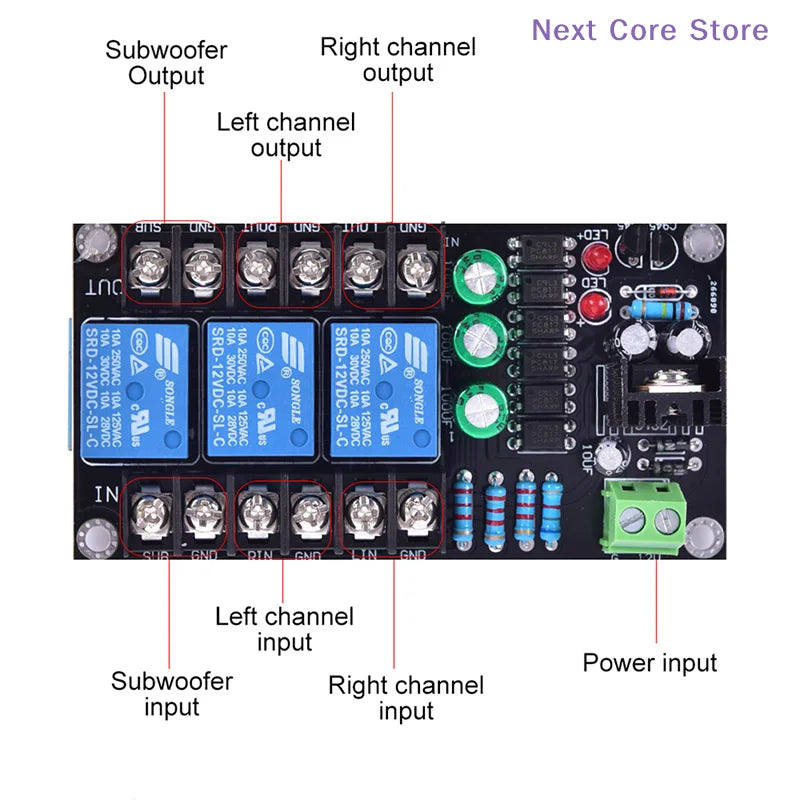

- Three Independent Channels: Each of the 2.1 audio channels (Left, Right, Subwoofer) is independently managed — suitable for non-common ground and BTL circuit amplifiers.
- Power & Audio Source Separation: Power and audio source are kept separate so the sound source signal remains unaffected by power fluctuations.
- High-Quality Relay Core: Songle relay as the core component ensures lossless audio transmission and resists contact oxidation and sparking.
- Heavy-Duty PCB Construction: Built on a 1.6mm thick 1A copper surface PCB with double-sided tin plating for reliable, long-term performance.
- High-Current Design: 7.62 pitch terminal blocks with 1/2W metal film resistors and reduced internal resistance, optimized for high-current applications.
- Power Indicator LED: Red power-on indicator light confirms normal operation; relay auto-adjusts engagement timing on startup surge.
Specifications
- Voltage Input: DC 12–16V or AC 12–16V
- Channel Design: 3 independent channels (2.1)
- Max Supported Power: Up to 300W × 3 channels

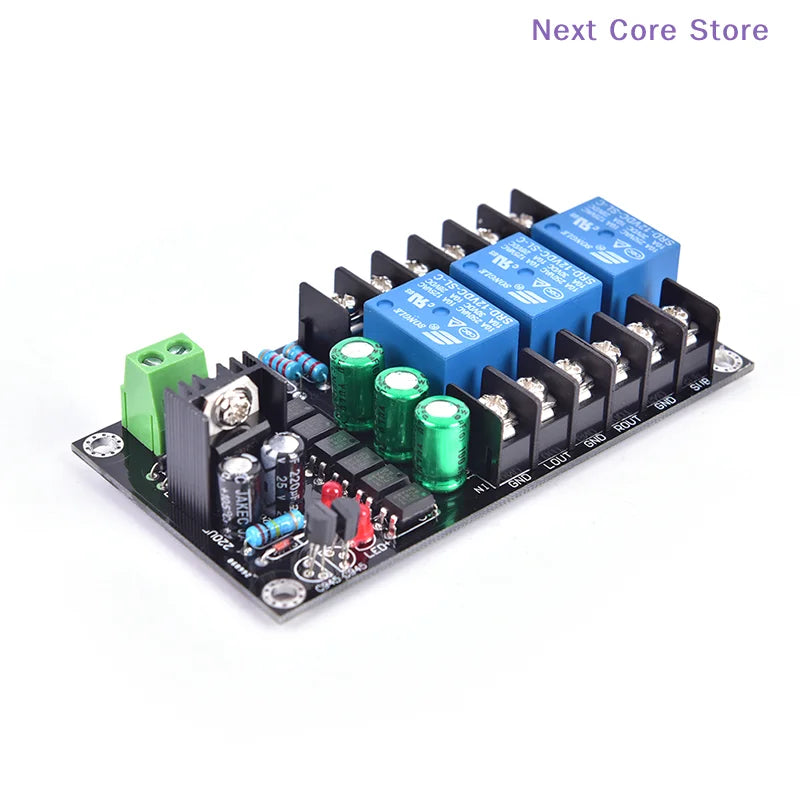

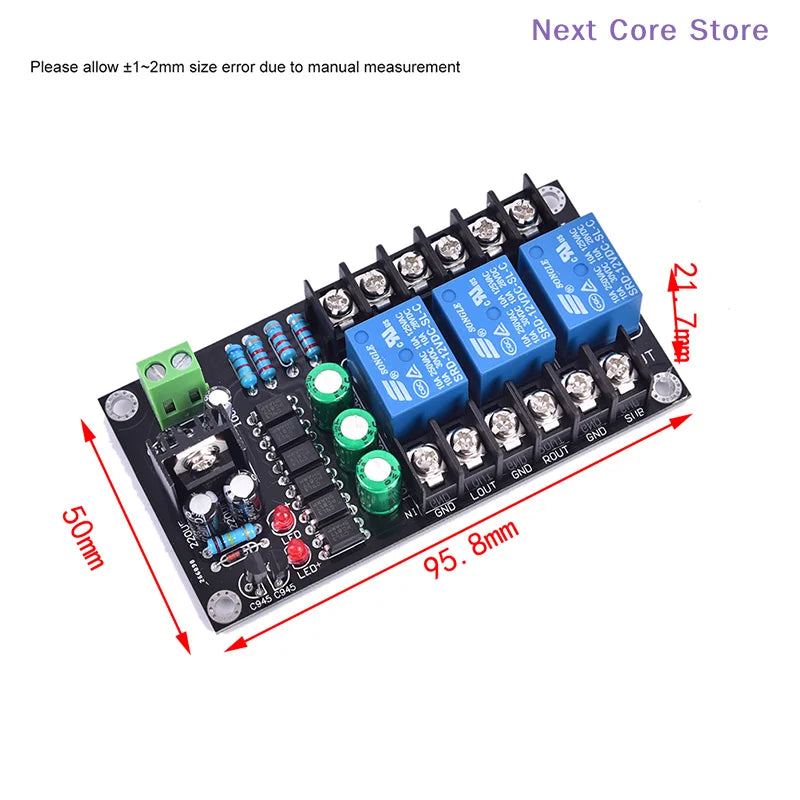

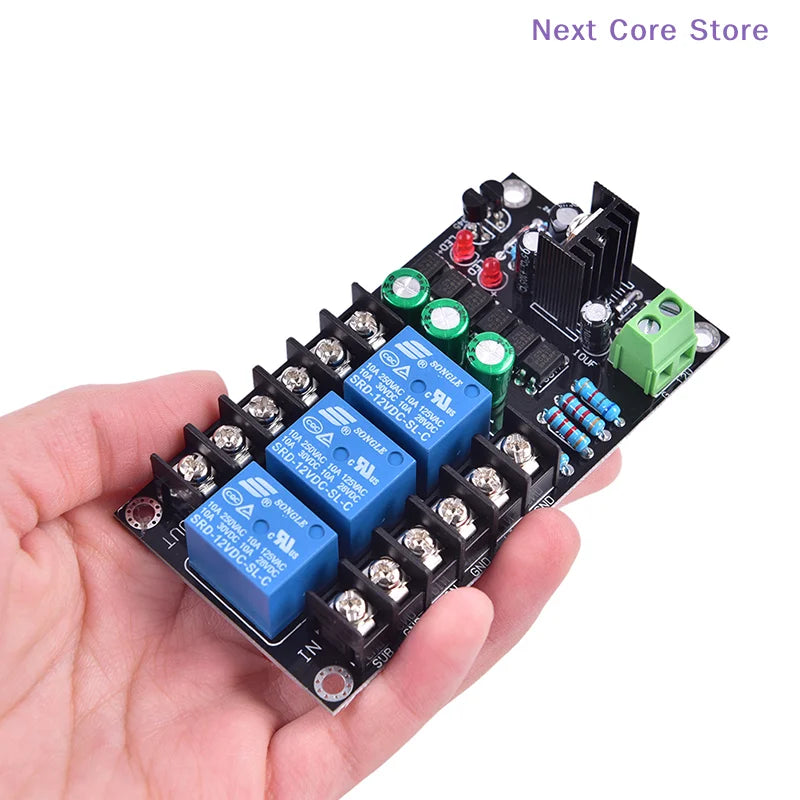

- PCB Size: 97 × 51 × 17 mm
- Terminal Pitch: 7.62mm
- DC Protection Threshold: Default 1.8V (adjustable)
What's in the Box
- 1 × 300W 2.1 Channel Speaker Protection Board
