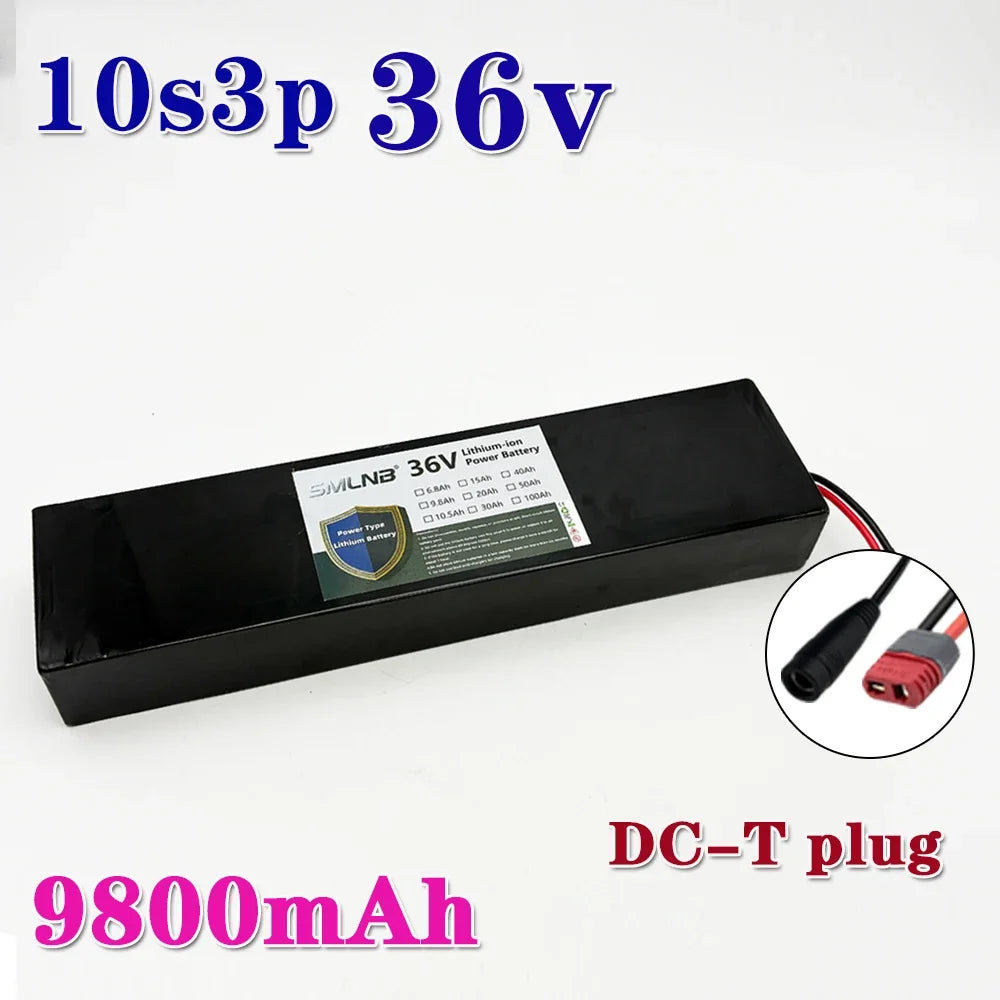

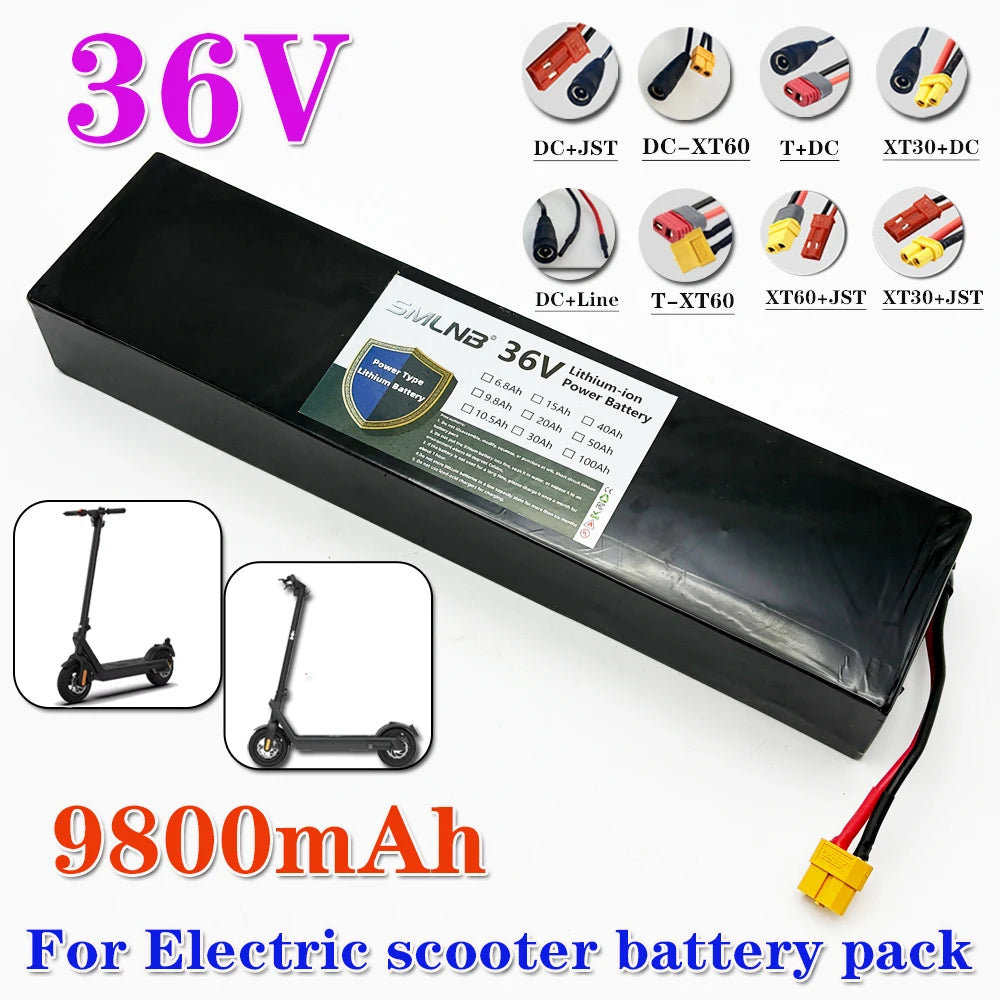

36V 9800mAh 10S3P Li-Ion Battery with BMS – KUGOO S1 S2 S3
36V 9800mAh 10S3P Li-Ion Battery with BMS – KUGOO S1 S2 S3
Breathe new life into your KUGOO S1, S2, or S3 electric scooter with this high-capacity 36V 9800mAh 10S3P lithium-ion rechargeable battery. Built with 30 premium 18650 cells in a 10-series, 3-parallel configuration, it delivers a robust 324Wh of rated energy and is engineered for long-lasting, dependable performance on every ride.
The integrated Battery Management System (BMS) provides intelligent multi-layer protection — guarding against overcharge, over-discharge, overcurrent, and short circuits — so you can charge and ride with complete confidence. CE certified for quality assurance.
Made in Mainland China.
Key Features
- High Capacity: 9800mAh / 324Wh for extended scooter range

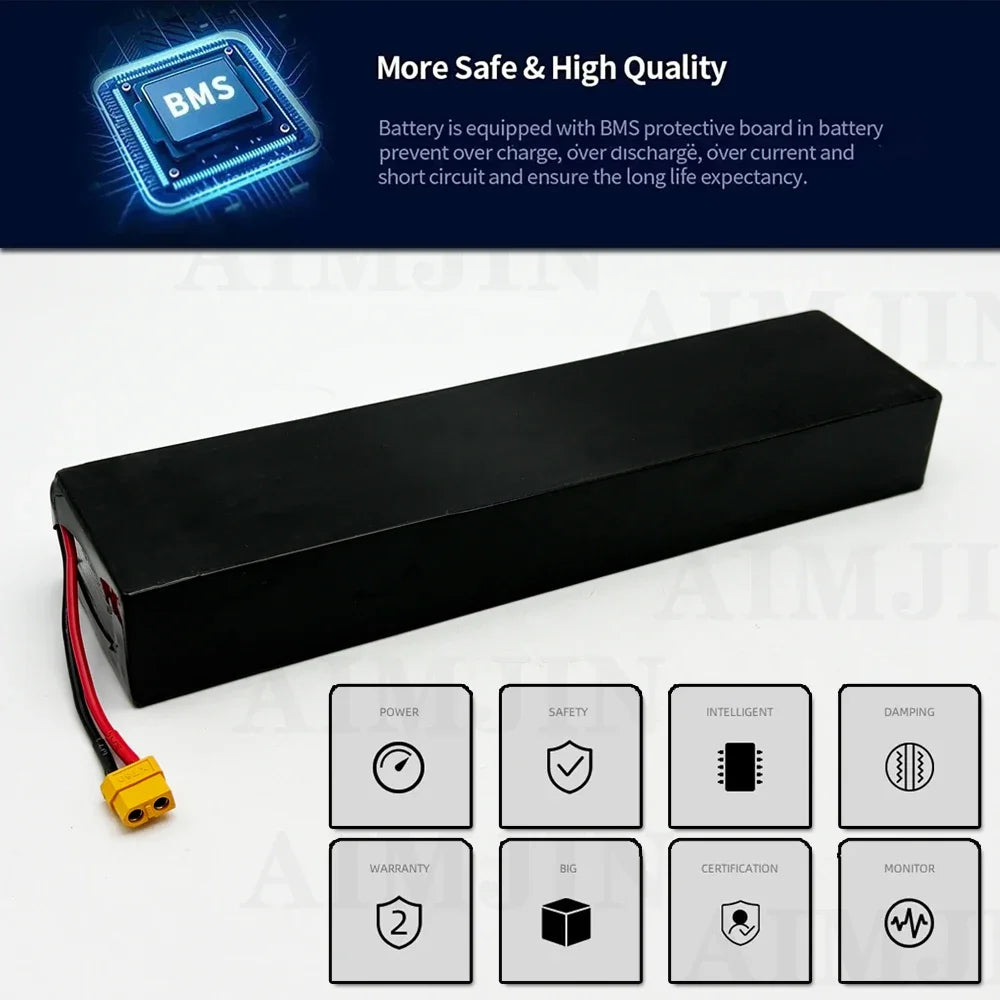

- Built-in BMS: Overcharge, over-discharge, overcurrent & short-circuit protection
- 18650 Cell Configuration: 10S3P — 30 cells total for stable, efficient power delivery
- Nominal Voltage: 36V (charge voltage: 42V; discharge cut-off: 28V)
- Long Cycle Life: Retains 80% capacity after 1,000 charge/discharge cycles
- CC-CV Charging: Max charge current 5A for safe, efficient recharging
- CE Certified: Meets European safety and quality standards
- Compatible With: KUGOO S1, S2, S3 Electric Scooters
Technical Specifications
| Model | 18650-10S3P |
| Cell Count | 30 pcs (10S3P) |
| Nominal Voltage | 36V |
| Charge Voltage | 42V |
| Capacity | 9800mAh |
| Rated Power | 324Wh |
| Output Voltage Range | 28V – 42V |
| Max Charge Current | 5A |
| Charge Method | CC-CV |
| Charge Temperature | 0°C – 45°C |
| Discharge Temperature | -10°C – 60°C |
| Storage Temperature | -20°C – 45°C (up to 3 months) |
| Cycle Life | 80% DOD after 1,000 cycles |

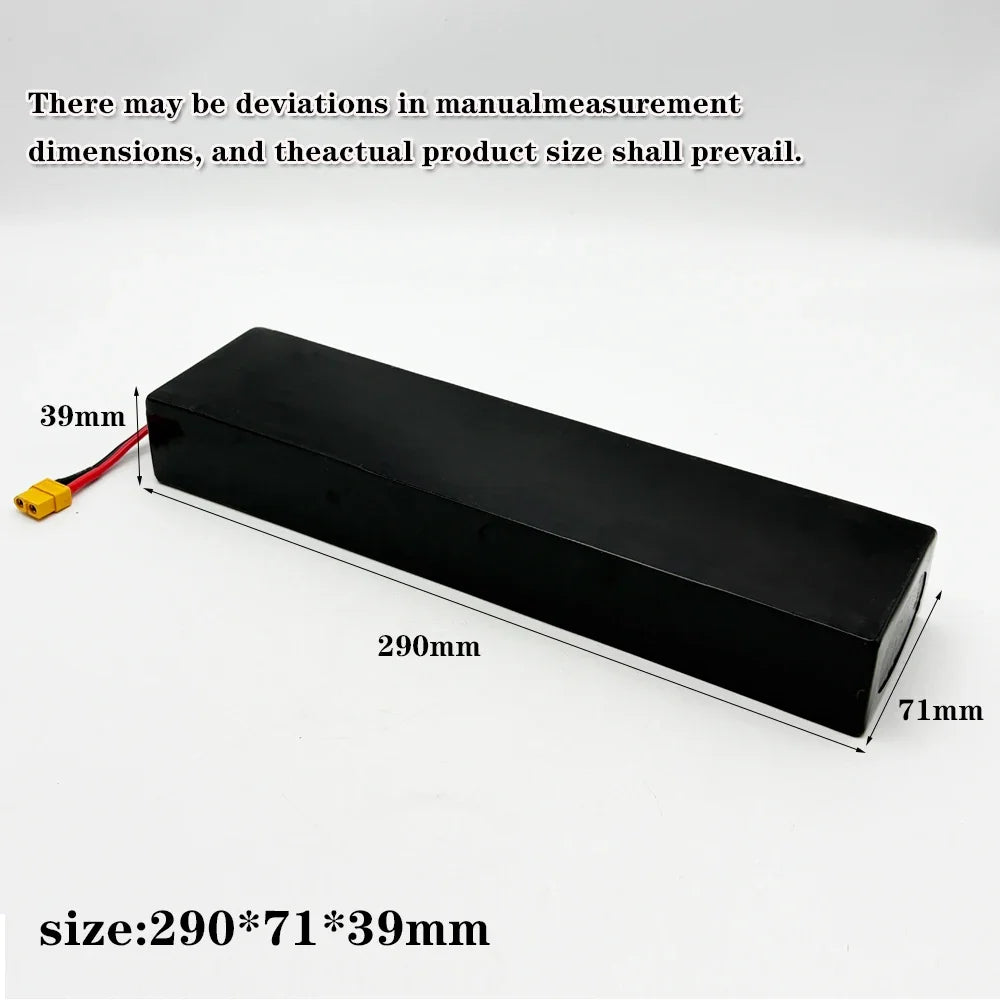

| Dimensions | 290 × 39 × 71 mm (±3mm) |
| Weight | 1278g (±50g) |
| Certification | CE |
What's in the Box
- 1 × 36V 9800mAh 10S3P Lithium-Ion Battery Pack (heat-shrink PVC wrap, random color)
Looking for more tools and gadgets for your ride or home? Check out these related items from our store:
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Is this 36V 9800mAh battery compatible with KUGOO S1, S2, and S3 electric scooters?
A: Yes, this 36V 10S3P lithium-ion battery pack is specifically designed as a direct replacement for KUGOO S1, S2, and S3 electric scooters. Always verify your scooter's connector type and voltage requirements before installation.
Q: What protections does the built-in BMS provide?
A: The integrated Battery Management System (BMS) actively protects against overcharging, over-discharging, overcurrent, and short circuits, ensuring safe operation and maximizing the lifespan of the battery pack.
Q: How long will this battery last before needing replacement?
A: This battery is rated for a cycle life of at least 1,000 charge/discharge cycles while retaining 80% of its original capacity (measured at 80% depth of discharge), making it a long-term, cost-effective upgrade for your electric scooter.
Q: What is the correct charging voltage for this battery?
A: The correct charge cut-off voltage is 42V using the CC-CV charging method, with a maximum charge current of 5A. Always use a compatible 42V charger to ensure safe and optimal charging.
