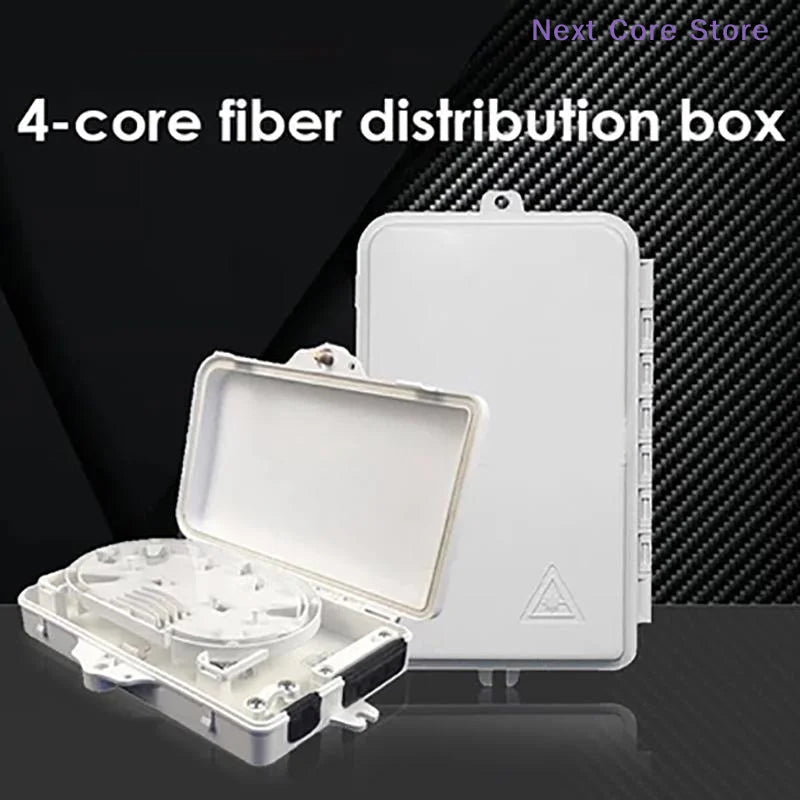

4-Core FTTH Fiber Optic Terminal & Distribution Box
Manage and protect your fiber optic connections with this rugged, fully enclosed 4-Core FTTH Fiber Optic Terminal Box. Built from high-grade PC+ABS material and rated IP65, it delivers reliable performance in both indoor and outdoor environments — standing up to dust, moisture, and extreme temperatures with ease.
Key Features

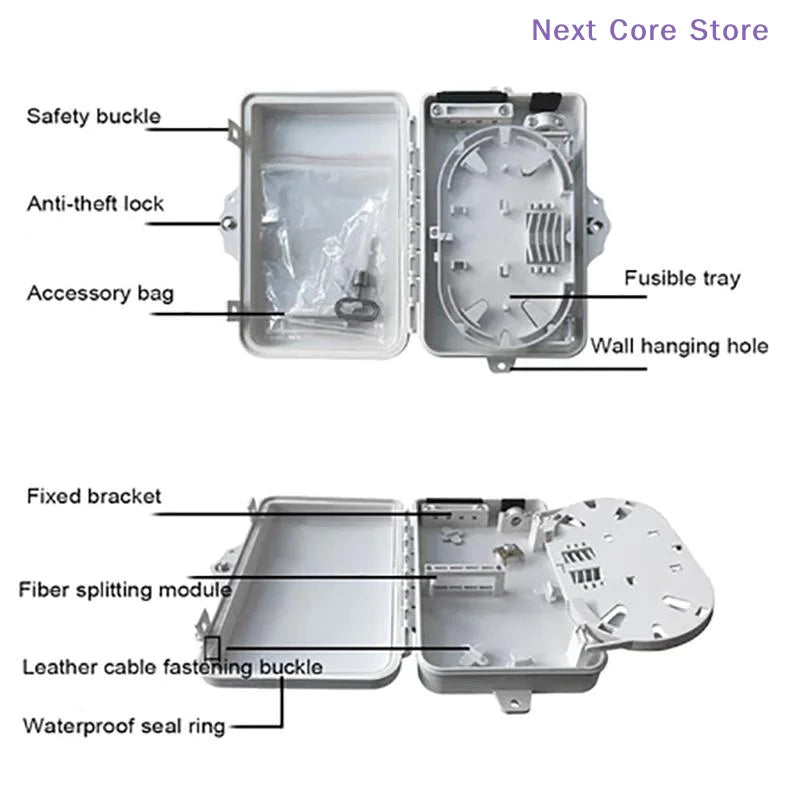

- Total Enclosed Structure: Fully sealed design keeps cables and connections protected at all times.
- IP65 Rated: Weatherproof, dustproof, and flame-retardant — ready for demanding outdoor installations.
- PC+ABS Material: Strong, lightweight body that is waterproof, dustproof, and built to resist aging and UV degradation.

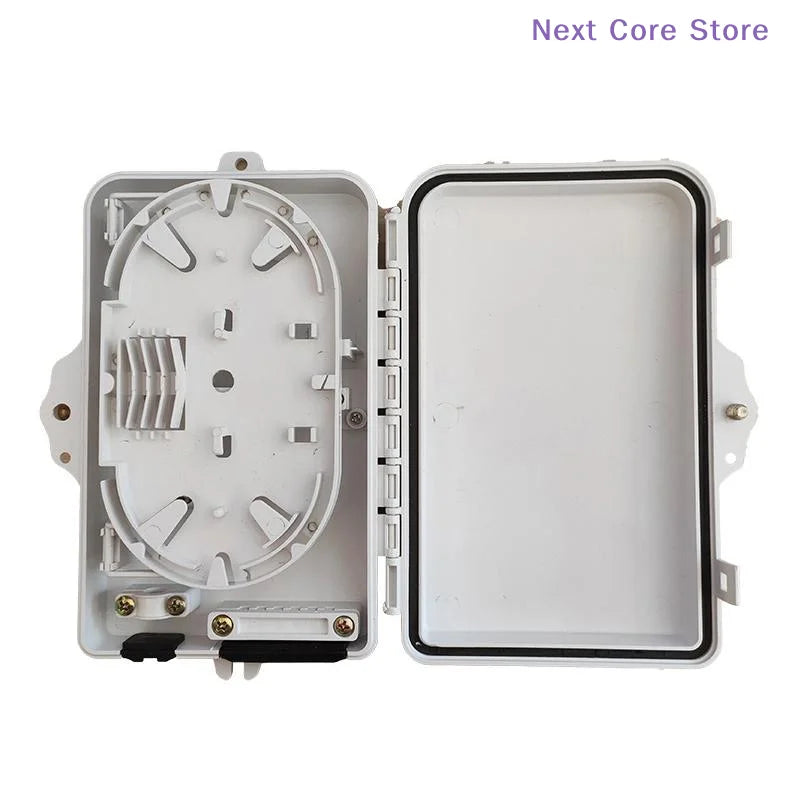

- All-in-One Functionality: Supports feeder cable clamping, drop cable management, fiber splicing, fixation, storage, and distribution in a single unit.

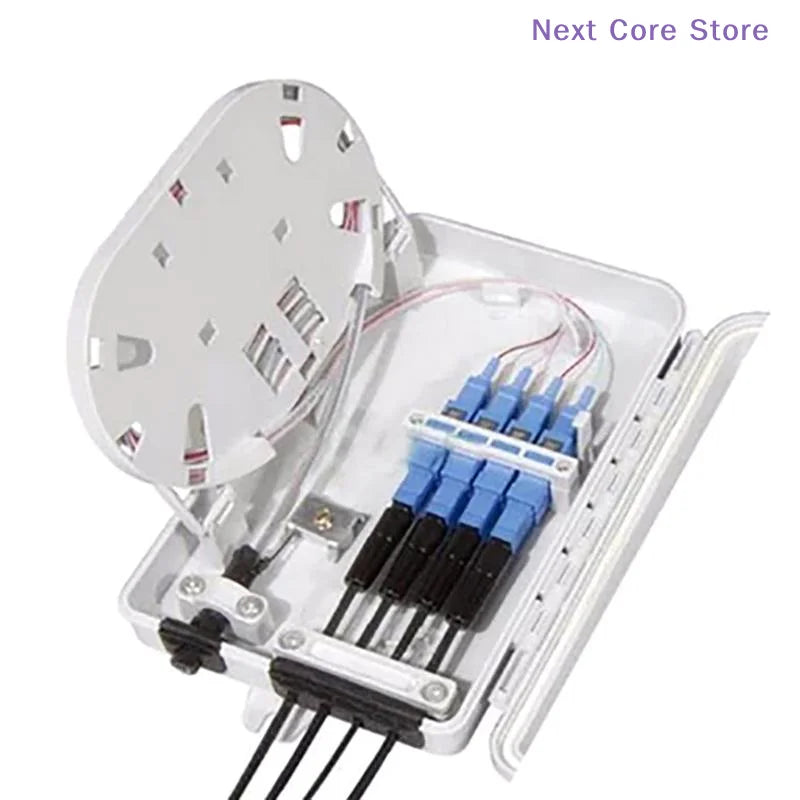

- Organized Cable Routing: Cables, pigtails, and patch cords run through dedicated paths without interfering with one another. Compatible with cassette-type FC/PLC adapter installation.
- Flip-Up Distribution Panel: Makes installation and maintenance fast and easy. Feeder cable can be placed in a cup-joint configuration.
- Wall-Mountable: Designed for convenient wall-mount installation indoors or outdoors.
- Double-Layer Design: Space-saving layout for simpler setup and ongoing maintenance.

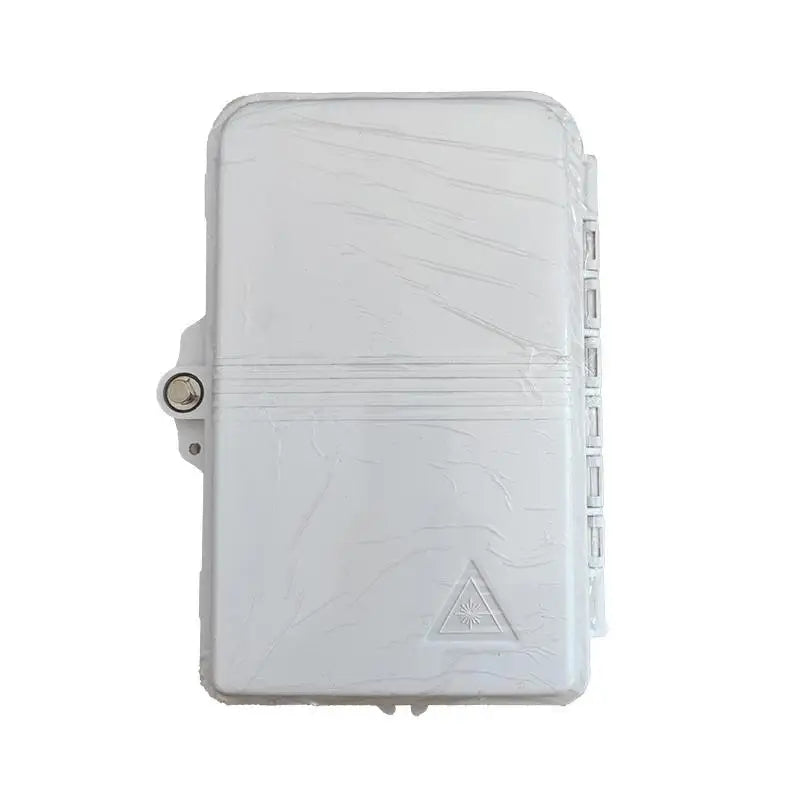

- Lockable: Includes a lock for added security of your fiber connections.
Technical Specifications
| Specification | Details |
|---|---|
| Material | PC + ABS |
| Protection Level | IP65 |
| Dimensions (W × H × D) | 21 × 13.5 × 40 cm |

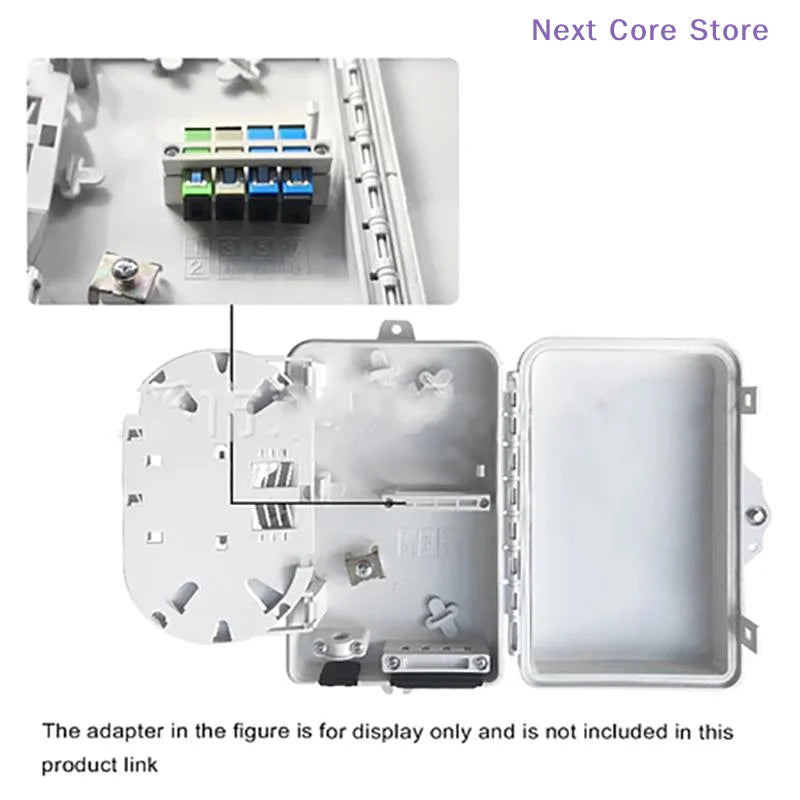

| Adapter Capacity | 4 × FC Simplex or LC Duplex Adapters |
| Cable Entrance | 2 |
| Cable Exit | 4 Simplex Drop Cables (Pre-connectorized supported) |
| Working Temperature | -40°C to +85°C |
| Relative Humidity | ≤ 85% (at +30°C) |
| Atmospheric Pressure | 70 kPa – 106 kPa |
| Power Source | Non-Powered (Passive) |
| Country of Origin | Made in China |
What's in the Box
- 1 × 4-Core Fiber Optic Terminal Distribution Box
Related Products You May Like
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Is this fiber optic terminal box suitable for outdoor installation?
A: Yes. The 4-Core FTTH Fiber Optic Terminal Box is rated IP65, meaning it is fully dustproof and protected against water jets, making it well-suited for outdoor environments. It is also designed to operate across a wide temperature range of -40°C to +85°C.
Q: What adapter types are compatible with this fiber optic distribution box?
A: This terminal box supports up to 4 FC simplex adapters or LC duplex adapters, and is compatible with cassette-type and PLC adapter installations. It also supports pre-connectorized drop cables.
Q: How is this FTTH distribution box installed?
A: The box is designed for wall-mounted installation and can be used both indoors and outdoors. The flip-up distribution panel and cup-joint feeder cable placement make the installation and any future maintenance straightforward and hassle-free.
