48V 15Ah 13S4P Lithium-Ion Battery Pack for Citycoco Electric Scooters
Power up your Citycoco or compatible 48V electric scooter with this high-capacity 48V 15Ah lithium-ion battery pack. Built on a robust 13S4P configuration using 52 premium 18650 cells, this battery delivers a 614Wh energy store, a 54.6V charge voltage, and a rated discharge current of 25A — making it an ideal upgrade or replacement for 1000W scooter motors. The integrated BMS (Battery Management System) actively protects against overcharge, over-discharge, and short circuits for long-lasting, worry-free performance.
Made in Mainland China.
Key Features
- High Capacity: 15Ah / 614Wh — extended range per charge
- Nominal Voltage: 48V | Charge Voltage: 54.6V
- Cell Configuration: 13S4P — 52 × 18650 Li-Ion cells
- Rated Discharge Current: 25A continuous | 50A peak instantaneous
- Charging Methods: Standard (2A CC-CV) or Fast Charge (up to 5A)
- Operating Temperature: -20°C to +55°C
- Integrated BMS: Overcharge, over-discharge & short-circuit protection
- CE Certified — meets European safety standards

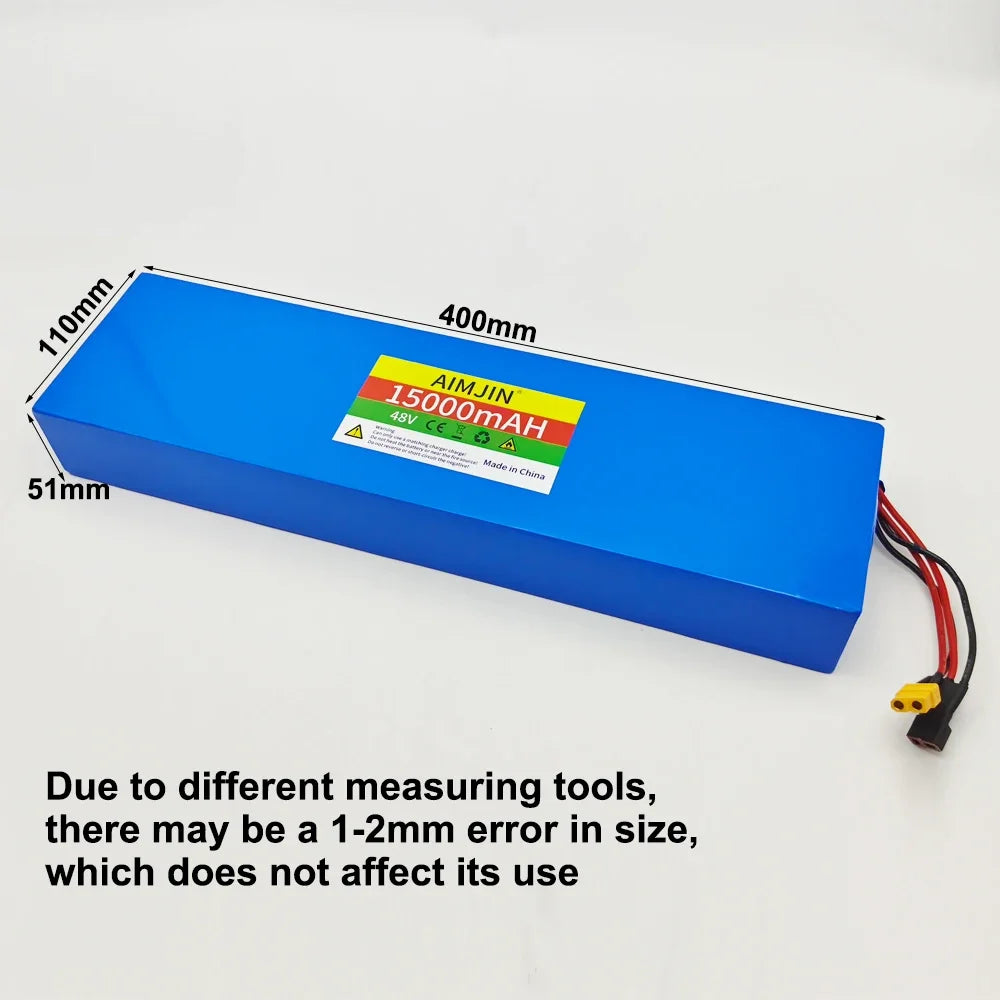

- Compact Form Factor: 400 × 110 × 51 mm | Weight: approx. 2,394g
Full Technical Specifications
| Model | 13S4P 18650 |
| Nominal Voltage | 48V |
| Nominal Capacity | 15Ah / 614Wh |
| Charge Voltage | 54.6V |
| Battery Combination | 4P × 13S (52 cells total) |
| Discharge Cutoff Voltage | 30 ± 1V |
| Charging Cutoff Voltage | 54.6V |
| Rated Discharge Current | 25A |
| Peak Discharge Current | 50A |
| Max Continuous Charging Current | 5A |
| Standard Charging Current | 2A |
| Charging Method | CC-CV |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 400 × 110 × 51 mm |
| Weight | ~2,394g |
| Certification | CE |
| Origin | Mainland China |
Compatible With
Designed for Citycoco fat-tire electric scooters and other 48V scooter platforms running 1000W motors. Always verify your scooter's voltage, connector type, and physical dimensions before purchasing.
Related Products You May Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What electric scooters is this 48V 15Ah battery pack compatible with?
A: This 48V 13S4P lithium-ion battery pack is designed primarily for Citycoco fat-tire electric scooters and other 48V scooters powered by 1000W motors. Before purchasing, verify that your scooter accepts a 48V nominal / 54.6V charge voltage, uses a compatible connector, and that the physical dimensions (400 × 110 × 51 mm) fit your battery compartment.
Q: Does this battery have built-in protection?
A: Yes. The integrated BMS (Battery Management System) provides active protection against overcharge, over-discharge, over-current, and short circuits, helping to extend battery life and maintain safe operation during every ride.
Q: How long does it take to charge this battery?
A: Using the standard 2A CC-CV charging method, a full charge from empty takes approximately 7–8 hours. With fast charging at up to 5A, charging time can be reduced to approximately 3 hours. Always use a charger rated for 54.6V output.
Q: Is this battery CE certified?
A: Yes, this lithium-ion battery pack carries CE certification, indicating it meets European safety and electromagnetic compatibility standards.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
