48V 20Ah 13S5P Lithium Battery Pack for Citycoco Scooter
48V 20Ah 13S5P Lithium Battery Pack for Citycoco Scooter
48V 20Ah 13S5P Lithium-Ion Battery Pack for Citycoco & Motorized Scooters
Power your Citycoco, e-scooter, or electric motor (250W–2000W) with this robust 48V 20Ah 18650 Lithium-Ion Battery Pack from Aimjin. Built with a 13S5P cell configuration (65 high-grade 18650 cells) and an integrated 50A Smart BMS (Battery Management System), this pack delivers consistent performance, long cycle life, and intelligent overcharge/over-discharge protection — all in a compact, lightweight form factor. CE certified for peace of mind. Made in Mainland China.
Key Features
- High Capacity: 48V / 20,000mAh (20Ah) — extended range for every ride
- 13S5P Cell Configuration: 65 premium 18650 Li-ion cells for stable, high-output power

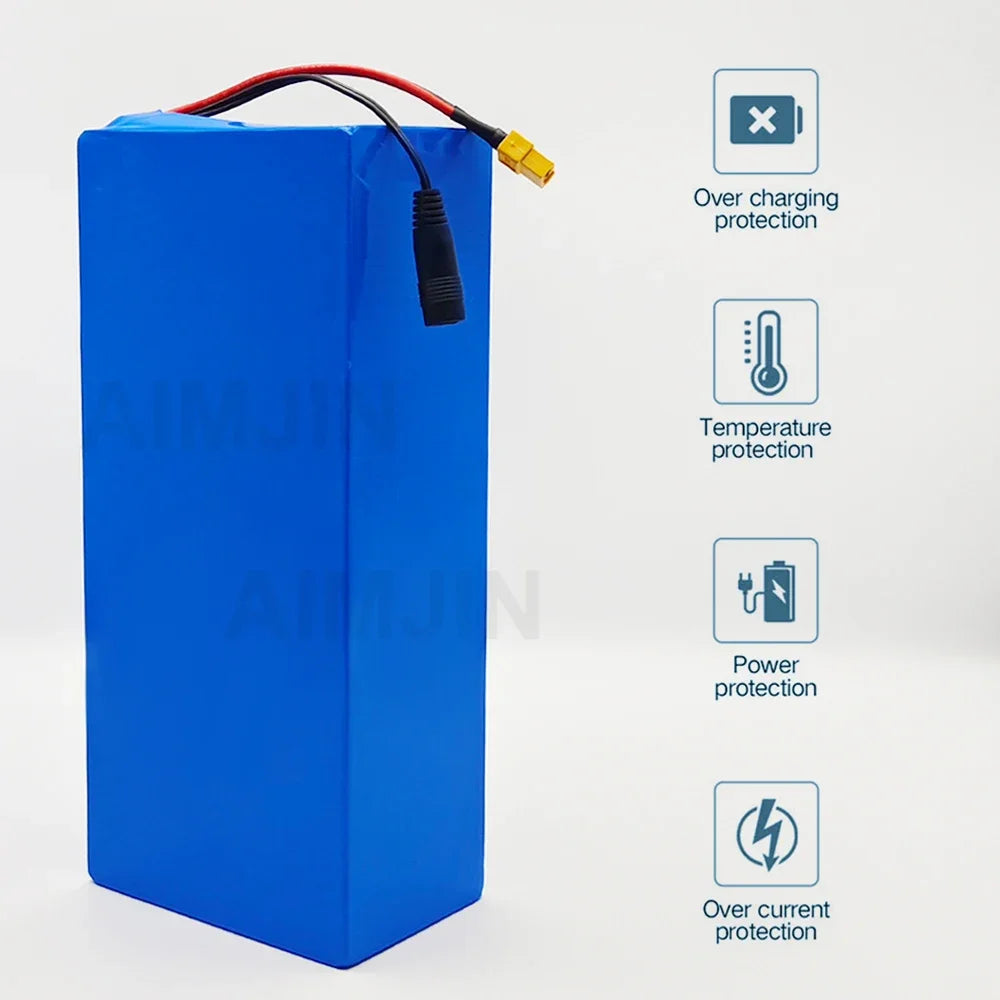

- Built-in 50A Intelligent BMS: Overcharge, over-discharge, short-circuit, and temperature protection
- Wide Motor Compatibility: Supports 250W to 2000W electric motors and drivetrains
- Fast Charge Option: Full charge in ~3 hours at 5A fast charge; standard charge ~7.5 hours at 2A
- 800+ Cycle Life: Long-lasting performance over hundreds of charge/discharge cycles
- CE Certified: Meets European safety and quality standards

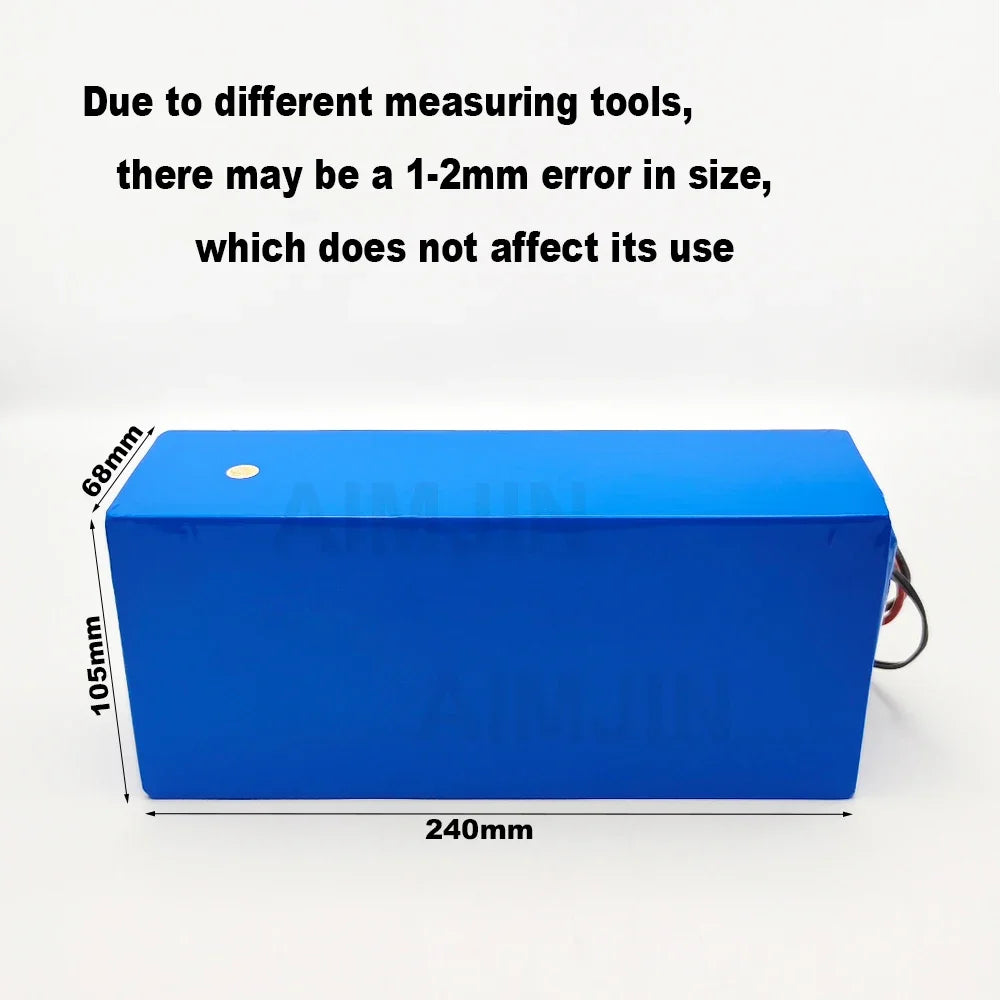

- Compact & Lightweight: Only ~2.6 kg | Dimensions: 240 × 105 × 68 mm
Full Technical Specifications
| Specification | Value |
|---|---|
| Battery Type | Li-Ion (18650) |
| Nominal Voltage | 48V |
| Nominal Capacity | 20Ah (20,000mAh) |
| Cell Configuration | 13 Series × 5 Parallel (65 cells) |
| Charge Cutoff Voltage | 54.6V |
| Discharge Cutoff Voltage | 36V ± 1V |
| Rated Discharge Current | 20A |
| Max Continuous Discharge Current | 20A |
| Instantaneous Max Discharge Current | 40A |
| Max Continuous Charge Current | 5A |
| Standard Charge Current | 2A (~7.5 hrs) |
| Fast Charge Current | 5A (~3 hrs) |
| Charge Mode | CC-CV |
| Charge Temperature Range | 0°C – 55°C |
| Cycle Life | 800+ cycles |
| Compatible Motor Power | 250W – 2000W |
| Dimensions | 240 × 105 × 68 mm |
| Weight | ~2.6 kg (2680g) |
| Color | Blue |
| Certification | CE |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × 48V 20Ah 13S5P Lithium-Ion Battery Pack
- 1 × Charger
You May Also Like
Explore more tools and equipment from our store:
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: Is this 48V 20Ah lithium battery pack compatible with my Citycoco scooter?
A: Yes — this 48V 20Ah 13S5P battery pack is specifically designed for Citycoco and similar motorized electric scooters. It supports motors ranging from 250W up to 2000W, making it compatible with a wide range of e-scooter and electric vehicle drivetrains. Always verify your scooter's connector type and voltage requirements before installation.
Q: How long does it take to fully charge this lithium battery pack?
A: Using the included charger at the standard charge current of 2A, the 48V 20Ah battery pack takes approximately 7.5 hours to reach a full charge. If you use fast charging at 5A, charge time drops to around 3 hours. Charge temperature should be kept between 0°C and 55°C for optimal results.
Q: What protection features does the built-in BMS provide?
A: The integrated 50A Battery Management System (BMS) safeguards the pack against overcharging, over-discharging, short circuits, and temperature extremes. It also helps balance the 65 individual 18650 cells, extending the overall cycle life to 800+ charge cycles and keeping your battery performing reliably over time.
Q: What are the physical dimensions and weight of this battery pack?
A: The battery pack measures 240 × 105 × 68 mm and weighs approximately 2.6 kg (2680g), making it compact and easy to install in standard Citycoco and e-scooter battery compartments.
