4K 2x2 Video Wall Controller – HDMI/DVI 4-Screen Splicing Processor

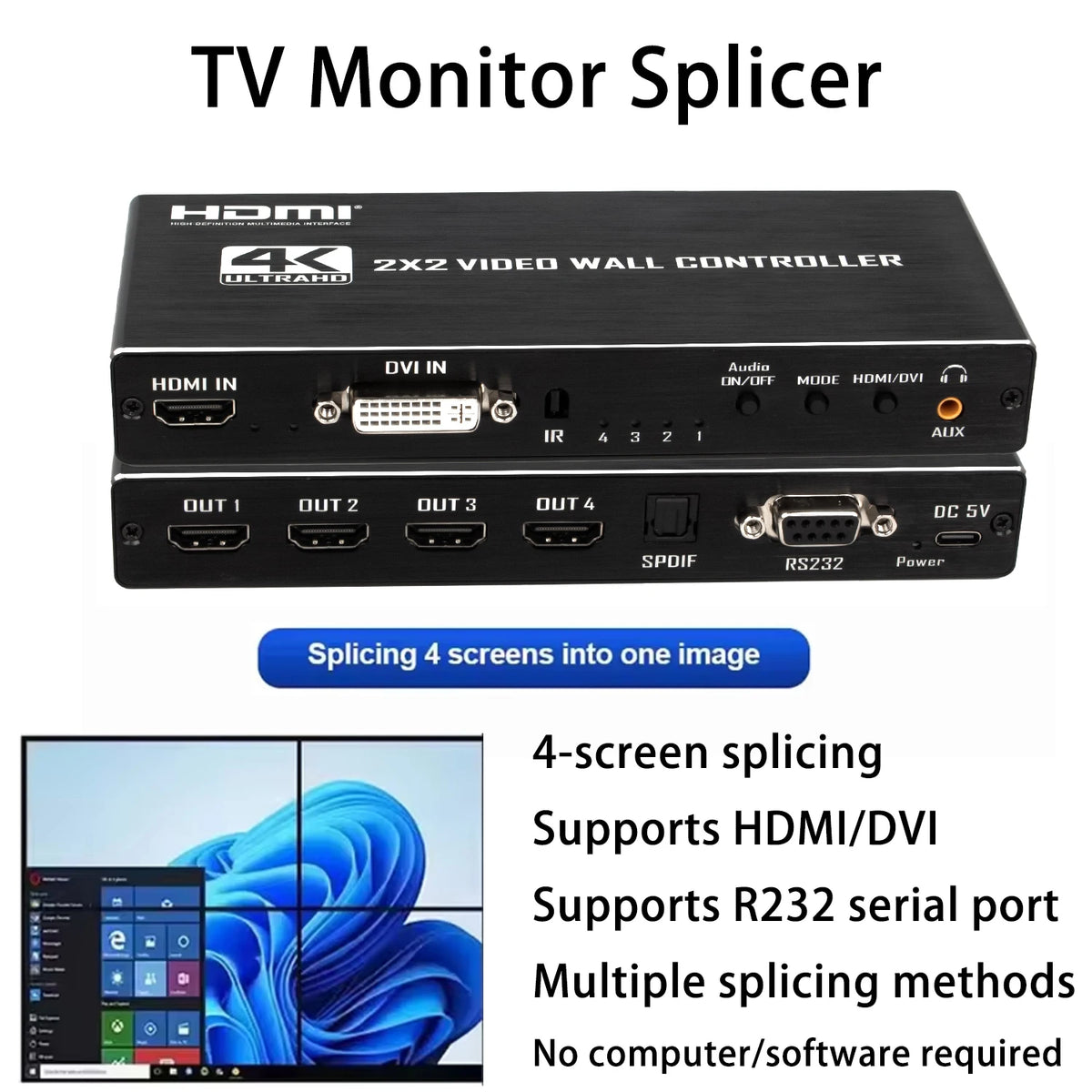

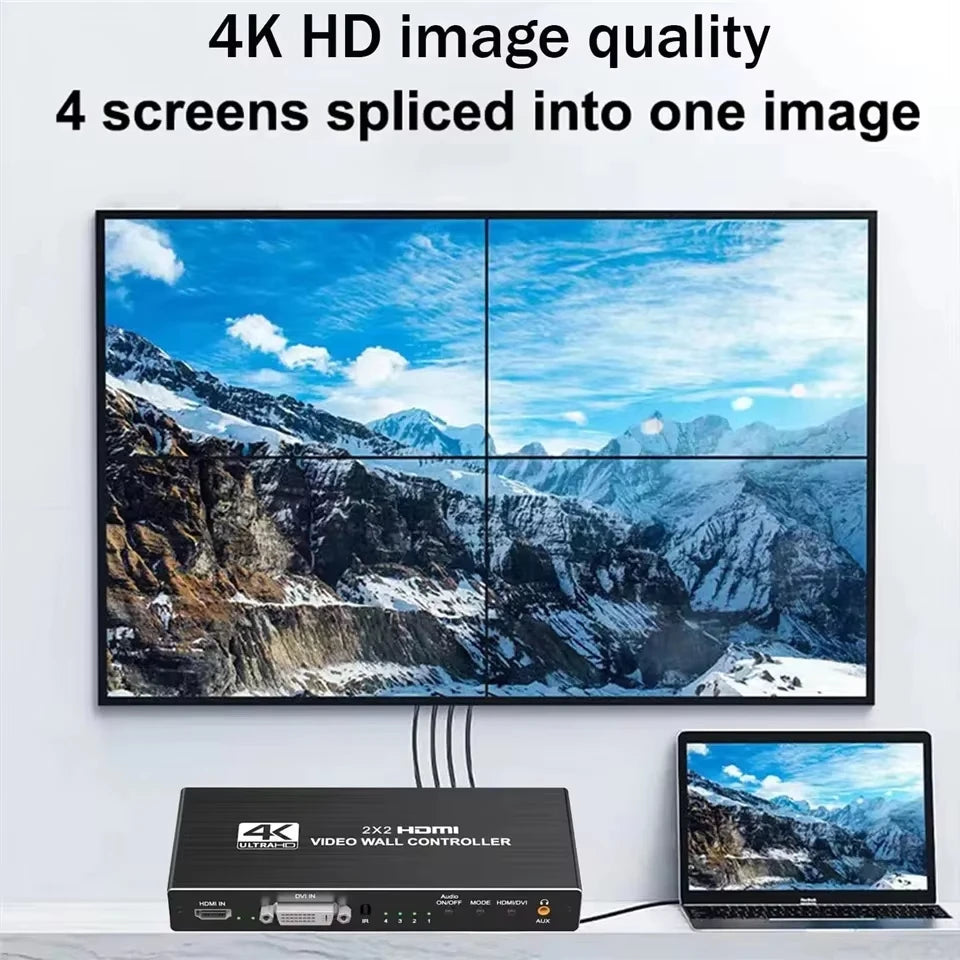

Transform any multi-screen setup into a stunning, seamless video wall with this powerful 2x2 Video Wall Controller. Designed for retail digital signage, command centers, event displays, and home theater enthusiasts, this processor splits a single HDMI or DVI input signal across up to 4 full HD displays — creating one breathtaking, unified image wall.

Made in Mainland China.

Key Features

• 1 HDMI/DVI Input → 4 HDMI Outputs: Distribute one source (DVD player, TV box, Xbox, Roku, PC, and more) to four screens simultaneously with no signal loss.
• 4K Input / 1080P Output: Accepts input up to 4K@30Hz (3840×2160P) and outputs crisp 1920×1080P@60Hz on all displays. HDCP 1.4 and HDMI 1.4 compliant.
• 8 Flexible Display Modes: Effortlessly switch between 2×2, 1×1, 1×2, 1×3, 1×4, 2×1, 3×1, and 4×1 configurations via IR remote control or the onboard "Switch" key — no need to get up from your seat.
• 180° Screen Rotation: Flip HDMI Output 1 & 2 images 180° to orient displays with the thinnest possible bezels, minimizing border gaps in 2×2 mode (1080P@60Hz max).
• Edge Mask & Bezel Correction: Fine-tune image alignment across all screens to ensure a perfectly calibrated, cohesive picture — even accounting for physical screen bezels.
• Audio Support: Built-in 3.5mm stereo jack (2.0CH) and optical SPDIF port (5.1CH) for connection to speakers, amplifiers, or soundbars. Ensure input/output devices are set to 1080P for full audio functionality.
• RS-232 Advanced Control: Supports RS-232 for professional integration into automation and AV control systems.
• Plug & Play Operation: Easy setup with no complex configuration required. Porous convection design keeps the unit cool, and the non-slip base ensures a stable installation.

Technical Specifications

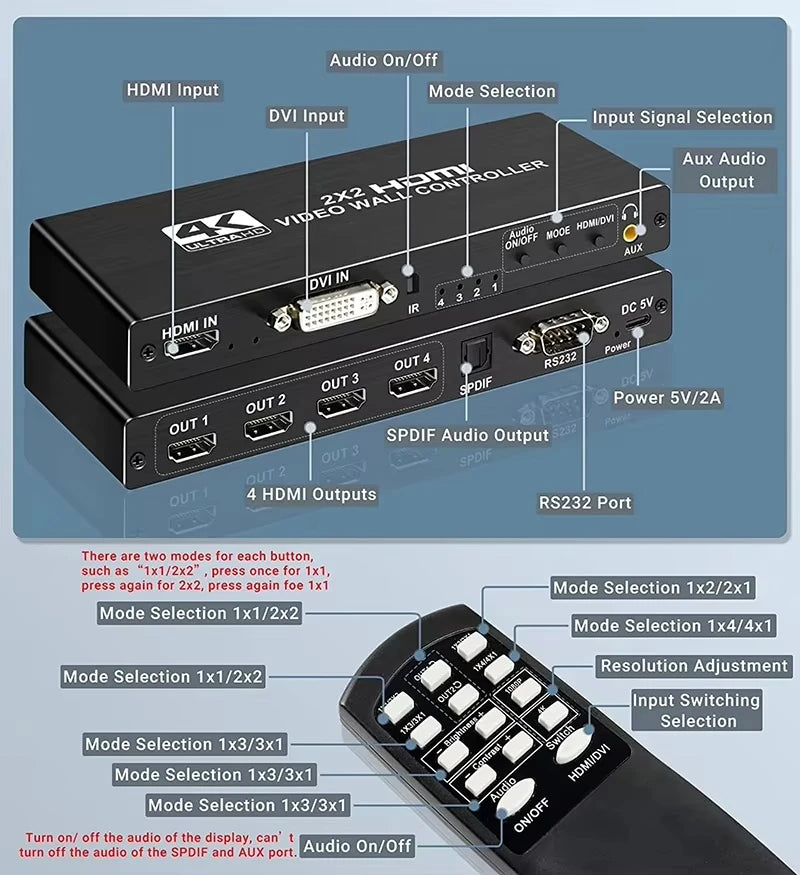

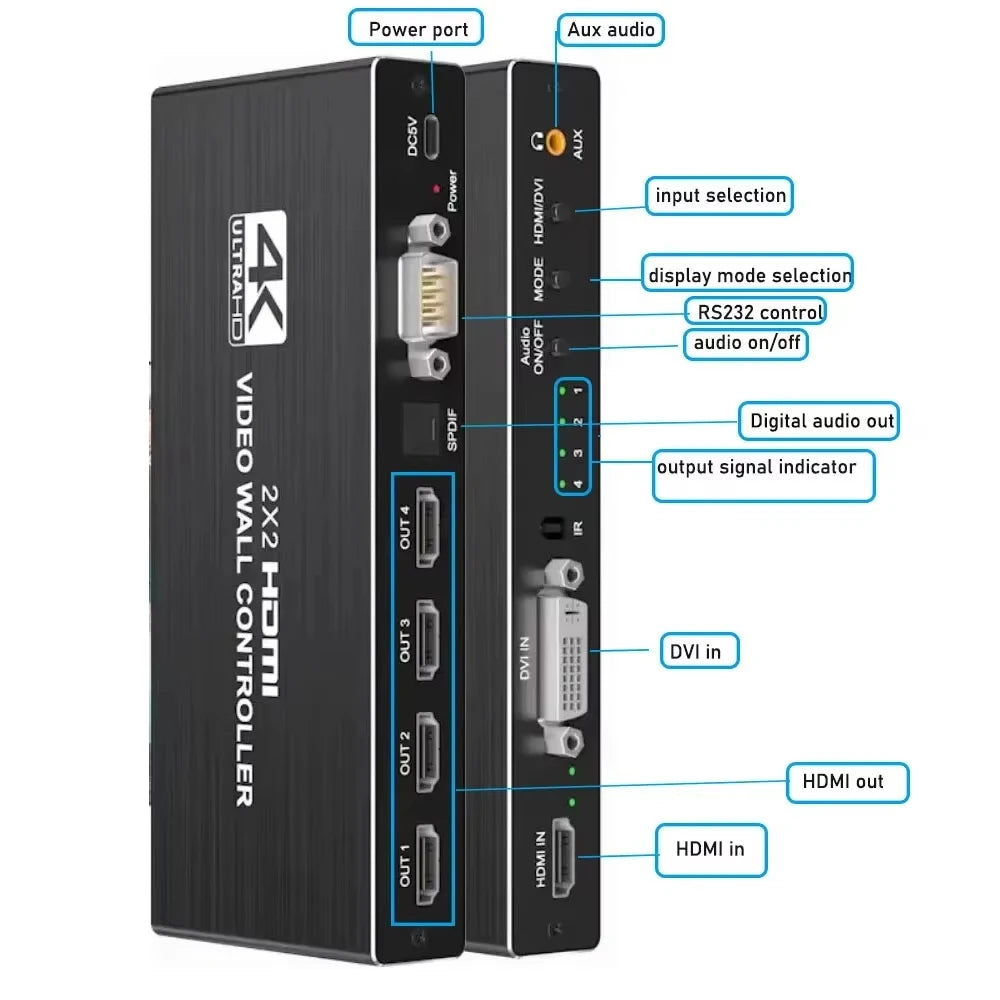

• Input: 1× HDMI / DVI compatible
• Output: 4× HDMI compatible
• Input Resolution: Up to 4K@30Hz (3840×2160), 1920×1080P @24/30/50/60Hz
• Output Resolution: 1920×1080P@60Hz
• Audio: 1× 3.5mm Stereo Jack (2.0CH) + 1× Optical SPDIF (5.1CH)
• Control: IR Remote + Onboard Switch + RS-232
• Display Modes: 2×2, 1×1, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1
• HDCP Compliance: HDCP 1.4
• Cooling: Porous convection heat dissipation

What's in the Box

• 1× TV Video Wall Controller
• 1× DC Power Adapter
• 1× IR Remote Control (battery not included)
• 1× User Manual

Pro Tips

• For best results, use professional video wall panels rather than standard consumer TVs.
• Set all input and output devices to 1080P resolution to ensure full functionality, including audio and remote control operation.
• For gaming applications, 2×2 mode delivers the most impressive visual experience.

Looking to complete your AV setup? Check out our 10-Piece Gardening Tool Kit for outdoor spaces or explore handy accessories like our 1/2" Drive 8-Piece Hex Short Socket Set for your workspace.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What input sources are compatible with this 2x2 video wall controller?

A: This HDMI video wall controller is compatible with any HDMI or DVI output device, including DVD players, TV boxes, Xbox consoles, Roku devices, laptops, desktop computers, and more. Simply connect your source to the single HDMI/DVI input and distribute the signal to up to 4 displays.

Q: Why is there no audio output from my video wall processor?

A: Audio output requires that both your input and output devices are set to 1080P resolution. Once the resolution is correctly set, the updated firmware supports audio output to any compatible TV, speaker, soundbar, or amplifier via the 3.5mm stereo jack or optical SPDIF port.

Q: Can I use the 180° rotation feature in all display modes?

A: No — the 180° screen rotation feature is only available in 2×2 mode and requires all connected displays to be running at a resolution no higher than 1080P@60Hz. If your screens are set to 4K, please switch them to 1080P first to enable this feature.

Q: How do I switch between display modes on this video wall controller?

A: You can switch between the 8 available display modes (2×2, 1×1, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1) using the included IR remote control or by pressing the "Switch" button directly on the unit. For advanced automation environments, RS-232 control is also supported.

Q: Is the IR remote control not working — what should I check?

A: The IR remote control operates reliably when both the input source and output displays are set to 1080P resolution. Please verify the resolution settings on all connected devices and ensure you are within range of the IR receiver on the controller unit.
