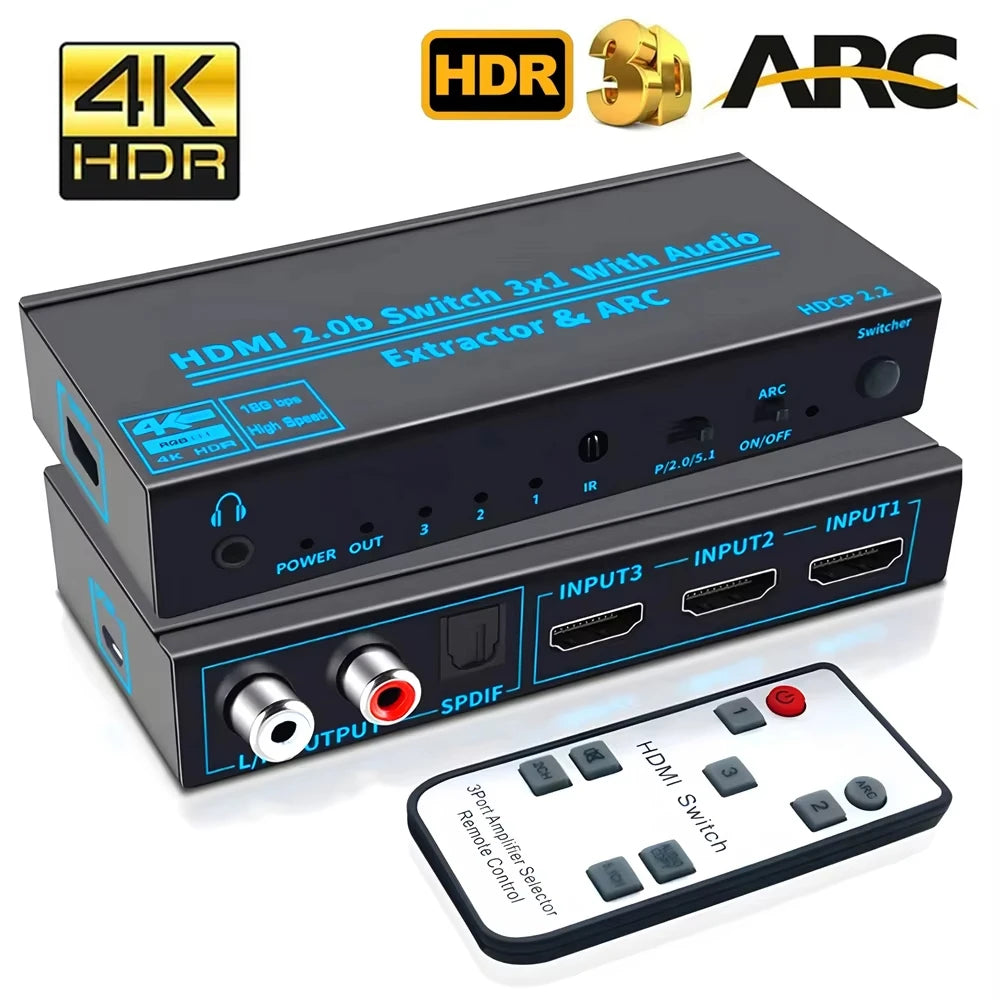

4K@60Hz HDMI 2.0 Audio Extractor 3x1 Switcher | SPDIF RCA ARC

Upgrade your home theater setup with this 4K@60Hz HDMI 2.0 Audio Extractor 3-in-1 Switcher. Connect up to three HDMI sources to a single display while simultaneously routing audio to your soundbar, stereo system, or surround speakers via optical TOSLINK SPDIF, coaxial, or analogue RCA outputs. Enjoy crystal-clear 4K visuals and immersive audio — all from one compact aluminum alloy device.

Made in Mainland China.

Key Features

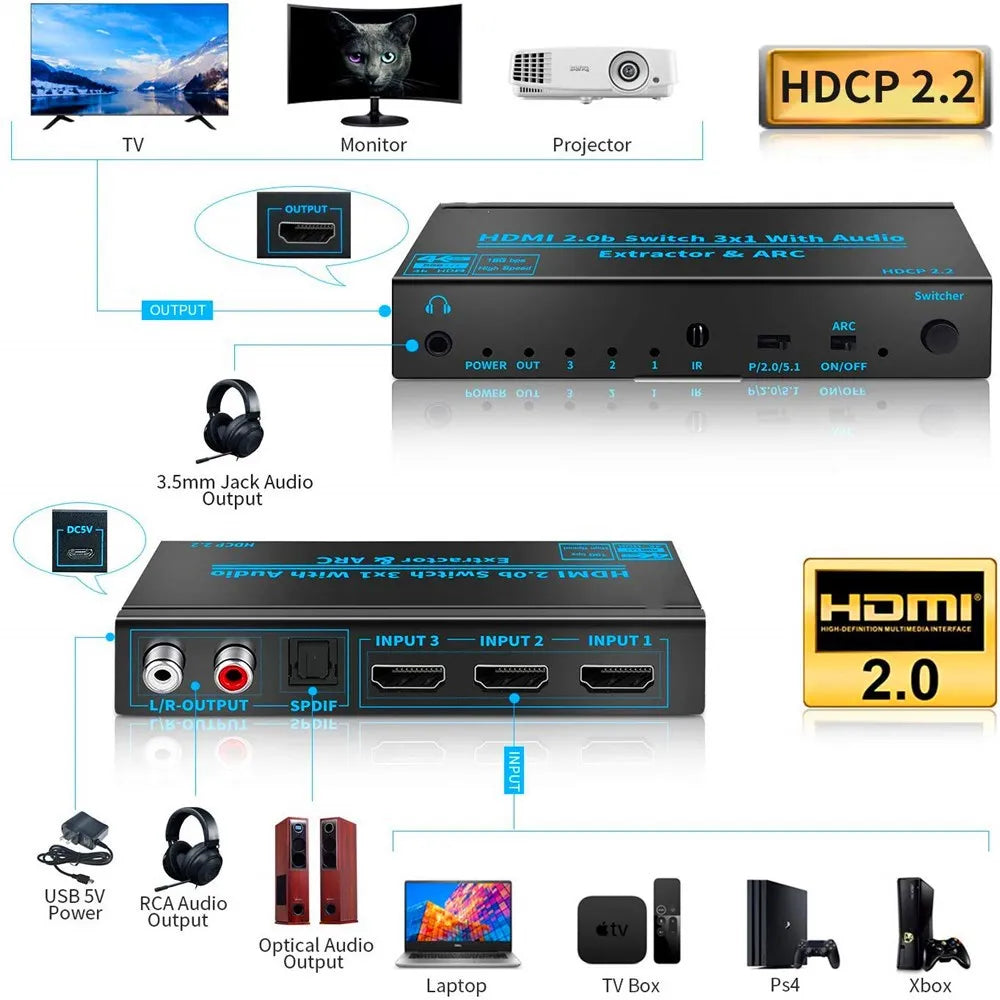

• 3-In-1 HDMI Switch with Audio Extraction: Routes up to 3 HDMI sources to one display and simultaneously extracts audio to external speakers or a home theater system via optical SPDIF, coaxial, or RCA L/R outputs.
• 4K Ultra HD @ 60Hz: Supports 4K×2K@60Hz YUV 4:4:4, 3D, HDCP 2.2, HDR10, Dolby Vision, and Dolby Atmos for a stunning, distortion-free picture and audio experience.
• ARC (Audio Return Channel) Support: Connect your TV's HDMI ARC port to route audio back to your soundbar or A/V receiver — no extra cables needed.

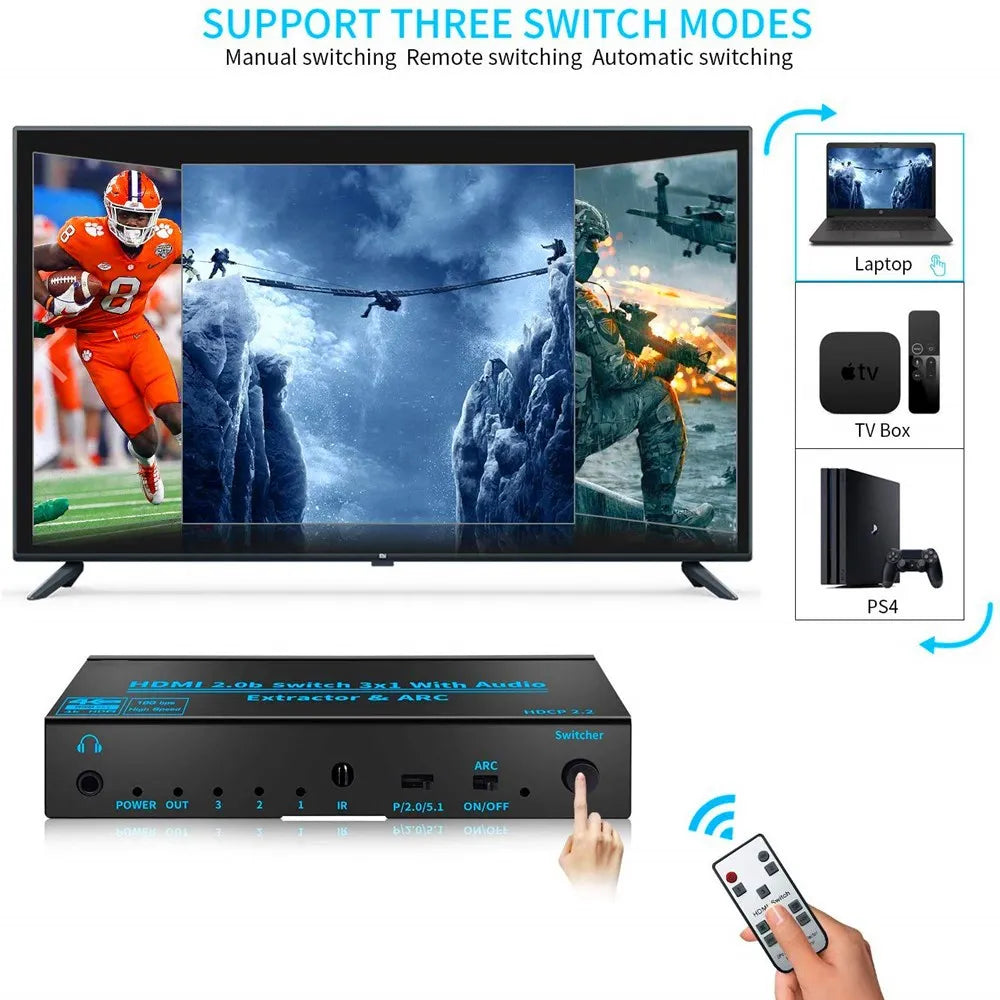

• 3 Switching Modes: Choose from automatic source detection, manual button switching, or the included infrared remote control — switch channels from across the room without getting up.
• Wide Device Compatibility: Works seamlessly with Blu-ray/DVD/HD players, game consoles (PS5, Xbox), Fire TV, PCs, laptops, smartphones, and more.
• Plug & Play Setup: No drivers required. Simply connect your devices and the switcher is ready to use. Requires DC 5V power (Micro USB cable included).
• Premium Aluminum Alloy Build: Slim, durable housing (115 × 58 × 21 mm) with LED input indicators for easy source identification.

Technical Specifications

• HDMI Resolution: 4K2K@60Hz / 3D / 1080p / 1080i / 720p / 576p / 480p and more
• Maximum Bandwidth: 600 MHz | Maximum Baud Rate: 18 Gbps
• Color Depth: 24-bit RGB / YCbCr 8:8 / YCbCr 4:4:4
• Audio Formats: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, DSD
• Disc Formats: Blu-ray 24/50/60fps, HD-DVD, xvYCC
• Input/Output Cable Distance: ≤ 10m (AWG26 HDMI 2.0a standard cable)
• Material: Aluminum alloy
• Power: DC 5V (Micro USB)

What's in the Box

• 1 × HDMI Audio Extractor / Switcher
• 1 × User Manual
• 1 × Infrared Remote Control (battery included)
• 1 × Micro USB Power Cable (adapter not included)

Important Notes

• When ARC mode is active, TV remote volume control is disabled — volume must be adjusted directly on your speakers or home theater system.
• This device passes Dolby/DTS signals through to your display; it does not decode audio formats internally.
• For HDR/Dolby Vision support, ensure your HDMI cable meets HDMI 2.0 specification standards.

You May Also Like

• 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
• 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
• 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Does this HDMI audio extractor support 4K@60Hz with HDR?

A: Yes! This HDMI 2.0 audio extractor switcher fully supports 4K@60Hz with HDR10 and Dolby Vision. It also handles Dolby Atmos passthrough, making it ideal for a premium home theater experience. Just ensure you're using an HDMI 2.0-compliant cable for the best performance.

Q: Can I use this switcher with my PS5 or Xbox and extract audio to a soundbar at the same time?

A: Absolutely. You can connect your PS5, Xbox, or any other HDMI source to one of the three input ports, then route the video to your TV and the audio simultaneously to your soundbar via optical TOSLINK SPDIF or RCA — all without any additional adapters.

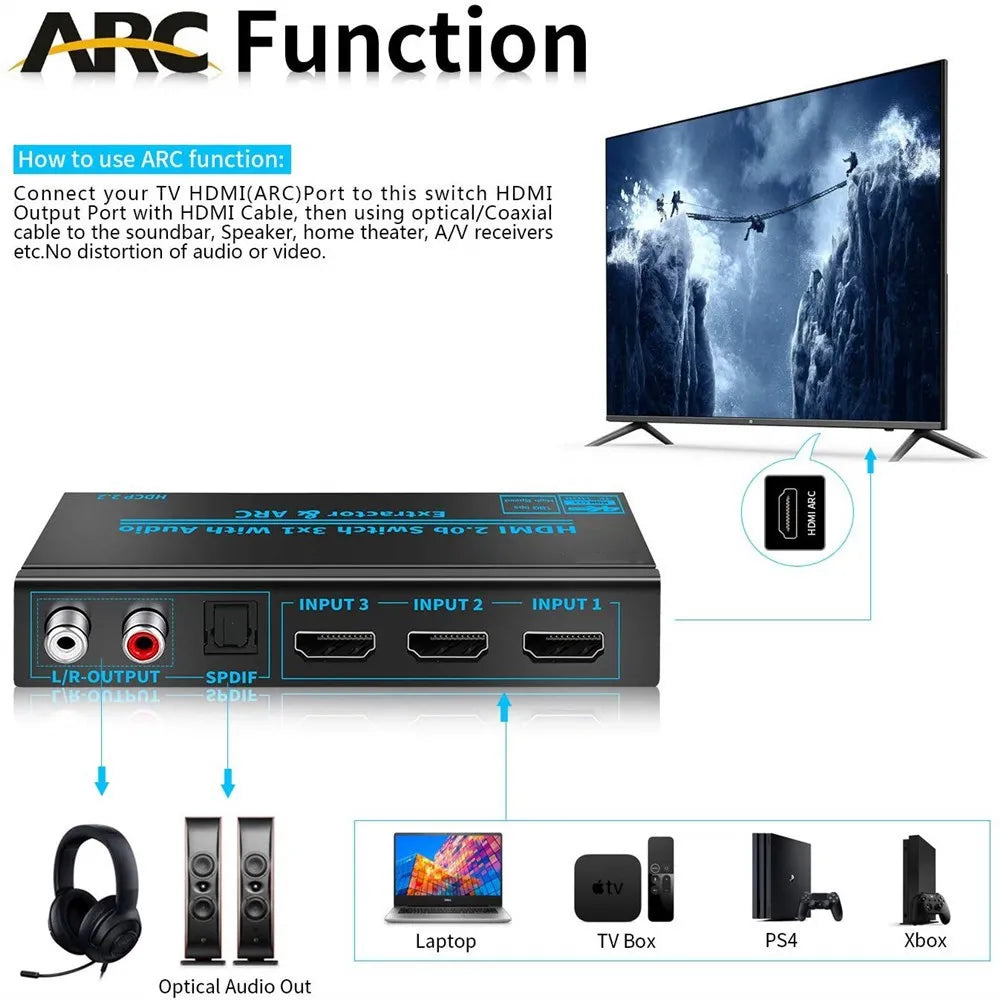

Q: What is the ARC function and how do I use it?

A: ARC (Audio Return Channel) allows your TV to send audio back through the HDMI connection to external audio devices like a soundbar or A/V receiver. Connect your TV's HDMI ARC port to this switcher's HDMI output port, then connect your audio device via optical or coaxial cable. Note: when ARC is active, TV remote volume control will be handled by the connected audio device.

Q: Does this device require any drivers or software installation?

A: No. This is a true plug-and-play device. Connect your sources and display, power it via the included Micro USB cable (DC 5V), and it's ready to use immediately — no drivers, software, or complicated configuration required.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
