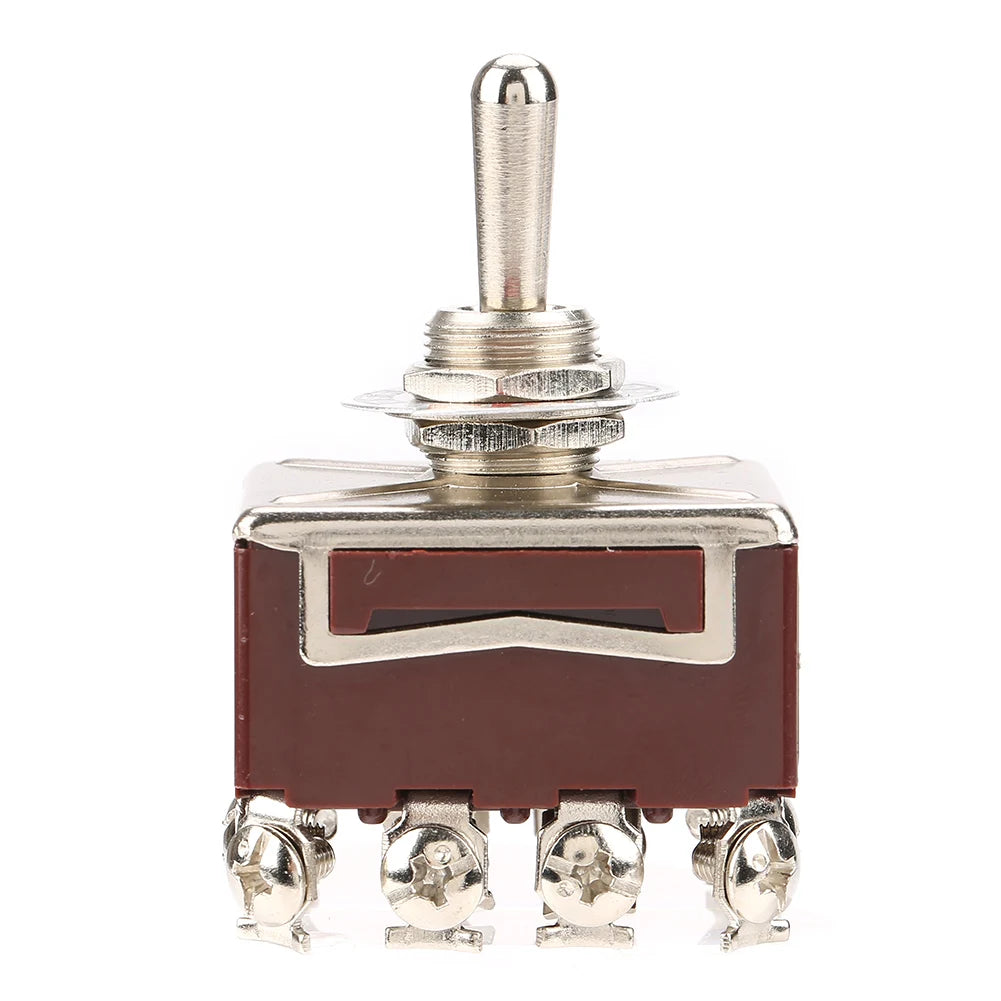

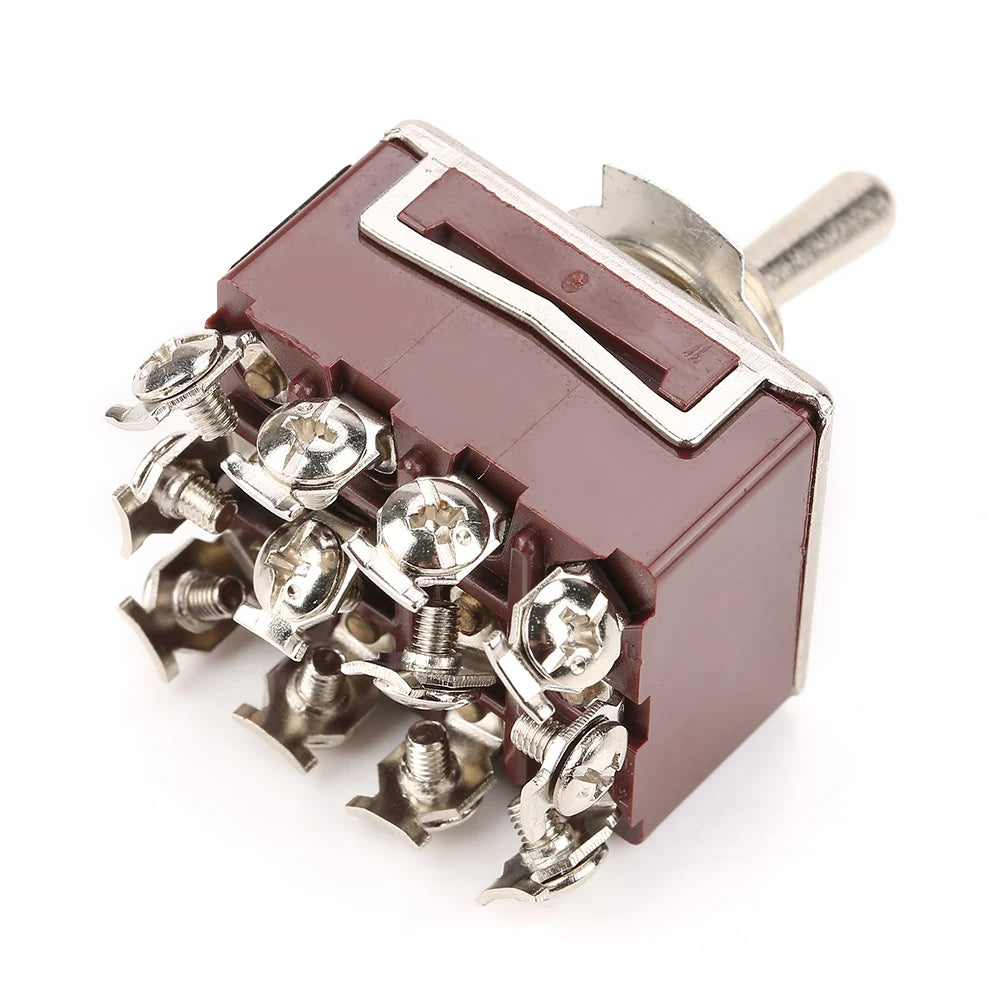

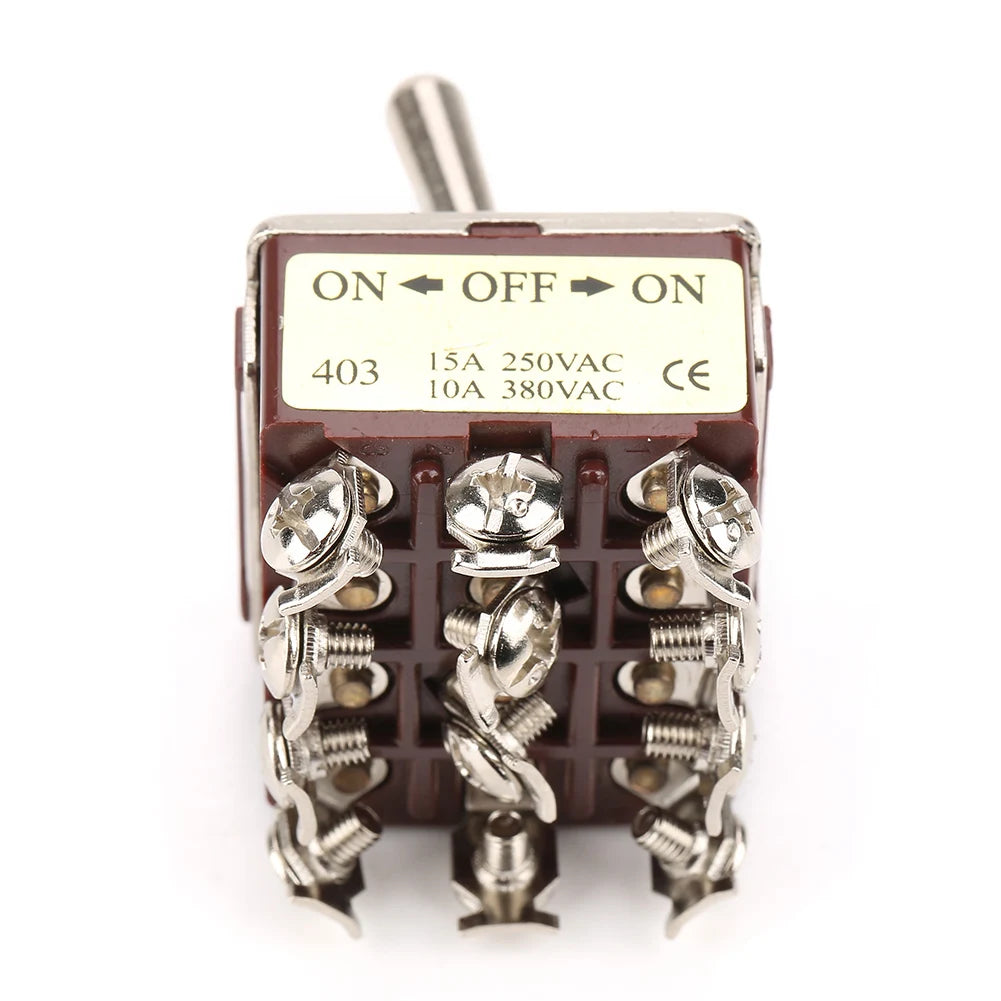

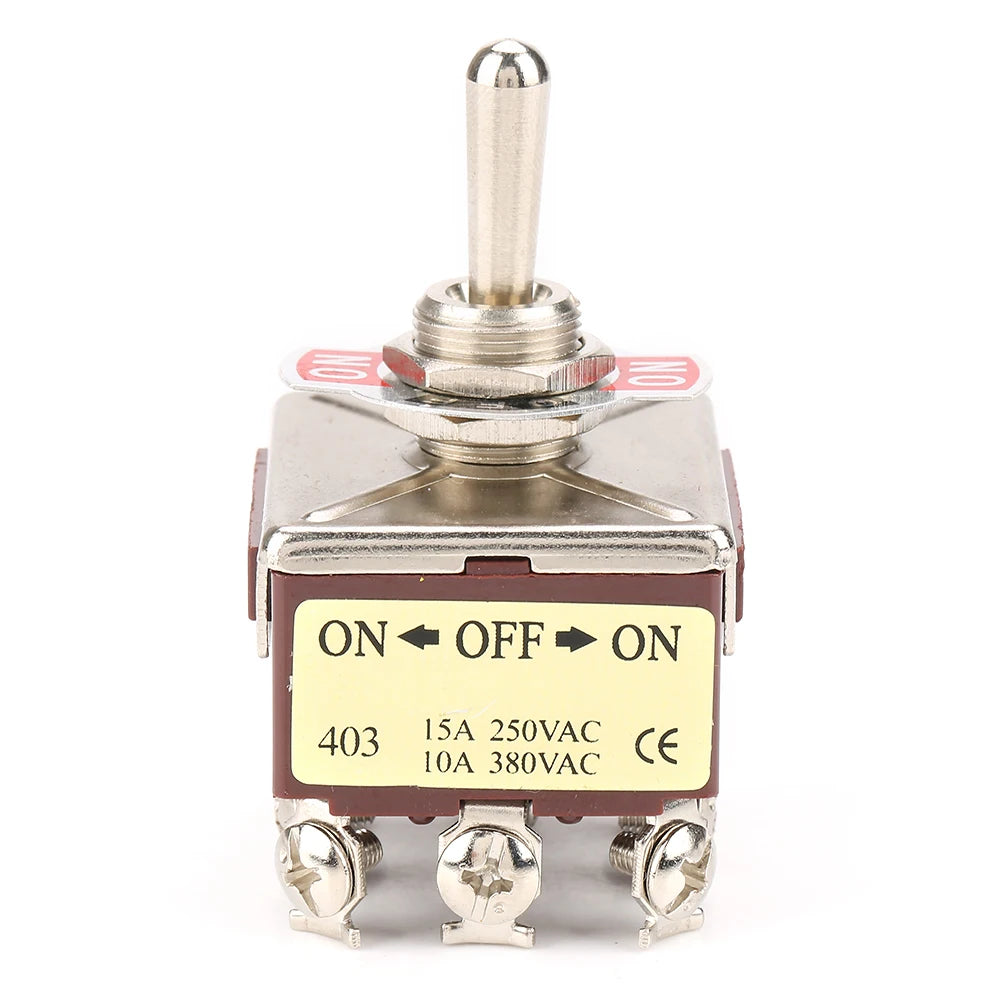

4PDT ON/OFF/ON 3-Position Toggle Switch – 12 Pin, 15A/250VAC
Upgrade your electrical projects with this heavy-duty 4PDT (4-Pole Double-Throw) Toggle Switch. Featuring a reliable ON/OFF/ON 3-position design with 12 pins, this compact switch is built for demanding applications including motor speed drive control, automotive circuits, home appliances, and industrial control panels. Its durable construction and straightforward mounting make it an essential component for hobbyists and professionals alike.
Key Features
- 3-Position Operation: ON/OFF/ON switching for versatile circuit control
- 4PDT Configuration: 12 pins for complex wiring requirements
- High Current Rating: Rated at 15A/250VAC and 10A/380VAC for reliable performance
- Compact 12mm Head: Easy to mount in panels and enclosures
- Durable Materials: Built for long service life in demanding environments
- Wide Application: Suitable for automotive, home appliance, industrial control, and more
- Brand New & High Quality: 100% new components, ready to install
Specifications
| Switch Type | 4PDT (4-Pole Double-Throw) |
| Positions | ON / OFF / ON (3-Position) |
| Number of Pins | 12 |
| Rated Current & Voltage | 15A / 250VAC & 10A / 380VAC |
| Button Head Diameter | 12mm |
| Rated Capacity | <40VA |
| Package Weight | Approx. 58g / 2.04oz |
| Country of Origin | Made in China |
Package Contents
- 1 × 4PDT ON/OFF/ON Toggle Switch (12 Pin)
Related Products You May Like
Looking for more tools and hardware? Check out these related items from our store:
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does 4PDT mean on a toggle switch?
A: 4PDT stands for 4-Pole Double-Throw. This means the switch controls four separate circuits simultaneously and can connect each pole to one of two output positions. With 12 pins total, it's ideal for complex wiring tasks such as motor direction control, multi-circuit switching, and industrial control applications.
Q: What is the difference between the ON/OFF/ON positions on this toggle switch?
A: The three positions allow you to connect to one circuit (first ON), completely disconnect all circuits (OFF), or connect to a second alternate circuit (second ON). This makes it perfect for applications where you need to switch between two independent circuit states with a neutral off position in between.
Q: Is this toggle switch suitable for automotive and industrial use?
A: Yes. With ratings of 15A/250VAC and 10A/380VAC, this switch is designed to handle the demands of automotive wiring, home appliance control, motor speed drive controllers, and light industrial control panels. Its compact 12mm head fits standard panel cutouts for easy installation.
