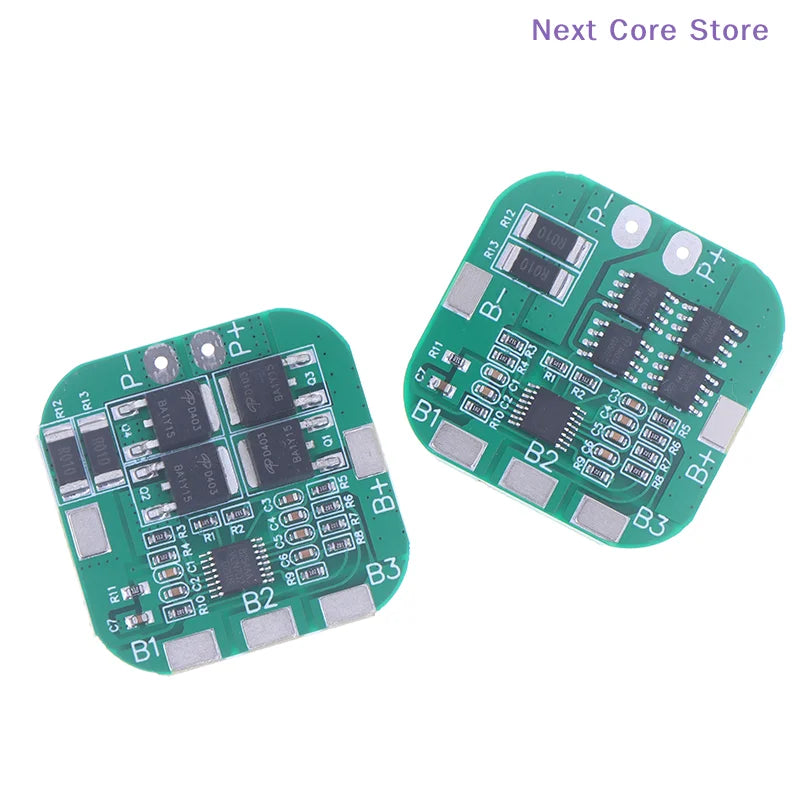

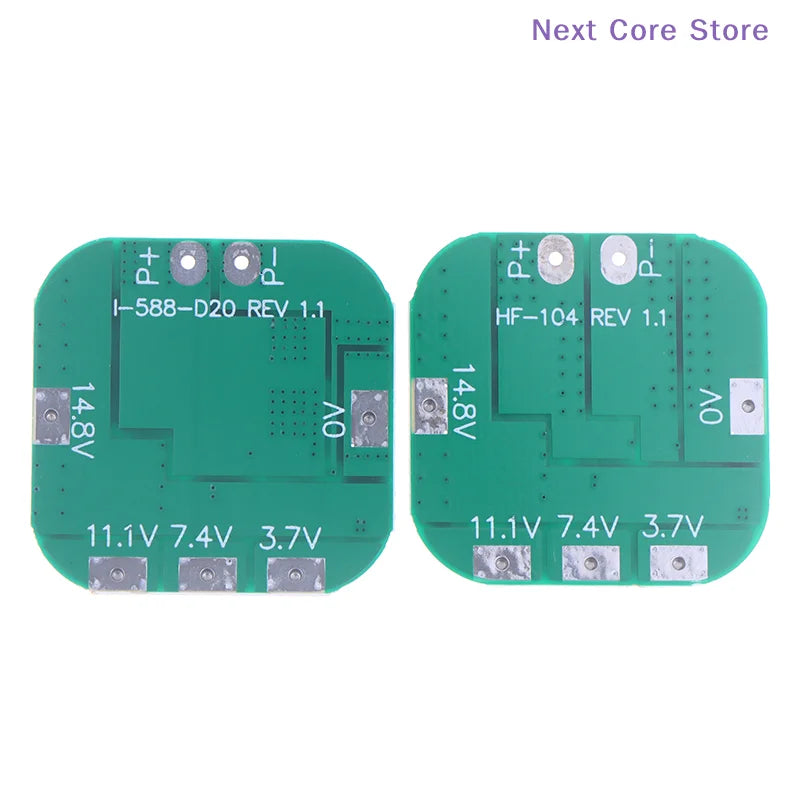

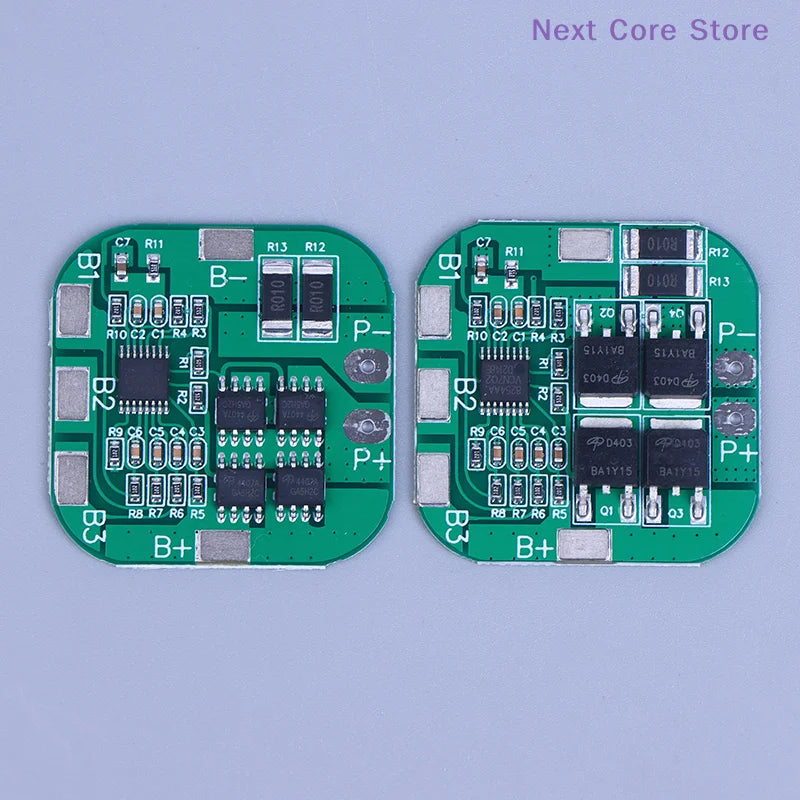

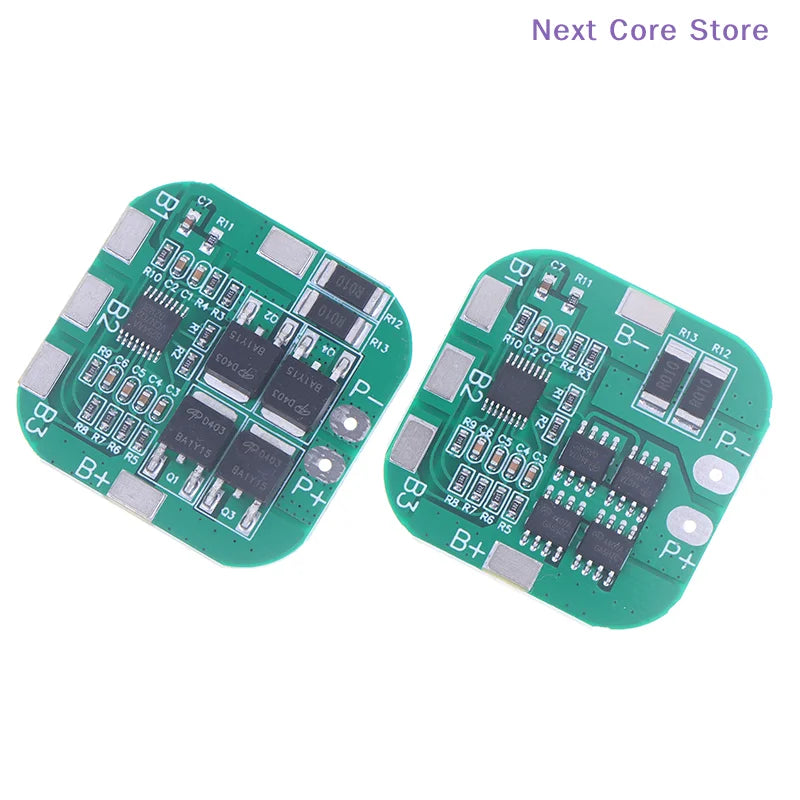

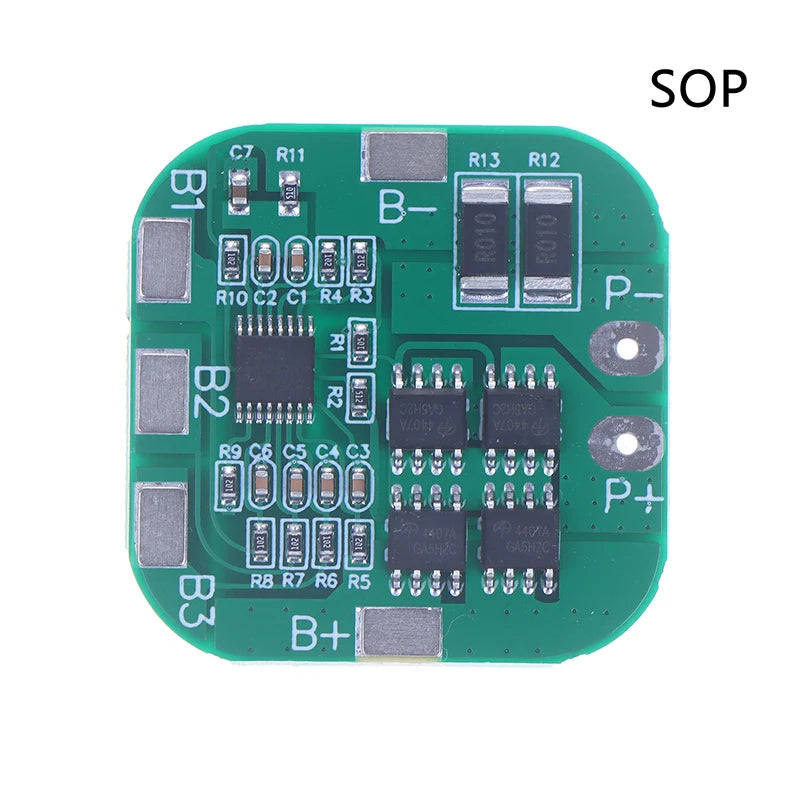

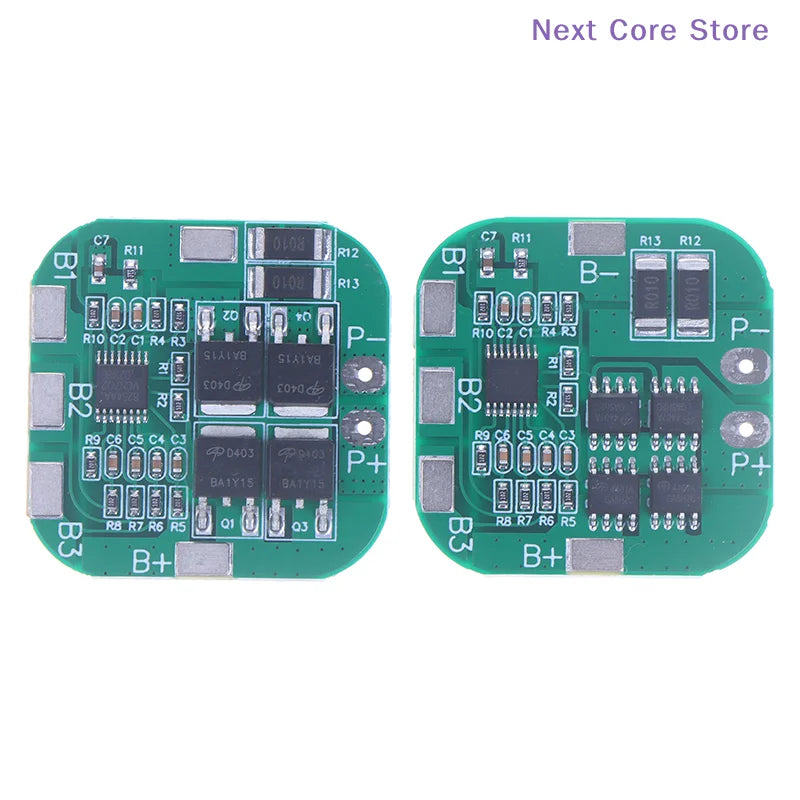

Keep your 18650 lithium battery packs safe and performing at their best with this compact 4-series (4S) Battery Management System (BMS) protection board. Designed for 14.8V Li-ion packs, it guards against overcharging, over-discharging, and short circuits — all in a slim 35 × 35 × 3.6mm form factor. Made in Mainland China.
Key Features
- Overcharge Protection: Triggers at 4.25–4.35V (±0.05V) per cell to prevent cell damage from excessive charging voltage
- Over-Discharge Protection: Activates at 2.3–3.0V (±0.05V) per cell, safeguarding battery capacity and longevity
- Short Circuit Protection: Automatically cuts power during a short circuit event; recharge to restore normal operation
- 20A Maximum Instantaneous Current: Handles up to 20A peak with a 10A continuous working current limit
- Ultra-Low Static Current: Less than 30µA standby draw, minimizing parasitic drain on your battery pack
- Wide Operating Temperature: Functions reliably from -40°C to +50°C; safe storage up to +80°C
- Long Service Life: Rated for over 50,000 hours of effective operation
- Low Internal Resistance: Less than 100mΩ for minimal energy loss and efficient current delivery
Technical Specifications
| Model | HX-4S-D20 |
| Configuration | 4 Series (4S) |
| Nominal Pack Voltage | 14.8V |
| Charging Voltage | 16.8V – 17V |
| Overcharge Voltage Range | 4.25 – 4.35V ±0.05V |
| Over-Discharge Voltage Range | 2.3 – 3.0V ±0.05V |
| Working Current (Continuous) | 10A |
| Maximum Instantaneous Current | 20A |
| Static Current | <30µA |
| Internal Resistance | <100mΩ |

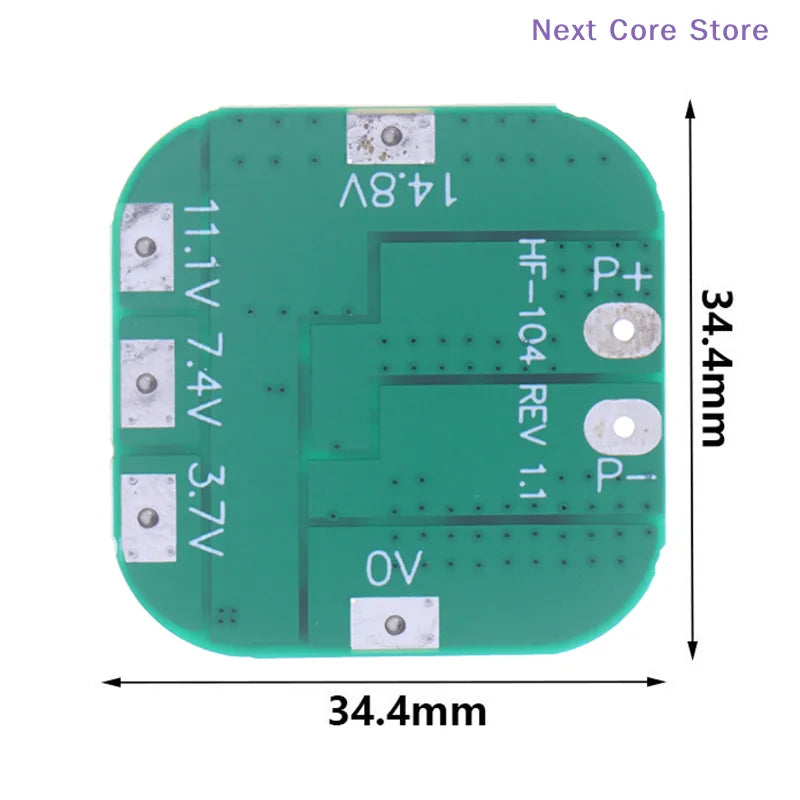

| Board Dimensions | 35 × 35 × 3.6mm |
| Operating Temperature | -40°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Protection IC | S-8254AA + D403 ×4 |
| Effective Lifespan | >50,000 hours |
| Package Contents | 1 × Protection Board |
| Country of Origin | Made in Mainland China |
Ideal Applications
This BMS protection board is well suited for DIY battery pack builds, power tool battery assemblies, RC vehicles, solar energy storage systems, e-bikes, and any project requiring a reliable 4S 18650 lithium battery pack management solution.
