Aimjin 52V 17.5Ah 14S5P Lithium-Ion Battery Pack with BMS
Power your electric scooter, e-bike, or electric tricycle with this high-capacity 52V 17.5Ah (17,500mAh) 14S5P lithium-ion battery pack from Aimjin. Built with 70 premium 18650 cells in a 14-series, 5-parallel configuration, this CE-certified battery delivers reliable, long-lasting energy for motors up to 1500W. A built-in high-current Battery Management System (BMS) keeps every ride safe and consistent. Made in Mainland China.
Key Features
- High Capacity: 17,500mAh / 17.5Ah for extended range per charge
- 52V Rated Voltage — full charge voltage of 58.8V, discharge cutoff at 44V ±1V
- 14S5P Cell Configuration: 70 high-quality 18650 lithium-ion cells for consistent output
- Built-in Smart BMS: Protects against overcharge, over-discharge, overcurrent, and short circuits with automatic charge compensation
- Up to 800 Charge Cycles at 80% depth of discharge (DOD) for long service life
- 30A Continuous Discharge with 60A instantaneous peak — handles demanding motor loads
- CC-CV Charge Mode: Standard 2A charge, fast charge up to 5A
- Wide Temperature Range: Charges 0–45°C; discharges -20–65°C
- Compatible Power Range: 100W–1500W electric motor equipment
- CE Certified — meets international safety and quality standards

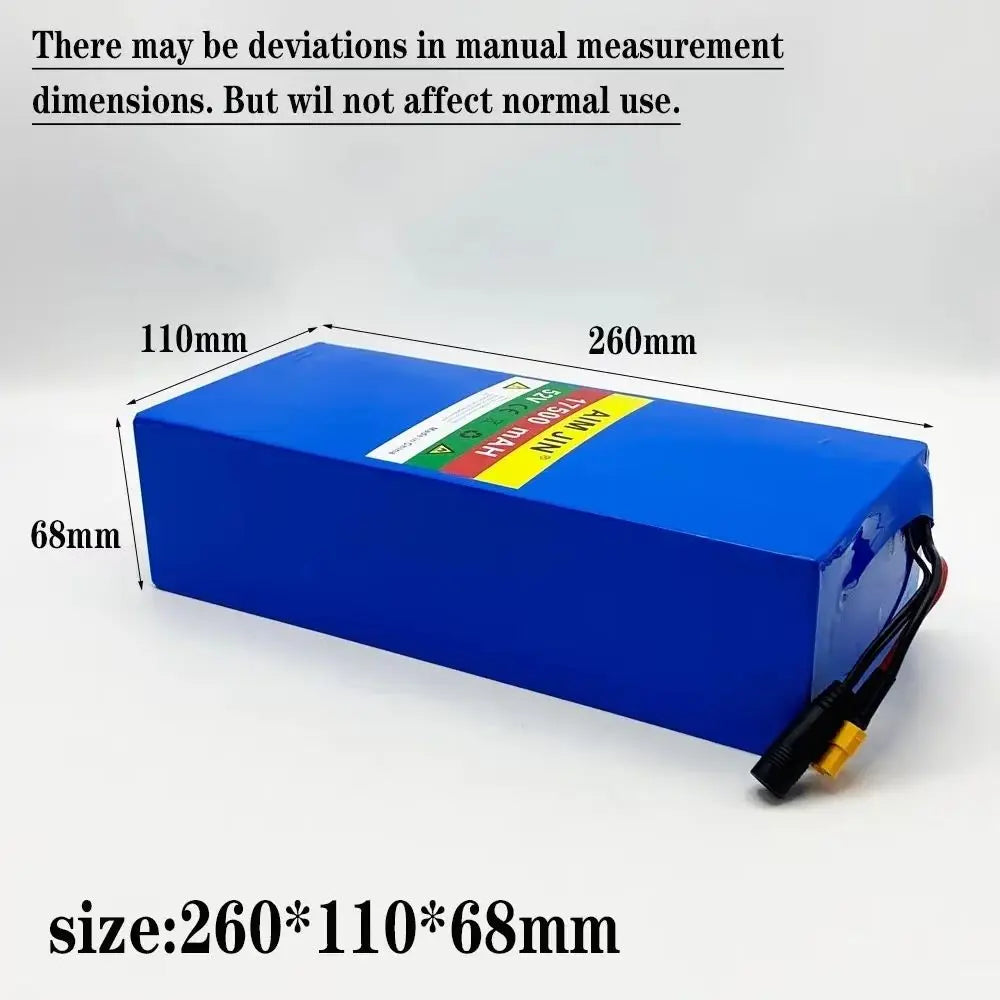

- Compact & Lightweight: 260×110×68mm, approx. 2,940g
Full Specifications
| Battery Model | 14S5P-52V |
| Battery Type | Lithium-Ion (Li-Ion) 18650 |
| Rated Voltage | 52V |
| Rated Capacity | 17,500mAh (17.5Ah) |
| Cell Combination | 14S5P (70 cells total) |
| Charge Cutoff Voltage | 58.8V |
| Discharge Cutoff Voltage | 44V ±1V |
| Rated Discharge Current | 30A |
| Max Continuous Discharge Current | 30A |
| Instantaneous Peak Discharge Current | 60A |
| Standard Charge Current | 2A |
| Fast Charge Current | 5A |
| Max Continuous Charge Current | 5A |
| Charge Mode | CC-CV |
| Charge Temperature Range | 0°C to 45°C |
| Discharge Temperature Range | -20°C to 65°C |
| Life Cycle | 800 cycles @ 80% DOD |
| Power Compatibility | 100W – 1500W |
| Dimensions | 260 × 110 × 68 mm |
| Net Weight | approx. 2,940g |
| Certification | CE |
| Origin | Made in Mainland China |

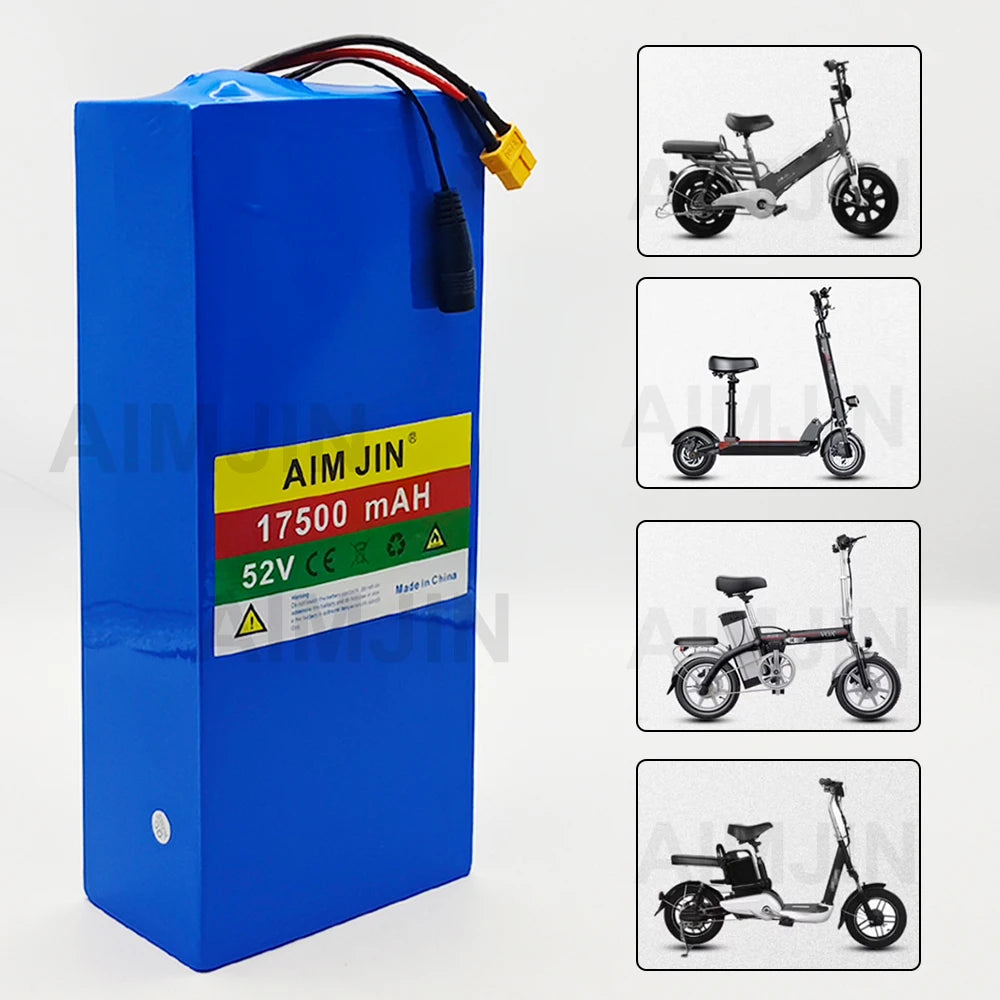

Compatible Applications
Designed to power all 58.8V electric motor equipment up to 1500W, including:
- Electric bicycles (e-bikes) & mountain bikes
- Electric scooters
- Electric tricycles
- Electric motor wheels
- Wheelchairs
- Other 52V electric transport & mobility equipment
BMS Safety Protection
The integrated high-current Battery Management System (BMS) provides comprehensive protection for your battery and connected equipment:
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Short circuit protection
- Automatic charge compensation & cell balancing
Related Products You May Like
Looking for tools and gadgets to complement your ride or workshop?
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What types of electric vehicles is this 52V 17.5Ah battery pack compatible with?
A: This 14S5P 52V lithium-ion battery pack is compatible with a wide range of 58.8V electric motor equipment rated up to 1500W, including e-bikes, electric scooters, electric tricycles, electric motor wheels, and wheelchairs. Always verify your vehicle's voltage and connector type before purchasing.
Q: Does this battery come with a charger included?
A: Yes, this battery pack is listed as including a charger. The standard charge current is 2A and the fast charge current is 5A using CC-CV (Constant Current – Constant Voltage) charging mode, with a full charge voltage of 58.8V.
Q: How long will this lithium battery pack last before it needs replacing?
A: The Aimjin 52V 14S5P battery is rated for up to 800 charge cycles at 80% depth of discharge (DOD). With regular daily use, this can translate to several years of reliable service depending on usage habits and proper care.
Q: What protections does the built-in BMS provide?
A: The integrated Battery Management System (BMS) provides overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, and automatic charge compensation with cell balancing — keeping both the battery and your equipment safe during operation.
