5V/12V/24V Self-Locking Relay Module – One Button Toggle
5V/12V/24V Self-Locking Relay Module – One Button Toggle
5V / 12V / 24V Self-Locking Relay Module with Optocoupler
Take control of your electronics projects with this versatile self-locking relay module. Designed for hobbyists, engineers, and makers alike, this compact module allows a single button press to toggle a relay ON or OFF — no need to hold the button down. Whether you're automating a circuit, building a custom controller, or adding a latching function to your project, this module delivers reliable, repeatable switching performance.
The built-in optocoupler isolation protects your control circuitry from the load side, making it a safe and smart choice for mixed-voltage applications. It supports three common operating voltages — 5V, 12V, and 24V — making it compatible with a wide range of microcontrollers, Arduino boards, Raspberry Pi setups, and industrial control systems.
Made in Mainland China.
Key Features
- ✅ One-button latch: Single pulse toggles the relay ON; another pulse toggles it OFF
- ✅ Multi-voltage support: Works at 5V, 12V, or 24V DC (select your required voltage)
- ✅ Optocoupler isolated: Keeps control and load circuits safely separated
- ✅ Passive relay output: Controls DC or AC loads up to 5A
- ✅ High-quality components: Precision manufacturing for long-term durability
- ✅ Compact & lightweight: Approx. 18g / 0.6 oz — easy to integrate into any enclosure
Specifications
| Model | YYLOCK-1 |
| Input Voltage | 5V / 12V / 24V DC (optional) |
| Trigger Type | High Level / Negative Trigger |
| Output | Passive contact — DC or AC load up to 5A |
| Weight | Approx. 18g / 0.6 oz |
| Origin | Mainland China |

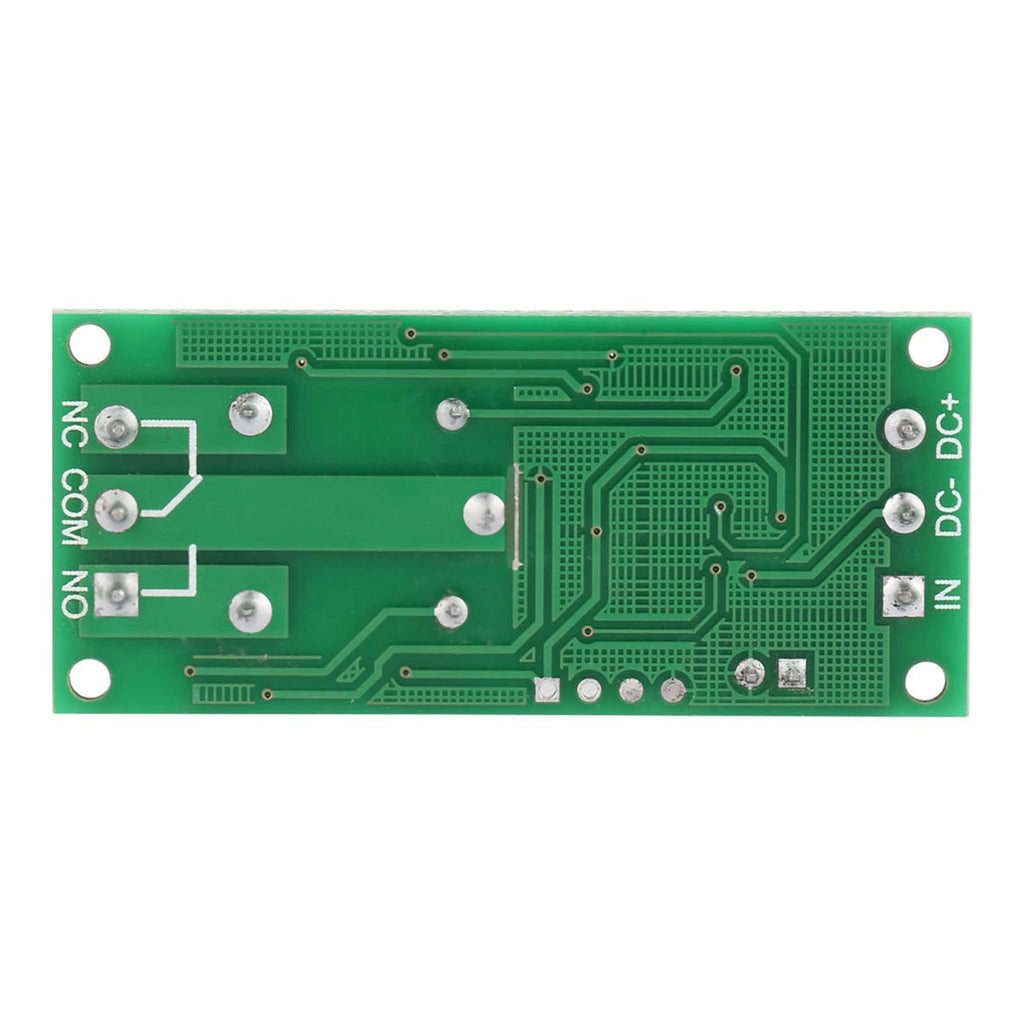

Connection Port Guide
- DC+ — Input power positive (cathode)
- DC− — Input power negative electrode
- IN — Signal input terminal (negative trigger)
- NO — Normally open relay interface; connects to COM when relay is energized
- COM — Common relay interface
- NC — Normally closed relay interface; connected to COM before relay is energized
What's in the Box
- 1 × Self-Locking Relay Switch Module (YYLOCK-1)
