6–15V Piezo Buzzer Alarm – 95dB Continuous Tone | 22mm
6–15V Piezo Buzzer Alarm – 95dB Continuous Tone | 22mm

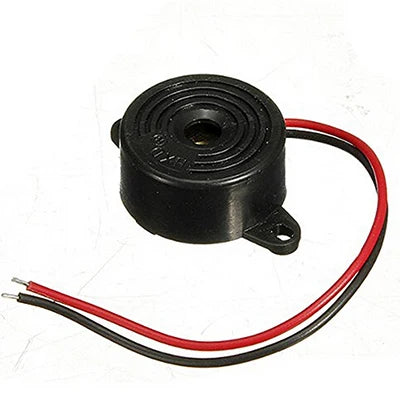

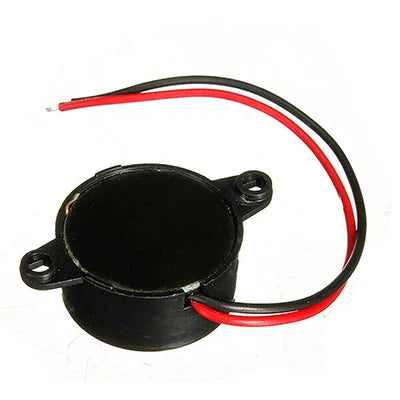

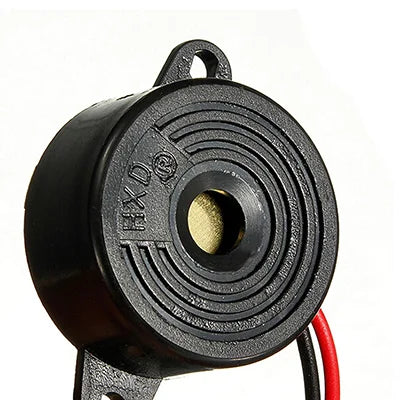

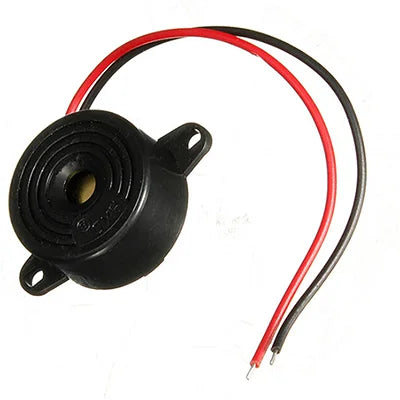

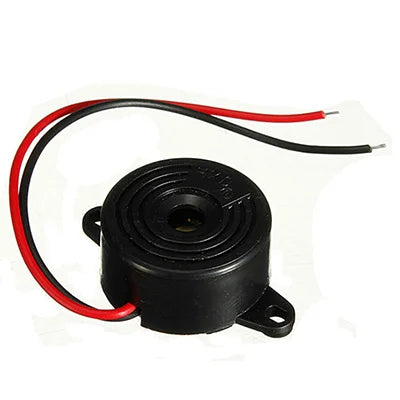

6–15V Piezoelectric Buzzer Alarm with Mounting Holes
This compact piezoelectric buzzer alarm delivers a loud, continuous 95dB tone — making it an ideal audible indicator for DIY electronics projects, security systems, industrial control panels, Arduino builds, and more. Operating across a wide voltage range of 6V to 15V DC with a built-in drive circuit, it's ready to connect straight to your project without additional driver components.
With a slim 22mm diameter and two mounting holes spaced 30mm apart, this buzzer installs cleanly onto panels or enclosures. The 90mm lead wires give you enough length to route neatly inside your build. Made in Mainland China.
Key Specifications
- Buzzer Type: Piezoelectric (continuous sound)
- Sound Pressure Level: 95 dB
- Rated Voltage: 12V DC
- Operating Voltage Range: 6V – 15V DC
- Max Current Rating: 10mA
- Frequency: 3,900 ± 500 Hz
- Drive Method: Built-in drive circuit
- Alarm Diameter: 22mm / 0.86"
- Alarm Height: 10mm / 0.39"
- Mounting Hole Spacing: 30mm / 1.18"
- Wire Length: 90mm / 3.54"
- Color: Black
- Water Resistance: Water resistant
What's in the Box
- 1 × 95dB Piezoelectric Buzzer Alarm
Great for Use In
- Arduino & Raspberry Pi projects
- DIY security & alarm systems
- Industrial control panels
- Automation & robotics builds
- Home electronics prototyping
Browse more tools and project essentials in our store:
1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Does this piezo buzzer require an external driver circuit?
A: No — this piezoelectric buzzer alarm has a built-in drive circuit, so you can connect it directly to any DC power source between 6V and 15V and it will produce a continuous tone immediately. No additional components are needed.
Q: What voltage should I use to power this buzzer alarm?
A: The buzzer operates across a wide range of 6V to 15V DC, with a rated voltage of 12V DC. It draws a maximum of 10mA, making it highly energy-efficient and compatible with most microcontroller and embedded system power supplies.
Q: How loud is this piezo buzzer and what frequency does it emit?
A: This buzzer produces a 95dB continuous tone at a frequency of approximately 3,900 Hz (±500 Hz) — loud enough to serve as a clear audible indicator in noisy workshop or industrial environments.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
