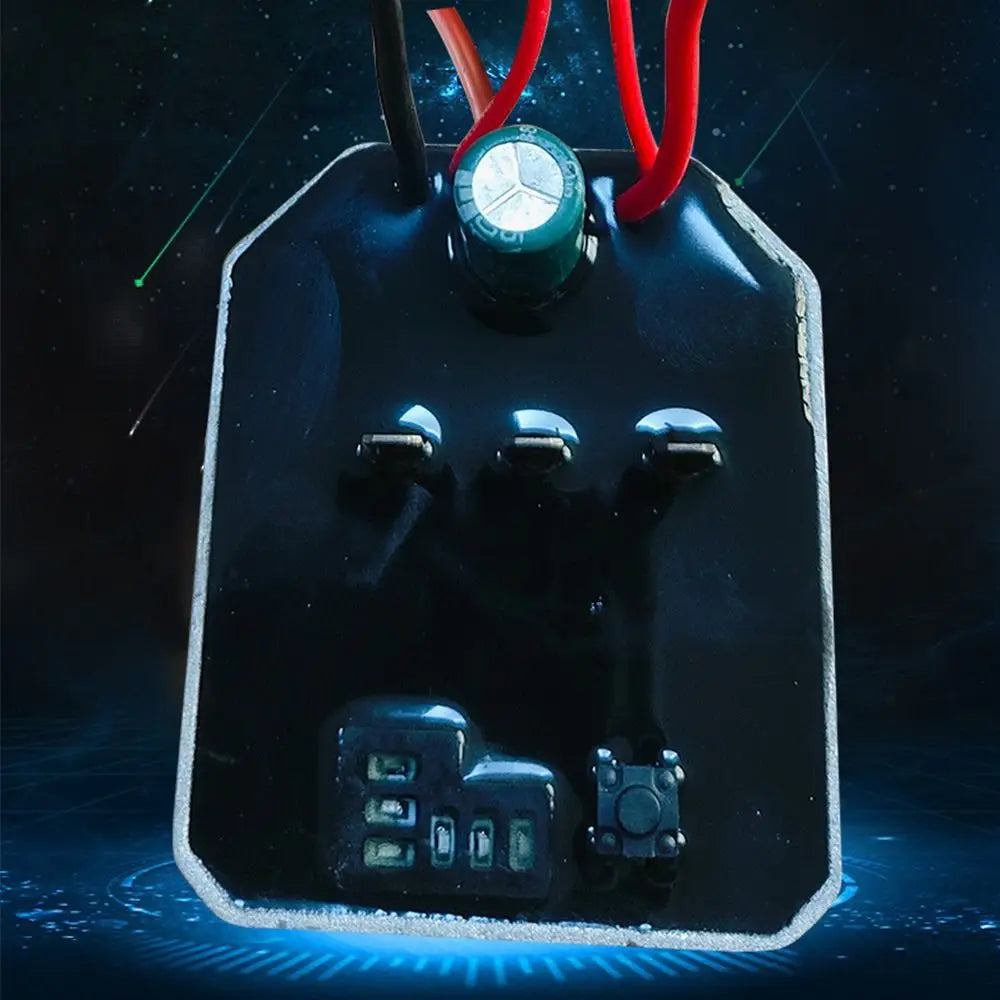

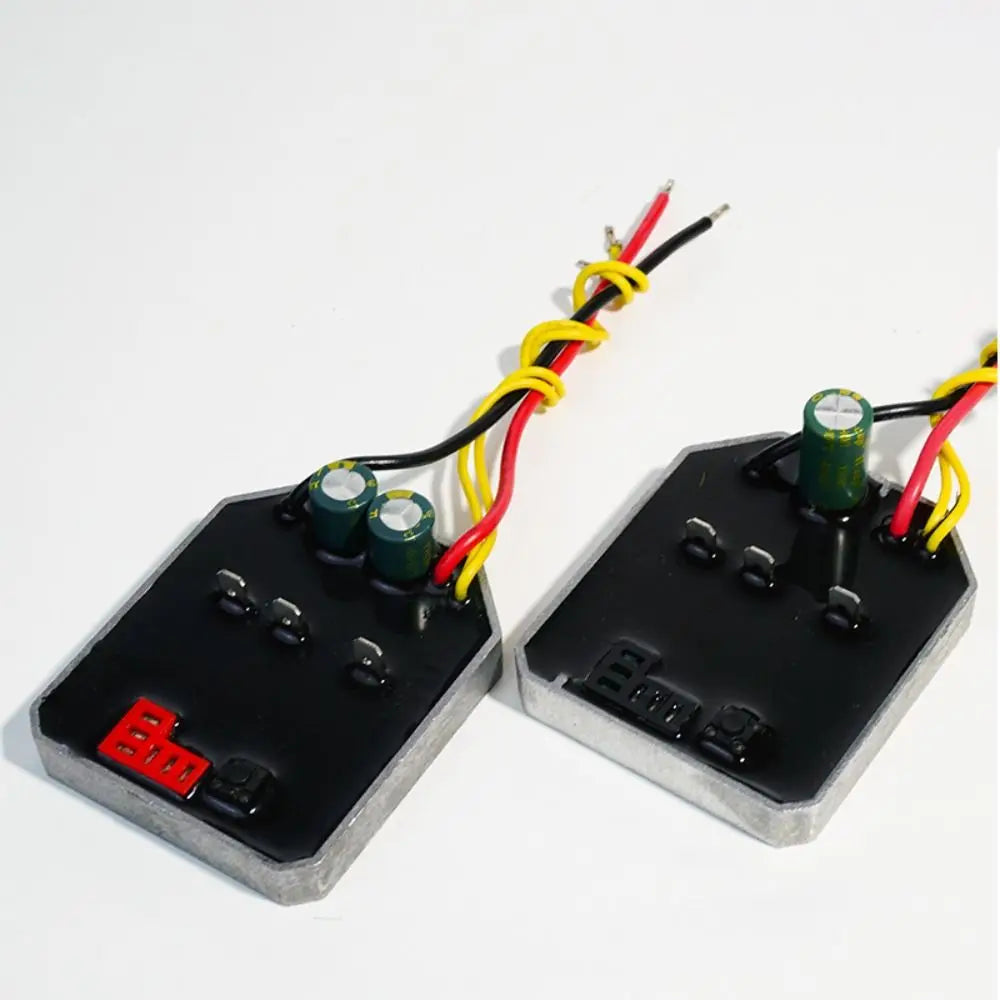

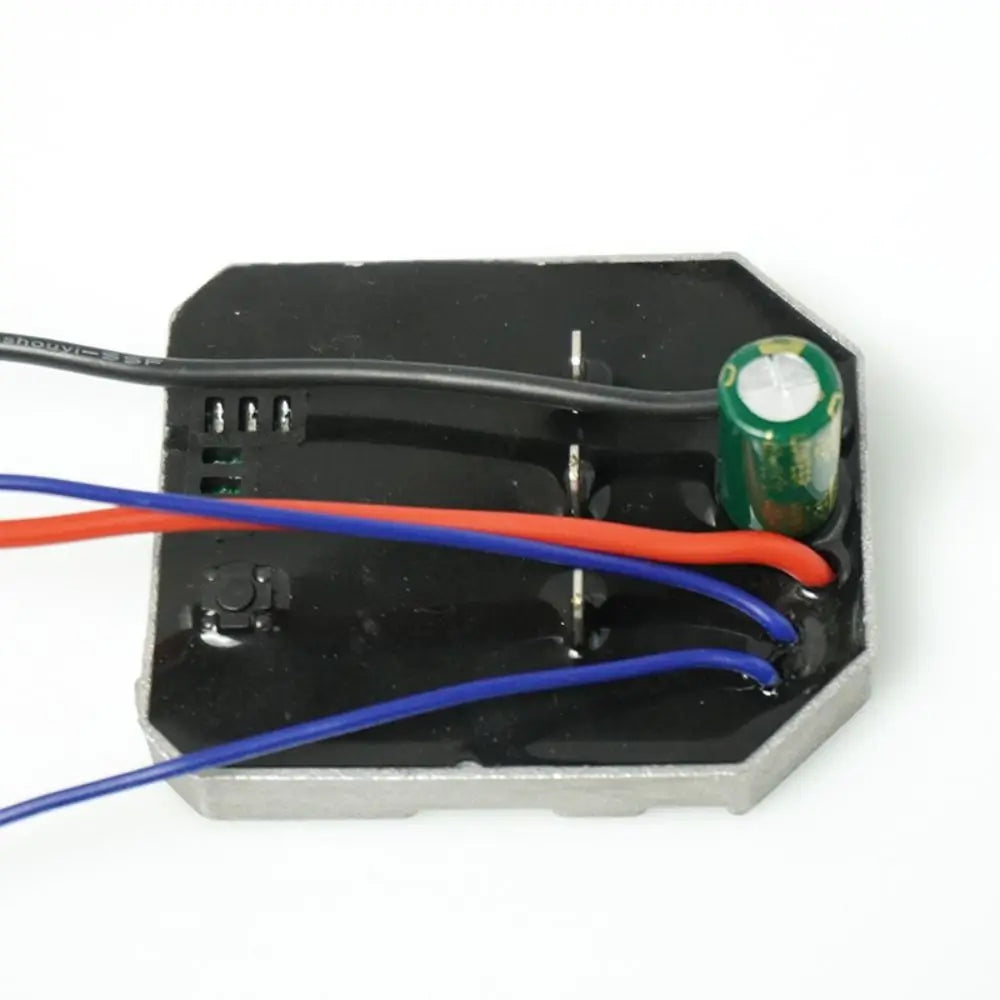

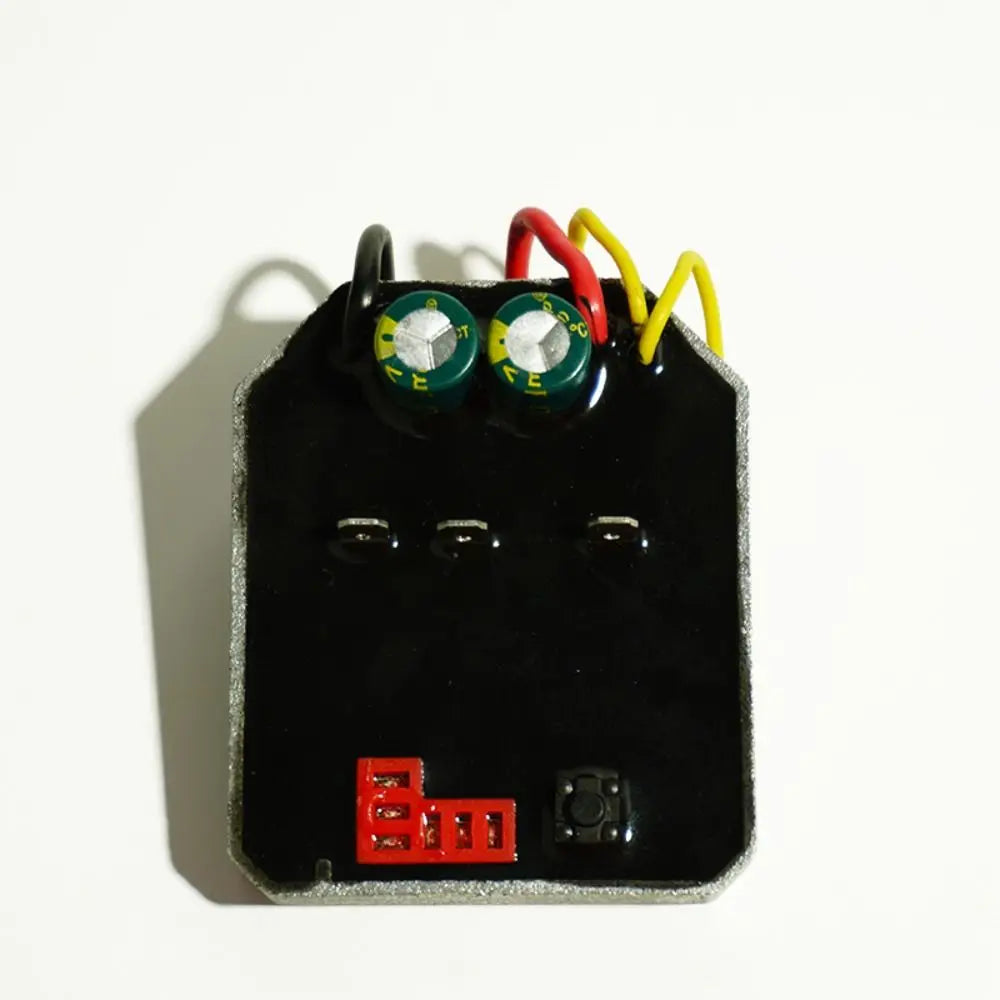

60A Brushless Motor Controller Board – Angle Grinder & Wrench

$22.08 $26.12

60A Brushless Lithium Speed Controller – Angle Grinder & Electric Wrench

Upgrade or repair your cordless power tools with this high-performance 60A brushless motor control board. Designed for angle grinders and electric wrenches, this compact circuit board delivers smooth variable-speed control, stable power delivery up to 1200W output, and reliable operation across 18–21V lithium battery systems. Whether you're rebuilding a power tool or completing a DIY electrical project, this board is a dependable drop-in solution.

Made in Mainland China.

Key Specifications

Rated Current: 60A
Input Voltage: 18–21V (Lithium Battery Compatible)
Maximum Output Power: 1200W
Material: Plastic + Metal

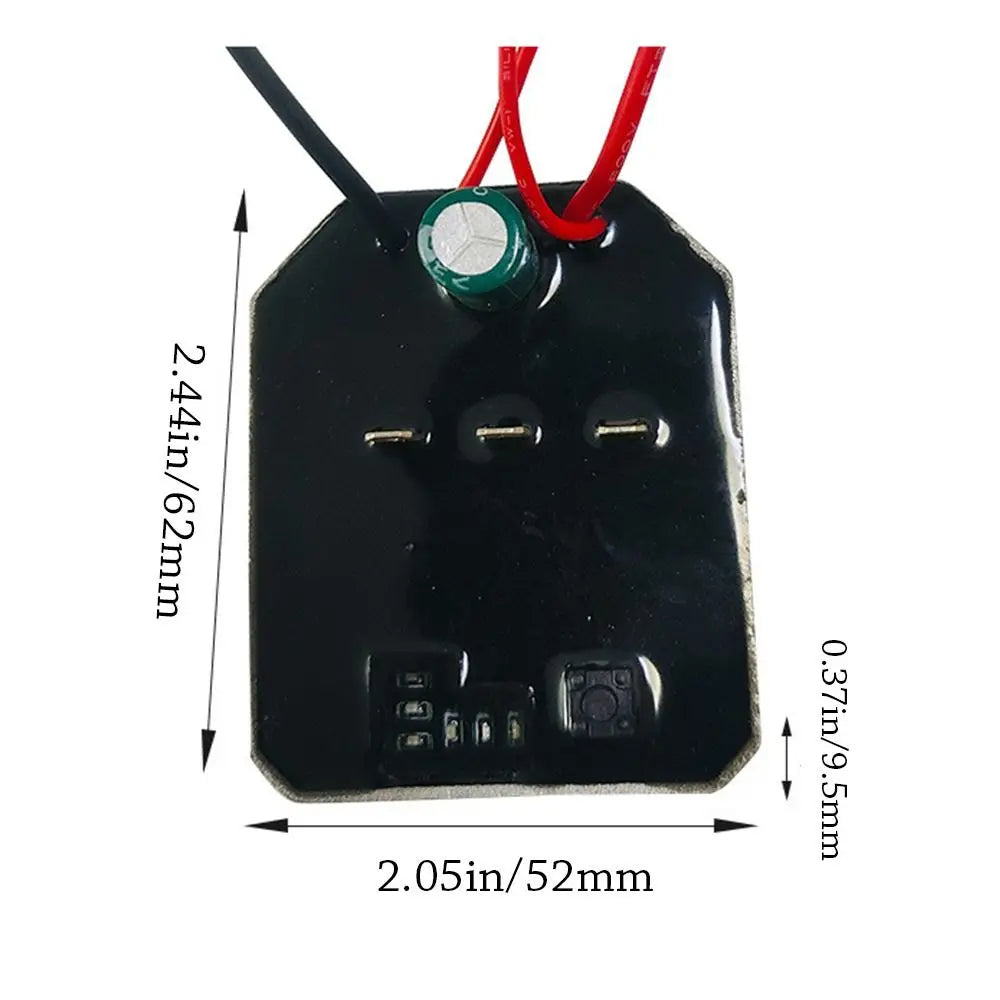

Dimensions: 6 × 5 cm (approx. 2.36 × 1.97 in)
Compatible Tools: Angle Grinders, Electric Wrenches
Motor Type: Brushless

Features & Benefits

✅ High-Current Handling: 60A rated capacity for demanding power tool applications
✅ Variable Speed Control: Integrated speed-control switch for precise tool management
✅ Brushless Motor Support: Optimized for brushless motors for greater efficiency and longevity
✅ Compact Design: Small footprint fits easily inside standard power tool housings
✅ Wide Voltage Range: Compatible with 18V and 21V lithium battery packs
✅ DIY & Repair Friendly: Ideal for tool hobbyists, electronics enthusiasts, and repair technicians

Important Installation Instructions

To avoid damage to the board and ensure safe operation, please follow these steps in order:

Connect the wires
Secure the motor in place
Install the tool casing
Tighten all screws firmly
Verify that the square shaft of the head rotates freely without jamming
Connect the power supply
Press down the speed-control switch, ensuring there is no gap in the shell — a buzzing alarm may occur if the shell is not fully seated

⚠ Note: Please follow all installation requirements carefully to prevent motherboard damage.

Package Contents

1 × 60A Brushless Motor Control Board (compatible with DAYI angle grinder)

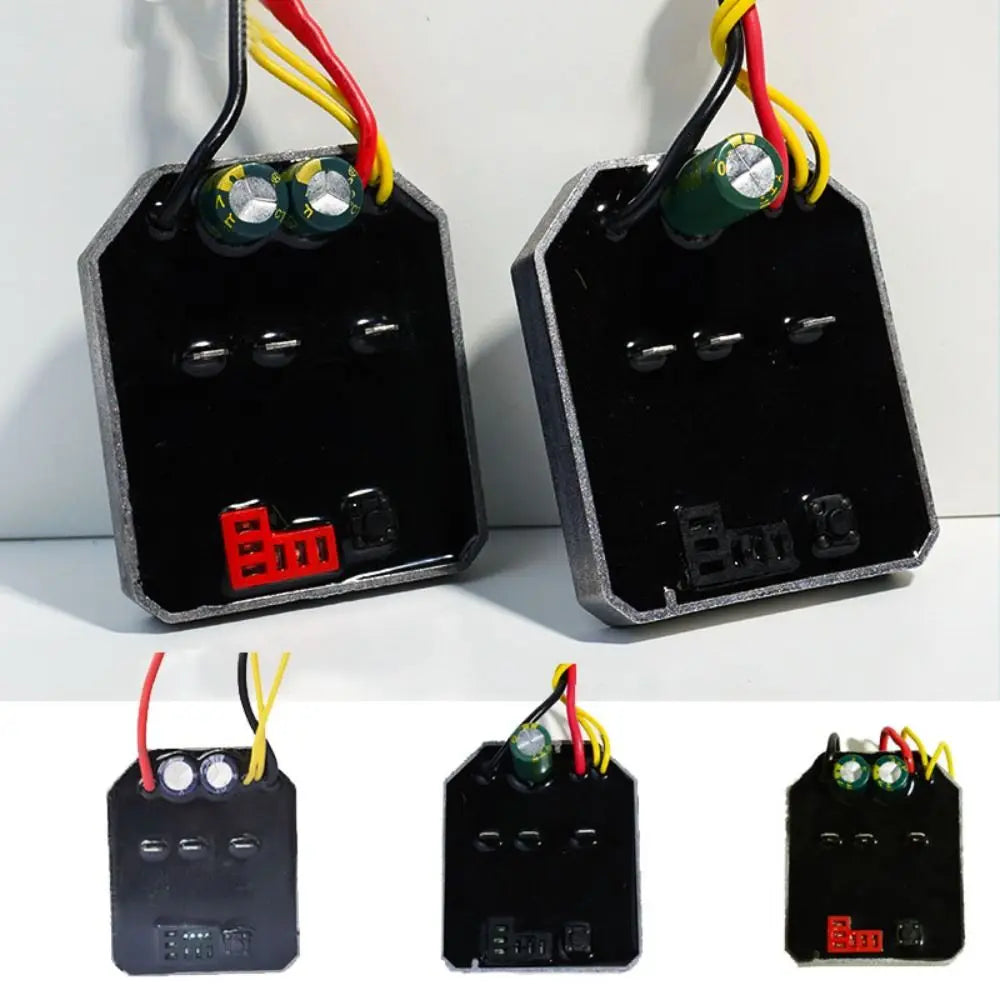

Disclaimer: Due to wiring color, base plate color, or other minor production variations, the actual product may differ slightly in appearance from the images shown. All functions remain identical. Color may also vary slightly from on-screen representations due to monitor brightness and lighting conditions.

Frequently Asked Questions

Q: What voltage range is this brushless motor control board compatible with?

A: This 60A angle grinder control board is compatible with lithium battery systems operating between 18V and 21V, making it suitable for most standard cordless power tool battery packs in that voltage range.

Q: Will this control board work with my electric wrench, or only angle grinders?

A: This brushless speed controller is designed to work with both angle grinders and electric wrenches that use brushless motors. It is specifically compatible with DAYI-style tool housings, but please verify your tool's motor type and voltage requirements before purchasing.

Q: What should I do if the board makes a buzzing alarm sound after installation?

A: A buzzing alarm is typically caused by a gap remaining in the tool shell after reassembly. Ensure the speed-control switch is fully pressed down and that there is no gap between the shell components. Re-check that all screws are tightened and the casing is fully seated before reconnecting power.

Q: Is this board easy to install for a DIY repair project?

A: Yes — this control board is designed for DIY electrical repair and tool rebuilding. Follow the step-by-step installation instructions provided (connect wires → fix motor → install case → tighten screws → check shaft rotation → connect power → seat the switch). If you are new to circuit board replacement, we recommend basic electronics knowledge before proceeding.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
