60A PWM Solar Charge Controller – 12V/24V, 1560W Max Input, LCD Display
Keep your solar energy system running efficiently with this 60A PWM Solar Charge Controller. Designed for 12V and 24V battery systems, it accepts up to 1560W of solar input and features a clear backlit LCD screen for real-time monitoring. Whether you're powering a home, cabin, RV, or small commercial setup, this controller delivers intelligent battery management and robust protection in one compact unit.
Made in Mainland China.
Key Features
- Wide System Compatibility: Works seamlessly with 12V (up to 780W) and 24V (up to 1560W) solar setups. Includes dual USB outputs (5V/2A) for convenient charging of phones and small devices directly from your solar system.
- Intelligent 4-Stage PWM Charging: Automatically cycles through Boost, Absorption (ABS), Equalization, and Float stages to optimize battery health and extend service life. Compatible with OPEN, AGM, and GEL lead-acid batteries.

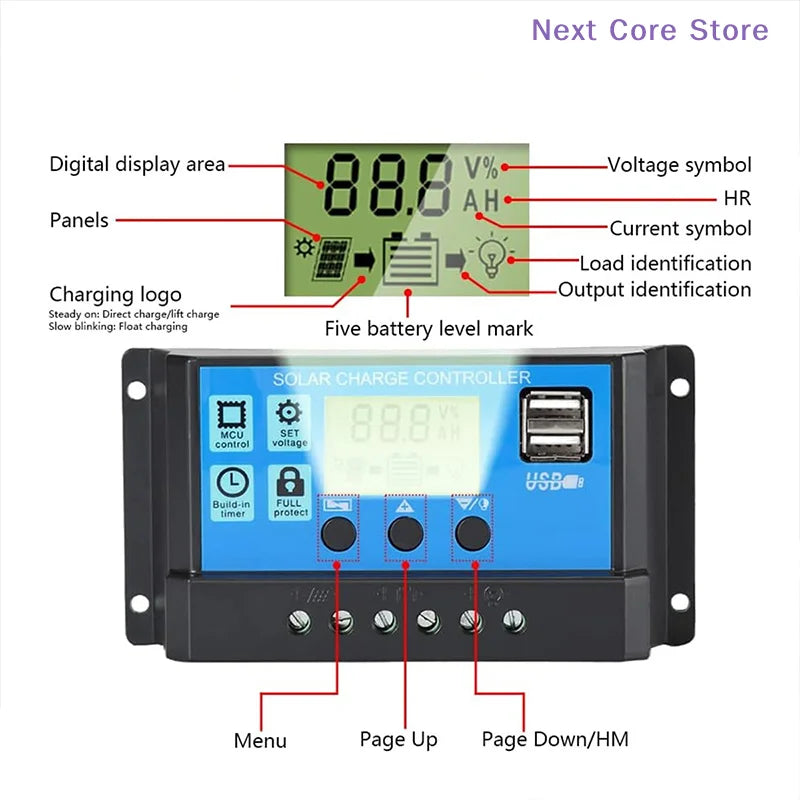

- Backlit LCD with Customizable Parameters: The clear LCD screen displays real-time PV input, battery status, and load data. Easily adjust floating voltage, Low Voltage Disconnect (LVD), Low Voltage Reconnect (LVR), load timers, and review charge/discharge energy records.
- Comprehensive Safety Protection: Built-in safeguards include over-temperature, short-circuit, overload, reverse polarity, and overcharge protection. Automatically disconnects if battery voltage drops below 8V to prevent deep discharge damage.
- Versatile for Home, Commercial & Industrial Use: Supports multiple programmable load timers and is suitable for DC load systems across residential, commercial, and industrial environments.
Specifications
- Rated Current: 60A
- System Voltage: 12V / 24V Auto
- Max Solar Input: 780W (12V) / 1560W (24V)
- Charging Mode: PWM (4-Stage)
- Battery Types: OPEN, AGM, GEL (Lead-Acid)
- USB Output: 5V / 2A (Dual)
- Display: Backlit LCD
- Material: PVC Housing
- Country of Origin: Mainland China
What's in the Box
- 1 × 60A Solar Panel Charge Controller
Related Products You May Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Is this 60A solar charge controller compatible with lithium batteries?
A: This controller is designed for lead-acid battery types including OPEN (flooded), AGM, and GEL. It is not specified for lithium battery systems. Please verify your battery type before purchasing.
Q: Can I use this charge controller with a 48V solar panel system?
A: This controller supports 12V and 24V battery systems with a maximum solar input of 48V from the panel side. The battery output is limited to 12V or 24V — it is not designed to charge 48V battery banks directly.
Q: How do I adjust the parameters on the LCD display?
A: The controller features an intuitive button interface paired with the backlit LCD screen, allowing you to customize settings such as floating voltage, Low Voltage Disconnect (LVD), Low Voltage Reconnect (LVR), and programmable load timer schedules to suit your specific solar installation needs.
Q: Does this solar charge controller include overcharge protection?
A: Yes. The 60A PWM charge controller includes comprehensive safety features: overcharge protection, over-temperature shutoff, short-circuit protection, overload protection, and reverse polarity protection. It also automatically disconnects the load if battery voltage falls below 8V to safeguard your battery bank.
