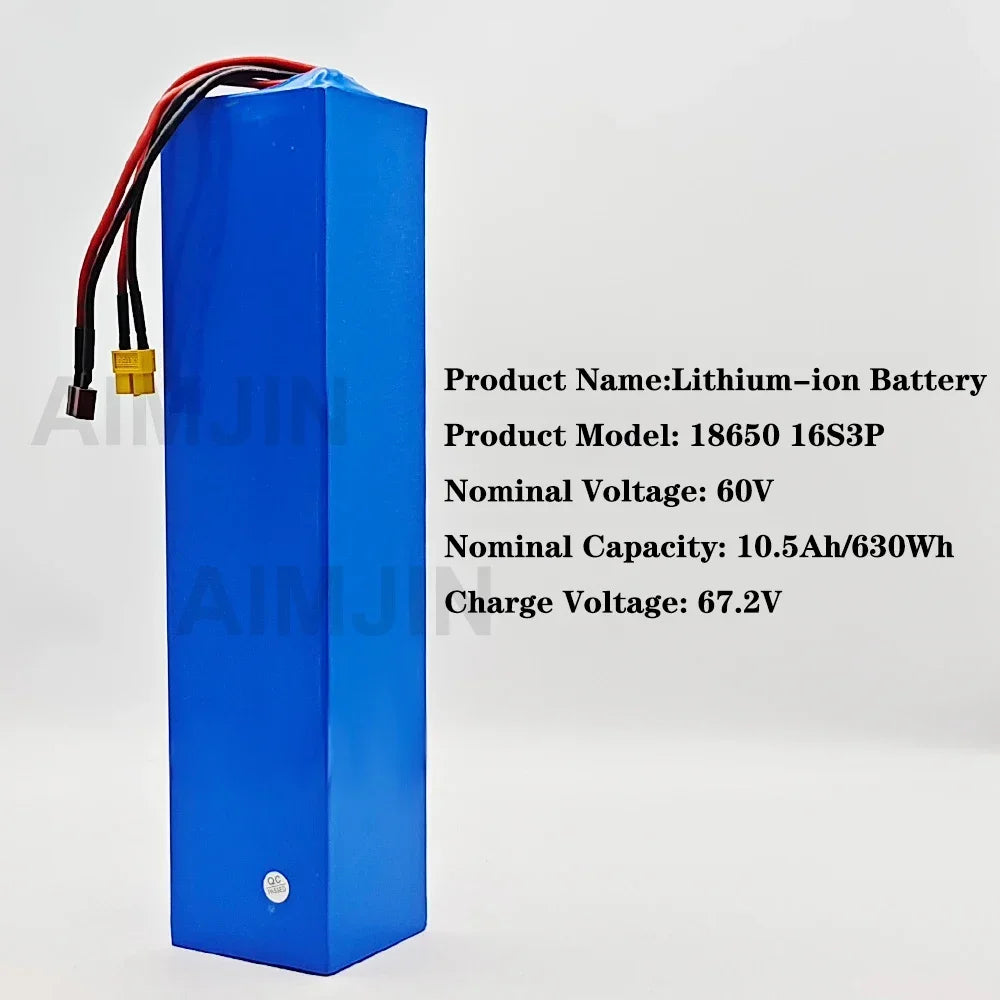

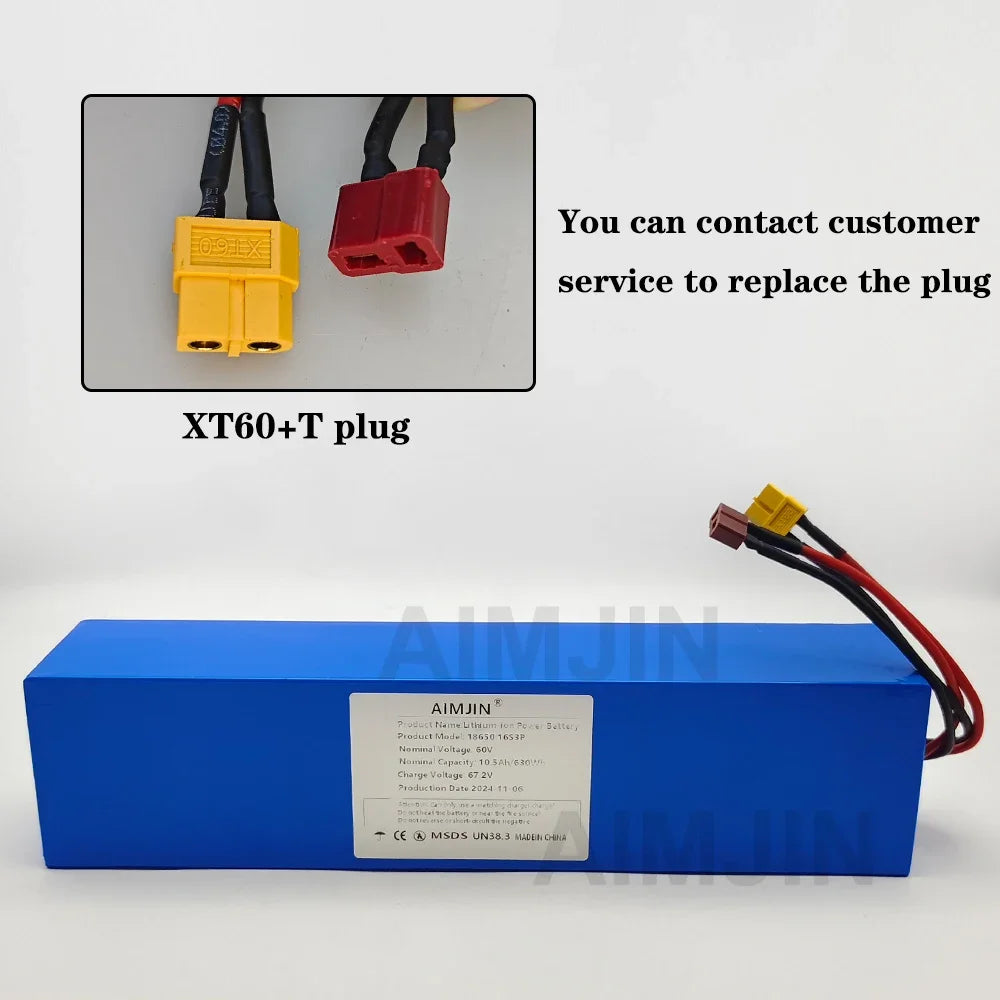

60V 10500mAh 18650 Lithium Battery Pack – 16S3P with Built-In BMS
Power your high-performance electric vehicles, scooters, e-bikes, and power tools with the Aimjin 60V 10500mAh 16S3P Lithium-Ion Battery Pack. Built from premium 18650 Li-Ion cells arranged in a 16-series, 3-parallel configuration, this rechargeable battery pack delivers a consistent 60V output and handles continuous discharge currents of up to 30A — with instantaneous peak bursts up to 60A — making it ideal for 700W–1500W high-power applications.
Made in Mainland China.

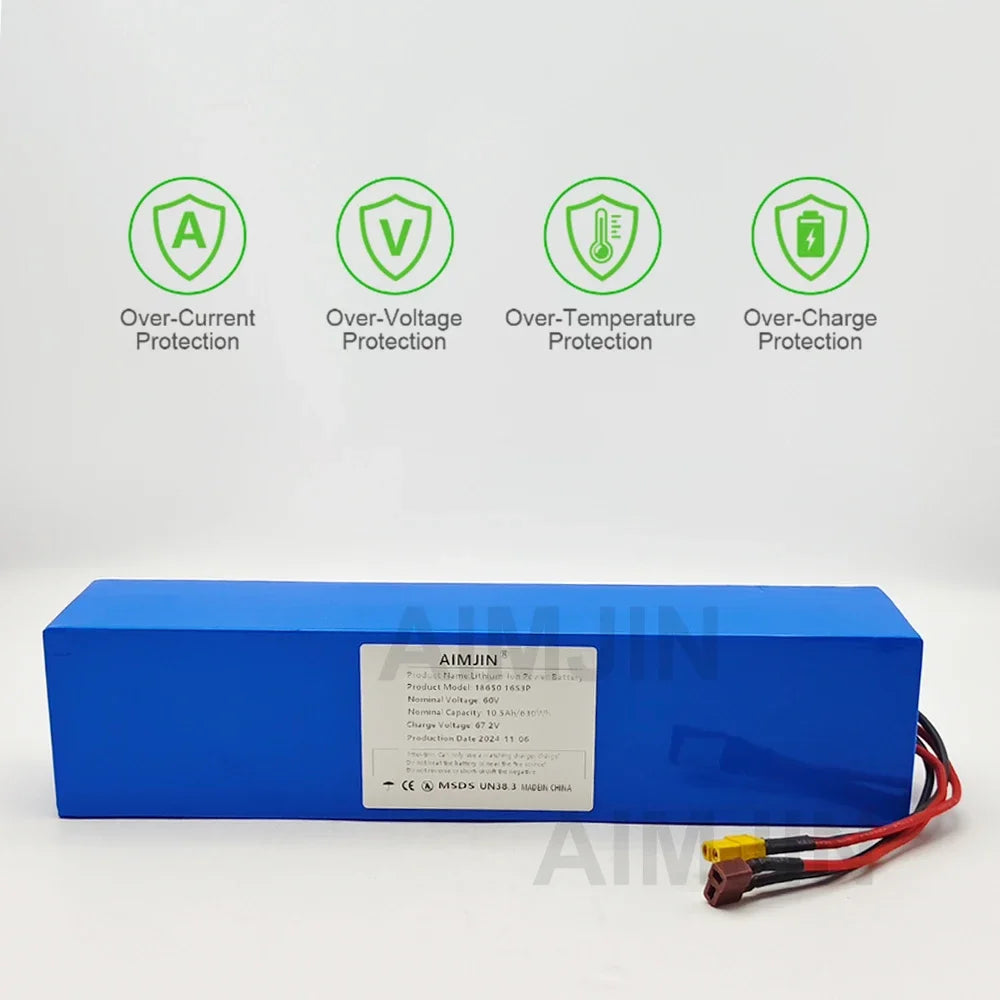

Integrated BMS Protection
The built-in high-current Battery Management System (BMS) provides comprehensive automatic protection including:
- Overcharge protection
- Over-discharge protection
- Overcurrent & short-circuit protection
- Charge equalization for balanced cell performance
Every battery pack is individually tested through charge and discharge cycles before shipping to guarantee optimal performance right out of the box.
Full Specifications
| Battery Model | 60V 10.5Ah (16S3P) |
| Battery Type | Lithium-Ion (18650 Cells) |
| Nominal Voltage | 60V |
| Nominal Capacity | 10,500mAh |
| Cell Combination | 16S3P |
| Cell Source Resistance | <40mΩ |
| Life Cycle | 800–1,000 charge cycles |
| Net Weight | 2,132g |
| Dimensions | 295 × 67 × 69mm |
| Discharge Cutoff Voltage | 43.2 ± 1V |
| Charge Cutoff Voltage | 67.2V |
| Rated Discharge Current | 30A |
| Max Instantaneous Discharge Current | 60A |
| Max Continuous Discharge Current | 30A |
| Max Continuous Charge Current | 5A |
| Charge Mode | CC-CV |
| Standard Charge Current | 2A |
| Fast Charge Current | 5A |
| Charge Temperature Range | 0°C – 45°C |
| Discharge Temperature Range | -20°C – 65°C |
| Supported Power Range | 100W – 1,500W |
| Certification | CE |
Key Features
- High Capacity: 10,500mAh for extended runtime on demanding applications
- High Power Output: Supports 700W–1,500W motors and systems
- Long Lifespan: 800–1,000 recharge cycles for lasting value
- Wide Temperature Discharge: Operates reliably down to -20°C
- CE Certified: Meets international safety and quality standards
- Compact & Lightweight: Designed for easy integration into e-bikes, scooters, and power systems
Important Usage Notes
- Fully charge the battery upon first use to ensure maximum capacity and longevity.
- Batteries are classified as dangerous goods and are shipped via professional logistics channels.
- After receiving, inspect the battery promptly and contact customer support if any issue is detected.
- Delivery times vary by destination and typically range from 10–50 days.
You May Also Like
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What devices is the 60V 10500mAh lithium battery pack compatible with?
A: This 60V 16S3P lithium battery pack is compatible with a wide range of high-power devices including electric scooters, e-bikes, electric go-karts, and other 60V motor systems ranging from 700W to 1,500W. Always verify your device's voltage and current requirements before use.
Q: How many times can this lithium battery pack be recharged?
A: The Aimjin 60V 10500mAh battery pack is rated for 800–1,000 full charge/discharge cycles, giving you years of reliable use with proper care and storage.
Q: Does the battery pack include overcharge and short-circuit protection?
A: Yes. The integrated BMS (Battery Management System) automatically protects against overcharging, over-discharging, overcurrent, short circuits, and ensures charge equalization across all cells for safe and balanced operation.
Q: What is the recommended first-use procedure for this lithium battery?
A: Upon receiving your battery, fully charge it before first use. This helps restore any capacity that may have been slightly reduced during shipping and ensures peak performance from the start.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
