60V 12Ah 16S3P Lithium Battery Pack for E-Bike & Scooter
60V 12Ah 16S3P Lithium Battery Pack for E-Bike & Scooter

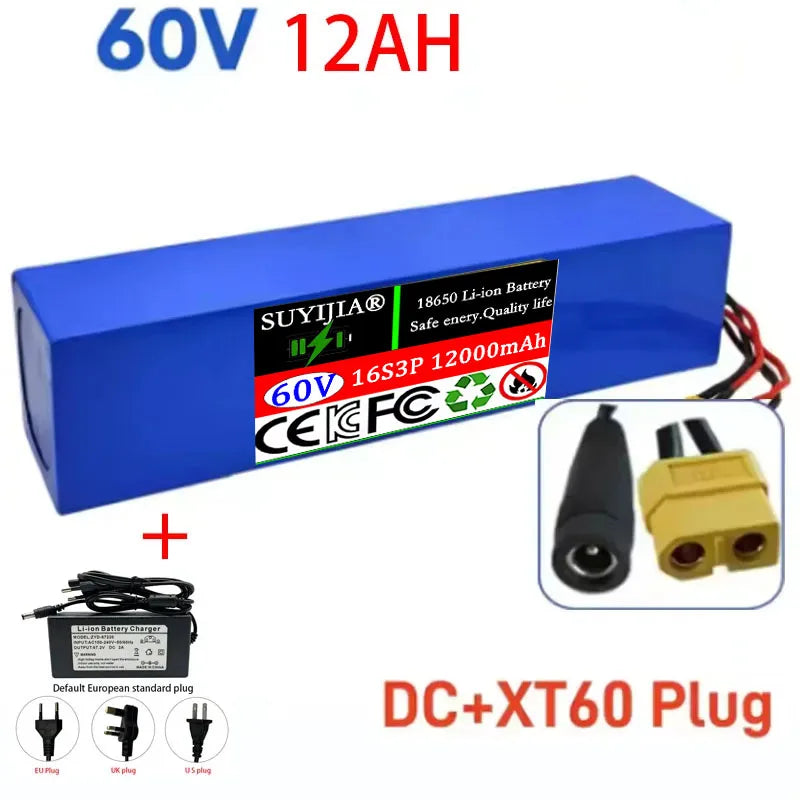

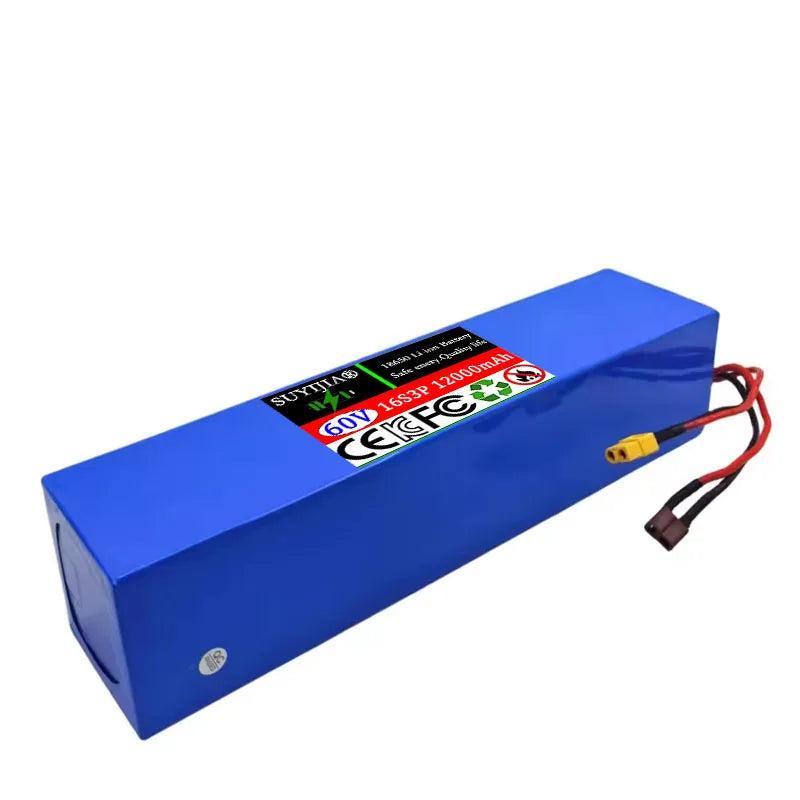

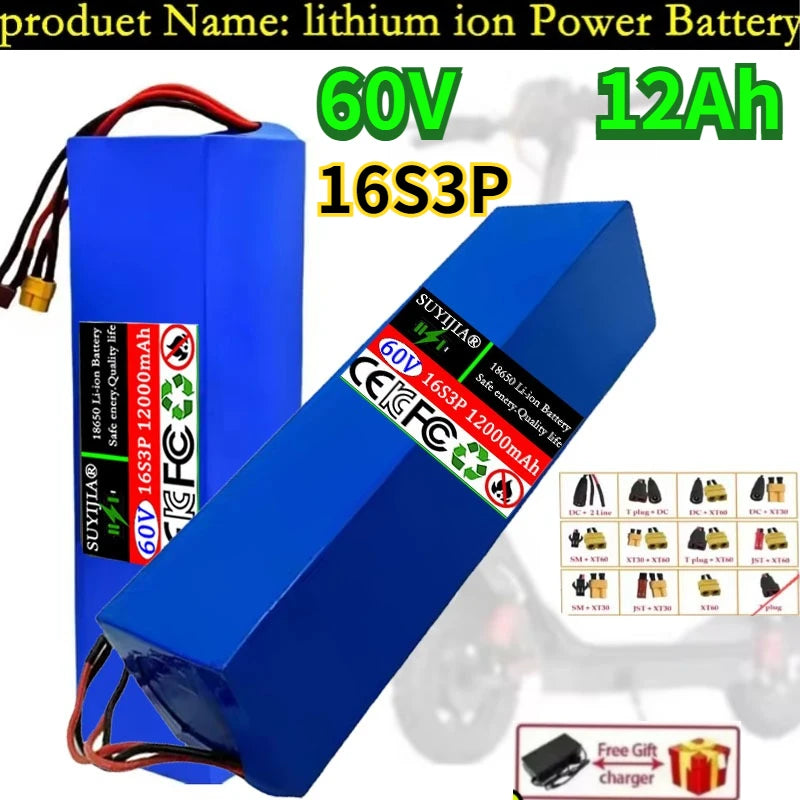

60V 12000mAh Rechargeable Lithium Battery Pack – 16S3P with Built-In BMS
Power up your electric ride with the SUYIJIA 60V 12Ah Lithium-Ion Battery Pack. Engineered in a high-density 16S3P cell configuration, this rechargeable battery delivers reliable, high-capacity energy for electric bicycles, mountain e-bikes, electric scooters, motorcycles, and power tools rated up to 1500W. With an 800–1000 cycle lifespan and CE-certified quality, it's built to go the distance.
Made in Mainland China.
Key Features
- High Capacity: 60V / 12,000mAh (12Ah) for extended range on every charge
- 16S3P Cell Configuration: 18650 lithium-ion cells arranged for optimal performance and balance

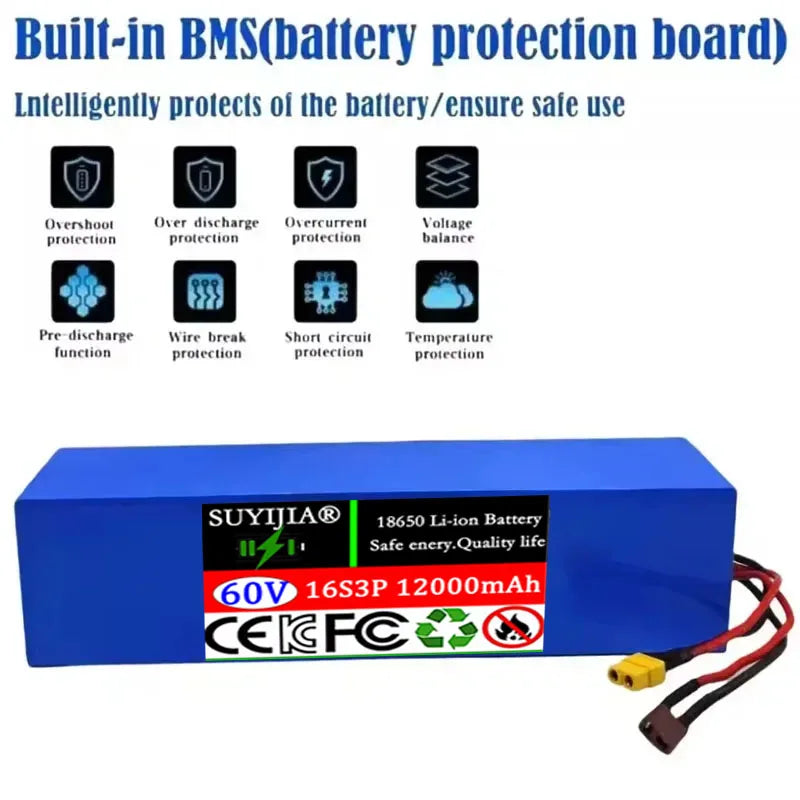

- Built-In Smart BMS: Provides overcharge, over-discharge, short-circuit, and current protection automatically
- Supports 700W–1500W Systems: Compatible with high-power e-bike and scooter motors
- Fast & Standard Charging: Standard 2A / Fast 5A charge current; CC-CV charging mode
- Wide Temperature Range: Operates from -20°C to 65°C; charges between 0°C and 45°C
- Long Cycle Life: 800–1000 full charge/discharge cycles
- Compact & Lightweight: Dimensions 295×69×67mm; Net weight approx. 2,200g
- CE Certified: Meets international safety and quality standards
- Low Internal Resistance: Cell source resistance <40mΩ for efficient energy delivery
Full Technical Specifications
| Battery Model | 60V 12AH (16S3P) |
| Battery Type | Lithium-Ion (18650) |
| Nominal Voltage | 60V |
| Nominal Capacity | 12,000mAh (12Ah) |
| Charge Cutoff Voltage | 67.2V |
| Discharge Cutoff Voltage | 43.2 ± 1V |
| Max Continuous Discharge Current | 30A |
| Instantaneous Max Discharge Current | 60A |
| Standard Charge Current | 2A |
| Fast Charge Current | 5A |
| Charging Mode | CC-CV |
| Charge Temperature Range | 0°C – 45°C |
| Discharge Temperature Range | -20°C – 65°C |
| Cycle Life | 800–1000 cycles |
| Dimensions | 295 × 69 × 67mm |
| Net Weight | 2,200g |
| Certification | CE |
| Compatible Applications | E-Bike, Mountain Bike, Electric Scooter, Motorcycle, Power Tools |
Compatible With

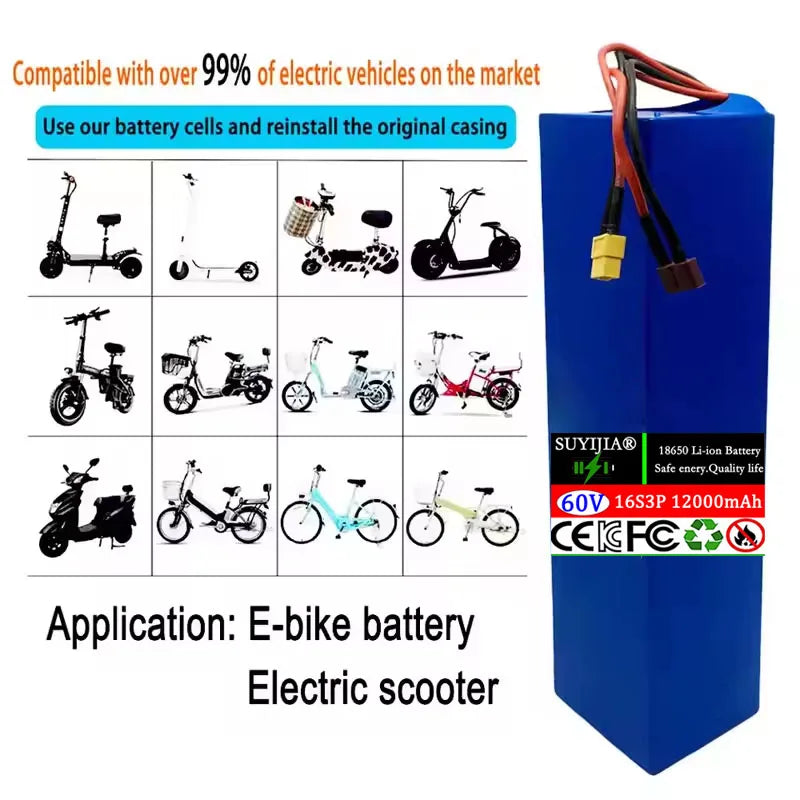

This battery pack is suitable for a wide range of 60V electric vehicles and devices, including mountain e-bikes, electric scooters, e-motorcycles, and high-power tools with energy requirements between 700W and 1500W.
You May Also Like
Explore more tools and essentials in our store:
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What vehicles is this 60V 12Ah lithium battery pack compatible with?
A: The 60V 12000mAh 16S3P battery pack is compatible with electric bicycles, mountain e-bikes, electric scooters, motorcycles, and power tools that operate on a 60V system with power requirements between 700W and 1500W.
Q: Does the battery pack include a built-in Battery Management System (BMS)?
A: Yes, this lithium battery pack features a built-in high-current BMS that provides automatic protection against overcharging, over-discharging, short circuits, and excessive current — helping to extend battery life and ensure safe operation.
Q: How long does it take to fully charge the 60V 12Ah battery?
A: Using the standard 2A charge current, a full charge takes approximately 6 hours. With the fast charge option at 5A, charging time is reduced to around 2.5 hours. The battery uses a CC-CV charging mode for safe and efficient charging.
Q: How many times can this battery be charged before it degrades?
A: This 16S3P lithium-ion battery pack is rated for 800 to 1,000 full charge/discharge cycles, making it a long-lasting investment for your electric vehicle or power tool setup.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
