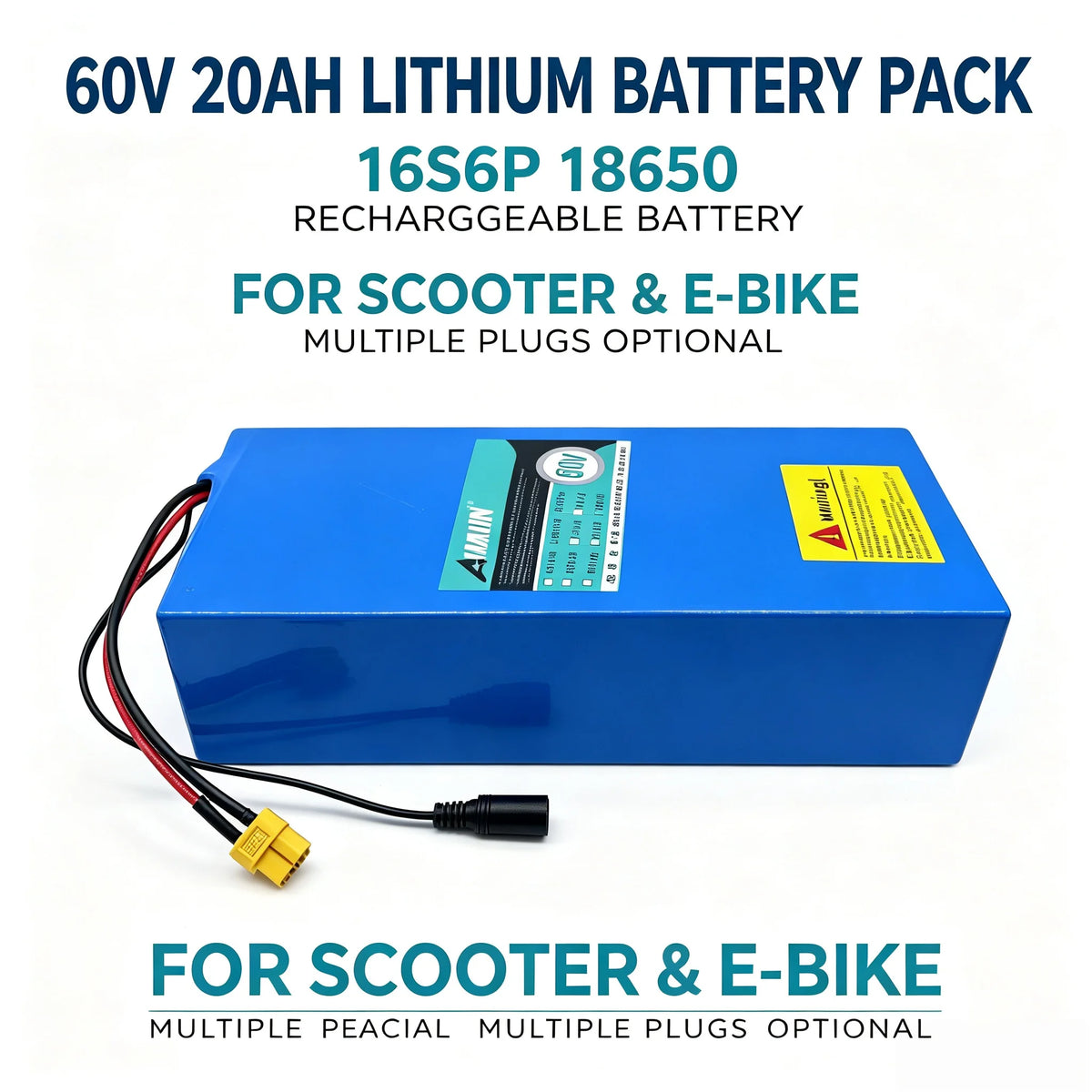

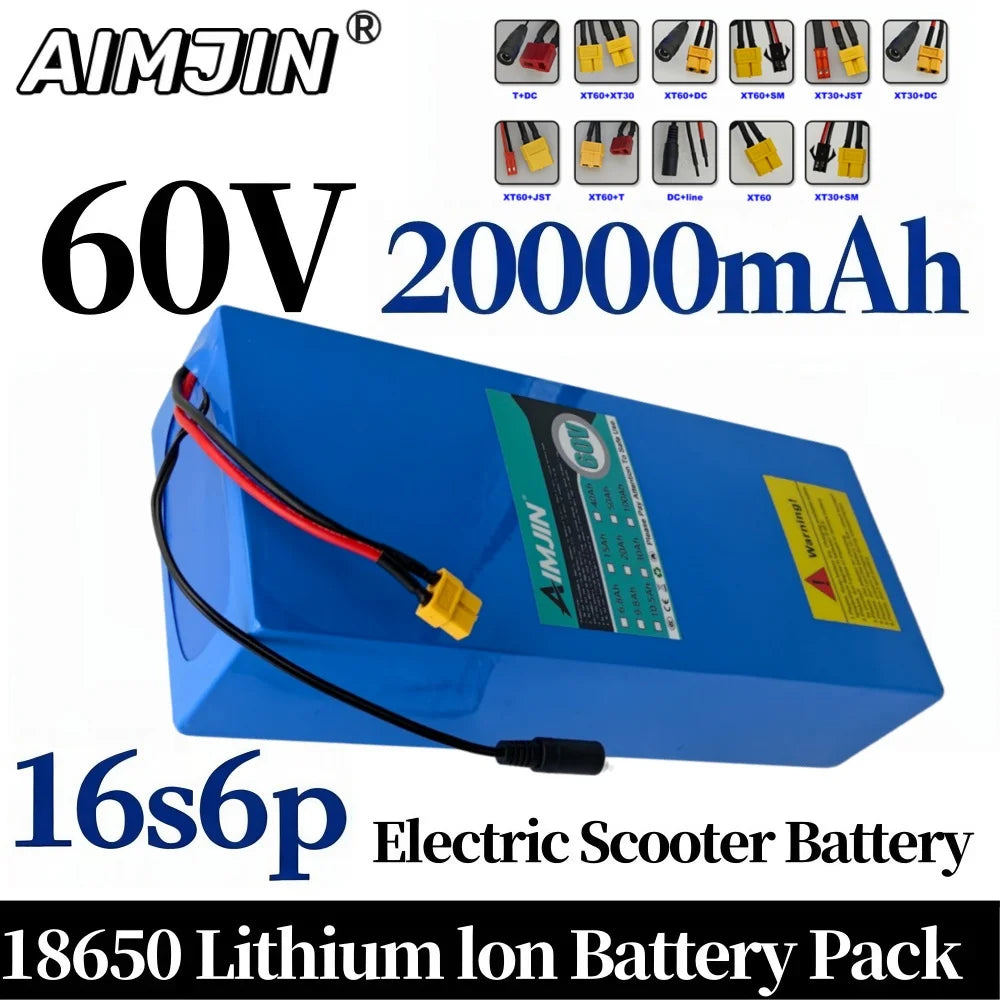

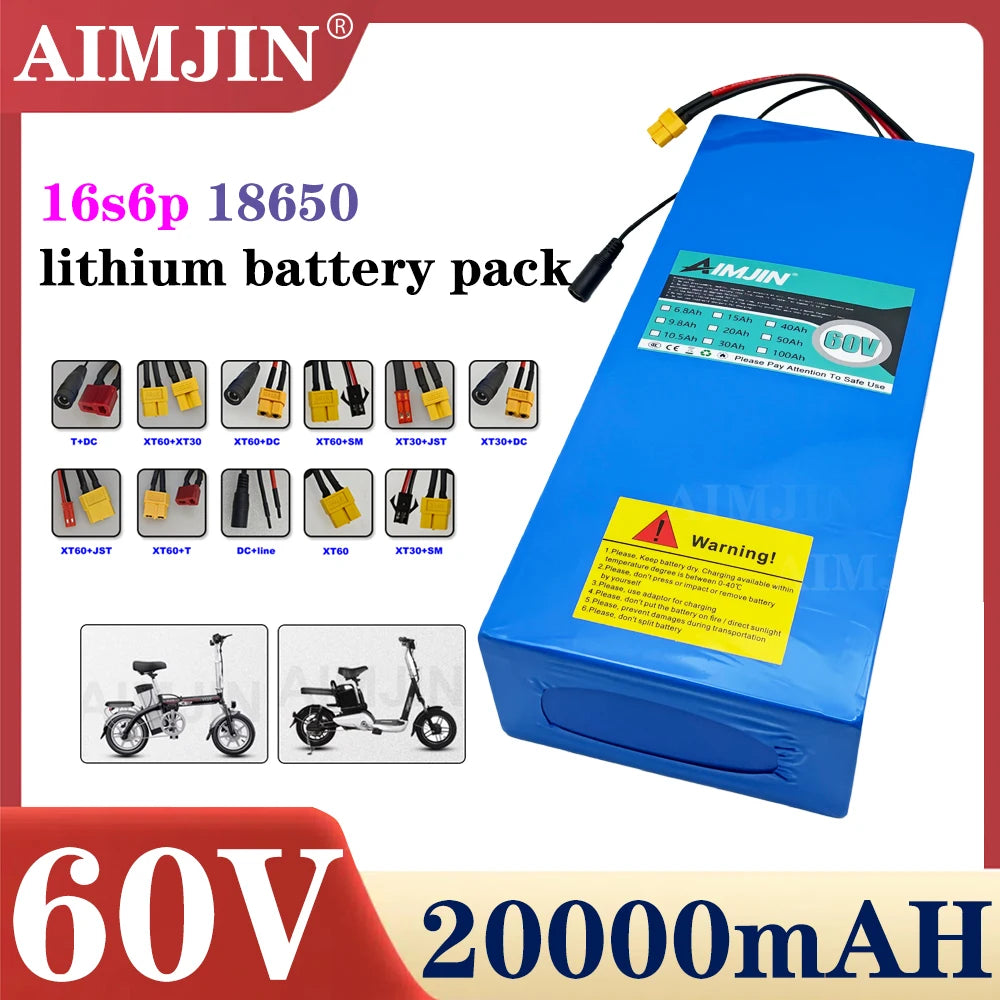

60V 20Ah High-Power Lithium Battery Pack – 16S6P with Built-in BMS
Power up your electric motorcycle, scooter, or e-bike with this robust 60V 20Ah 18650 Lithium-Ion Battery Pack. Engineered in a 16S6P configuration, this battery delivers exceptional energy density, stable voltage output, and up to 800 charge-discharge cycles — making it a dependable long-term power solution for demanding electric vehicle applications.
The integrated 40A high-current BMS (Battery Management System) provides automatic protection against overcharge, over-discharge, over-current, and short circuits, while also balancing cell equalization for consistent, safe performance ride after ride.
Made in Mainland China.

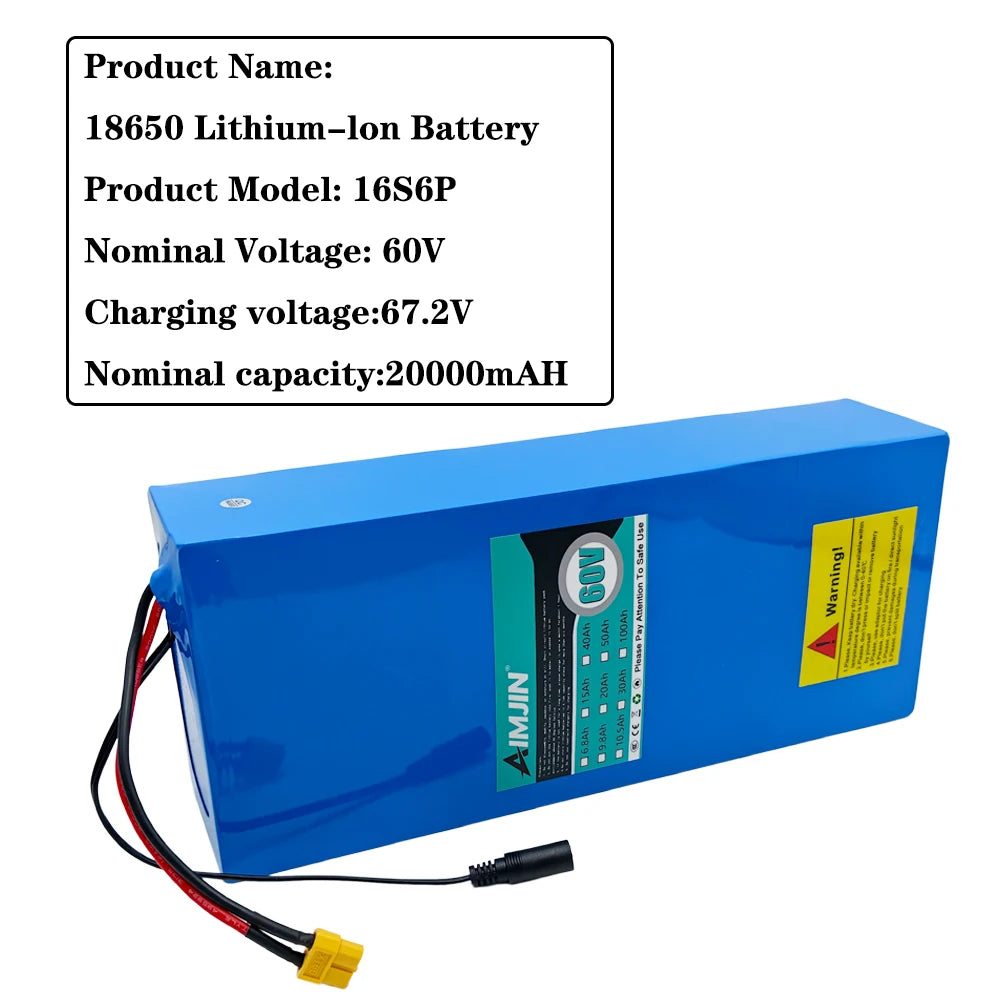

Full Technical Specifications
- Model: 16S6P – 60V 20Ah
- Battery Type: Li-Ion (18650 cells)
- Nominal Voltage: 60V
- Nominal Capacity: 20,000 mAh (20Ah)
- Power Output: 1000–2500W
- Cell Combination: 16S6P
- Cell Source Resistance: <40mΩ
- Life Cycle: 800 charge cycles
- Net Weight: 4,100g (~9 lbs)
- Dimensions: 297 × 126 × 70mm
- Discharge Cutoff Voltage: 44 ±1V
- Charge Cutoff Voltage: 67.2V
- Rated Discharge Current: 40A
- Max Continuous Discharge Current: 40A
- Instantaneous Max Discharge Current: 80A
- Max Continuous Charge Current: 10A
- Standard Charge Current: 2A (approx. 10 hours)
- Fast Charge Current: 5A (approx. 4 hours)
- Charge Mode: CC-CV
- Charge Temperature Range: 0°C – 45°C
- Discharge Temperature Range: -20°C – 65°C
- Certification: CE
Built-in BMS Protection Features
- ✅ Overcharge protection
- ✅ Over-discharge protection
- ✅ Over-current protection
- ✅ Short-circuit protection
- ✅ Automatic cell charge equalization

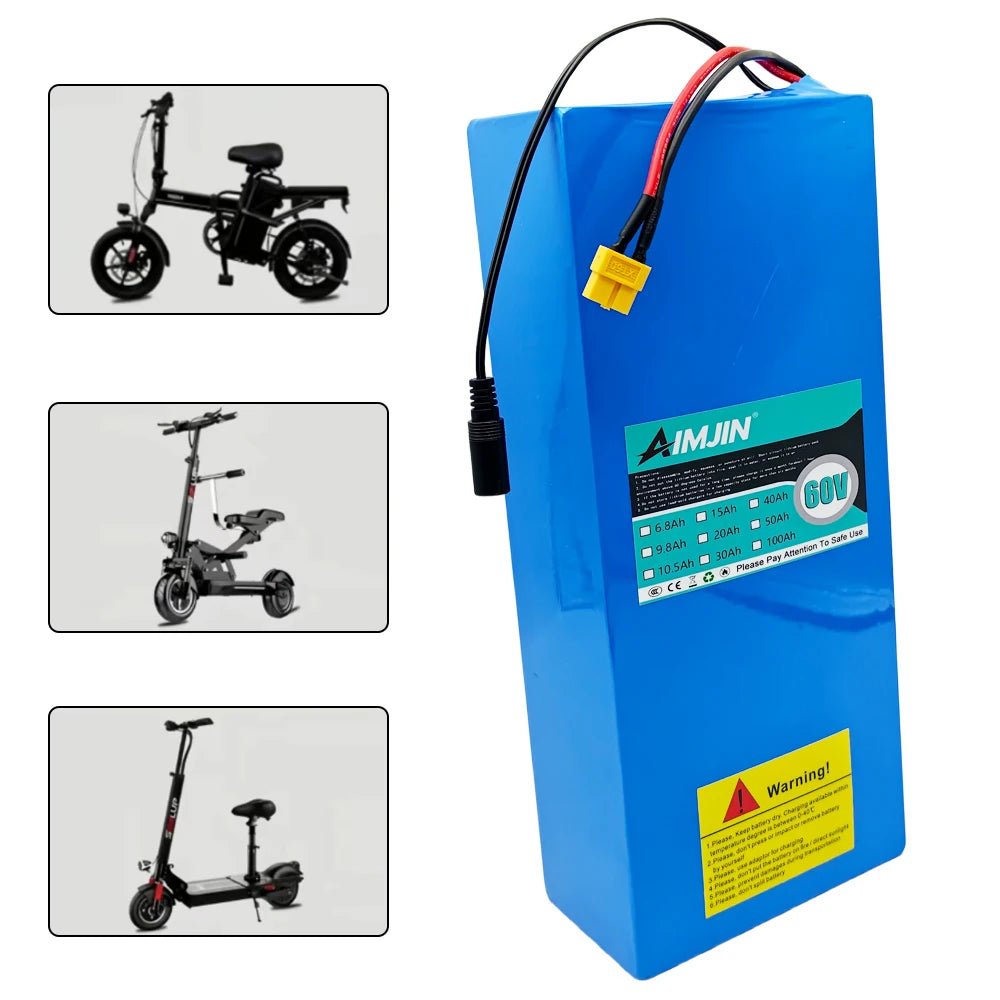

Ideal Applications
- Electric motorcycles & scooters
- E-bikes & electric bicycles
- Battery replacement / upgrade projects
- DIY electric vehicle builds
Related Products You May Like
Looking for other tools and accessories? Check out our 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel or our 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What vehicles is this 60V 20Ah lithium battery compatible with?
A: This 60V 16S6P lithium battery pack is designed for electric motorcycles, scooters, e-bikes, and other 60V electric vehicle systems. It is also suitable for DIY battery replacement and upgrade projects that require a 60V power source in the 1000–2500W range.
Q: How long does it take to fully charge this lithium battery pack?
A: Using a standard 2A charger, the battery reaches full charge in approximately 10 hours. With a fast charger at 5A, charging time is reduced to approximately 4 hours. Always use a compatible CC-CV charger with a cutoff voltage of 67.2V.
Q: What does the built-in BMS protect against?
A: The integrated 40A Battery Management System (BMS) automatically guards against overcharge, over-discharge, over-current, and short-circuit conditions. It also performs automatic cell equalization to maintain balanced charging across all 96 cells (16S6P configuration), extending overall battery longevity.
Q: What is the expected lifespan of this battery?
A: This lithium-ion battery pack is rated for up to 800 full charge-discharge cycles under normal operating conditions, making it a reliable long-term investment for your electric vehicle.
