60V 21Ah 18650 16S4P Lithium Battery Pack with BMS | 1800W
60V 21Ah 18650 16S4P Lithium Battery Pack with BMS | 1800W

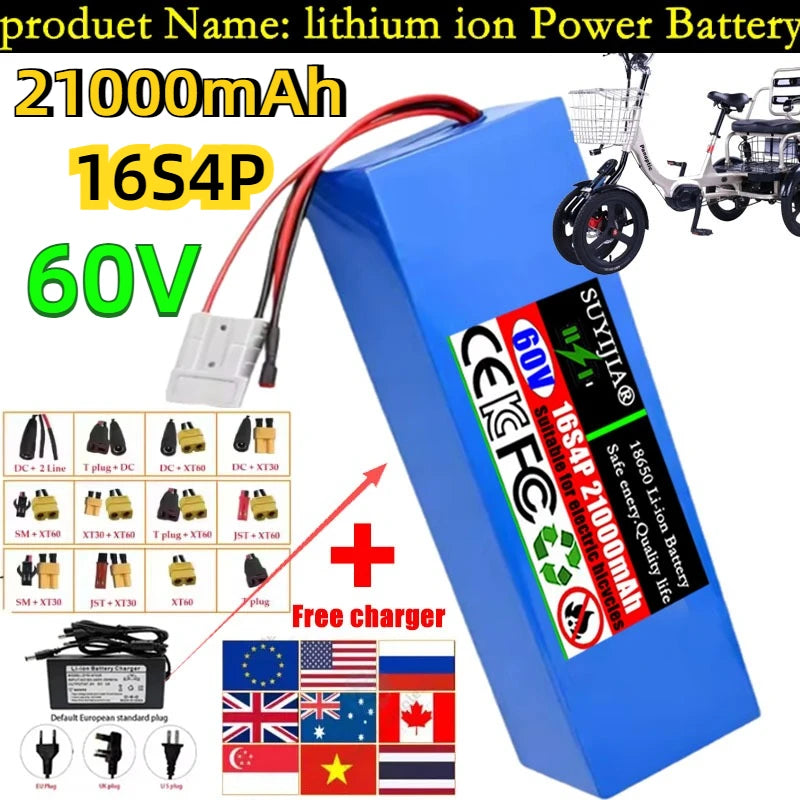

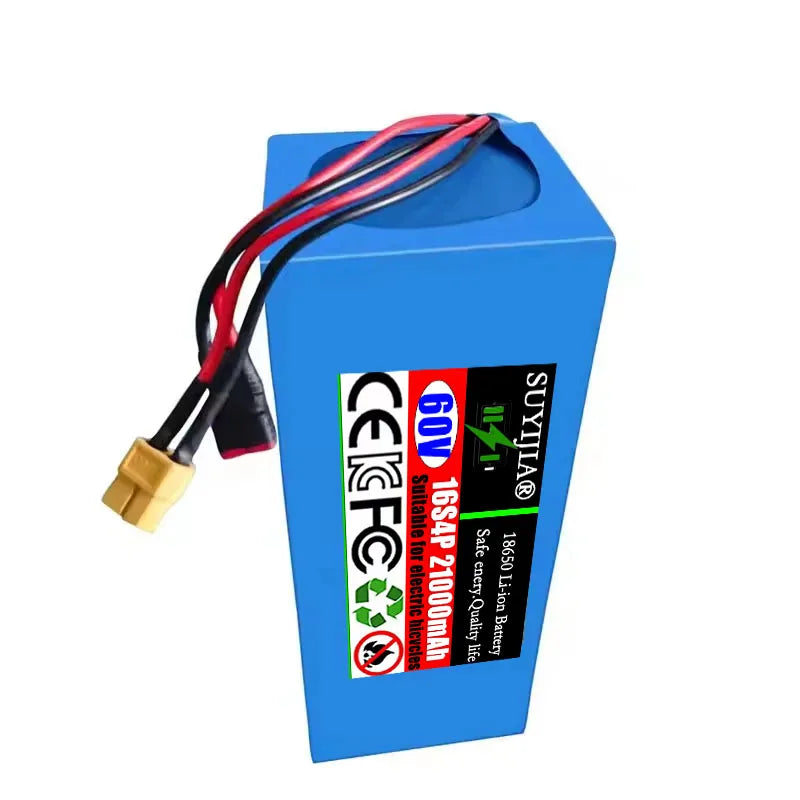

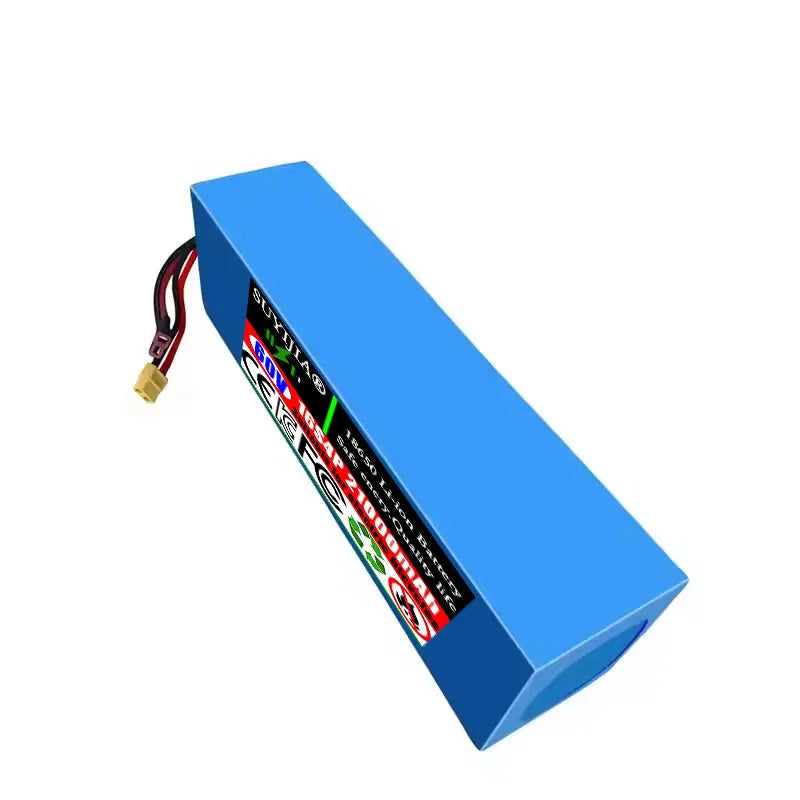

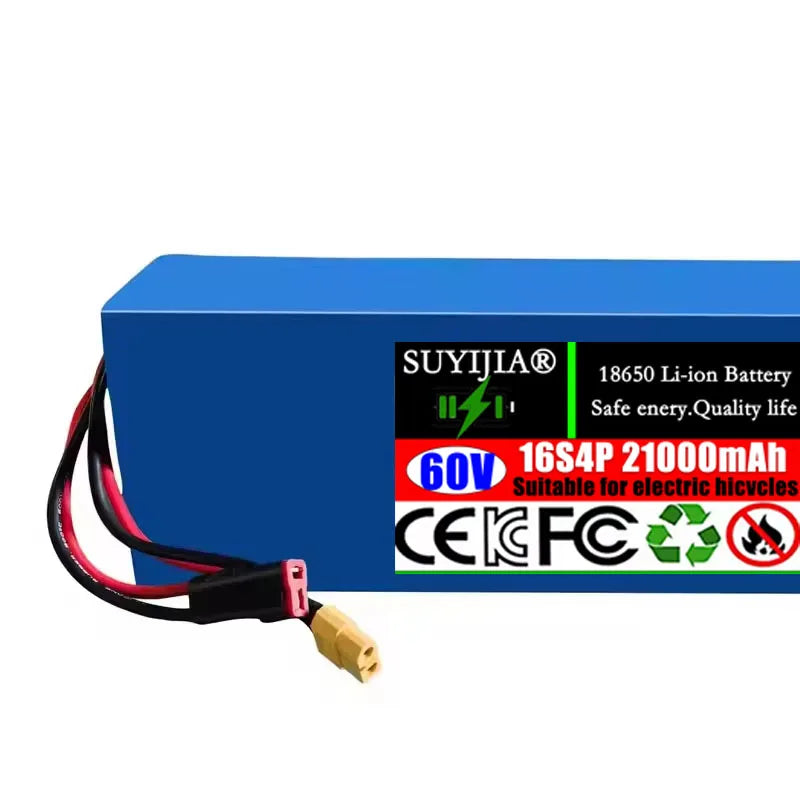

60V 21Ah 18650 16S4P Lithium Battery Pack with Built-In BMS
Power up your electric ride with the SUYIJIA 60V 21Ah high-capacity lithium-ion battery pack. Built with premium 18650 cells in a robust 16S4P configuration, this pack delivers reliable, high-current output for electric bicycles, e-scooters, motorcycles, tricycles, and solar backup power systems. Made in Mainland China.
Key Specifications
- Model: 18650 16S4P
- Nominal Voltage: 60V
- Nominal Capacity: 21,000mAh (21Ah)
- Charging Voltage: 67.2V
- Max Power Output: 1800W

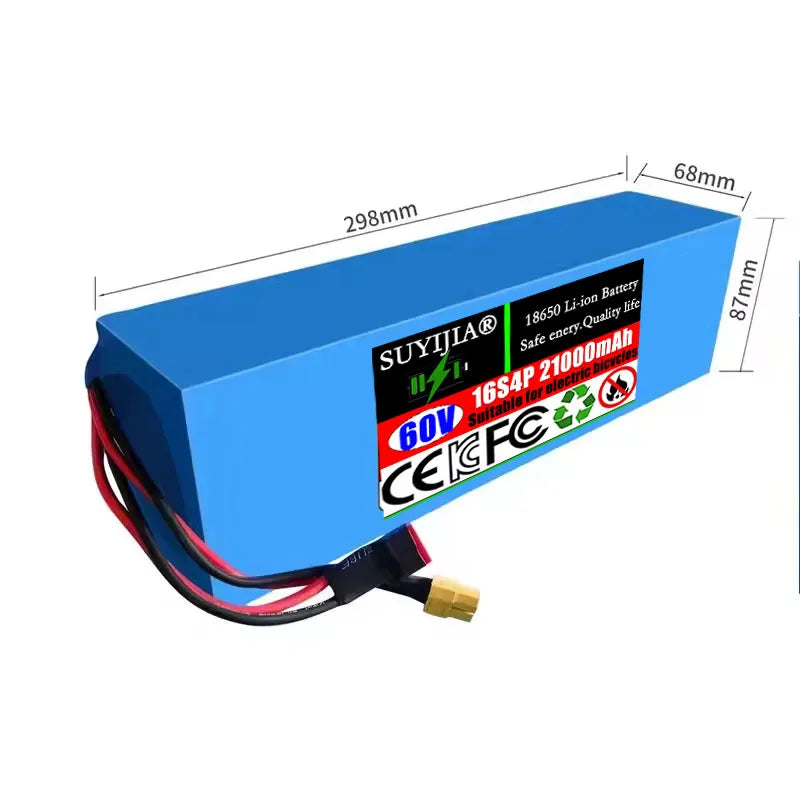

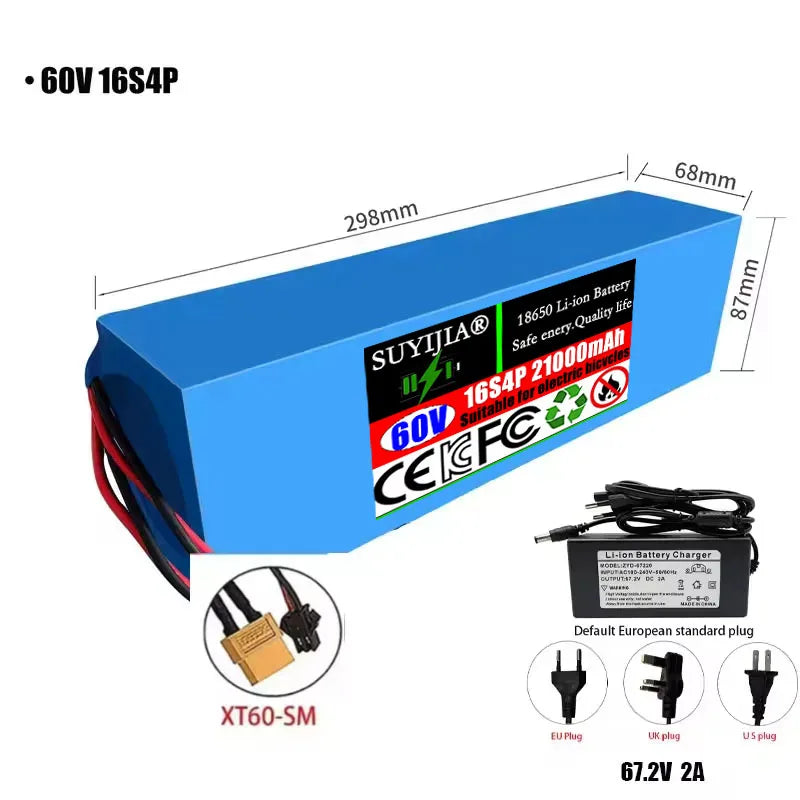

- Dimensions: 298 × 87 × 68 mm
- Weight: Approx. 2.88 kg (2,880g)
- Cell Internal Resistance: <40mΩ
- Cycle Life: ~1,000 charge cycles
- Discharge Cutoff Voltage: 48 ±1V
- Charge Cutoff Voltage: 67.2V
- Rated Discharge Current: 40A
- Max Continuous Discharge Current: 40A
- Max Instantaneous Discharge Current: 80A
- Standard Charge Current: 2A
- Fast Charge Current: 5A
- Charging Mode: CC-CV
- Charge Temperature Range: 0°C ~ 45°C
- Discharge Temperature Range: -20°C ~ 65°C
- Certification: CE

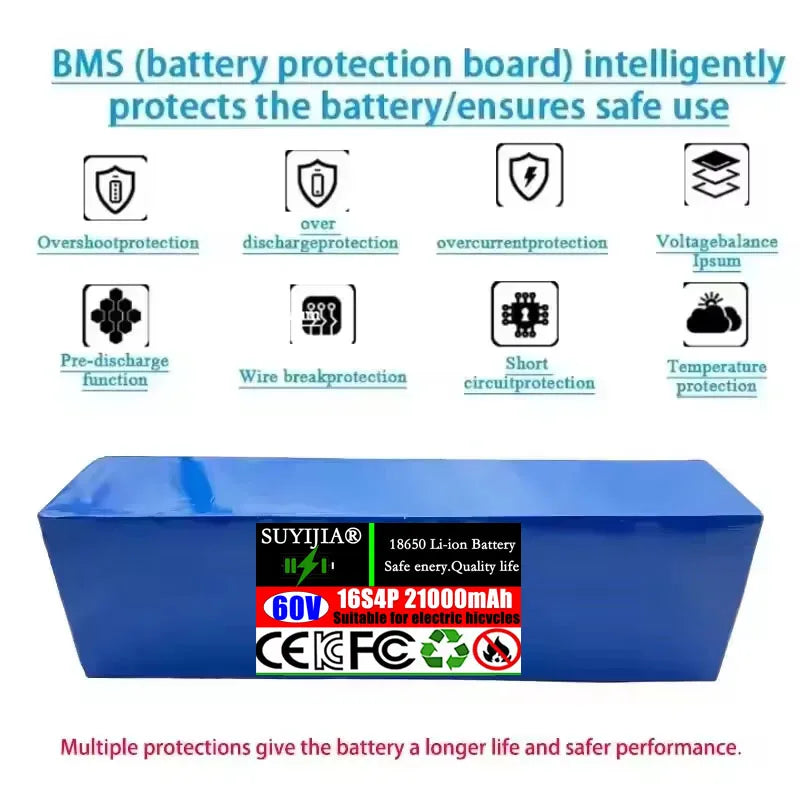

Built-In High-Quality BMS Protection
This battery pack features a built-in Battery Management System (BMS) that actively monitors and protects your investment. The BMS provides:
- Overcharge & over-discharge protection
- Short circuit protection
- Cell balancing during charging
- Automatic fault detection and protection circuitry
- High-current rated components for maximum reliability
Wide Application Compatibility
Compatible with all 60V motor-driven equipment including:
- Electric bicycles & e-bikes
- E-scooters & electric motorcycles
- Electric tricycles
- Solar energy storage backup systems
- Other 60V EVs and high-power devices up to 1800W
Why Choose This Battery Pack?
- ✅ High-capacity 21Ah design for extended range
- ✅ CE certified for quality and safety compliance
- ✅ Compact, lightweight form factor for easy installation
- ✅ 1,000-cycle lifespan for long-term value
- ✅ Supports both standard and fast charging modes
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What devices is this 60V 21Ah lithium battery pack compatible with?
A: This 60V 21Ah 16S4P battery pack is designed for all 60V motor-driven equipment, including electric bicycles, e-scooters, electric motorcycles, tricycles, and solar power backup storage systems rated up to 1800W.
Q: Does this battery pack include a BMS?
A: Yes, the pack features a built-in high-current Battery Management System (BMS) that provides overcharge protection, over-discharge protection, short circuit protection, and automatic cell balancing to ensure safe and consistent performance.
Q: What is the charging voltage and standard charge current for this lithium battery?
A: The charging voltage is 67.2V using CC-CV charging mode. The standard charge current is 2A, with a fast charge option at 5A. Always use a compatible 67.2V charger to maintain battery health and safety.
Q: How long will the 60V 21Ah 18650 battery pack last?
A: This battery is rated for approximately 1,000 full charge-discharge cycles under normal operating conditions, making it a durable long-term power solution for your electric vehicle or energy storage setup.
