60V 28Ah 18650 Lithium Battery Pack – High-Power 16S6P with Built-in BMS
Power your electric scooter, e-bike, motorcycle, or power tool with confidence using this robust 60V 28Ah 18650 Lithium-Ion Battery Pack. Engineered in a 16S6P cell configuration, this pack delivers stable, high-capacity energy output up to 2400W, backed by a reliable 16S 40A Battery Management System (BMS) for safe, efficient operation.
Key Features
- High Capacity: 28,000mAh (28Ah) nominal capacity for extended range and runtime
- 16S6P Cell Configuration: 18650 Li-Ion cells arranged in 16 series × 6 parallel for optimized power delivery
- Built-in BMS: 16S 40A Battery Management System protects against overcharge, over-discharge, short circuit, and over-temperature
- Wide Compatibility: Supports electric bicycles, e-scooters, tricycles, electric motorcycles, power tools, and backup power applications up to 2400W
- Smart Charging: CC/CV charging mode via DC5.5 port; discharge via XT60 connector
- Long Cycle Life: 1000+ charge/discharge cycles for lasting value
- CE Certified: Meets CE safety standards
- Compact & Sturdy: Dimensions 300×124×68mm, weight approximately 4,820g
Technical Specifications
| Nominal Voltage | 60V |
| Nominal Capacity | 28Ah (28,000mAh) |
| Cell Type | 18650 Li-Ion |
| Cell Configuration | 16S6P |
| Charge Voltage | 67.2V ±1V |
| Discharge Cut-off Voltage | 44V ±1V |
| Nominal Discharge Current | 40A |
| Maximum Discharge Current | 80A |
| BMS | 16S 40A Protection Board |
| Max Motor Power | 60V 2400W |
| Charging Mode | CC/CV |
| Charge Connector | DC5.5 |
| Discharge Connector | XT60 |
| Charging Temperature | 0°C ~ 45°C |
| Discharge Temperature | -20°C ~ 65°C |
| Cycle Life | 1000+ cycles |

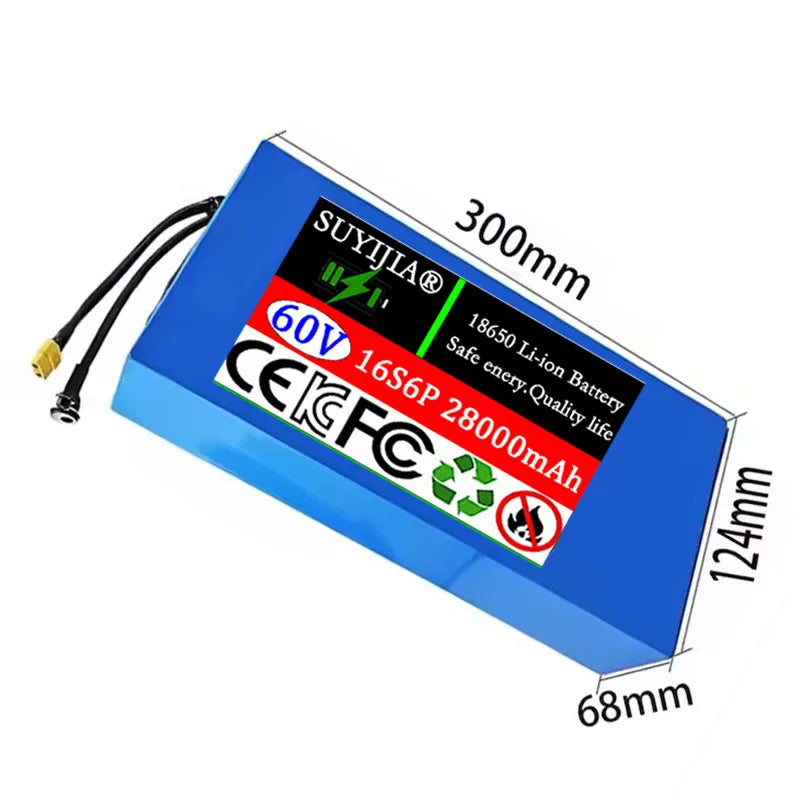

| Size | 300 × 124 × 68mm |
| Weight | 4,820g |
| Certification | CE |
Made in Mainland China.
Compatible Applications
This battery pack is designed for 60V systems rated at 2400W or below, including:
- Electric bicycles & e-scooters
- Electric tricycles & motorcycles
- Power tools
- Trolling motors
- Backup power supplies
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What type of charger do I need for this 60V 28Ah lithium battery pack?
A: This battery pack charges via a DC5.5 connector using a CC/CV charger with an output of 67.2V. Always use a charger specifically rated for 67.2V (16S Li-Ion) to ensure safe and efficient charging. Do not exceed the recommended charge voltage.
Q: Which vehicles and devices is this 60V lithium battery pack compatible with?
A: The 60V 28Ah 16S6P battery pack is compatible with any 60V system rated at 2400W or below, including electric bicycles, e-scooters, electric tricycles, electric motorcycles, power tools, and trolling motors. Always verify your device's voltage and wattage requirements before connecting.
Q: How does the built-in BMS protect the battery?
A: The integrated 16S 40A Battery Management System (BMS) actively monitors and protects the pack against overcharging, over-discharging, short circuits, and excessive temperatures — helping to extend the battery's lifespan and maintain safe operation throughout its 1000+ cycle life.
Q: What is the weight and size of this battery pack?
A: The battery pack measures 300 × 124 × 68mm and weighs approximately 4,820g (about 4.82kg), making it a compact yet powerful solution for high-demand electric vehicle and tool applications.
