60V 30Ah 16S8P High-Capacity Lithium-Ion Battery Pack with Built-In BMS
Power your electric scooter, e-bike, RV, or trolling motor with the SUYIJIA 60V 30Ah (30,000mAh) lithium-ion battery pack. Built on a robust 16-series, 8-parallel configuration of 128 premium 18650 cells, this battery delivers consistent, high-performance energy output with a maximum instantaneous discharge of 65A — engineered to keep you moving longer and more reliably.
Key Features
- High Capacity: 30Ah (30,000mAh) rated capacity for extended run times
- Nominal Voltage: 60V | Full Charge Voltage: 67.2V
- Cell Configuration: 16S8P — 128 × 18650 lithium-ion cells

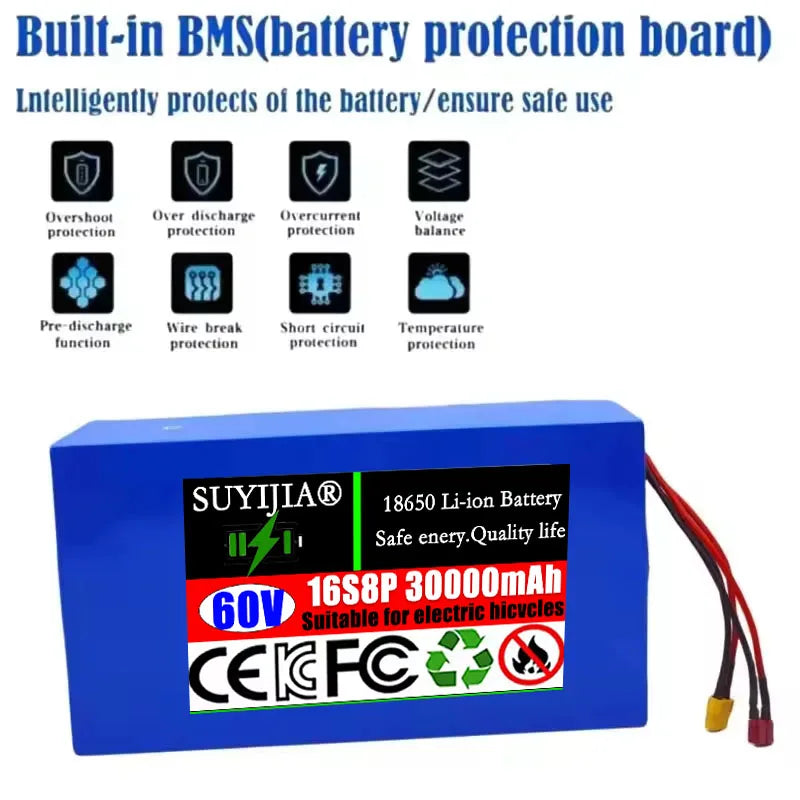

- Built-In BMS: Integrated Battery Management System protects against overcharge, over-discharge, short circuit, and overheating
- Rated Discharge Current: 35A continuous | 65A maximum instantaneous
- Standard Charging Current: 2A | Fast Charging: 5A
- Compatible Power Range: 250W – 3000W applications
- CE Certified for quality and safety compliance
Full Technical Specifications
| Model | 16S8P |
| Nominal Voltage | 60V |
| Full Charge Voltage | 67.2V |
| Rated Capacity | 30Ah (30,000mAh) |
| Cell Type | 18650 Li-Ion |
| Cell Combination | 8P16S (128 cells) |
| Discharge Cut-Off Voltage | 44.8 ± 1V |
| Rated Discharge Current | 35A |
| Max Instantaneous Discharge | 65A |
| Max DC Discharge Current | 35A |
| Standard Charging Current | 2A |
| Fast Charging Current | 5A |
| Charging Temperature Range | -10°C to 25°C |
| Source Resistance | ~25 mΩ |

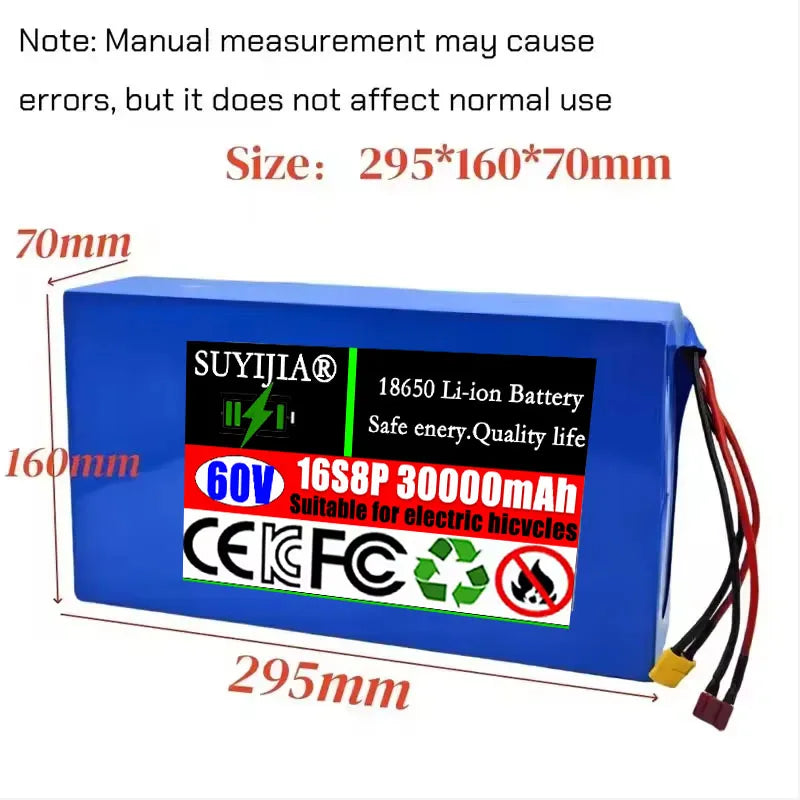

| Dimensions | 295 × 70 × 160 mm |
| Weight | 5,800 g (~12.8 lbs) |
| Certification | CE |
Compatible Applications
Designed for a wide range of electric-powered vehicles and equipment, including:
- Electric bicycles (e-bikes)
- Electric scooters & motorcycles
- Electric tricycles
- EVs & RVs
- Trolling motors & marine applications
Made in Mainland China.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What vehicles is the 60V 30Ah lithium-ion battery pack compatible with?
A: The SUYIJIA 60V 30Ah battery is compatible with a wide range of electric vehicles including e-bikes, electric scooters, electric motorcycles, tricycles, EVs, RVs, and trolling motors. It supports power ranges from 250W up to 3000W.
Q: Does this battery pack include a Battery Management System (BMS)?
A: Yes, the battery pack includes a built-in BMS (Battery Management System) that actively monitors and protects against overcharging, over-discharging, short circuits, and thermal issues — helping extend the battery's lifespan and maintain safe operation.
Q: What is the maximum discharge current of this 16S8P battery?
A: The rated continuous discharge current is 35A, with a maximum instantaneous discharge current of 65A. This makes it suitable for high-demand applications such as electric scooters and e-bikes running motors up to 3000W.
Q: How long does it take to charge the 60V 30Ah battery?
A: At the standard charging current of 2A, a full charge will take approximately 15 hours. With fast charging at 5A, charging time is reduced to around 6 hours. The recommended charging temperature range is -10°C to 25°C.
