65mm Passive Bass Radiator Diaphragm for DIY Speakers
65mm Passive Bass Radiator Diaphragm for DIY Speakers

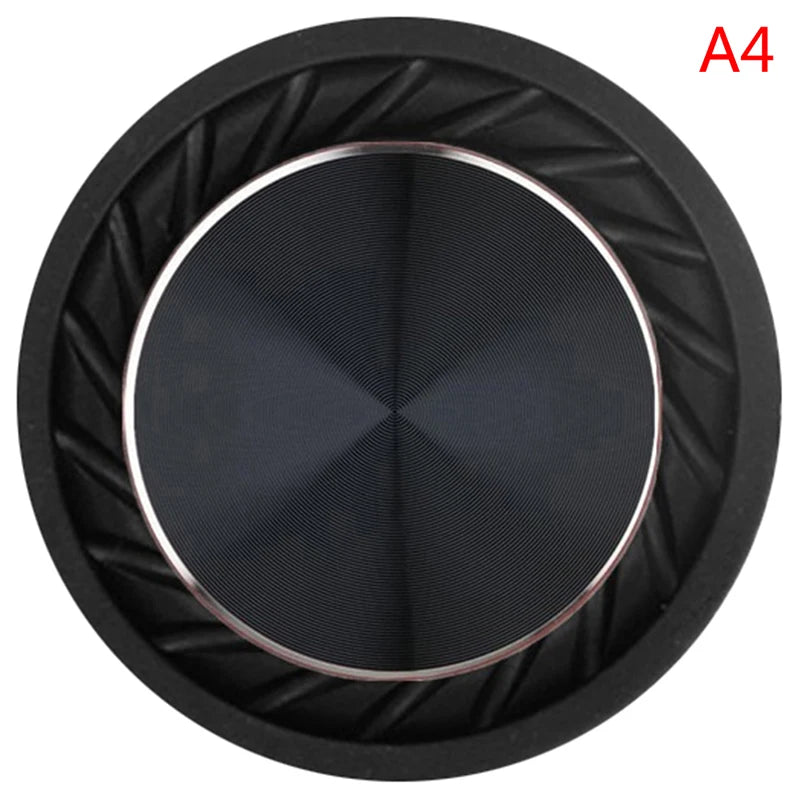

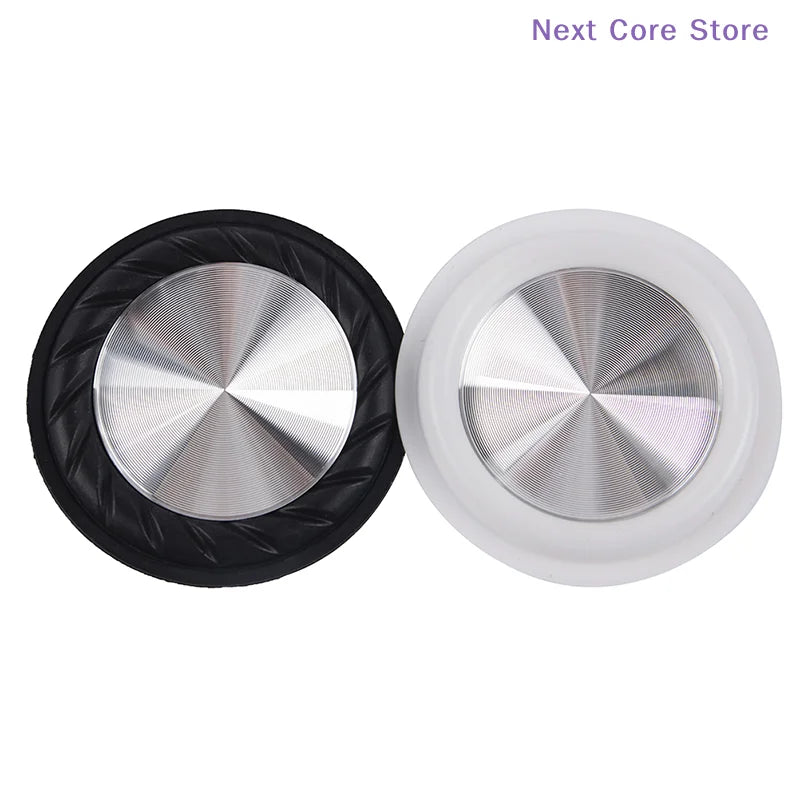

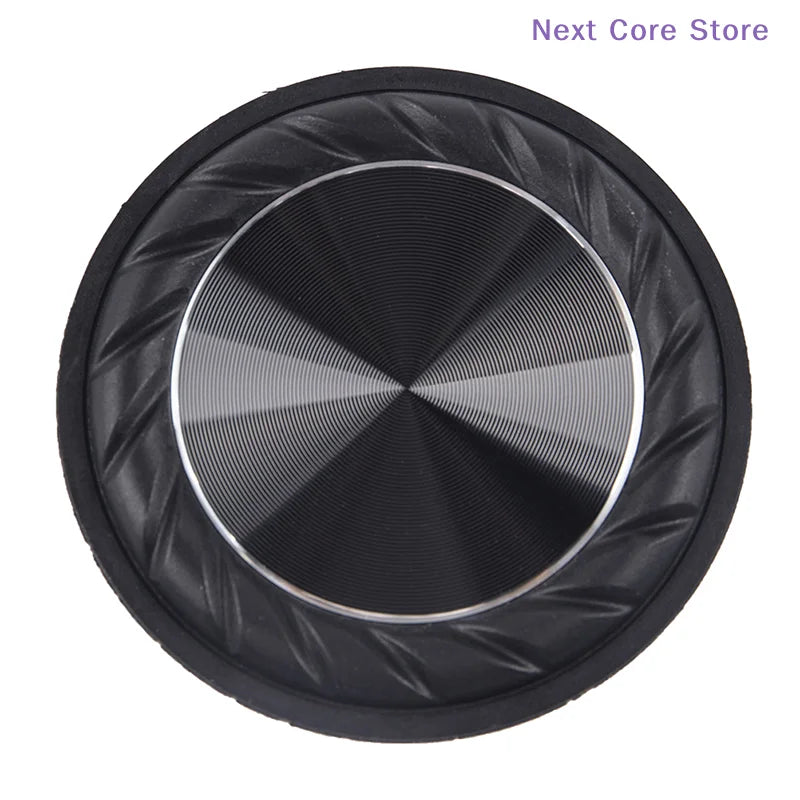

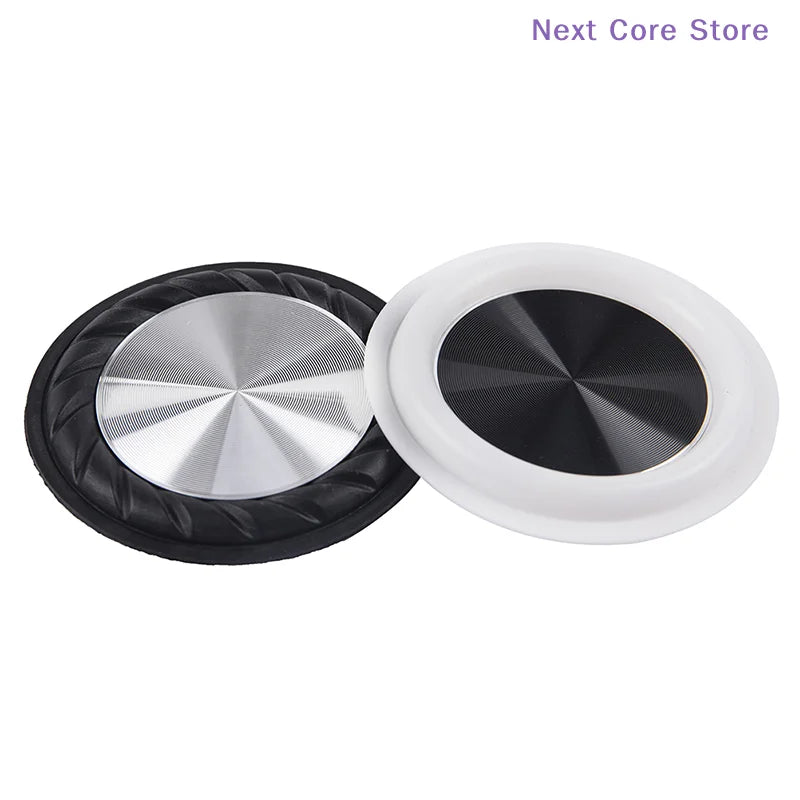

65mm Passive Bass Radiator – DIY Speaker Diaphragm
Take your DIY speaker builds to the next level with this 65mm Passive Bass Radiator. Designed as an auxiliary vibration plate for closed-cabinet speaker enclosures, this diaphragm amplifies low-frequency response and delivers rich, powerful bass without the need for an additional active subwoofer driver. Whether you're upgrading a portable Bluetooth speaker or building a custom cabinet from scratch, this passive radiator is an essential component for serious audio enthusiasts.
Key Features
- Enhanced Bass Performance: Acts as a passive radiator to boost low-end frequencies in closed speaker cabinets, delivering full, deep bass output.
- Premium 65° Rubber Material: Crafted from high-grade 65° hardness rubber for outstanding flexibility, durability, and consistent acoustic performance.
- Long Press Life: Rated for over 300,000 press cycles, ensuring long-lasting reliability in demanding DIY audio applications.
- Precision Engineering: Cape burr tolerance of just 0.15mm for a tight, accurate fit within your speaker enclosure.
- Perfect for DIY Builds: Ideal for hobbyists and audio enthusiasts building or modifying their own speaker systems.
- Closed-Cabinet Compatible: Specifically suited for sealed/closed enclosures where it enhances low-frequency output without a ported design.
Specifications
- Diameter: 65mm
- Model: 65-A1.0-65°
- Material: 65° Rubber
- Cape Burr Tolerance: 0.15mm
- Hardness: 65 ± 2
- Press Life: >300,000 cycles
- Package Contents: 1 × 65mm Passive Bass Radiator Diaphragm
- Country of Origin: Made in China
What's in the Box?
1 × 65mm Passive Bass Radiator / Speaker Diaphragm
Notes
- Due to manual measurement, please allow a tolerance of 1–3mm.
- Actual product color may vary slightly from images due to different monitor display settings.
You May Also Like
- Pottery Clay Sculpting Tools – DIY Craft Kit
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is a passive bass radiator and how does it work in a DIY speaker?
A: A passive bass radiator is an unpowered diaphragm that resonates sympathetically with the speaker driver inside a closed cabinet. When the active driver moves air inside the enclosure, the passive radiator vibrates in response, effectively extending the low-frequency response and producing deeper, fuller bass — all without requiring an additional amplifier or power source.
Q: Is this 65mm passive bass radiator compatible with all speaker enclosures?
A: This radiator is specifically designed for use in sealed or closed-cabinet speaker enclosures. It is compatible with most standard 65mm mounting cutouts. Always verify your cabinet's mounting dimensions before installation, allowing for the 1–3mm manual measurement tolerance noted in the specifications.
Q: What material is this bass radiator diaphragm made from, and why does it matter?
A: The diaphragm is made from high-grade 65° hardness rubber (Model 65-A1.0-65°). This specific rubber hardness balances flexibility and stiffness to optimize low-frequency resonance while maintaining durability for over 300,000 press cycles, ensuring consistent acoustic performance over the long term.
