8/16-Way ARGB Splitter Hub – SignalRGB & OpenRGB 5V 3-Pin

Take Full Control of Your PC Lighting with This ARGB Splitter Hub

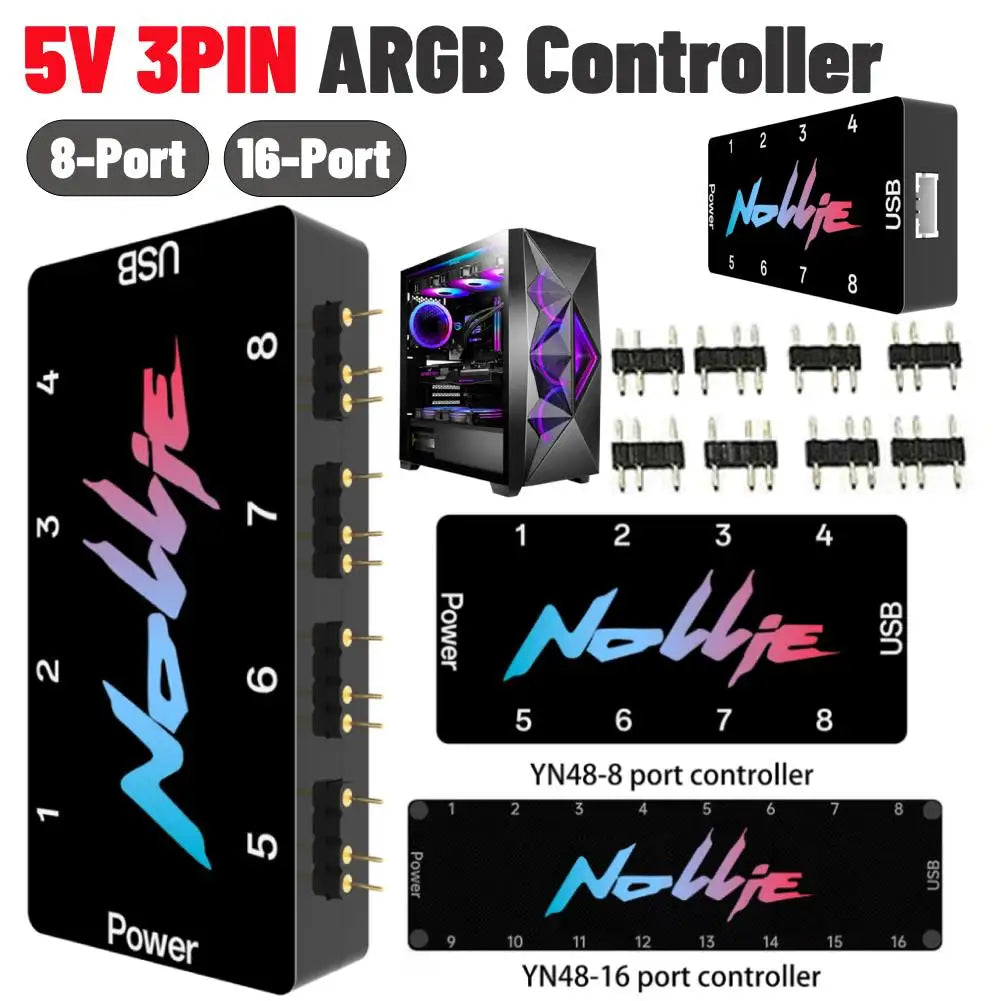

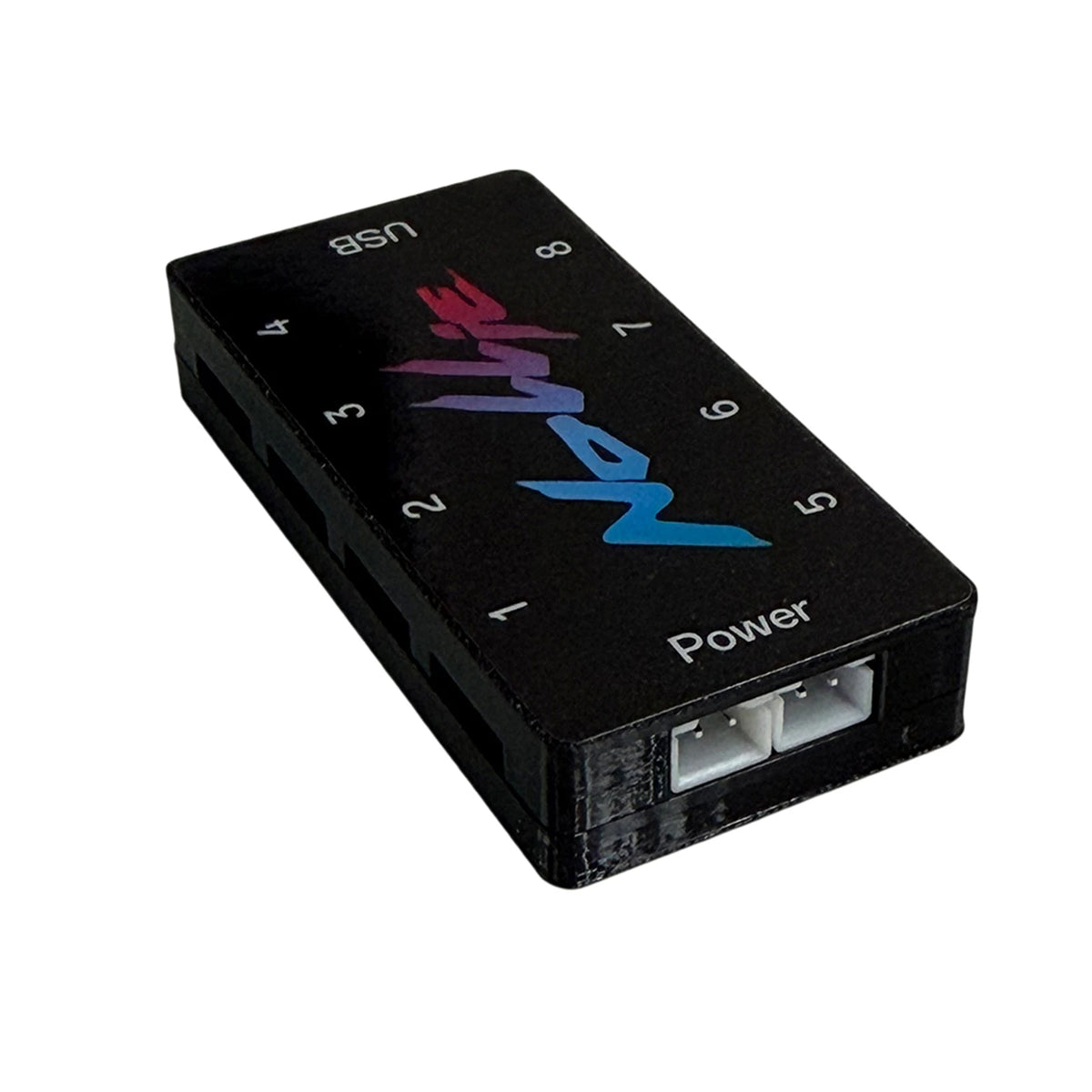

Elevate your gaming rig or workstation with the 8/16-Way Addressable ARGB Splitter Controller Hub. Supporting both SignalRGB and OpenRGB software, this universal 5V 3-pin ARGB hub lets you synchronize and customize up to 16 million colors across all your connected components — from fans and water cooling blocks to light strips and PC cases.

Key Features

• Wide Compatibility: Works with any device using a standard 5V 3-pin ARGB interface, including ARGB fans, water cooling heads, ARGB light strips, and PC cases — no adapters needed.
• High-Capacity Channels: Each channel supports up to 126 LED beads, with a total capacity of 1,000 LEDs across all channels, giving you enormous creative freedom for your lighting setup.
• Advanced RISC-V Core Processor: Running at 48Hz, this hub supports up to 16 million colors with smooth transitions and high-frame-rate animations for a fluid, precision lighting experience.
• Dual SATA Power (8-Port) / Large 4-Pin Power (16-Port): Reliable, stable power delivery for even the most expansive lighting arrays, thanks to a combined male and female pin configuration.

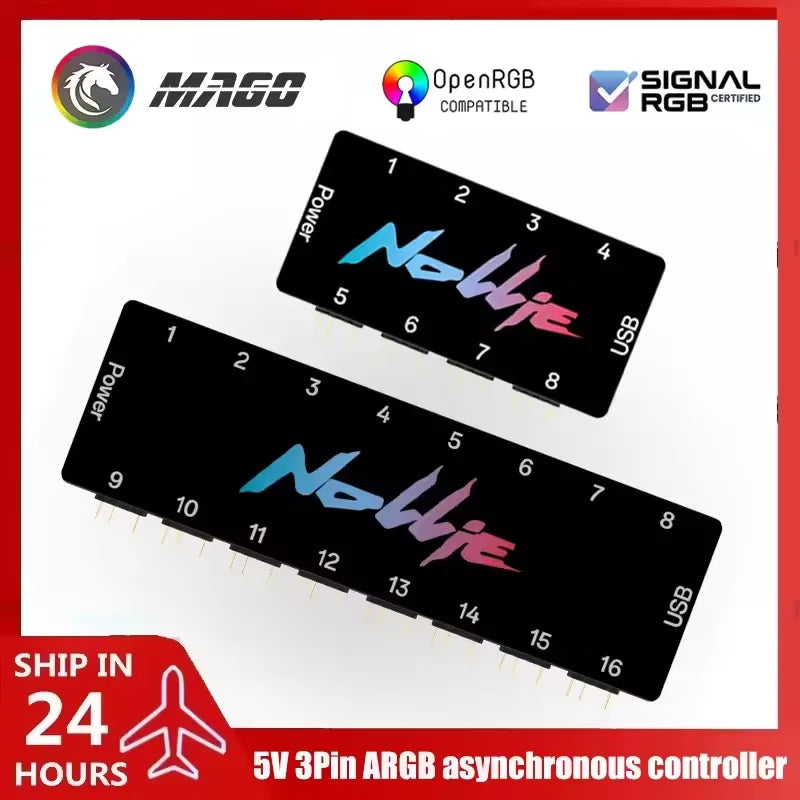

• Software Synchronization: Dual-end certified for both OpenRGB and SignalRGB, enabling deep customization and full ecosystem synchronization from one interface.
• USB Signal Transmission: Includes a USB 9-pin port to transmit signals directly to your motherboard, keeping everything clean and connected.

Specifications

• Color: Black
• Material: FR4 + PETG

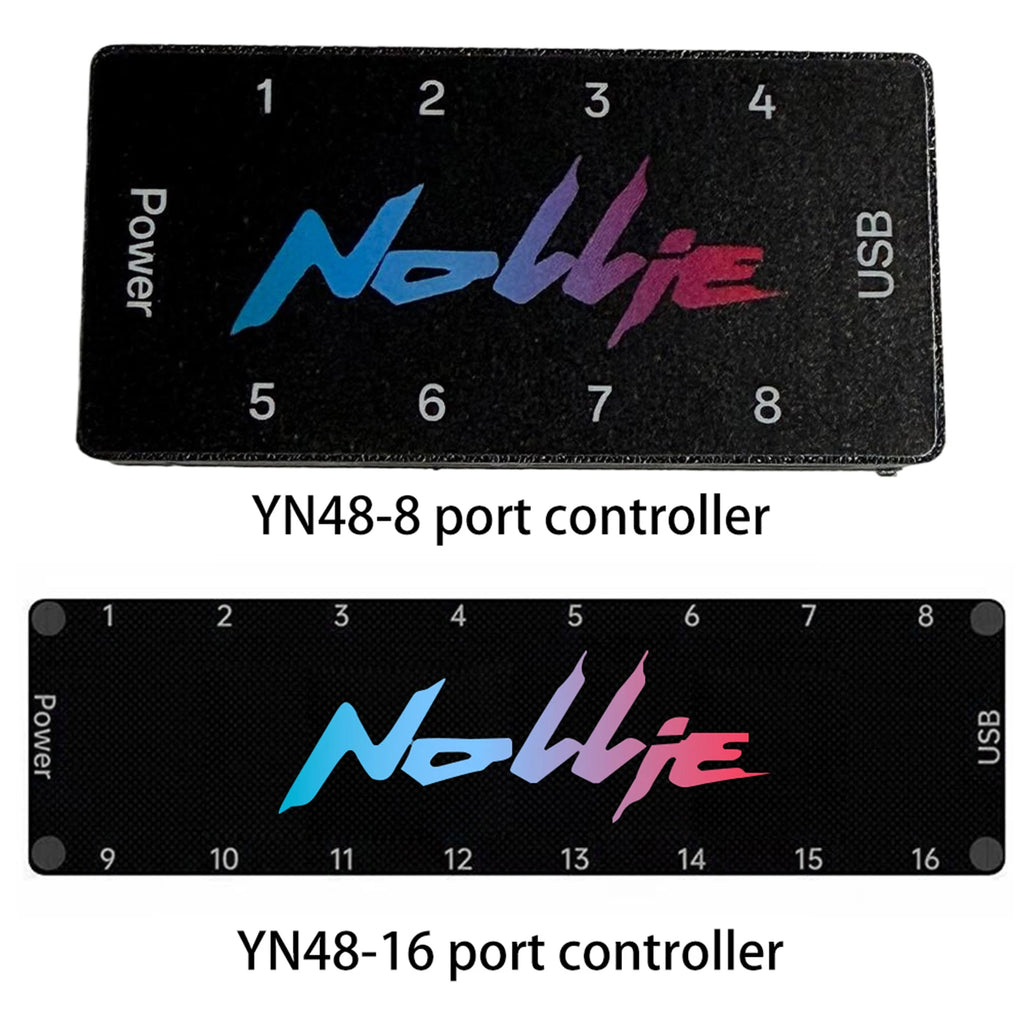

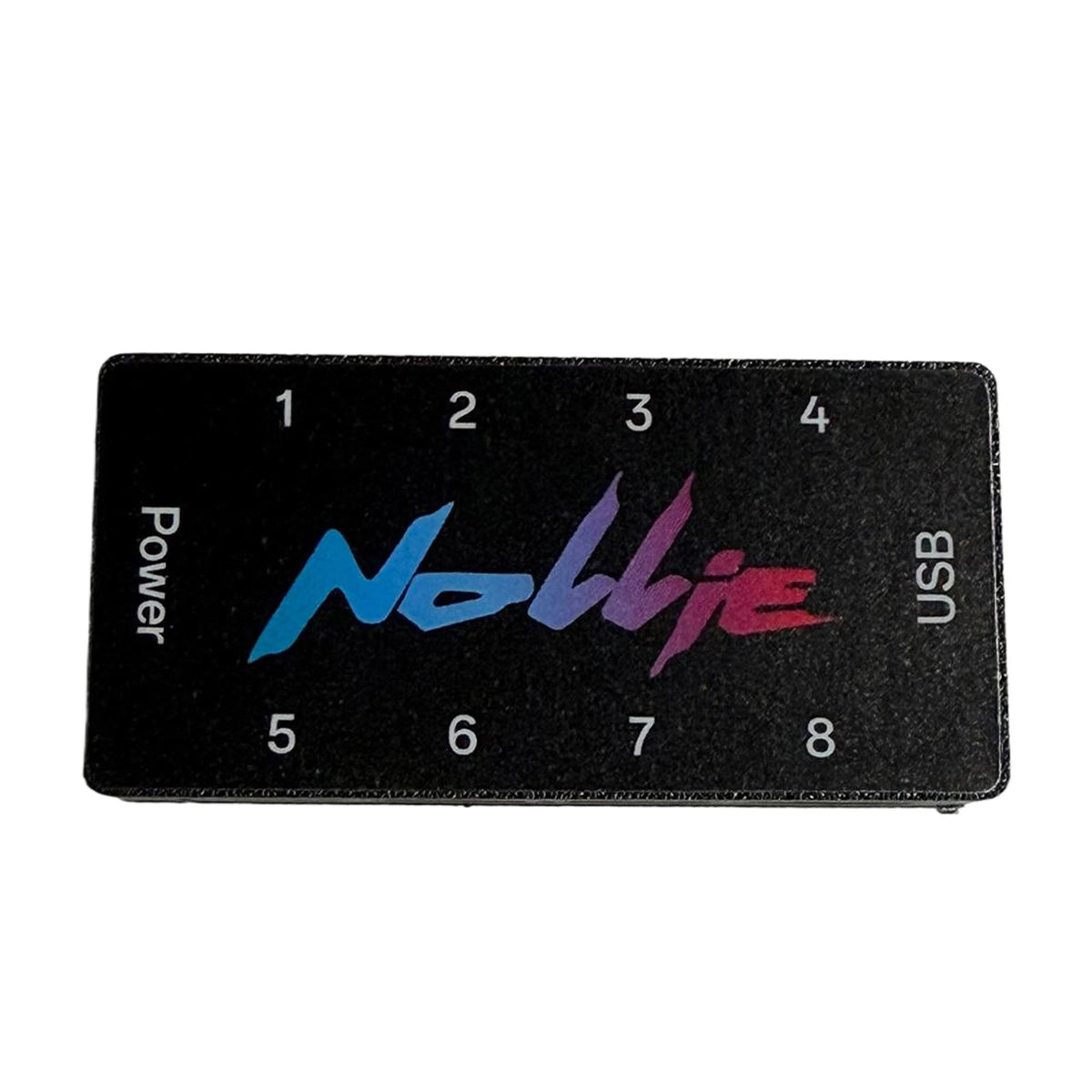

• Number of Ports: 8 or 16 (optional)
• 8-Port Power: SATA power supply
• 16-Port Power: Large 4-pin power supply
• USB Port: 1 × USB 9-pin (signal transmission to motherboard)
• Dimensions: 160 × 140 × 25 mm / 6.3 × 5.51 × 0.98 inch
• Made in: Mainland China

What's in the Box

• 1 × ARGB Controller Hub
• 1 × USB 9-Pin Cable
• 1 × Adhesive Backing
• 2 × SATA Cables or 1 × Large 4-Pin Cable (depending on version)
• 8 or 16 × ARGB Adapter Pins

Note: Due to monitor settings and lighting conditions, the actual product color may vary slightly from images. Please allow a 1–2 cm difference in measurements due to manual measuring.

Build the Perfect RGB Setup

Pair this ARGB hub with other PC accessories to create a cohesive, vibrant setup. Check out the 10-Piece Gardening Tool Kit or explore more tech essentials like the 10-Pc Hex Nut & Bolt Extractor Kit and the 1/2" Drive 8-Piece Hex Short Socket Set for your workbench needs.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Is this ARGB splitter hub compatible with my motherboard's ARGB header?

A: Yes! The hub uses the universal 5V 3-pin ARGB standard, making it compatible with virtually all modern motherboards that feature a 5V 3-pin ARGB header. You can also control it via the USB 9-pin connection using SignalRGB or OpenRGB software independently of your motherboard's lighting software.

Q: What is the difference between the 8-port and 16-port versions?

A: The 8-port version uses a SATA power supply, while the 16-port version requires a large 4-pin (Molex) power supply to handle the higher load. Both versions support the same RISC-V processor, 16 million color output, and full SignalRGB/OpenRGB compatibility — the 16-port simply offers more channels for larger builds.

Q: How many LEDs can this hub control in total?

A: The hub can manage up to 1,000 LED beads in total, with each individual channel supporting up to 126 LED beads. This makes it ideal for extensive and complex lighting setups in full-tower cases or high-end gaming rigs.

Q: Does this hub require any software to function?

A: The hub works with SignalRGB and OpenRGB for advanced customization and synchronization. It can also operate via your motherboard's native ARGB header without additional software for basic lighting control.
