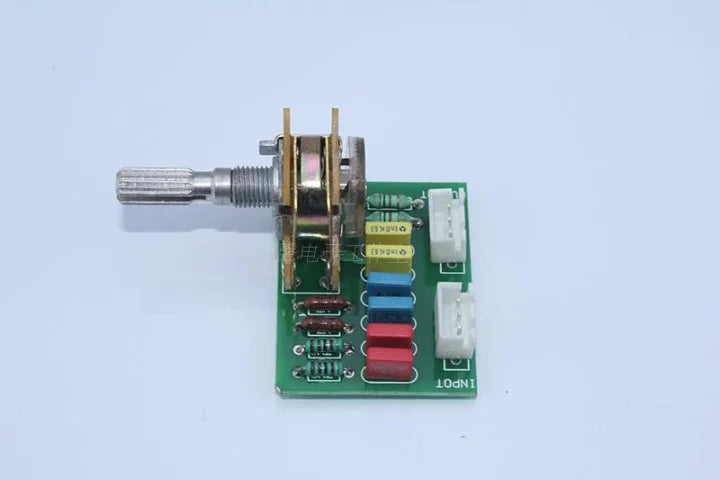

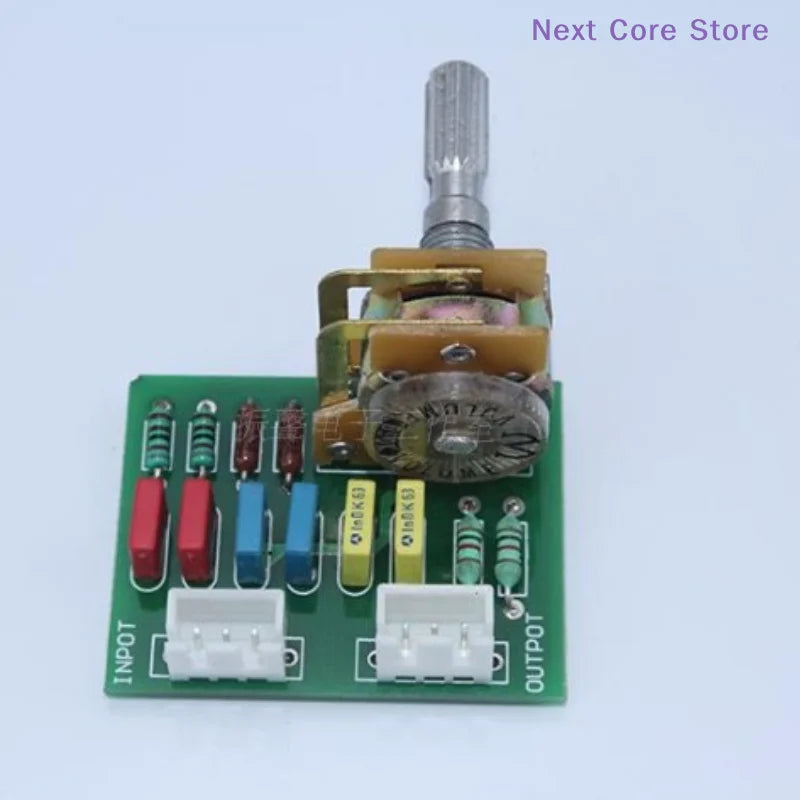

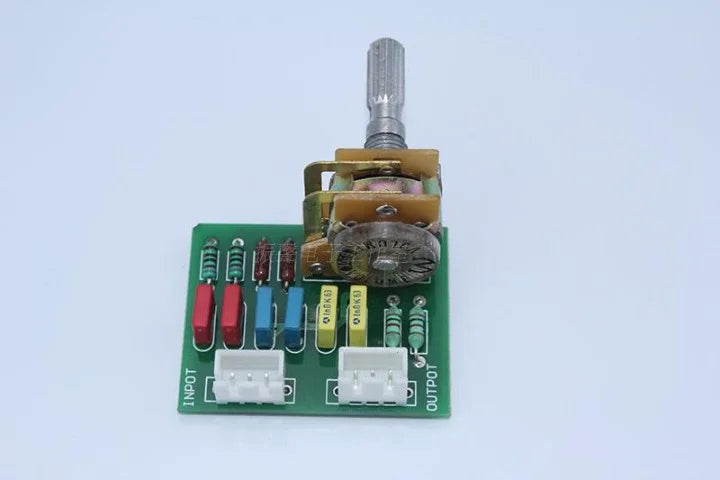

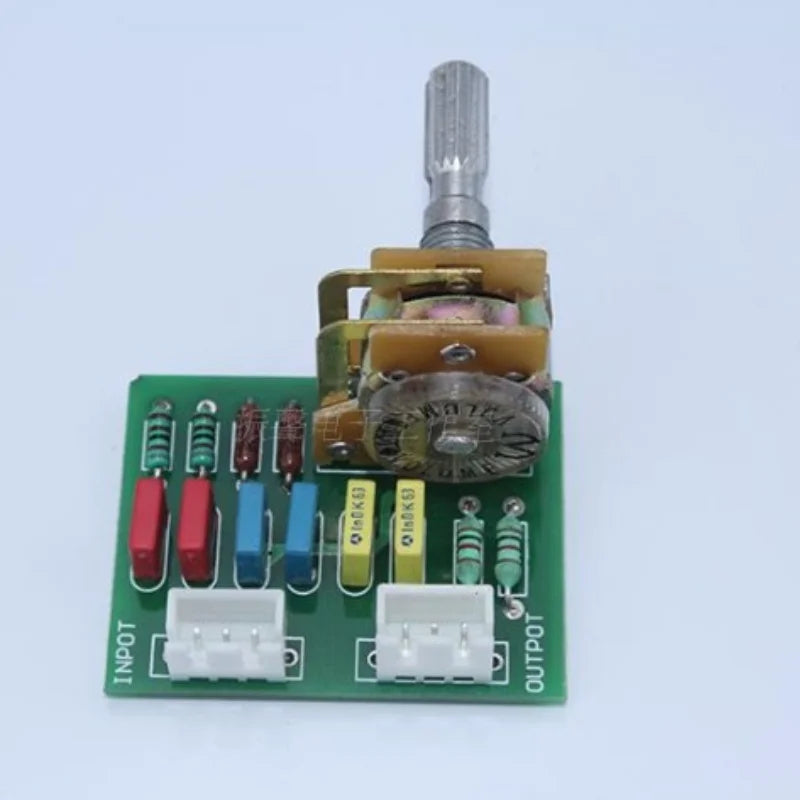

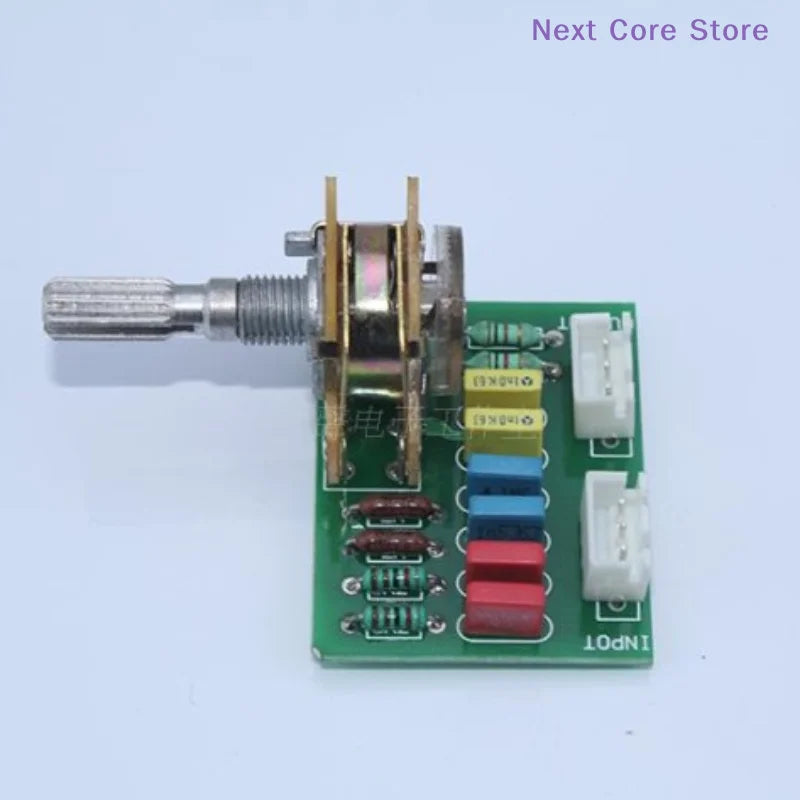

8-Pin Passive Tone Board – Volume Control & Sound Adjustable Module
Upgrade your audio setup with this 16-type 50K 8-pin passive potentiometer tone board. Designed as a front-end tone control module, it enriches your audio sound field, enhances dynamic range, and delivers greater stereo width — making it an excellent addition to any amplifier or preamplifier chain.
Connect your audio source directly to the input and route the output to your amplifier for smooth, adjustable volume control. For best results, pair this passive tone board with an active preamplifier to maximize its performance potential.
Key Features
- 16-type 50K 8-pin passive potentiometer configuration
- Functions as a front-end tone board / preamplifier stage
- Strengthens audio sound field with improved dynamic range and stereo width

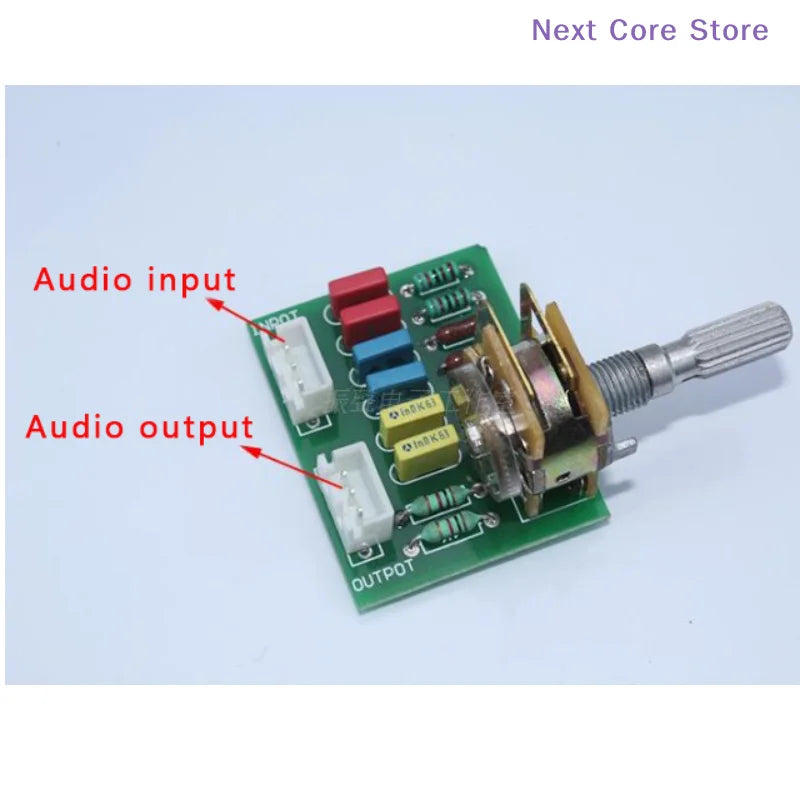

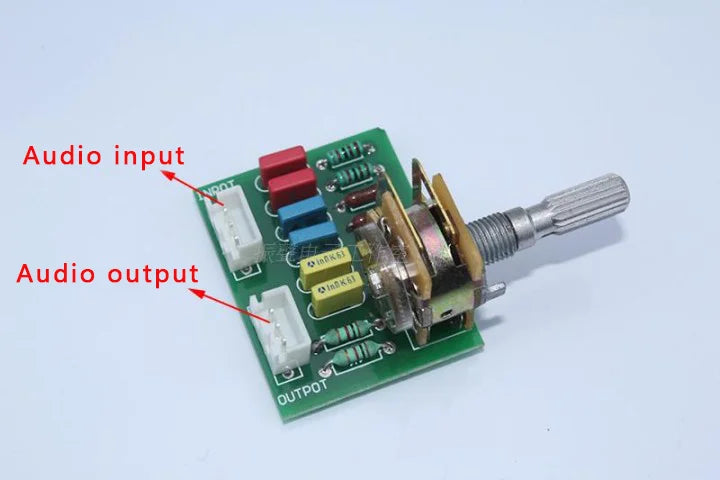

- Simple hookup: audio source → tone board input → amplifier output
- Recommended for use alongside an active preamp for optimal results
- Reusable and built to last — 100% brand new and high quality
- No battery or charger required
Specifications
- Type: 16-type 50K 8-pin passive potentiometer tone board
- Reusability: Reusable
- Battery Included: No
- Charger Included: No
- Country of Origin: Made in Mainland China
What's in the Box
- 1× Passive Tone Board
Explore More from Our Store
Looking for other tools and gadgets? Check out these related products:
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What does the 8-pin passive tone board actually do?
A: This passive tone board acts as a front-end volume and tone control module. It enriches the audio sound field, increases dynamic range, and widens stereo imaging when connected between an audio source and an amplifier. It is a 16-type 50K 8-pin passive potentiometer equivalent to a front-stage tone board.
Q: Do I need an active preamplifier to use this tone board?
A: The passive tone board can be used on its own by connecting your audio source to the input and the amplifier to the output. However, it is recommended to pair it with an active preamplifier for the best audio performance and to compensate for any signal attenuation inherent in passive designs.
Q: Does this module require a battery or external power supply?
A: No — this is a fully passive module. It requires no battery, no charger, and no external power supply to operate.
