Take your electronics projects to the next level with this pack of 20 A4 Heat Toner Transfer Sheets — the go-to solution for hobbyists, makers, and engineers who want to create precise, professional-quality printed circuit boards (PCBs) at home or in the lab. Made in Mainland China.
How It Works
The toner transfer method lets you print your PCB circuit diagram directly onto the smooth surface of these sheets using any standard laser printer. Once printed, you place the sheet toner-side-down onto copper-clad board and apply heat with a laminator (150–180°C) or a household iron. The heat causes the toner to fuse tightly to the copper surface. Peel away the paper and your circuit pattern transfers cleanly — forming a black, etch-resistant layer that protects the copper traces during the etching process (ferric chloride solution). The result is a crisp, accurate PCB ready for drilling and assembly.
Key Advantages
- High Precision: Fine traces and intricate pad layouts transfer cleanly without smearing or bleeding.
- Low Cost: An affordable alternative to photosensitive boards or commercial PCB services for prototyping.
- Fast Turnaround: Go from design to etched board in minutes, not days.
- Double-Sided Capable: Supports double-sided PCB production for more complex circuit designs.
Step-by-Step Usage Guide
- Print your circuit diagram onto the smooth side of the transfer paper using a laser printer.
- Place the printed side face-down onto a clean copper-clad board.
- Run through a laminator set to 150–180°C, or use a hot iron with firm, even pressure to transfer the toner.
- Allow to cool, then carefully peel away the transfer paper to reveal the toner circuit on the copper.
- Submerge the board in a ferric chloride solution to etch away the unprotected copper.
- Remove the toner with acetone or a suitable solvent to expose your finished PCB traces.
Package Contents

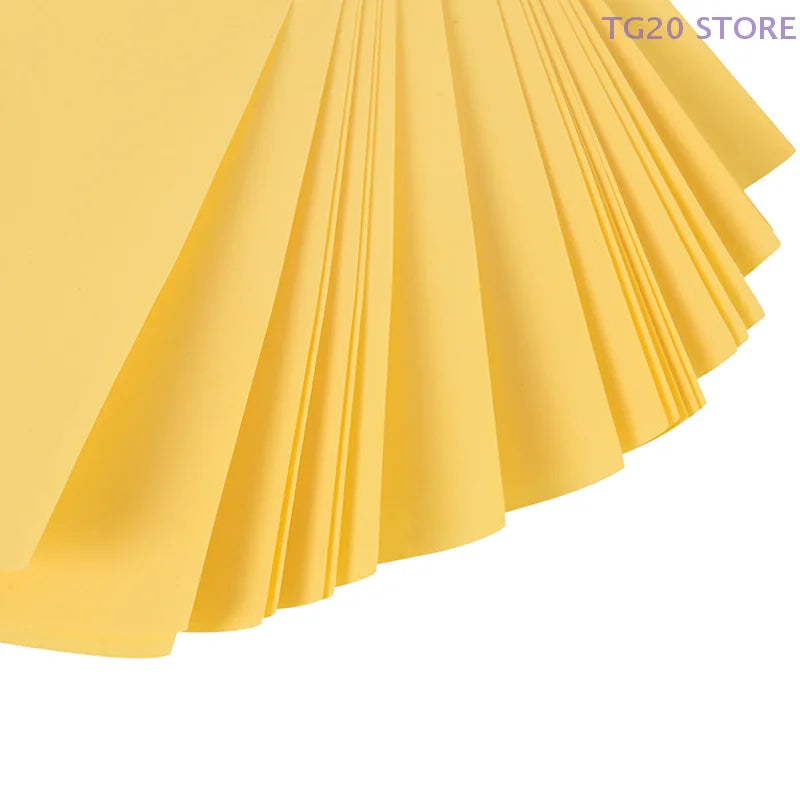

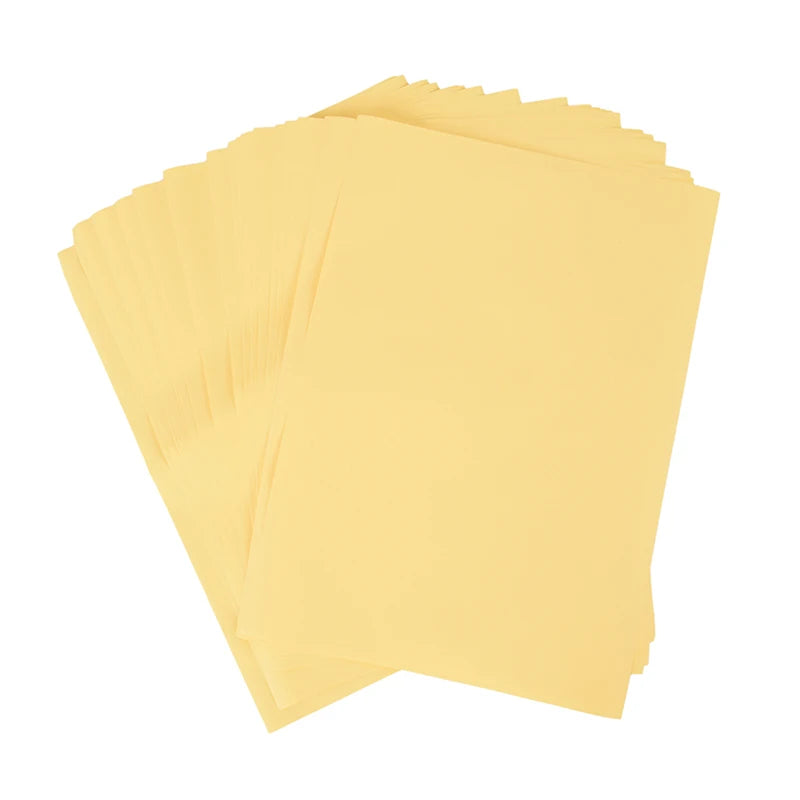

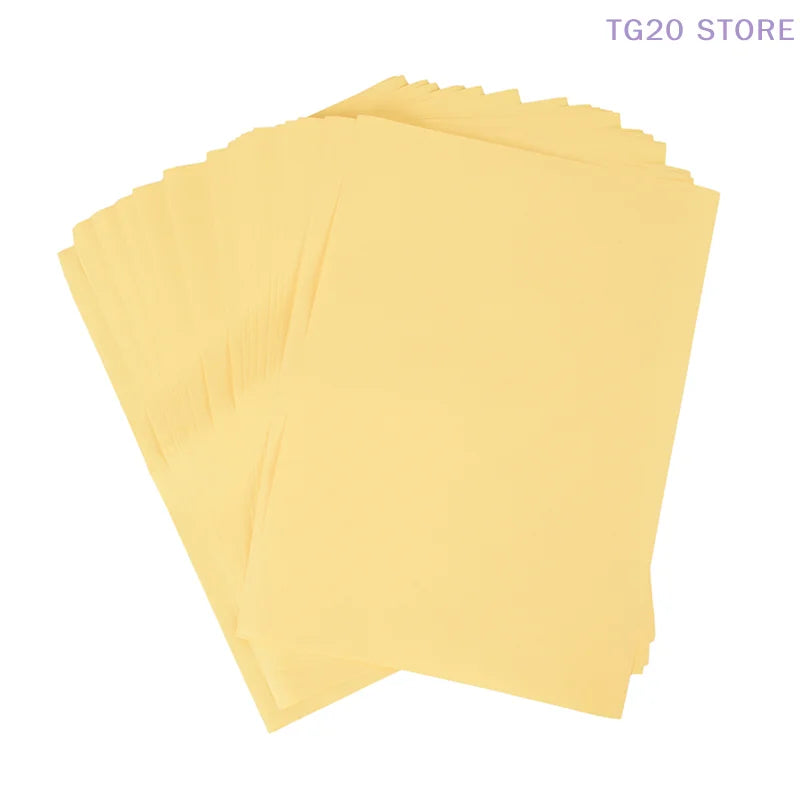

- 20 × A4 Heat Toner Transfer Sheets
Specifications

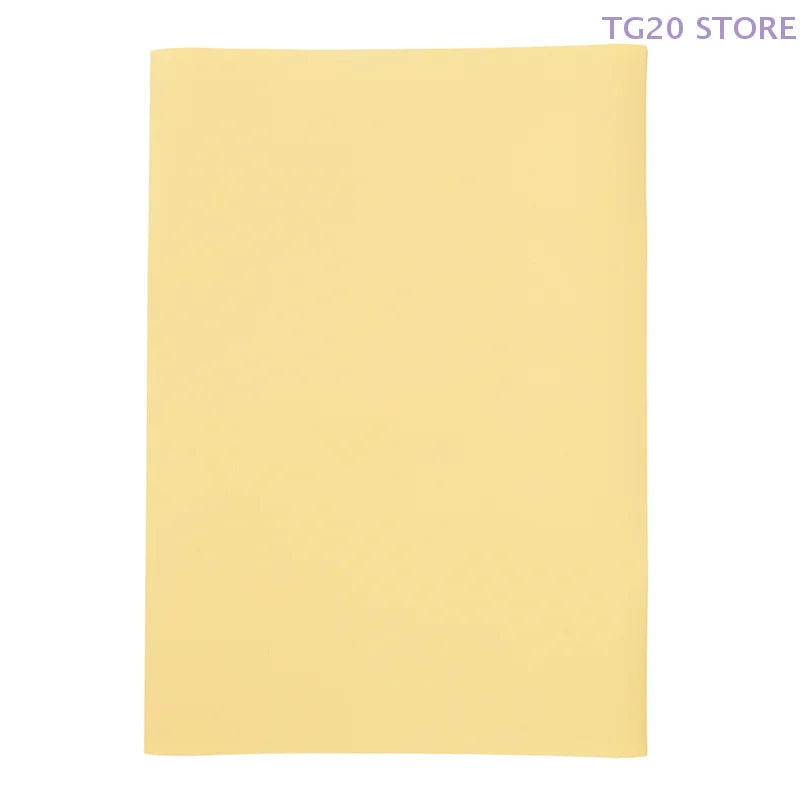

- Sheet Size: A4
- Quantity: 20 sheets per pack
- Compatible With: Laser printers, laminators, and irons
- Application: DIY PCB circuit board prototyping
- Origin: Made in Mainland China
Whether you're building your first Arduino circuit board or iterating on a professional prototype, these transfer sheets are an essential part of any electronics maker's toolkit. Check out our other maker and craft supplies:
- Pottery Clay Sculpting & Carving Tool Set
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What type of printer is compatible with this PCB toner transfer paper?
A: This paper is designed exclusively for use with laser printers. Inkjet printers do not produce toner and will not work with the heat transfer process. Ensure your laser printer is set to its highest quality/DPI setting for the best PCB trace resolution.
Q: Can I use a regular household iron instead of a laminator?
A: Yes! A household iron set to its highest heat setting (no steam) can be used as an alternative to a laminator. Apply firm, even pressure and move the iron slowly across the board for 2–3 minutes to ensure full toner adhesion. A laminator typically gives more consistent results across the entire sheet.
Q: Is this paper suitable for double-sided PCB designs?
A: Absolutely. This transfer paper supports double-sided PCB production. Simply repeat the transfer process carefully on both sides of the copper-clad board, ensuring accurate alignment before etching.
Q: How do I remove the toner after etching?
A: After the etching process is complete, the toner mask can be removed by wiping the board with acetone (nail polish remover) or isopropyl alcohol, revealing the clean copper PCB traces underneath.
