AC 220V 10000W Adjustable Thyristor Electronic Voltage Regulator
AC 220V 10000W Adjustable Thyristor Electronic Voltage Regulator
AC 220V 10000W High Precision Adjustable Thyristor Electronic Voltage Regulator

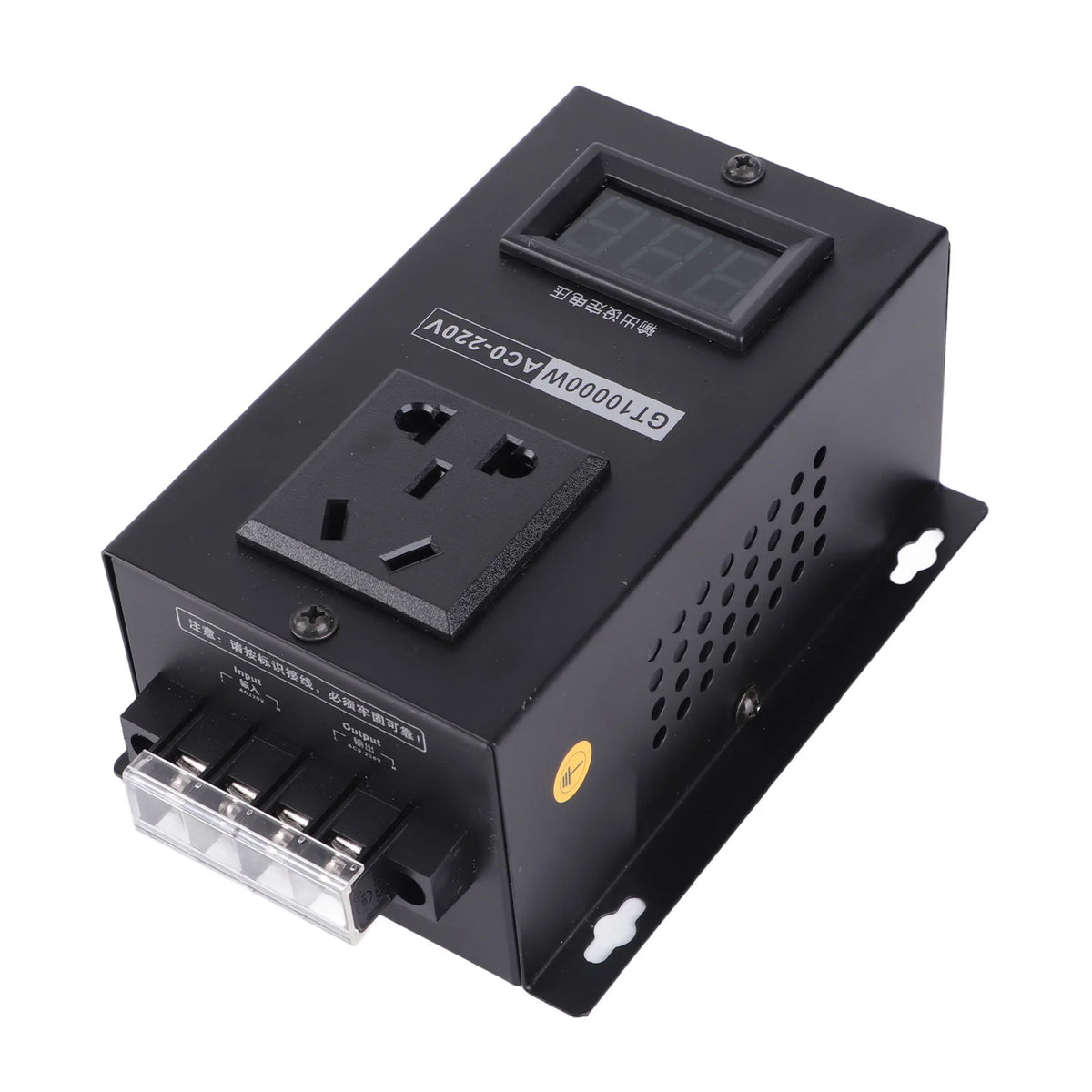

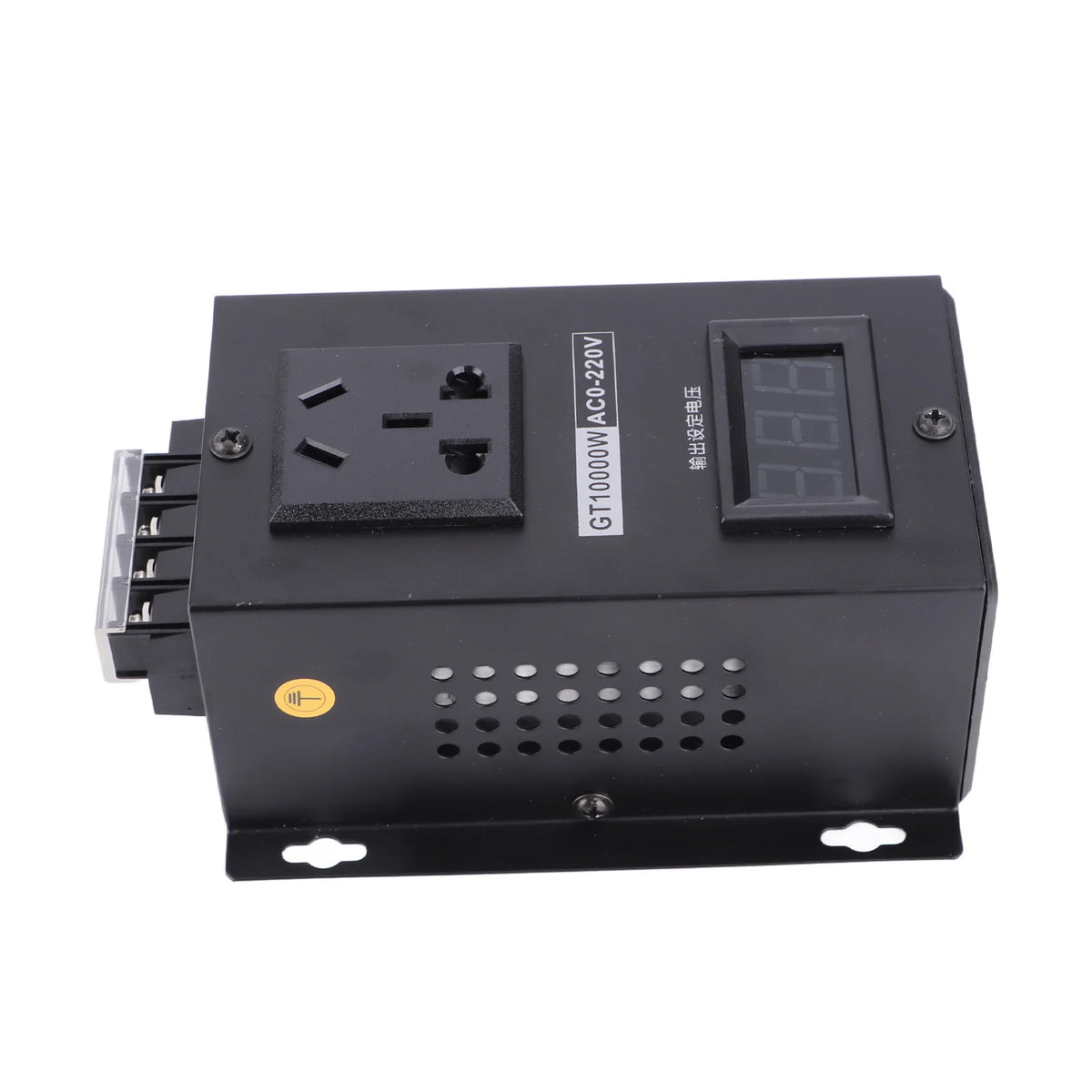

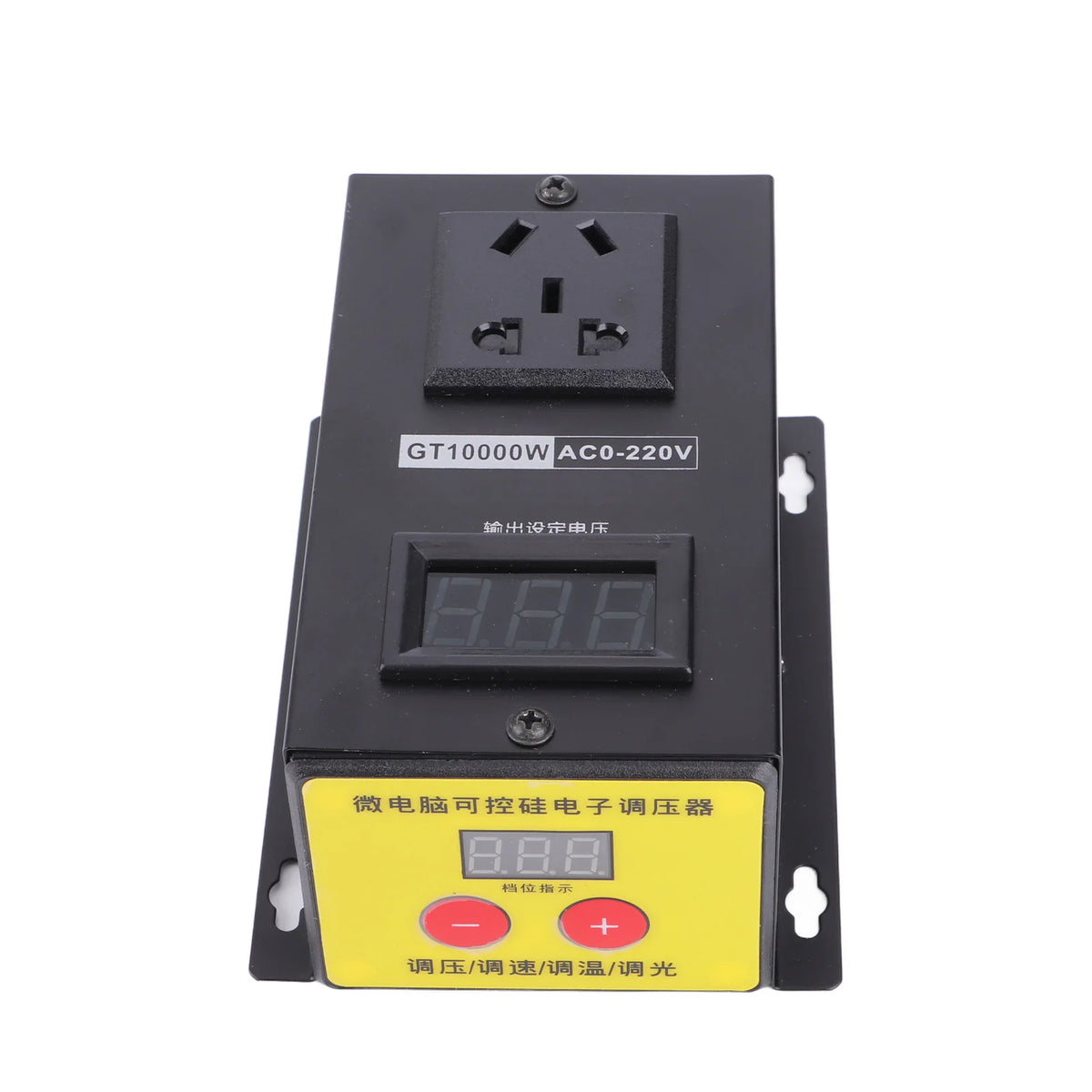

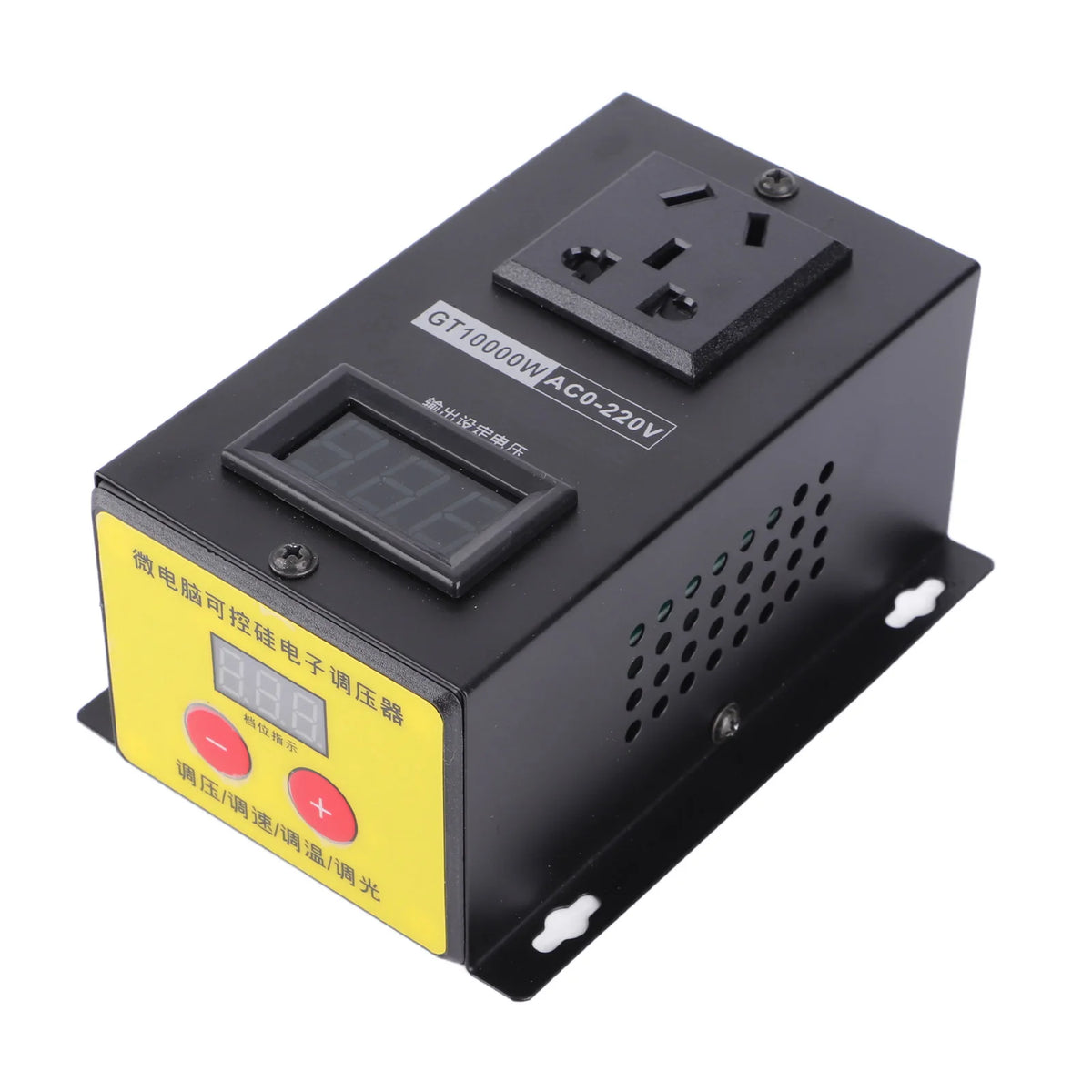

Take full control of your electrical output with the Hilitand GT10000W Thyristor Electronic Voltage Regulator. Designed for both household and industrial applications, this powerful unit delivers stepless voltage regulation from 0–220V, making it ideal for dimming lights, controlling motor speed, adjusting heating elements, and fine-tuning laboratory instruments — all from a single compact module.
Key Features
- Multi-Function Control: Supports voltage regulation, speed regulation, temperature regulation, and light dimming in one device.
- Stepless Adjustment: Smoothly regulate output voltage from 0–220V AC with 100-stage non-linear control — no jumps, no gaps.
- Zero Lag, Zero Delay: Instantaneous response with a built-in wave peak voltage absorption circuit for effective surge and spike suppression.
- Multi-Layer Protection: Anti-peak and RC absorption circuits protect high-power SCR (Silicon Controlled Rectifier) components against power surges.
- High Limit Power: Handles up to 10,000W peak (resistive load); recommended continuous use up to 5,000W at room temperature.

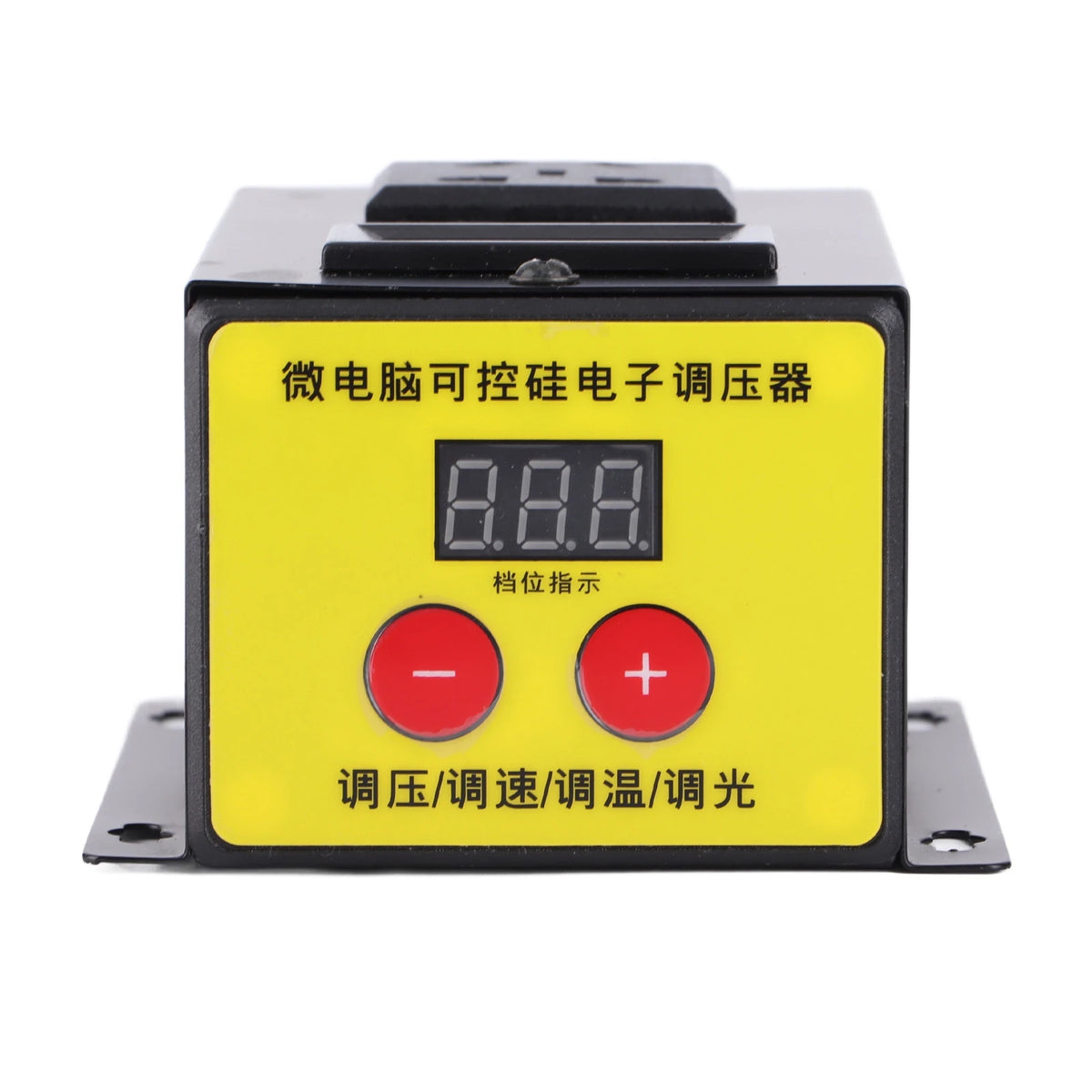

- Button Adjustment: Simple push-button operation ensures high stability and ease of use — no complicated setup required.
- Wide Compatibility: Suitable for household appliances, industrial machinery, scientific instruments, factories, schools, and more.
Specifications
| Model | GT10000W |
| Controllable Component | BTA100-800B (Imported) — STMicroelectronics |
| Input Voltage | AC 220V |
| Output Voltage | AC 10–220V (adjustable; always less than input voltage) |
| Limit Power | 10,000W (resistive load); inductive load = 1/3 of resistive load |
| Voltage Regulation | 0–100% (100 stages, non-linear at 220V) |
| Rated Current | 25A |
| Limit Current | 45A |
| Weight | Approx. 527g / 18.6oz |
Important Notes
- This product provides a regulating effect only — it is not a voltage stabilizer.
- Output voltage equals input voltage under no load. Accurate voltage measurement requires a load of at least 30W.
- Input and output are both AC current — this unit does not convert to DC.
- The 10,000W rating applies to resistive loads (lamps, heating wires, etc.). For inductive loads (series excitation motors, etc.), the effective load is approximately 1/3 of the resistive rating.
- All electrical appliances with a metal shell must be safely grounded before use.
What's in the Box
- 1 × GT10000W Thyristor Electronic Voltage Regulator
Made in Mainland China.
You May Also Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of loads is this voltage regulator compatible with?
A: The GT10000W thyristor voltage regulator is compatible with both resistive loads (such as incandescent lamps and heating wires) and inductive loads (such as series excitation motors). Note that the inductive load capacity is approximately 1/3 of the resistive load capacity, so plan your usage accordingly. For safe long-term use, operate within 5,000W at room temperature.
Q: Can I use this voltage regulator to convert AC to DC?
A: No. This unit accepts AC input and delivers AC output only. It does not convert alternating current to direct current. Both input and output are AC 220V standard.
Q: How do I accurately measure the output voltage?
A: For accurate voltage readings, ensure the connected load is at least 30W. Under no-load conditions, the measured output voltage will appear equal to the input voltage, which does not reflect the actual regulated output during normal operation.
Q: Is the voltage regulator safe against power surges?
A: Yes. The GT10000W features a built-in wave peak voltage absorption circuit along with anti-peak and RC absorption protection, which together guard the high-power SCR components against voltage surges and spikes during operation.
