Aluminium Alloy Rigid Shaft Coupling for 3D Printers, CNC & Robotics

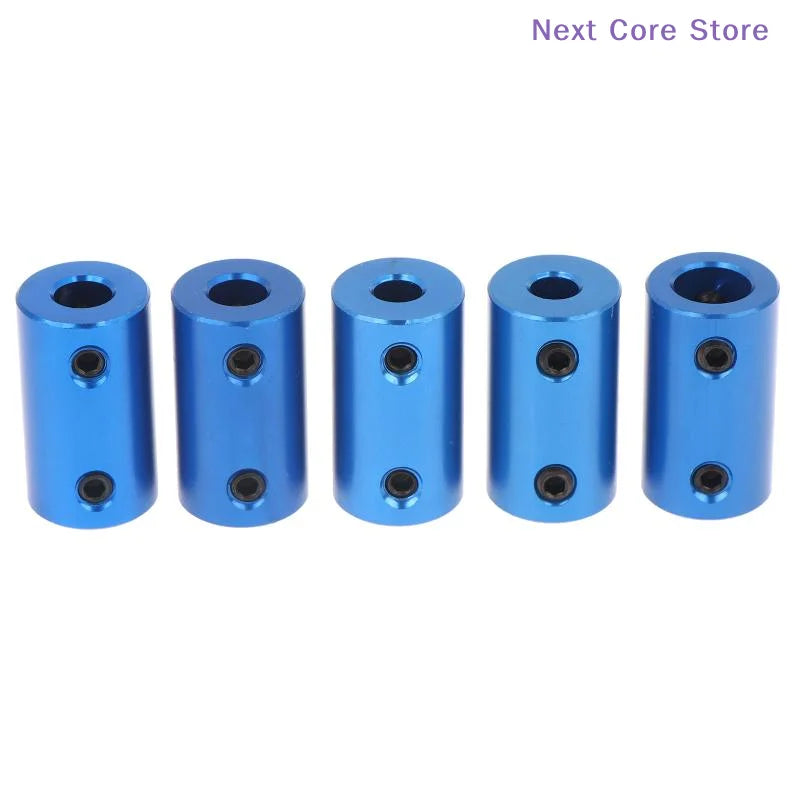

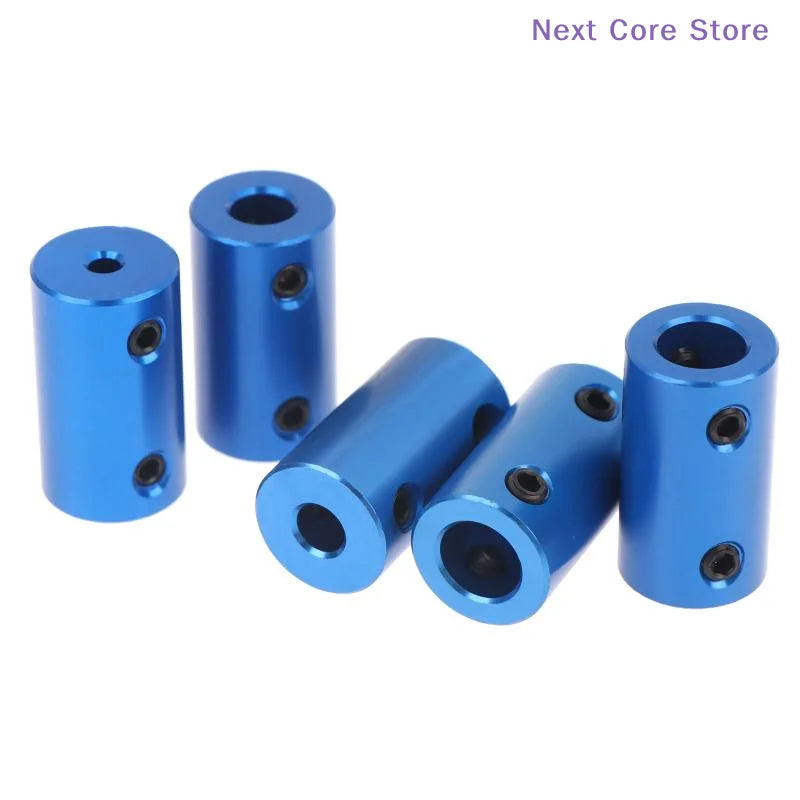

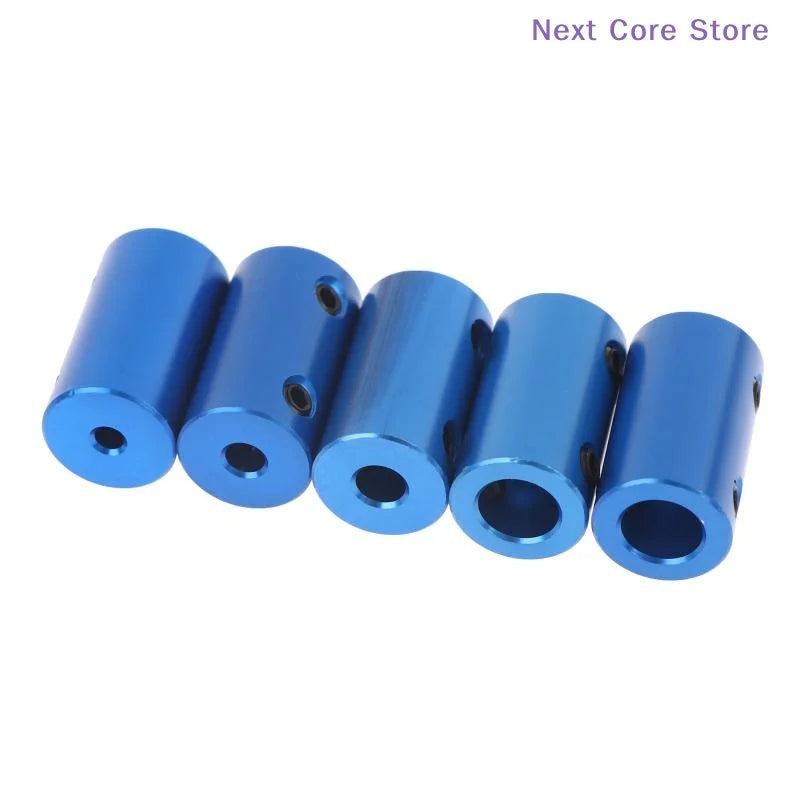

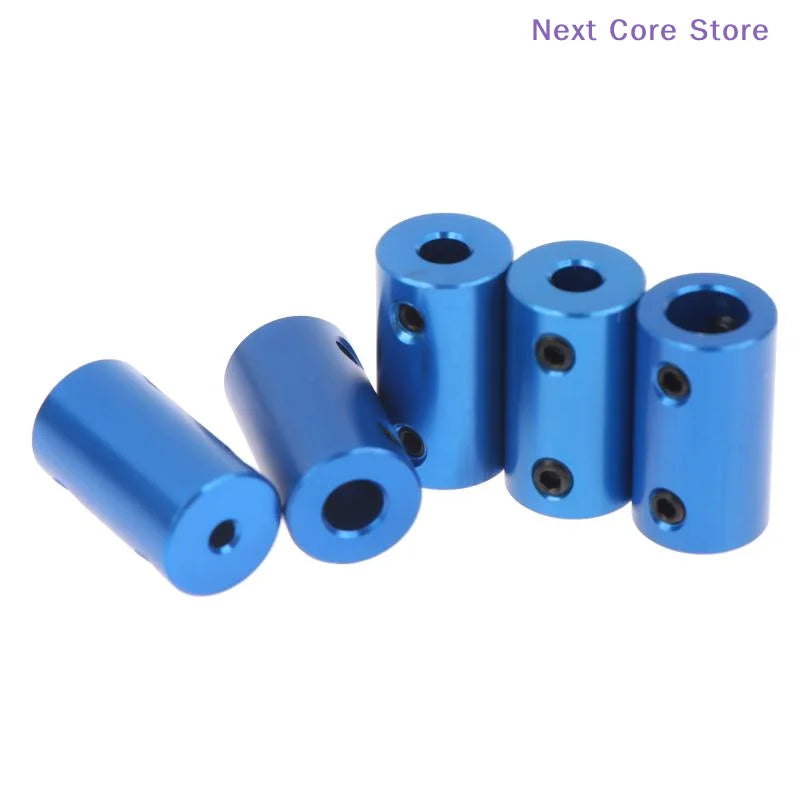

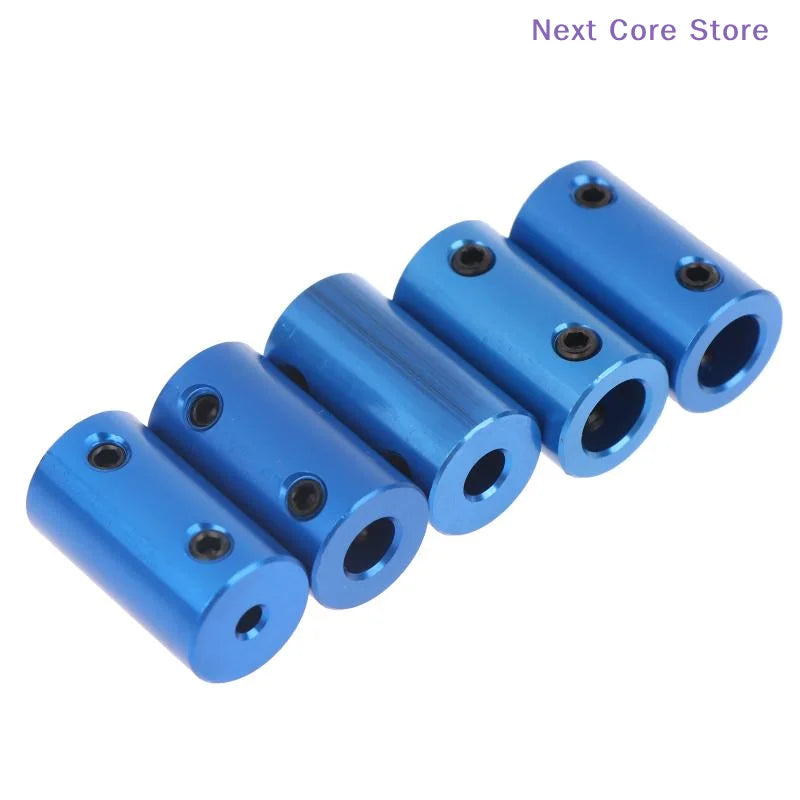

Upgrade your motion control system with this precision-machined aluminium alloy rigid shaft coupling. Available in multiple inner diameter configurations (3-6, 4-6, 5-5, 5-8, 8-8 mm), this coupling is engineered for accurate, lossless torque transfer — making it the ideal power transmission fitting for 3D printers, CNC machines, robotic arms, and DIY mechanical projects.
Made in Mainland China.
Key Features
- High Torsion Resistance: Crafted from aluminium alloy, this coupling delivers excellent rigidity without deformation under high torsion loads, ensuring accurate and lossless torque transfer for precise motion control.
- Hard Anodised Surface Protection: The hard anodic oxidation coating on the aluminium base effectively resists scratches, rust, and daily wear — prolonging service life even in variable temperature and mildly corrosive working environments.

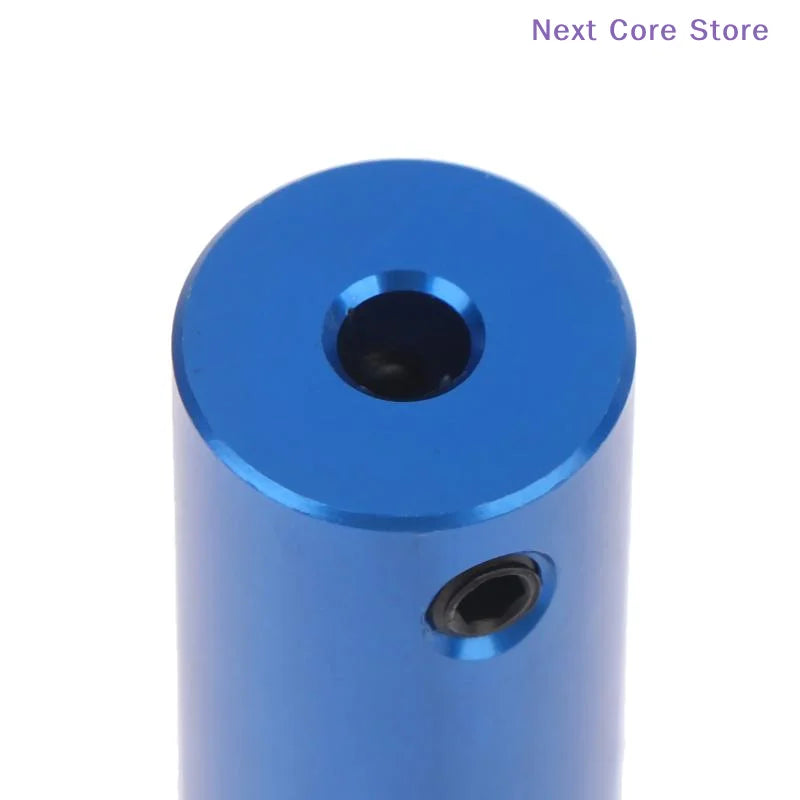

- Anti-Slip Hex Socket Set Screws: Equipped with hardened carbon steel hex socket set screws, the coupling clamps connected shafts firmly to prevent slipping during high-speed rotation, while supporting quick tool-free installation and adjustment.
- High-Precision CNC Machining: Manufactured using a precision CNC cutting process to guarantee extremely low size tolerance and high coaxiality, minimising vibration, running noise, and wear on connected motors and driven components.
- Universal Compatibility: Supports multiple standard inner diameter specifications, fitting most motor shafts and transmission shafts on the market — adaptable to a wide variety of project requirements.
Specifications
| Category | Rigid Shaft Coupling / Power Transmission Fitting |
| Material | Aluminium Alloy with Hard Anodised Coating |
| Fasteners | Hardened Carbon Steel Hex Socket Set Screws |

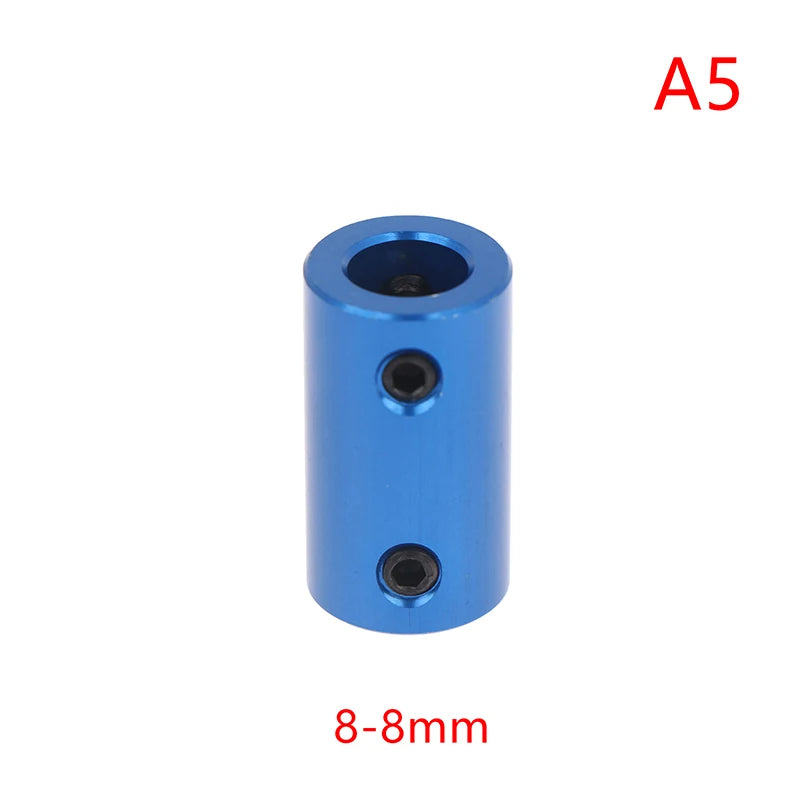

| Available Sizes | 3-6 mm, 4-6 mm, 5-5 mm, 5-8 mm, 8-8 mm |
| Applications | 3D Printers, Small CNC Machines, Robotic Projects, RC Models, Motor Drive Systems, DIY Mechanical Builds |
| Quantity | 1 Piece |
| Origin | Mainland China |
Compatible With
- 42 Stepper Motors (NEMA 17 standard)
- Most standard 3D printer lead screw and motor shaft setups
- Small CNC router Z-axis and lead screw couplings
- Robotics and RC model drive systems
- DIY mechanical and electronics projects
Important Notes
- Product images are for illustration purposes only and may not reflect actual size — please refer to the size specifications listed above.
- Minor dimensional differences may occur due to manual measurement tolerance.
- Actual colour may vary slightly from images depending on your monitor settings.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What size shaft coupling do I need for a NEMA 17 stepper motor on a 3D printer?
A: Most NEMA 17 stepper motors used in 3D printers have a 5 mm motor shaft. For a typical lead screw with an 8 mm diameter, the 5-8 mm aluminium alloy rigid shaft coupling is the most common choice. Always measure both your motor shaft and lead screw diameters before selecting a size.
Q: Is this coupling suitable for both 3D printers and CNC machines?
A: Yes. This rigid shaft coupling is designed for universal compatibility, fitting most standard motor and transmission shafts used in 3D printers, small CNC routers, robotic assemblies, and DIY mechanical builds. The precision CNC-machined construction ensures low vibration and high coaxiality across all supported applications.
Q: How do I install and secure the aluminium alloy shaft coupling?
A: Installation is straightforward. Slide the coupling onto the two shafts you wish to connect, then tighten the included hardened carbon steel hex socket set screws using a hex key (Allen wrench). The set screws clamp the shafts firmly in place without requiring additional adhesives or special tools, making setup and future adjustments quick and easy.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
