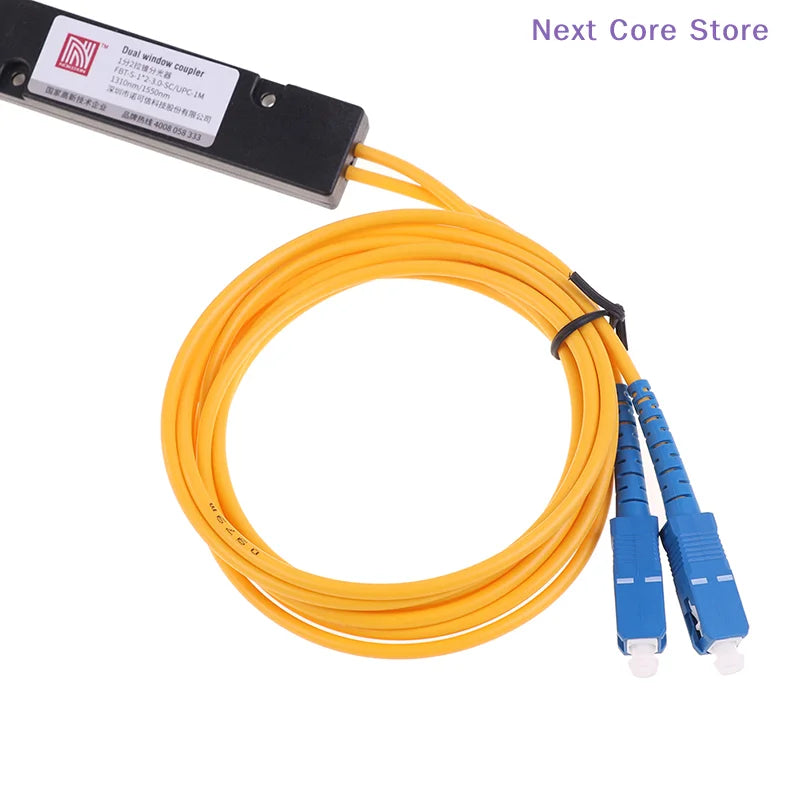

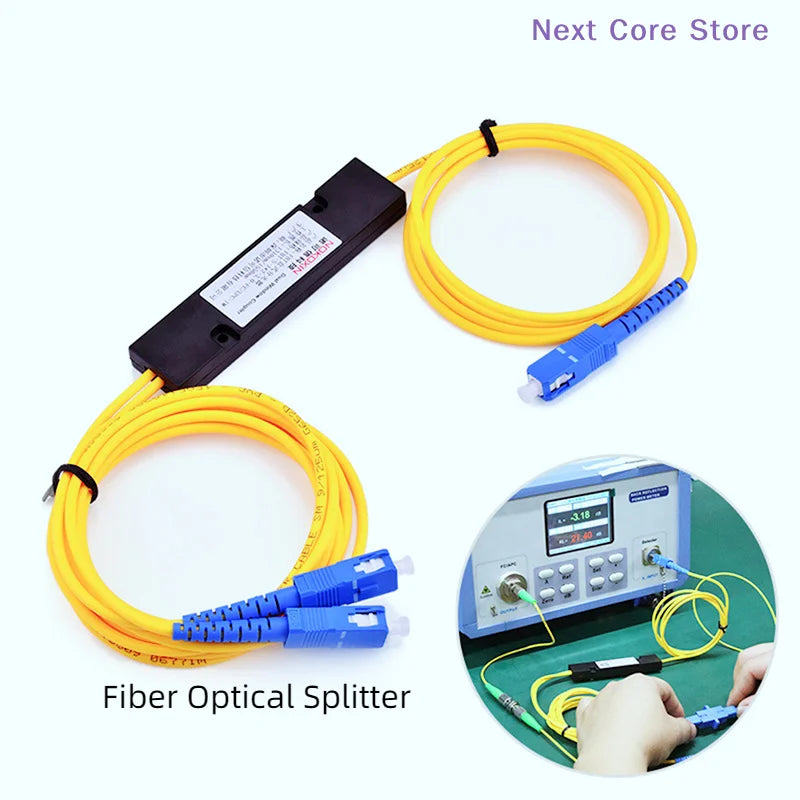

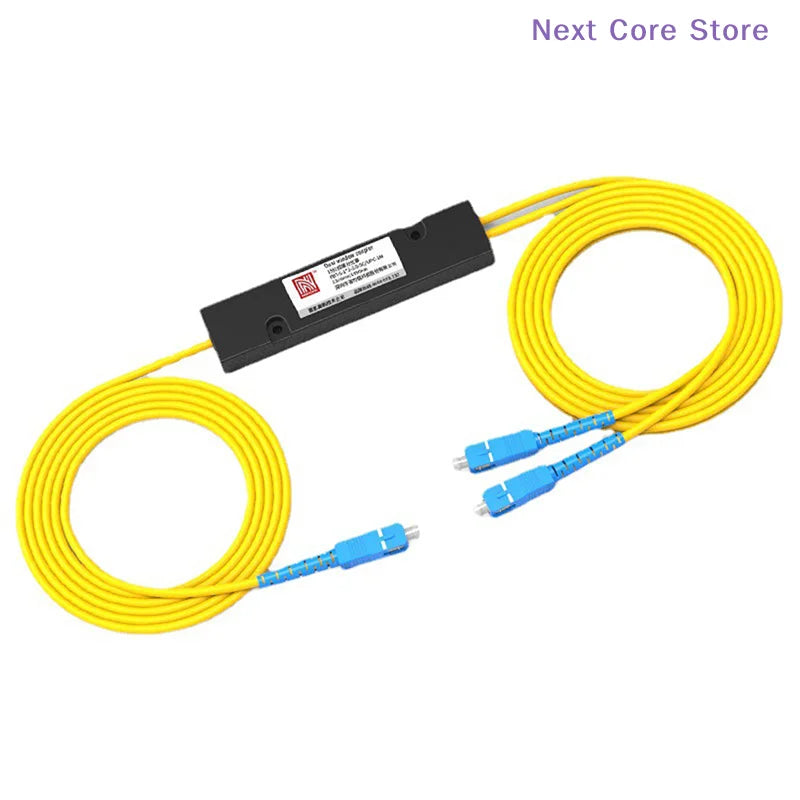

APC/UPC 1x2 PLC Singlemode Fiber Optic Splitter
APC/UPC 1x2 PLC Singlemode Fiber Optic Splitter
APC/UPC 1x2 PLC Singlemode Fiber Optic Splitter
Upgrade your passive optical network with this high-reliability 1x2 PLC Singlemode Fiber Optic Splitter, available in both APC and UPC connector types. Engineered for consistent signal distribution, this compact splitter is ideal for FTTH, CATV, fiber optic LANs, and other fiber communication systems. Its wavelength-insensitive design ensures stable performance across a wide range of transmission scenarios.
Key Features
- Wavelength-Insensitive Loss: Performs reliably across different wavelengths to suit diverse transmission requirements.
- Uniform Signal Distribution: Evenly splits the optical signal to all output ports for consistent network performance.

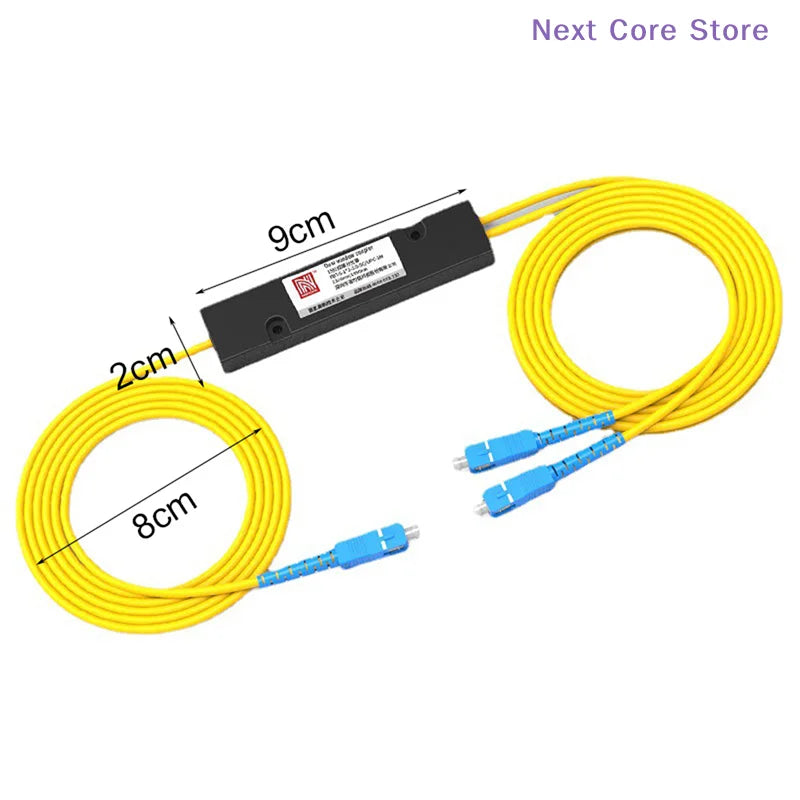

- Ultra-Compact Design: Small form factor fits directly into existing junction boxes without requiring additional installation space.
- Multi-Channel Capability: Single device supports up to 32 branch channels — greater channel count delivers better cost efficiency.
- High Reliability: Built to the highest quality standards for long-term, stable passive optical network operation.
Specifications
| Condition | 100% Brand New |
| Model | 1x2 Taper (1 Part 2) |
| Cable Length | Approx. 220 cm |
| Port 1 Insertion Loss | 3.27 dB |
| Port 2 Insertion Loss | 3.32 dB |
| Weight | Approx. 45 g |
| Assembly Required | No |
| Origin | Made in China |
Applications
- Fiber Optic Communication Systems
- FOLAN Fiber Optic LAN
- CATV Cable Networks
- FTTH (Fiber to the Home)
- FOS Fiber Optic Systems
- Optical Measuring Instruments
What's in the Box
- 1x PLC Fiber Optic Splitter (APC or UPC, 1x2)
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between APC and UPC fiber optic connectors on this splitter?
A: APC (Angled Physical Contact) connectors feature an 8-degree angled end-face that reduces back-reflection, making them ideal for high-bandwidth and long-distance applications like FTTH and CATV. UPC (Ultra Physical Contact) connectors have a flat end-face polish that offers low insertion loss and is well-suited for general fiber optic LAN and communication system applications. Choose the connector type that matches your existing network infrastructure.
Q: Can this 1x2 PLC fiber optic splitter be used in a passive optical network (PON)?
A: Yes. This PLC splitter is specifically designed for passive optical networks. Its spectral uniformity and wavelength-insensitive loss characteristics make it fully compatible with PON deployments including FTTH, FOLAN, and CATV systems. The compact form factor also allows easy integration into existing junction boxes or enclosures without the need for extra installation space.
Q: How many output channels does this fiber optic splitter support?
A: This specific model is a 1x2 splitter, providing one input port and two output ports. The PLC splitter platform used in this product line can support configurations with up to 32 channels, offering flexible and cost-effective signal distribution for larger network deployments.
