Automatic HVAC Condensate Pump 100L/H | 500ml Tank 100–230V
Automatic HVAC Condensate Pump 100L/H | 500ml Tank 100–230V

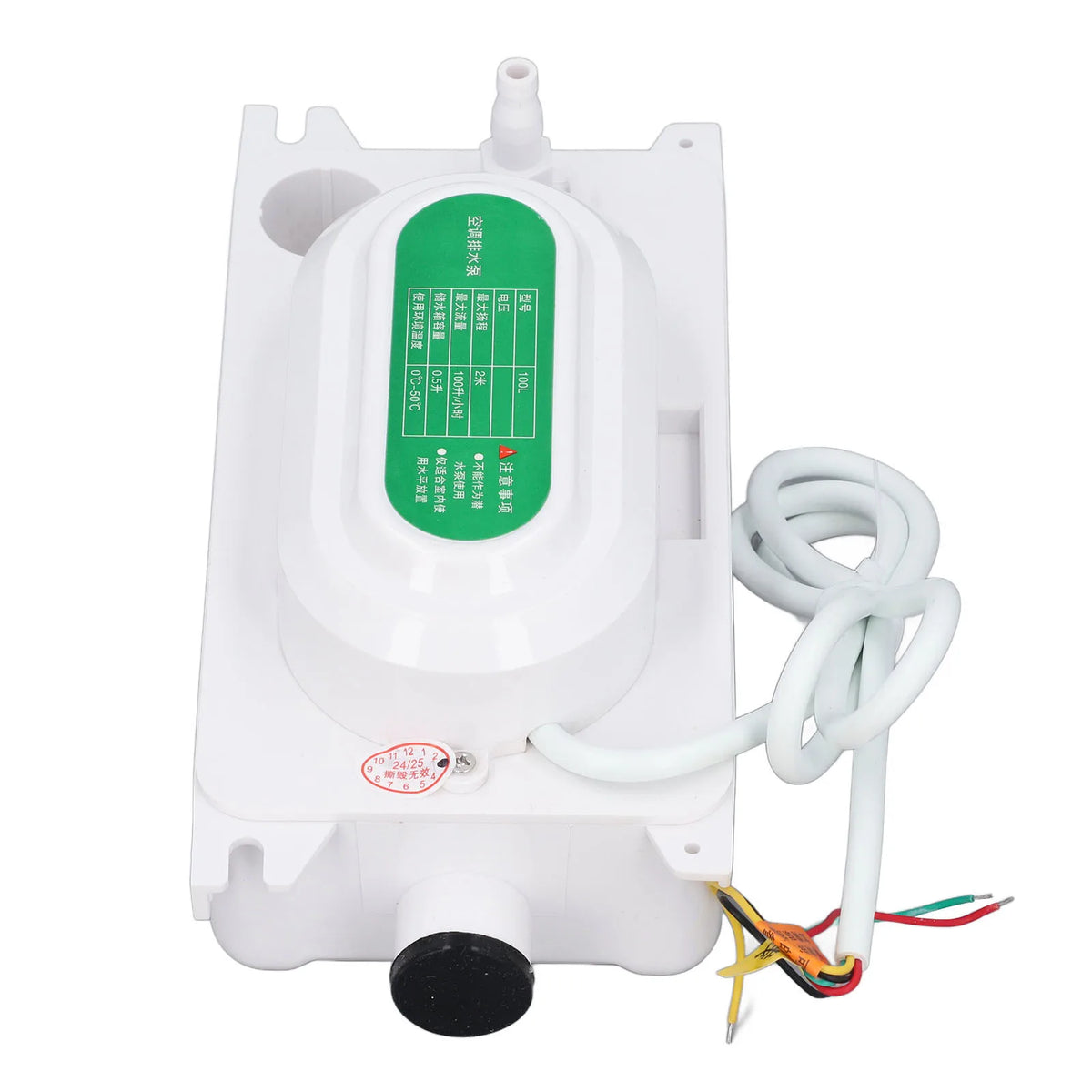

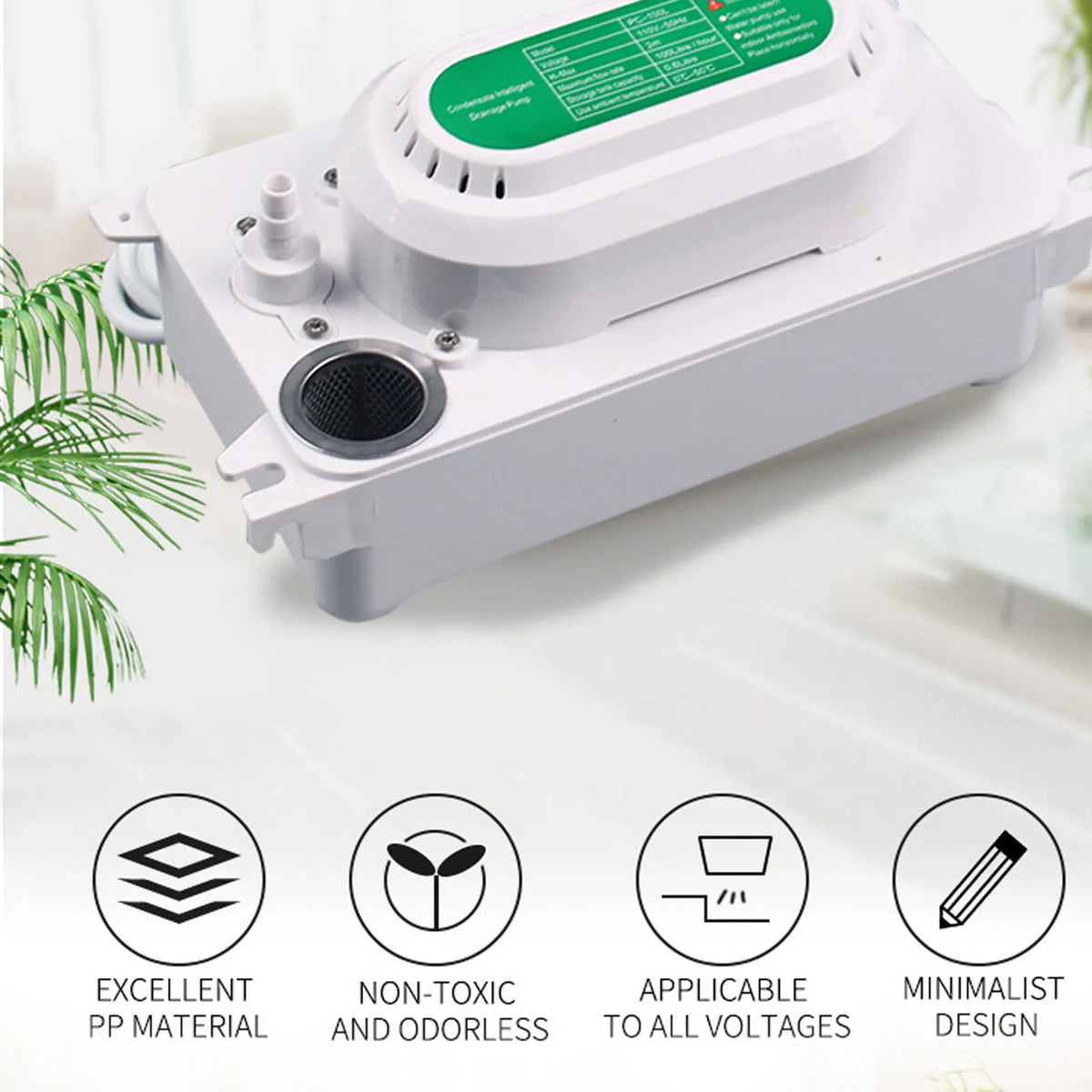

Automatic HVAC Condensate Pump – 100L/H Flow, 500ml Tank
Keep your HVAC system, dehumidifier, or commercial ice maker running smoothly with this fully automatic condensate removal pump. Featuring a quiet 5W motor, a smart water-level sensor, and wide voltage compatibility (100–230V), this compact pump handles efficient drainage so you never have to worry about overflow or manual monitoring.
Made in Mainland China.
CE Certified.
Key Features

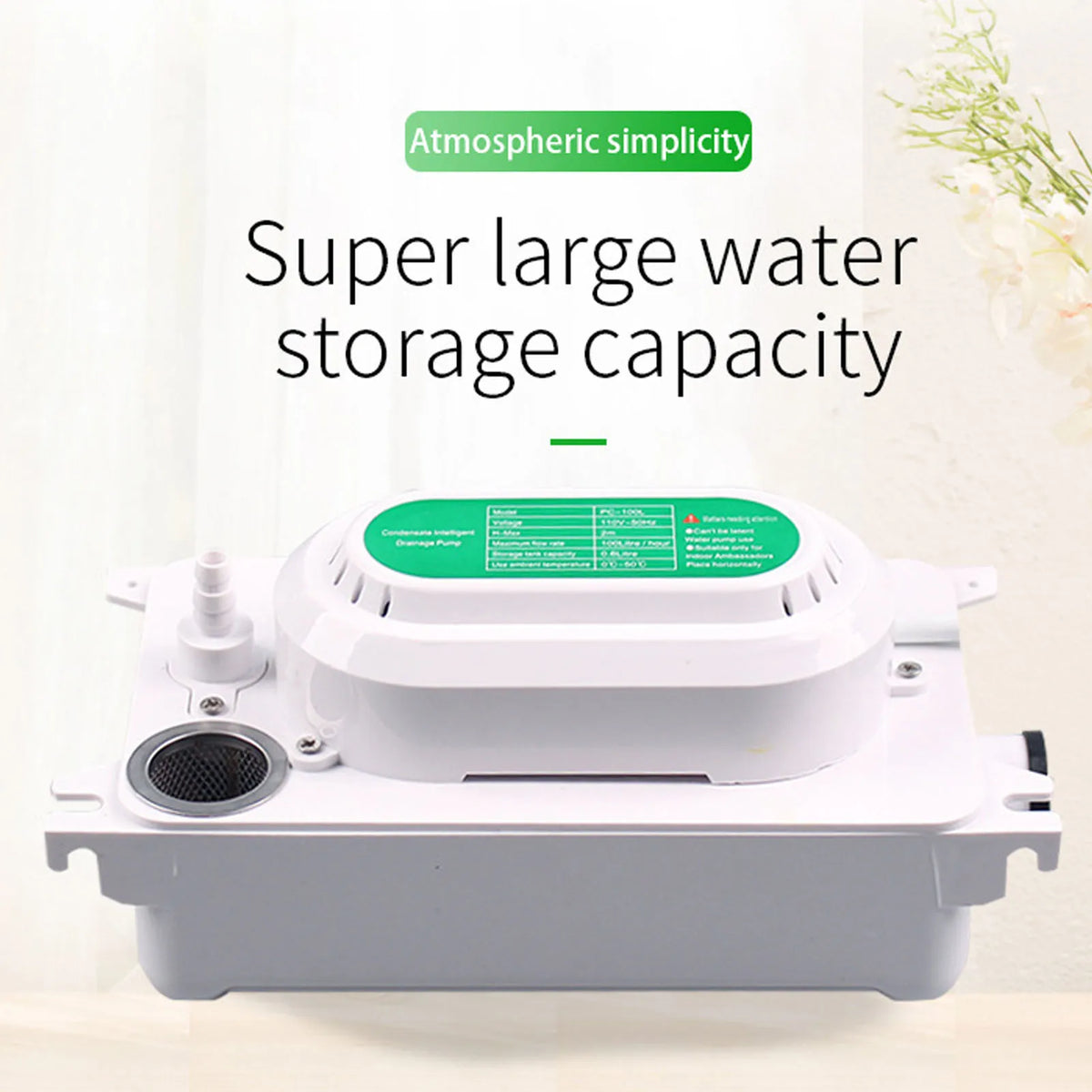

- Generous Capacity & Fast Flow: The 0.5L (500ml) tank paired with a 100L/H flow rate ensures rapid, efficient drainage — ideal for ice makers, dehumidifiers, and HVAC units.

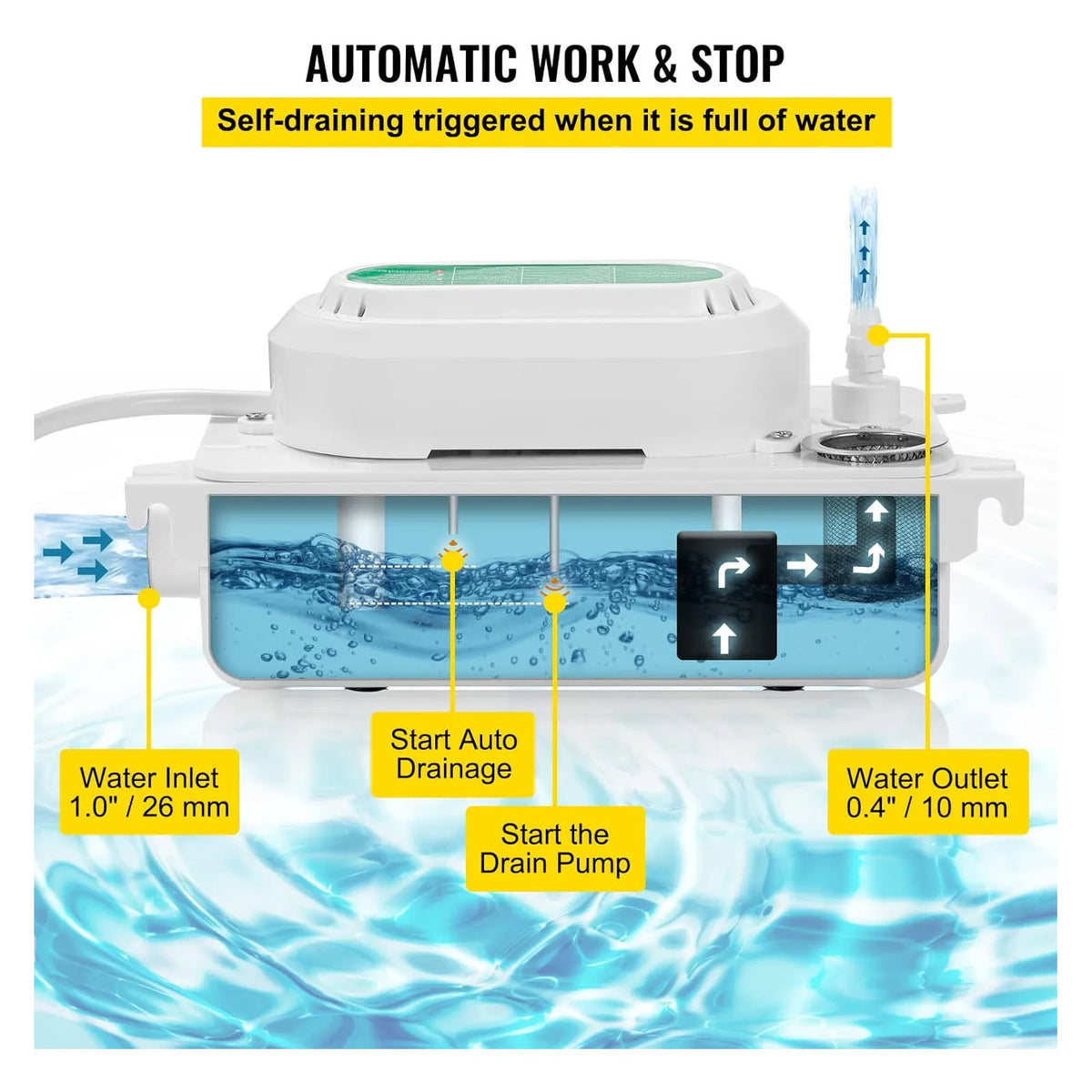

- Fully Automatic Operation: The pump starts automatically when water reaches the lower probe and stops once the tank is drained — completely hands-free.
- Whisper-Quiet & Stable: The 5W motor operates at just 22dB, minimising disruption in homes, offices, and commercial settings. Shock-absorbing feet reduce vibration and enhance stability, while integrated ventilation ensures efficient heat dissipation.
- Smart Water Level Sensor: Two signal lines connect directly to your HVAC unit. When a high water level is detected, the system automatically shuts down the device to prevent overflow — a critical safety feature.
- Wide Compatibility: Suitable for countertop, under-stage, freestanding, and split commercial ice makers, as well as dehumidifiers and air conditioning units in homes, beverage stores, offices, shopping malls, and more.
Specifications
| Voltage | 100–230V, 50–60Hz |
| Motor Power | 5W |
| Maximum Lift | Approx. 2m / 6.56ft |
| Tank Capacity | 0.5L (500ml) |
| Maximum Flow Rate | 100L/h |
| Inlet Diameter | Approx. 25mm / 0.98in |
| Outlet Diameter | Approx. 8mm / 0.31in |
| Noise Level | ≤22dB |
| Structure | Gear Pump |
| Certification | CE |

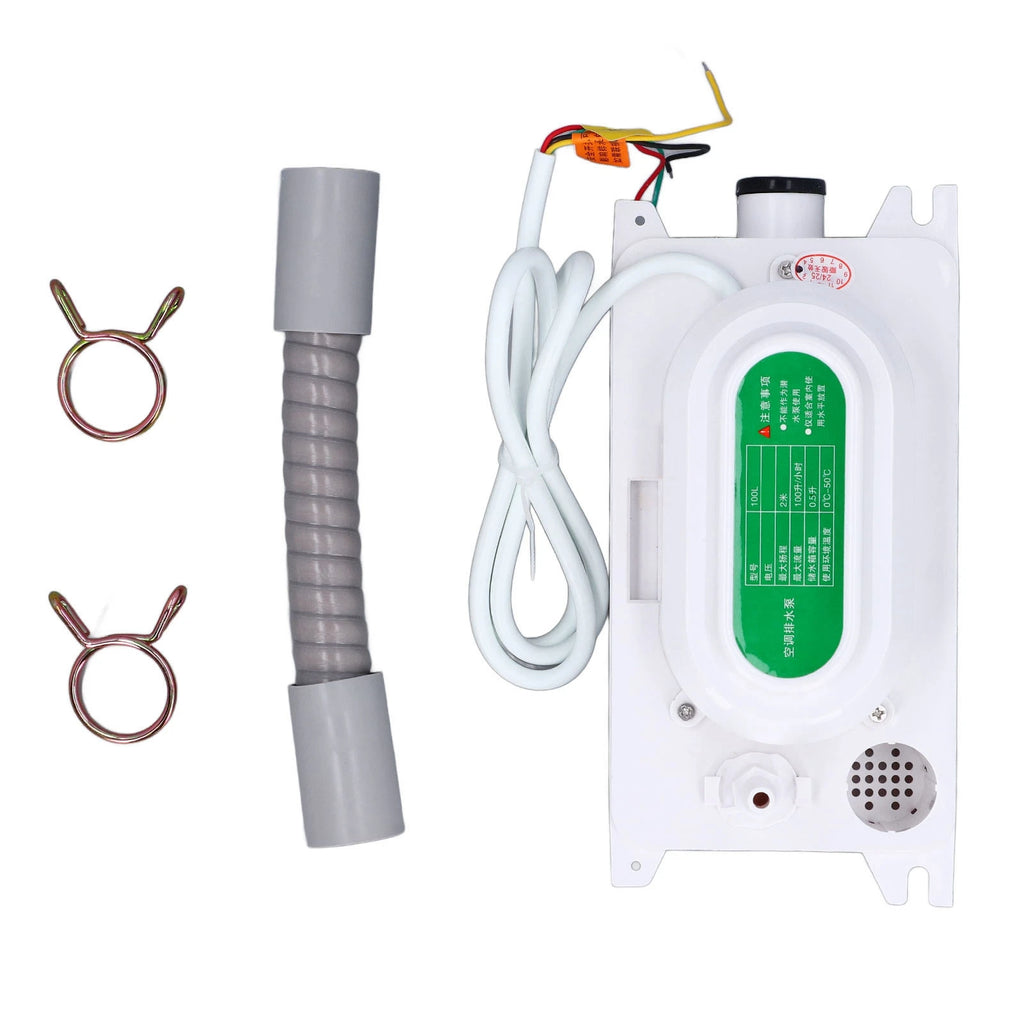

What's in the Box
- 1 × Condensate Pump
- 1 × Hose
- 2 × Accessories
- 1 × User Manual
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage does this HVAC condensate pump support?
A: This condensate pump is compatible with a wide voltage range of 100–230V at 50–60Hz, making it suitable for use in North America, Europe, Asia, and most other regions worldwide.
Q: Does the condensate pump operate automatically?
A: Yes. The pump starts automatically when water reaches the lower probe level and stops once drainage is complete. The built-in water level sensor will also trigger an automatic shutdown of the connected HVAC unit if a high water level is detected, preventing overflow.
Q: What types of appliances can this condensate pump be used with?
A: This condensate pump is designed for a broad range of applications including HVAC systems, dehumidifiers, and commercial ice makers (countertop, under-stage, freestanding, or split type). It is suitable for residential homes, offices, beverage stores, and shopping malls.
Q: How noisy is this condensate pump during operation?
A: The 5W motor runs at a noise level as low as 22dB — extremely quiet, comparable to a gentle whisper. Combined with the shock-absorbing feet, the pump is designed for minimal disruption in any setting.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
