6/12 Way Blade Fuse Block with LED Indicator – 12V–32V DC
6/12 Way Blade Fuse Block with LED Indicator – 12V–32V DC
6 or 12 Way Blade Fuse Distribution Box with LED Warning Indicator

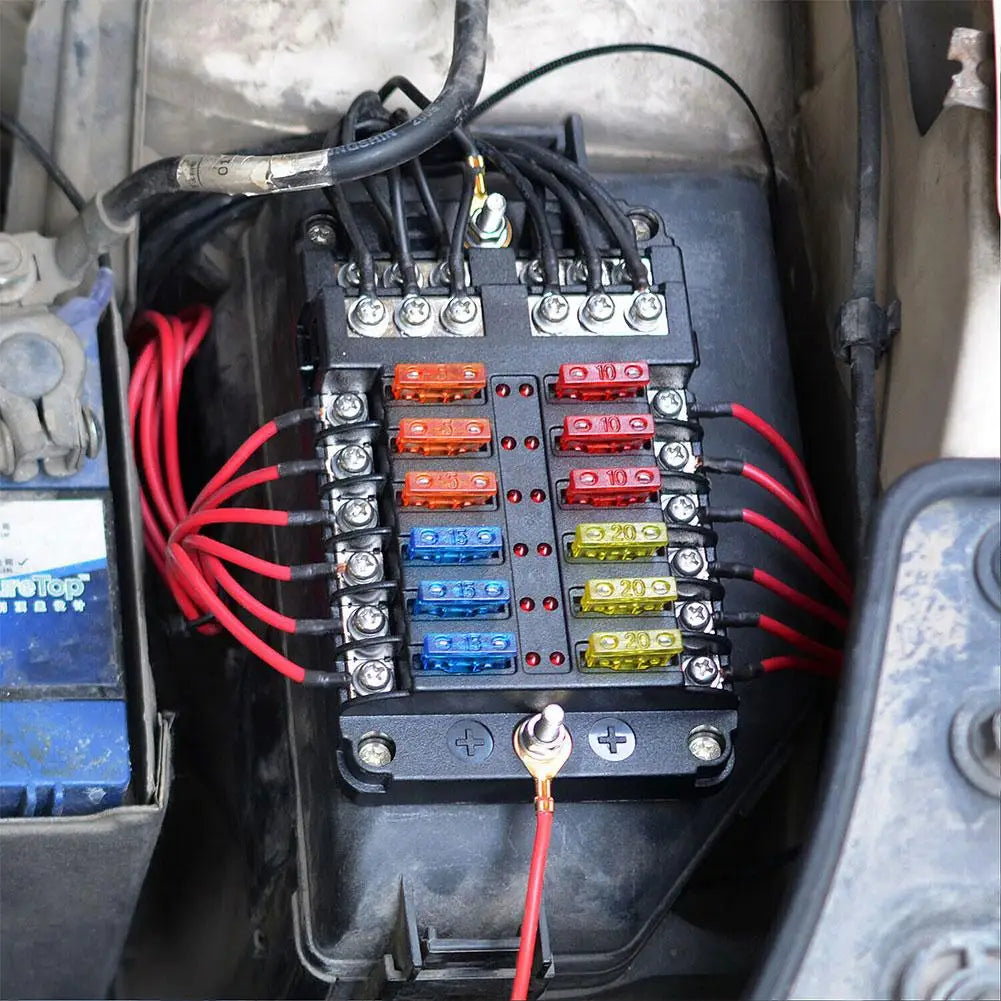

Keep every circuit in your car, truck, RV, boat, or off-road vehicle organized and protected with this heavy-duty blade fuse block. Available in a 6-way or 12-way configuration, it handles up to 100A on the main line and up to 30A per circuit — making it a reliable centerpiece for any 12V–32V DC power distribution setup.
Why You'll Love It
- Instant Fault Identification: A dedicated red LED indicator lights up for each circuit the moment a fuse blows — no guesswork, no multimeter needed.
- Labeled Stickers Included: Attach the included adhesive labels to identify each circuit (headlights, fog lights, fridge, fan, charger, etc.) so you can spot a tripped circuit at a glance.
- Flame-Retardant PBT Body: The housing is molded from PBT — a flame-retardant, high/low temperature-resistant, environmentally friendly thermoplastic — built to last in demanding environments.
- Nickel-Plated Bus Bars & Fuse Clips: All internal conductors are nickel plated for maximum corrosion resistance and optimum electrical conductivity.
- PC Waterproof & Dustproof Cover: A clear polycarbonate cover shields fuses from moisture and debris — ideal for marine and outdoor installations.
- Stainless Steel Hardware: All mounting fasteners are stainless steel; input/output terminals use tightening screws for a secure, vibration-resistant connection.

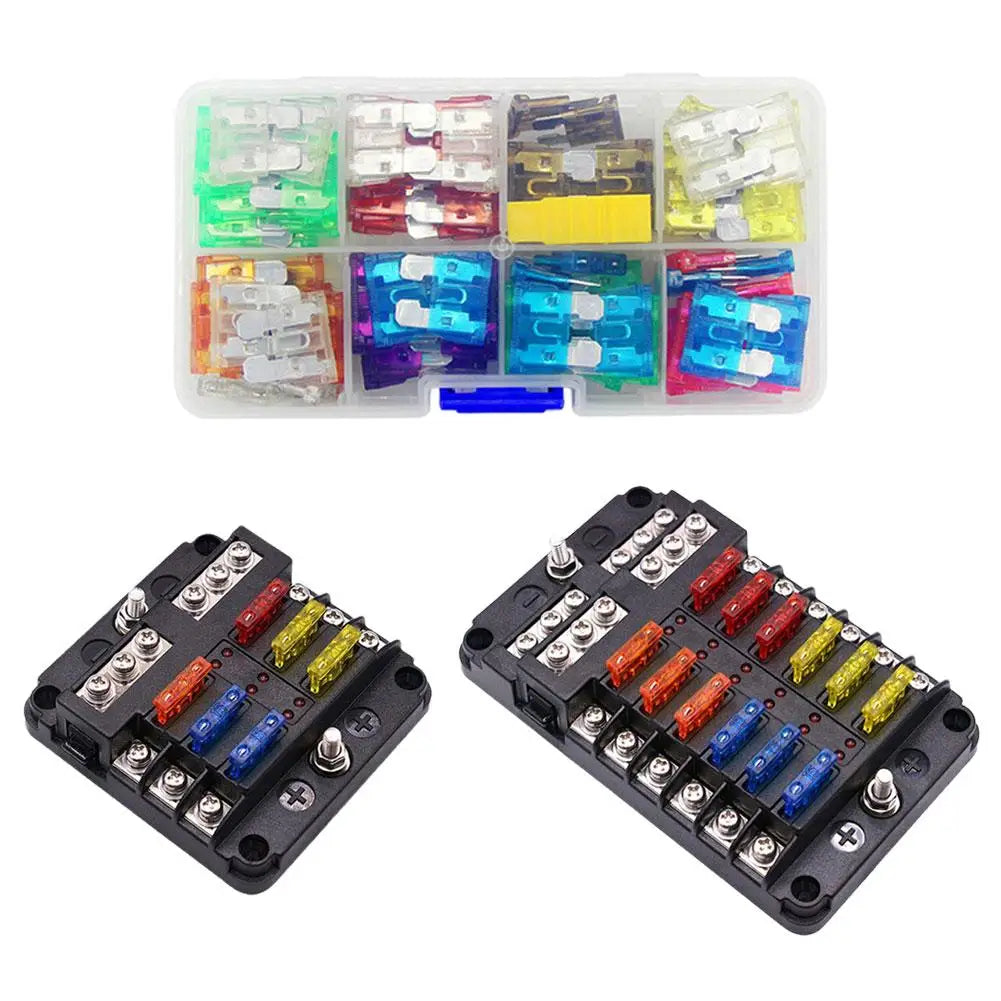

- Double Fuse Supply: Spare fuses are included in multiple amperage ratings so you can swap a blown fuse immediately without a hardware run.
Technical Specifications

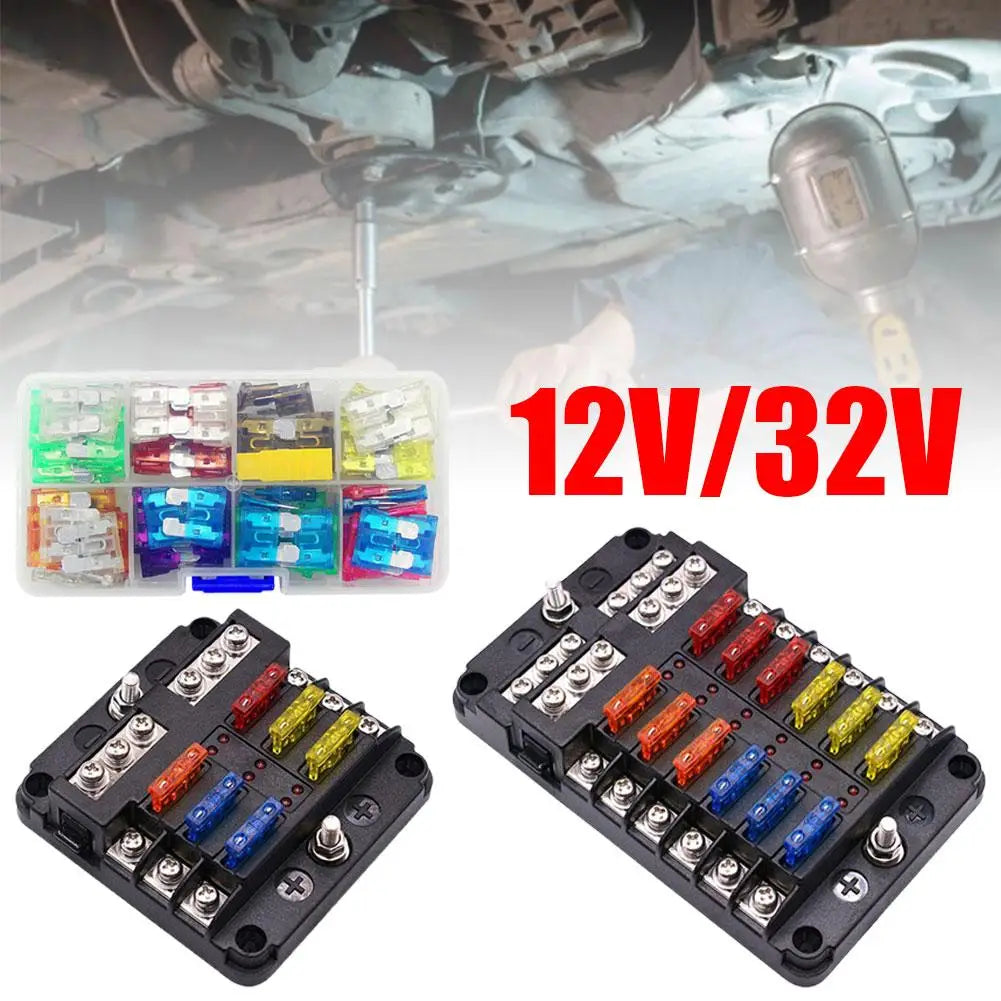

| Input Rated Voltage | 12V – 32V DC |
| Input Rated Current | 100A (main line) |
| Max Output Per Circuit | 30A |
| Indicator Color | Red LED |
| Main Terminal | M5 threaded stud (wire gauge #4–6) |
| Circuit Terminal | M4 threaded stud (wire gauge #12–16) |
| Body Material | PBT (flame-retardant) |
| Cover Material | PC (polycarbonate, waterproof/dustproof) |
| Label Material | PPX40 adhesive sticker |
6-Way Fuse Box
- Net Weight: 176 g
- Dimensions: 87.75 × 85 × 36.5 mm
- Accessories: Sticker ×2 · Self-tapping screw ×4 · 20A fuse ×4 · 15A fuse ×4 · 10A fuse ×2 · 5A fuse ×2

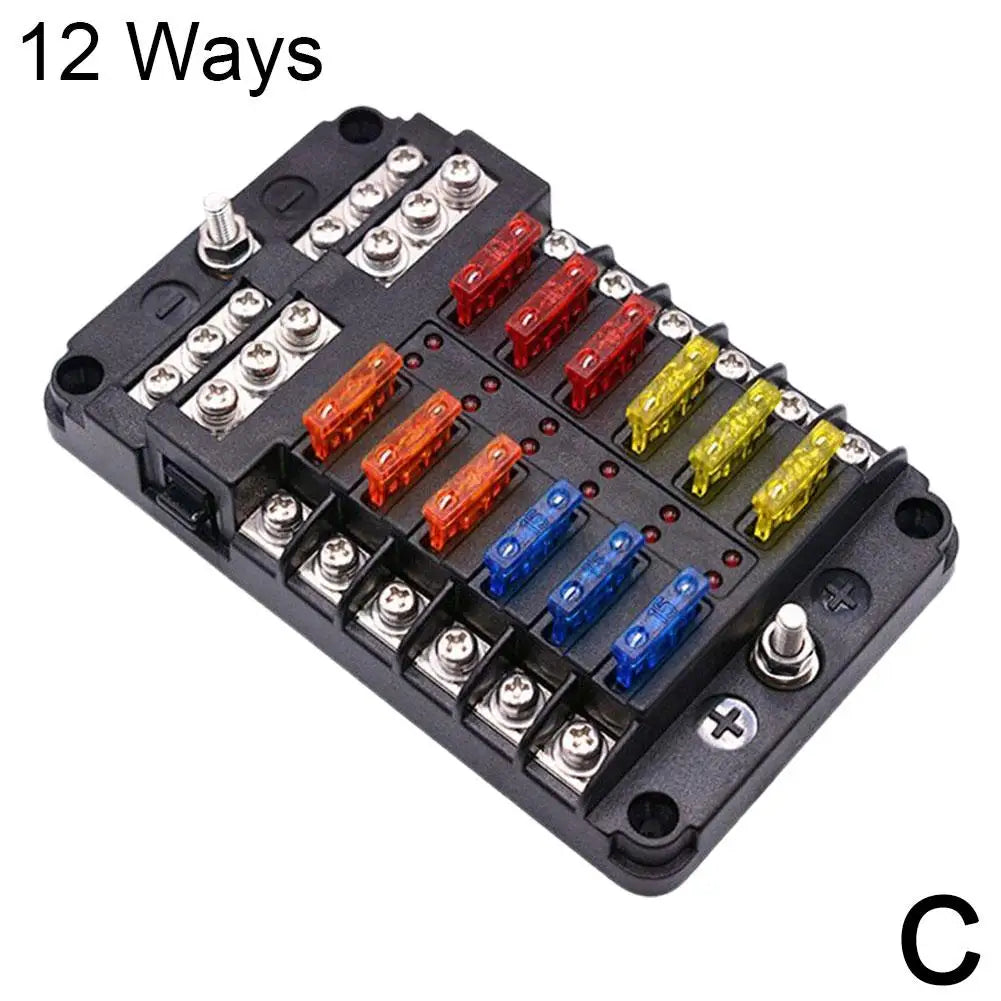

12-Way Fuse Box
- Net Weight: 279 g
- Dimensions: 138.25 × 85 × 36.5 mm
- Accessories: Sticker ×2 · Self-tapping screw ×4 · 20A fuse ×6 · 15A fuse ×6 · 10A fuse ×6 · 5A fuse ×6
Compatible Vehicles & Applications
Cars · SUVs · Off-road vehicles · RVs & motorhomes · Buses · Yachts · Boats · Any 12V–32V DC electrical system
Suitable for Circuits Such As
Dome lights · Headlights · Sidelights · Fog lights · Warning lights · Car refrigerators · USB chargers · Car fans · In-vehicle TVs · and more.
Made in Mainland China.
You May Also Like
- 1/2″ Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: FuelEconomy.gov on vehicle maintenance
Frequently Asked Questions
Q: What vehicles is this blade fuse block compatible with?
A: This fuse distribution block works with any 12V–32V DC system, including cars, trucks, SUVs, off-road vehicles, RVs, motorhomes, buses, yachts, and boats. If your vehicle uses standard blade fuses and operates within the 12V–32V DC range, this block is a compatible solution.
Q: How does the LED warning indicator work?
A: Each circuit position has its own dedicated red LED. Under normal operation the LED stays off. When a fuse in that circuit blows, the corresponding red LED lights up immediately, pinpointing exactly which circuit needs attention — no need for a test light or multimeter.
Q: What fuse amperage ratings are included, and can I use different ratings?

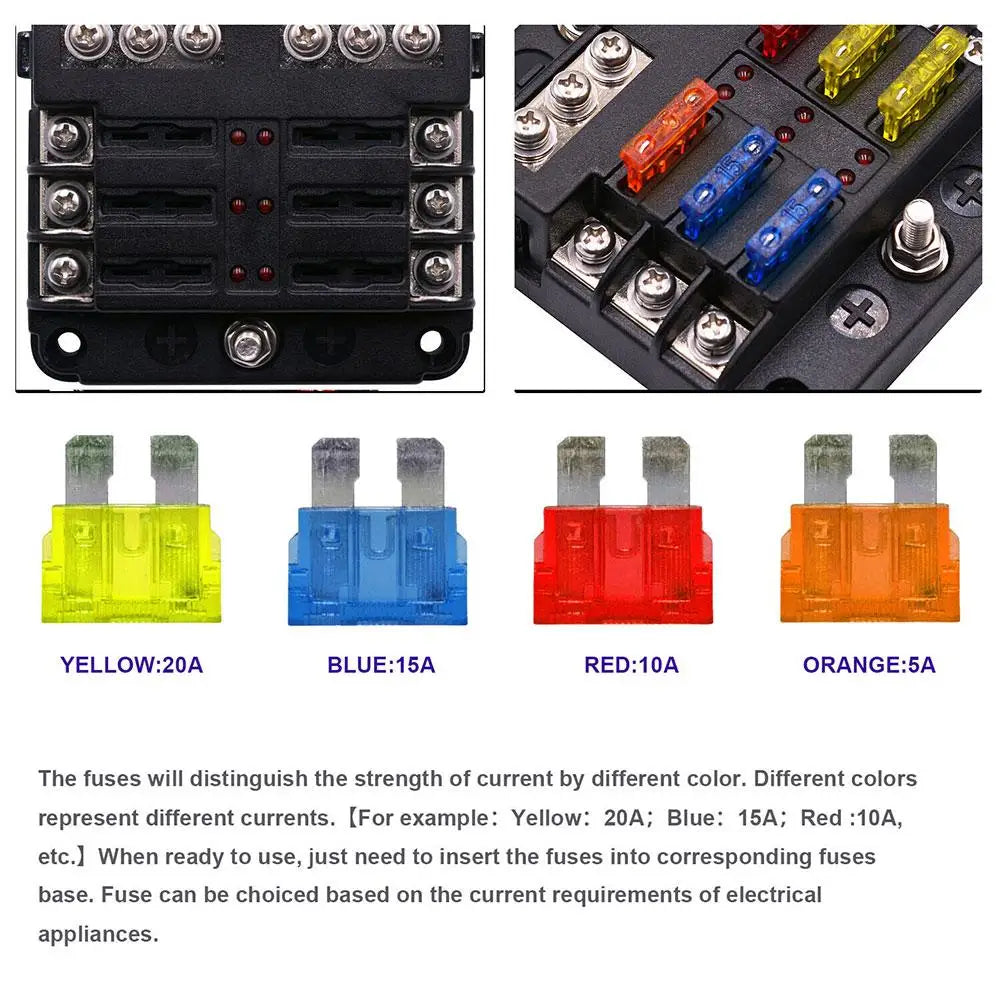

A: The fuse block ships with standard blade fuses in 5A, 10A, 15A, and 20A ratings. Because it accepts any standard ATC/ATO blade fuse, you can use other amperage ratings (up to 30A per circuit) to match the specific requirements of each connected device. Always size the fuse to the circuit, not the wire.
Q: Is the fuse block waterproof?
A: The included polycarbonate (PC) cover provides waterproof and dustproof protection for the fuse slots, making it suitable for marine and outdoor installations. The cover should always be fitted when the vehicle or vessel is exposed to moisture, spray, or the elements.
Q: How do I install the fuse distribution panel?
A: Mount the block to a flat surface using the included stainless steel self-tapping screws. Connect the main positive line to the M5 input stud (wire gauge #4–6) and each individual circuit to the M4 output studs (wire gauge #12–16). Attach the included adhesive labels to identify each circuit, insert the appropriate fuses, and fit the dustproof cover. No special tools are required beyond a screwdriver and basic wiring supplies.
