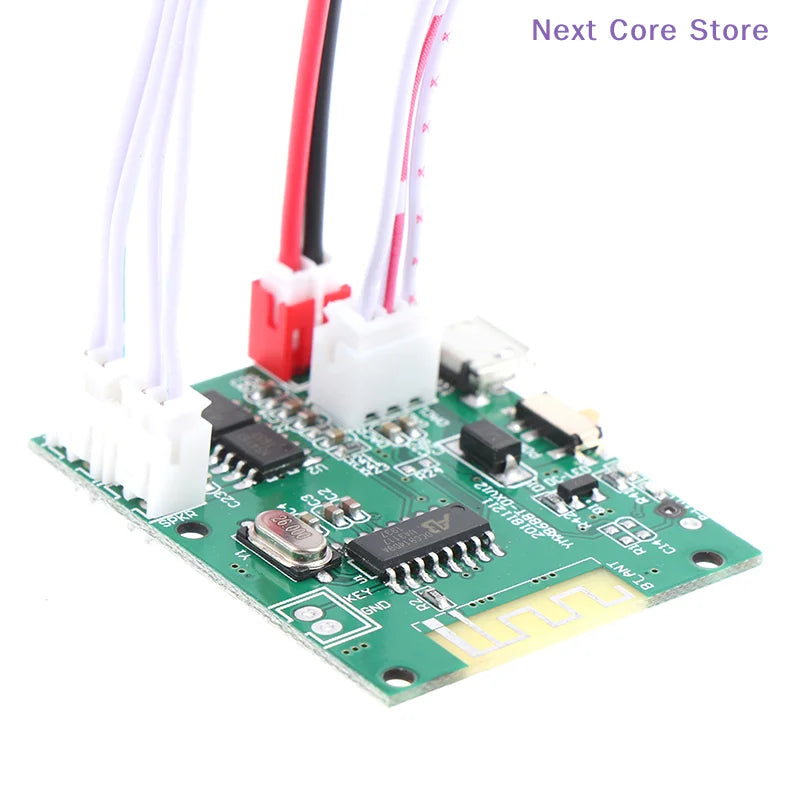

Build your own wireless speaker system with this compact Bluetooth 5.0 stereo amplifier board. Delivering up to 10W total output (5W × 2 channels), this mini PCB module is ideal for DIY audio projects, speaker builds, and portable sound system modifications. Pair it effortlessly with any Bluetooth-enabled smartphone or device and enjoy clean, stable stereo audio output.
Key Features
- Bluetooth 5.0 — fast, stable wireless pairing with virtually any smartphone, tablet, or audio source (Device ID: YMX-868BT)
- Dual-channel stereo output — 5W × 2 for full-range stereo sound

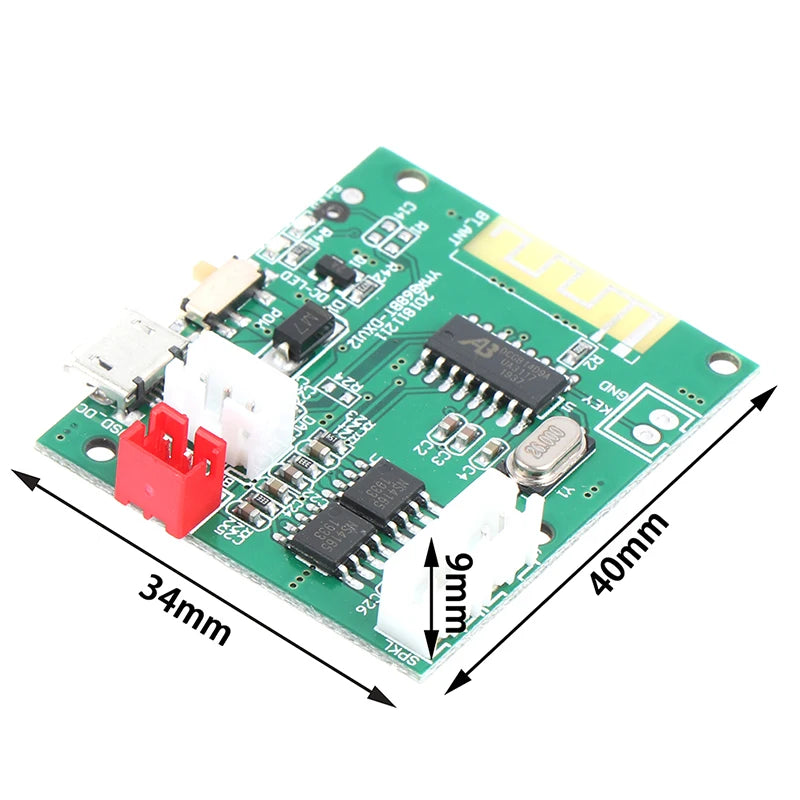

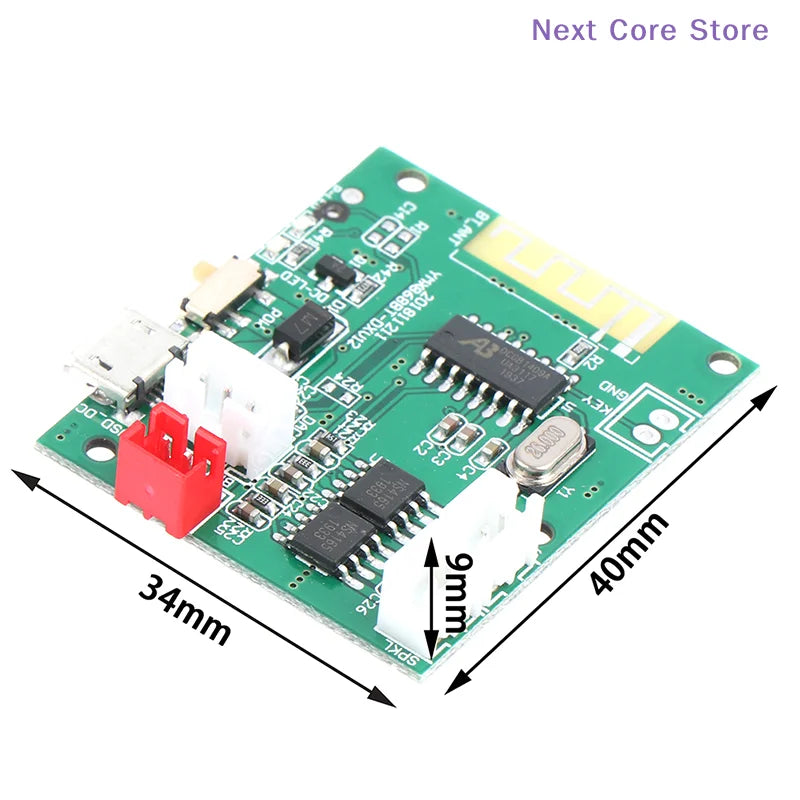

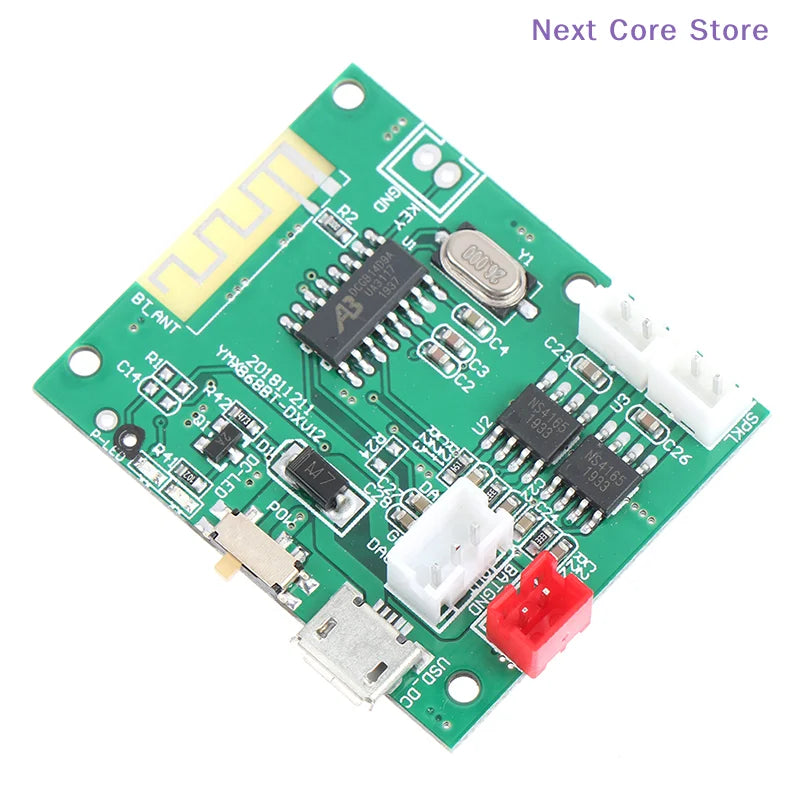

- Compact PCB — 40mm × 34mm × 9mm (including connectors), perfect for space-constrained builds
- Flexible power input — DC 3.7V–5V (USB or lithium battery); supports 1.5A–2A supply current
- Micro-wave power switch control for convenient on/off operation
- External amplifier output — 3P socket OUT audio output for optional external power amplifier modification (middle = audio ground; L and R on each side)
- USB charging input — charge your lithium battery directly via USB; red indicator light shows charging status

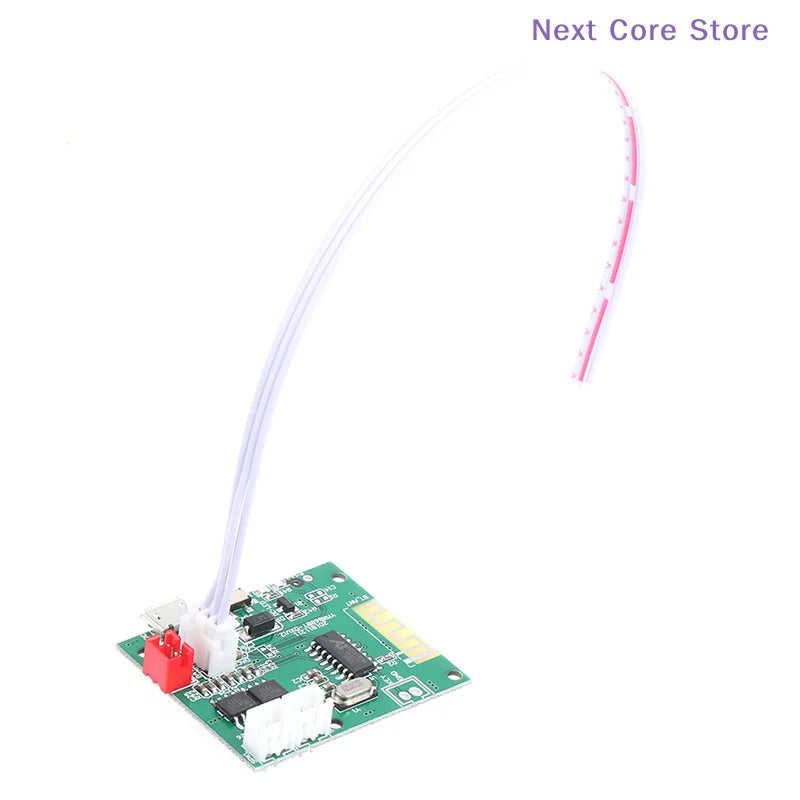

- Package includes: 1× amplifier board + 4× connection cables
Technical Specifications
| Bluetooth Version | 5.0 (Device ID: YMX-868BT) |
| Output Power | 5W × 2 (10W max) |
| Operating Voltage | DC 3.7V – 5V (do NOT exceed 5V) |
| Recommended Current | 1.5A – 2A (minimum) |
| Speaker Impedance | 4Ω recommended (3W×2 at 3.7V / 5W×2 at 5V) |
| PCB Dimensions | 40mm × 34mm × 9mm |
| Audio Output | 3P OUT port (L / GND / R) |
| Pairing Password (non-Android) | 0000 |
| Country of Origin | Made in China |
Wiring Guide

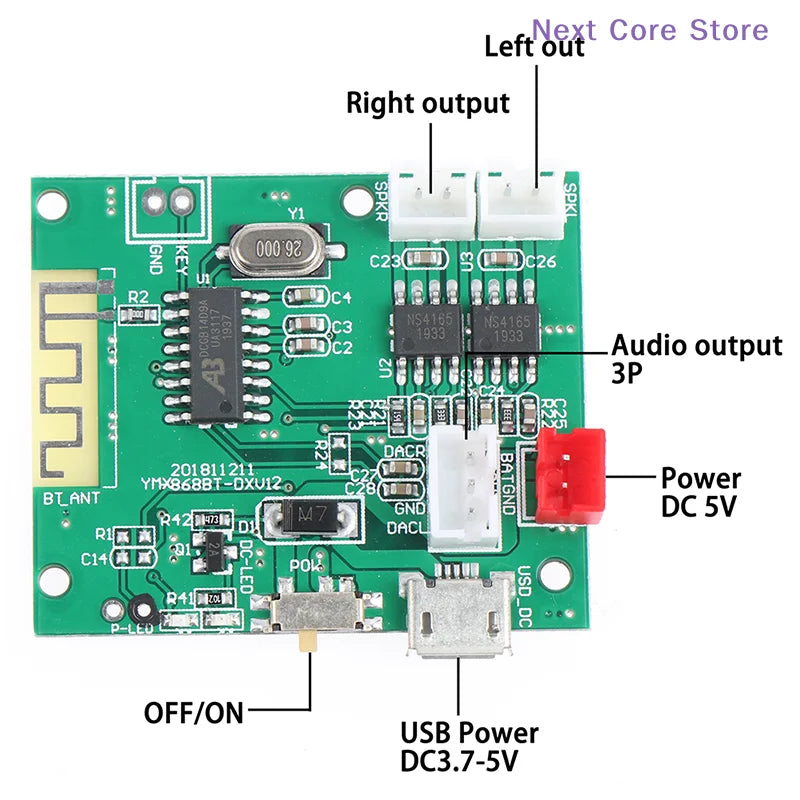

- BAT (Red 2P seat): DC 3.7V–5V positive to +, GND to negative
- Speaker 1 (White 2P seat): L-O- / L-O+ (left channel)
- Speaker 2 (White 2P seat): R-O- / R-O+ (right channel)
- Note: If using a 3.7V lithium battery, remove the IN4007 diode to prevent a ~0.7V voltage drop that may affect USB/card reading
- Voltage must NOT exceed 5V — higher voltage will damage the main chip, power amplifier IC, and related components
Bluetooth Pairing Instructions
- Power on the module — it will automatically enter Bluetooth discovery mode
- On your smartphone, open Settings → Bluetooth and scan for devices
- Select YMX-868BT from the list
- Non-Android devices: enter password 0000 when prompted
- A "Connected successfully" prompt confirms pairing is complete
