CAT6 Keystone Jack Module – RJ45 8P8C Information Socket (2-Pack)
Upgrade your home or office network with this reliable CAT6 Keystone Module. Designed for structured cabling installations, this 2-pack of RJ45 8P8C keystone jacks delivers a clean, professional-grade connection point for wall plates, patch panels, and network outlets. The 90-degree IDC punch-down design makes wiring fast and accurate, while the compact form factor keeps your installation neat and elegant.
Whether you're building a home network, running a small office setup, or tackling a commercial cabling project, these CAT6 modules offer the durability and performance you need for reliable data transmission.
Key Features
- CAT6 Compatible: Supports high-speed Gigabit Ethernet and structured cabling standards
- 90° IDC Wiring: Color-coded punch-down terminal for fast, accurate cable termination
- Flame-Retardant PC Body: UL 94-V0 rated PC/PBT plastic for safety and longevity
- Phosphor Bronze Contacts: PCB-integrated phosphor bronze contacts for reliable conductivity
- Gold-Plated RJ45 Terminal: 3μ gold plating on RJ45 port for low contact resistance and corrosion resistance

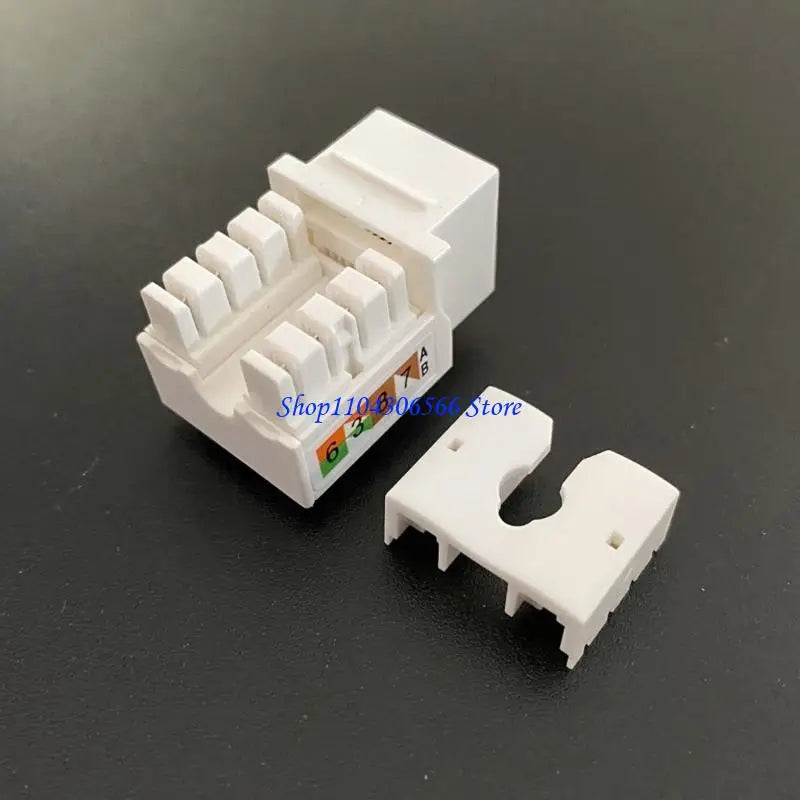

- Dust Cover Included: Keeps the port protected when not in use
- High Plug/Socket Cycle Rating: ≥750 mating cycles for long-term durability
- Repeat IDC Access: Cable can be re-terminated ≥200 times; compatible with 22–26 AWG cables
- Low Contact Resistance: ≤2.5 MΩ under normal atmospheric conditions
- High Insulation Resistance: ≥1000 MΩ under normal atmospheric conditions
- High Voltage Withstand: AC 750V for 1 minute without breakdown or arcing
Specifications
| Standard | CAT6 / RJ45 8P8C |
| Wiring Angle | 90 Degrees |
| Body Material | Flame-retardant PC / PBT (UL 94-V0) |
| Terminal Material | Phosphor Bronze with PCB |
| RJ45 Gold Plating | 3μ |
| Cable Compatibility | 22–26 AWG |
| Plug/Socket Cycles | ≥750 |
| IDC Re-termination | ≥200 times |
| Contact Resistance | ≤2.5 MΩ |
| Insulation Resistance | ≥1000 MΩ |

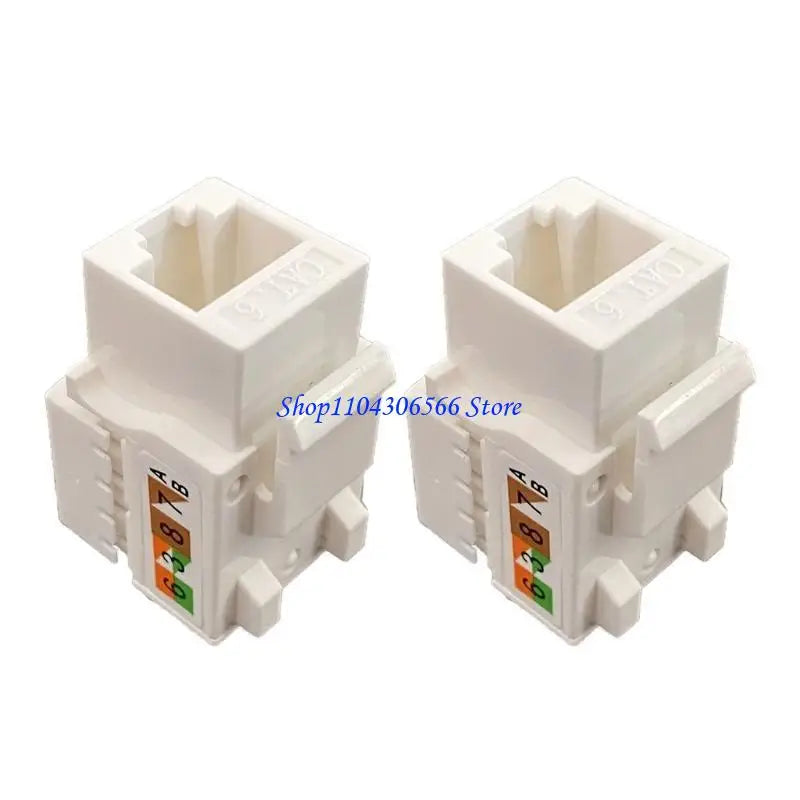

| Package Contents | 2 × CAT6 Keystone Modules |
| Country of Origin | Made in China |
Package Includes
- 2 × CAT6 Keystone Module (RJ45 8P8C)
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Are these CAT6 keystone modules compatible with standard wall plates and patch panels?
A: Yes, these CAT6 RJ45 8P8C keystone modules are designed to fit standard keystone wall plates and patch panels, making them ideal for structured cabling installations in homes, offices, and commercial buildings.
Q: What wire gauge is compatible with these CAT6 keystone jacks?
A: These modules are compatible with 22–26 AWG cables. The color-coded 90-degree IDC punch-down terminals ensure fast and accurate cable termination for both T568A and T568B wiring standards.
Q: How many times can I re-terminate the cable on these keystone modules?
A: The IDC termination on each CAT6 keystone module supports up to 200 re-termination cycles, giving you plenty of flexibility for adjustments or reinstallation during your cabling project.
Q: Do these modules come with a dust cover?
A: Yes, each CAT6 keystone module includes a dust cover to protect the RJ45 port when it is not in use, helping to maintain a reliable, clean connection over time.
