Cat6 RJ45 Keystone Wall Plate – Female to Female Ethernet
Cat6 RJ45 Keystone Wall Plate – Female to Female Ethernet

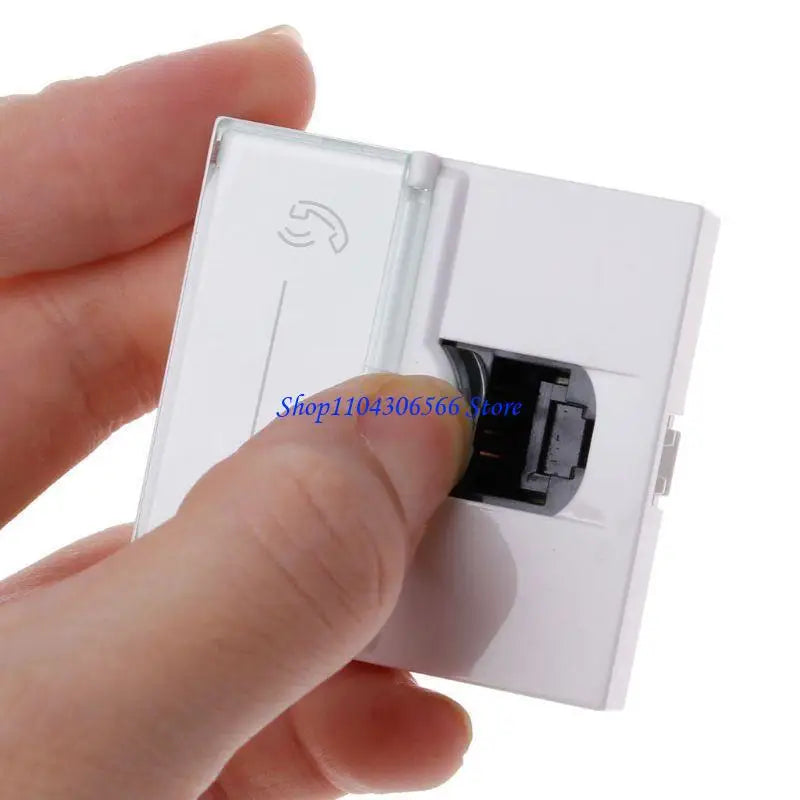

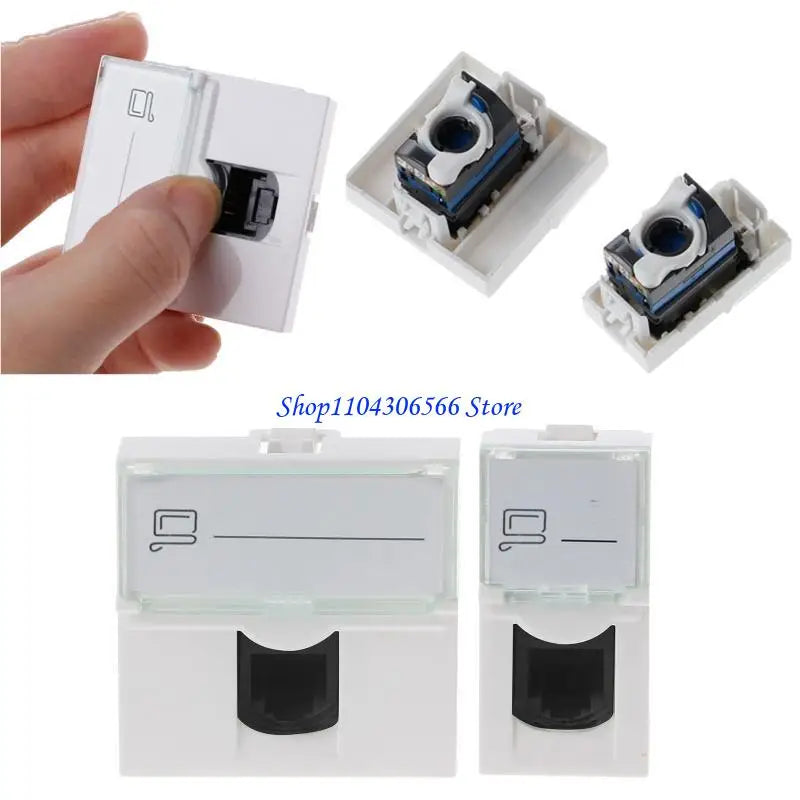

Cat6 RJ45 Keystone Wall Plate with Ethernet Coupler
Upgrade your home or office network setup with this clean, professional-looking Cat6 Keystone Wall Plate. Featuring a built-in RJ45 female-to-female keystone coupler insert, this wall plate makes it easy to create a permanent, tidy Ethernet connection point in any room — no more cables running across the floor or loose patch cables dangling from the wall.
Made in Mainland China.
Key Features
- Cat6 Compatible: Supports high-speed Cat6 Ethernet networking for fast, reliable data transmission.
- Female-to-Female RJ45 Coupler: Connects two Ethernet patch cables end-to-end for a seamless in-wall pass-through solution.
- Durable Construction: ABS panel body with UL 94-V0 rated PBT plastic — flame-retardant and built to last.
- Phosphor Bronze Terminals: Ensures low contact resistance (≤2.5 MΩ) and excellent electrical performance.
- High Insulation Resistance: ≥1000 MΩ insulation resistance under normal conditions for safe, reliable use.
- High Voltage Rated: Tested to AC 750V for 1 minute without breakdown or arcing.
- IDC Termination: Supports 22–26 AWG cable connections with ≥200 repeated card access cycles.
- Dust Cover Included: Protects the port when not in use.

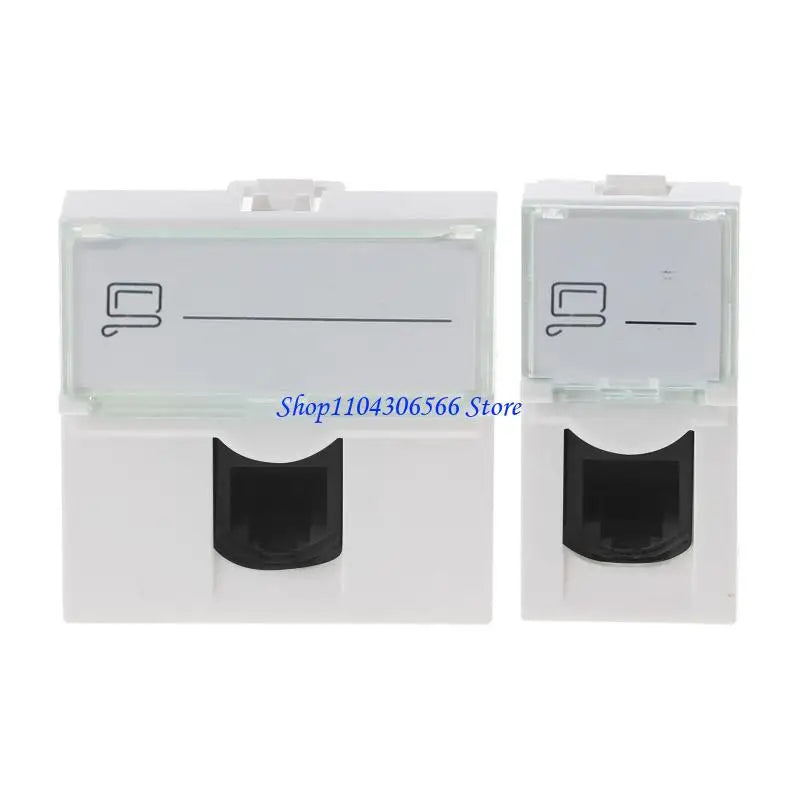

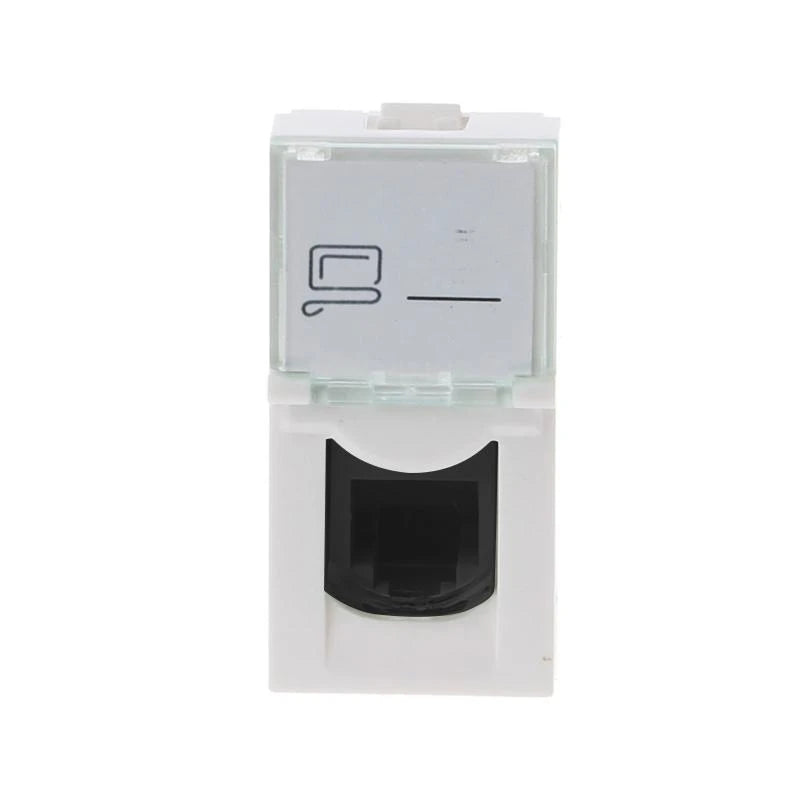

- Compact & Elegant Design: White finish with a sleek, modern look. Wall plate size: 45mm × 45mm (A) / 45mm × 22.5mm (B).
- Long Service Life: Rated for ≥750 plug and socket mating cycles.
Specifications
| Standard | Cat6 |
| Connector Type | RJ45 Female to Female |
| Panel Material | ABS |
| Terminal Material | Phosphor Bronze |
| Wall Plate Size (A) | 45mm × 45mm |
| Wall Plate Size (B) | 45mm × 22.5mm |
| Color | White |
| Cable Support | 22–26 AWG |
| Contact Resistance | ≤2.5 MΩ |
| Insulation Resistance | ≥1000 MΩ |
| Voltage Rating | AC 750V (1 min) |
| Country of Origin | Mainland China |
What's in the Box
- 1 × Cat6 Keystone Wall Plate with RJ45 Coupler Module
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is this Cat6 wall plate compatible with Cat5e cables?
A: Yes, the RJ45 female-to-female keystone coupler is backward compatible with Cat5e cables, though for best performance at Cat6 speeds it is recommended to use Cat6-rated patch cables throughout your run.
Q: Does this wall plate require any special tools to install?
A: No special tools are required. The IDC termination design allows for fast and accurate cable connection using a standard punch-down tool. The plate mounts to a standard single-gang electrical wall box for a clean, flush finish.
Q: Can I use this wall plate for a pass-through Ethernet connection without running cable through the wall?
A: Absolutely. The female-to-female RJ45 coupler lets you simply plug an Ethernet patch cable into each side of the wall plate, making it perfect for surface-mount or pass-through setups as well as full in-wall installations.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
