Copper Water Cooling Block for SXM2 GPU – V100 P100 A100

Copper Water Cooling Block for SXM2 GPU – V100 P100 A100

$122.90 $145.40
Color
Ships FromCN

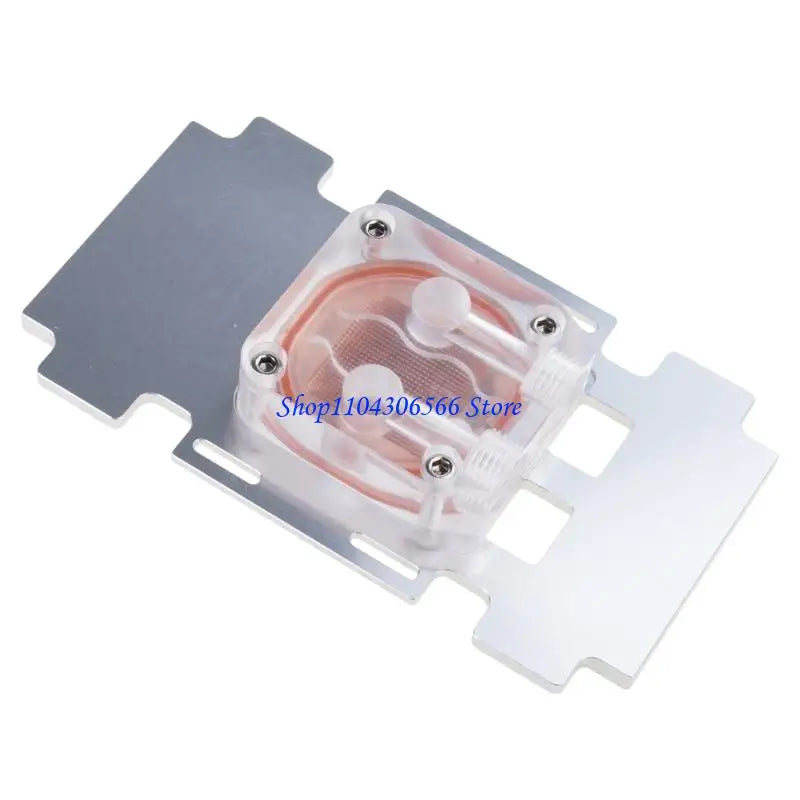

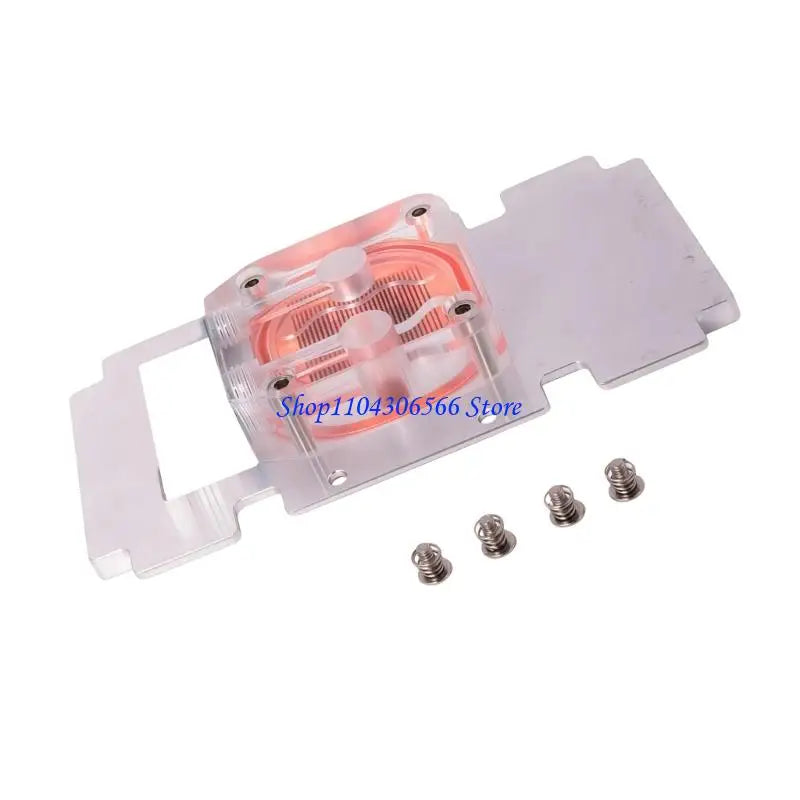

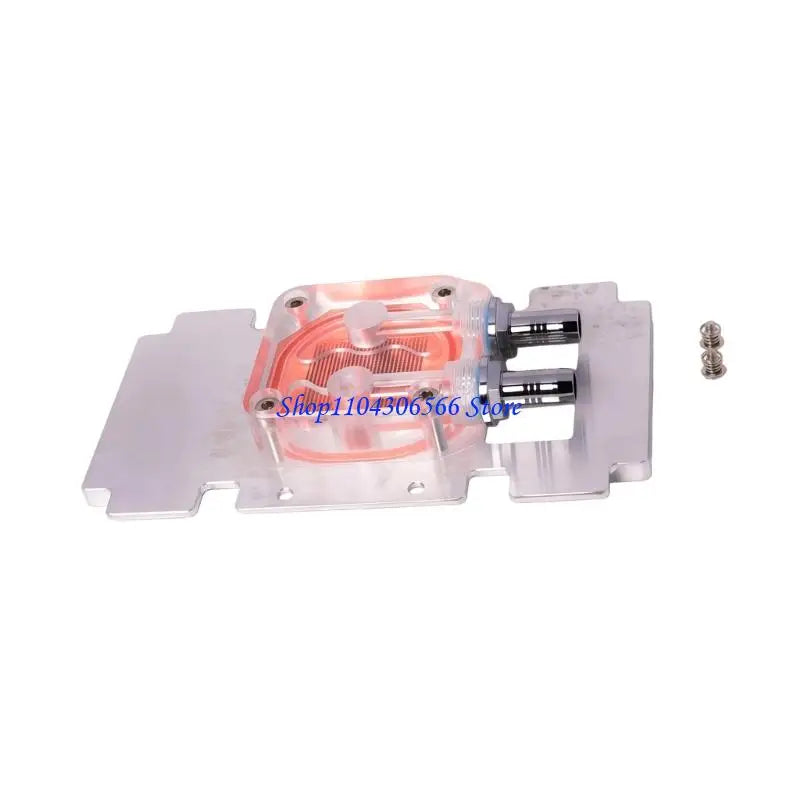

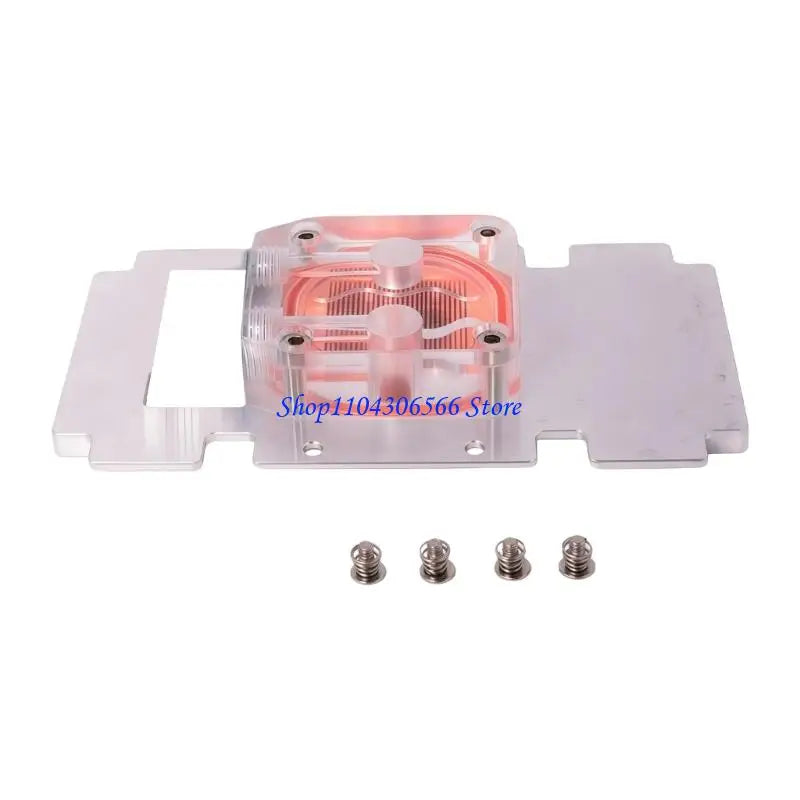

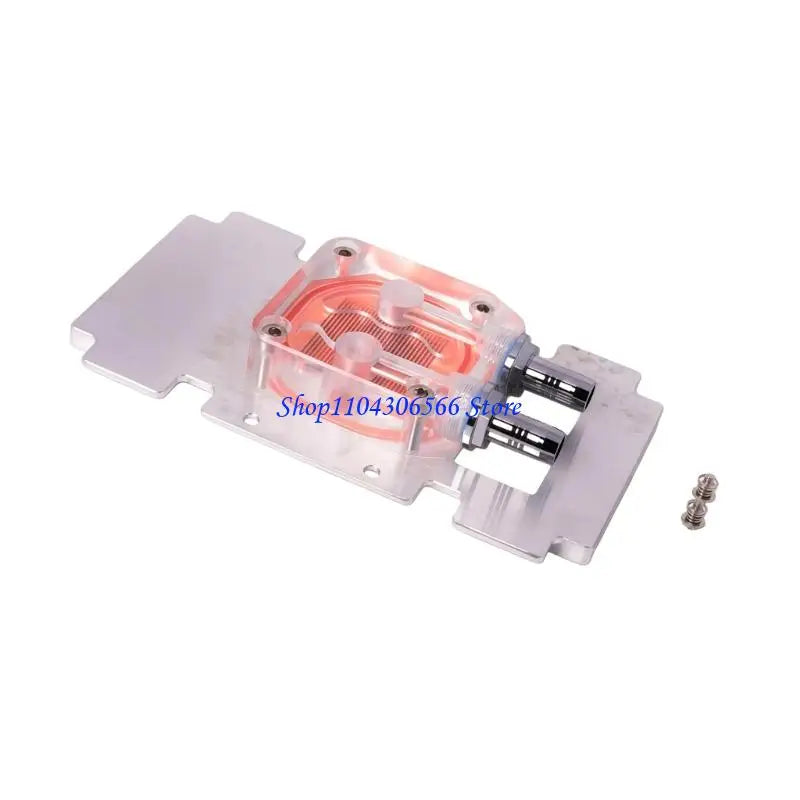

Professional Copper Liquid Cooling Block for SXM2 GPUs

Engineered for high-performance data center workloads, this precision-crafted copper water cooling block is purpose-built for SXM2 architecture GPUs including the V100, P100, and A100 32G. With exact mounting hole alignment and PCB-matched contact surfaces, it delivers optimal thermal coupling with processing chips and onboard memory.

Key Features

  • Precision-Fit Design: Accurate mounting holes and PCB alignment ensure maximum contact with the main processing chip and surrounding power components for V100, P100, and A100 32G SXM2 GPUs.

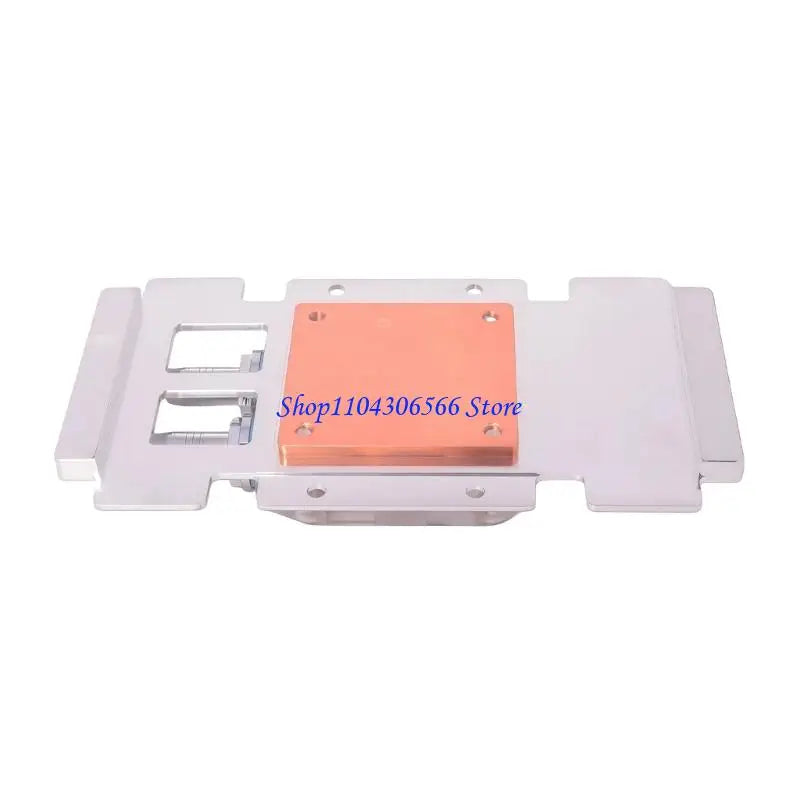

  • Dual-Direction Copper Cold Plate: A thick copper base with multiple internal water channels draws heat away from critical components swiftly and efficiently.
  • Full-Coverage Cooling Layout: Cooling surface spans both the primary compute die and adjacent power delivery components for comprehensive thermal management.
  • Reinforced Construction: Robust build quality maintains reliable performance during extended data center operation, with refined internal channel geometry to maximize heat transfer efficiency.
  • Sustained High-Performance Computing: Replacing standard air cooling with liquid cooling provides superior thermal headroom, enabling consistent processing speeds during neural network training, research simulations, and complex ML workloads.
  • Optional Pagoda Head Fitting: Available in two styles — with or without pagoda head — for flexibility in your coolant loop configuration.

Specifications

Material Copper / Metal

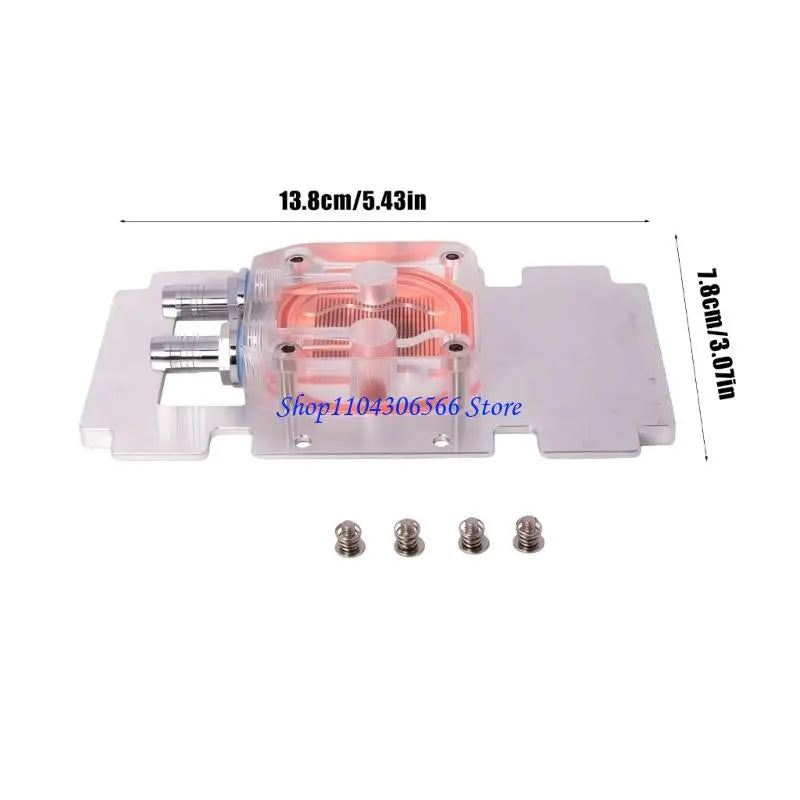

Dimensions 13.8 × 7.8 cm (approx. 9-inch form factor)
Compatibility SXM2 GPUs: V100, P100, A100 32G
Cooling Type Liquid / Water Cooling
Style Options With Pagoda Head / Without Pagoda Head (optional)
Country of Origin Made in Mainland China

Package Includes

  • 1 × Water Cooling Block (GPU cold plate only)

⚠ Important Note: This product is a GPU cooling block component only. A complete liquid cooling loop — including a coolant circulation pump, heat dissipation radiator, and tubing — must be sourced separately. Technical knowledge is required for proper installation and integration with SXM2 GPUs.

Please allow 0–1 cm variance due to manual measurement. Colors may vary slightly from screen to screen.

You May Also Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Which GPU models is this water cooling block compatible with?

A: This copper water cooling block is specifically designed for SXM2 architecture GPUs, including the NVIDIA V100, P100, and A100 32G. The mounting holes and PCB alignment are precision-matched for these models to ensure proper contact and optimal thermal performance.

Q: Does this include a full liquid cooling loop?

A: No — this product is the GPU cold plate (water block) only. You will need to separately source a coolant pump, radiator, tubing, and coolant fluid to complete your liquid cooling system. Technical expertise is recommended for installation.

Q: What is the cooling block made of?

A: The cooling block is constructed from copper and metal, featuring a thick copper base with multiple internal water channels designed to maximize heat transfer efficiency from the GPU die and power delivery components.

Q: What style options are available?

A: This cooling block is available in two styles — with pagoda head fittings or without pagoda head fittings — to suit your preferred coolant tubing and connector setup. Please select your preferred style at the time of purchase.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
