CV-10HS & CV-15HS Pneumatic Vacuum Generator Ejector with Silencer
Upgrade your pneumatic setup with the CV-10HS and CV-15HS Pneumatic Air Exhaust Vacuum Generator Ejectors. Built from durable aluminum alloy with precision-machined threads, these compact ejectors deliver reliable vacuum generation for automation, pick-and-place, clamping, and industrial air systems — all in a lightweight, easy-to-install package.
Key Features

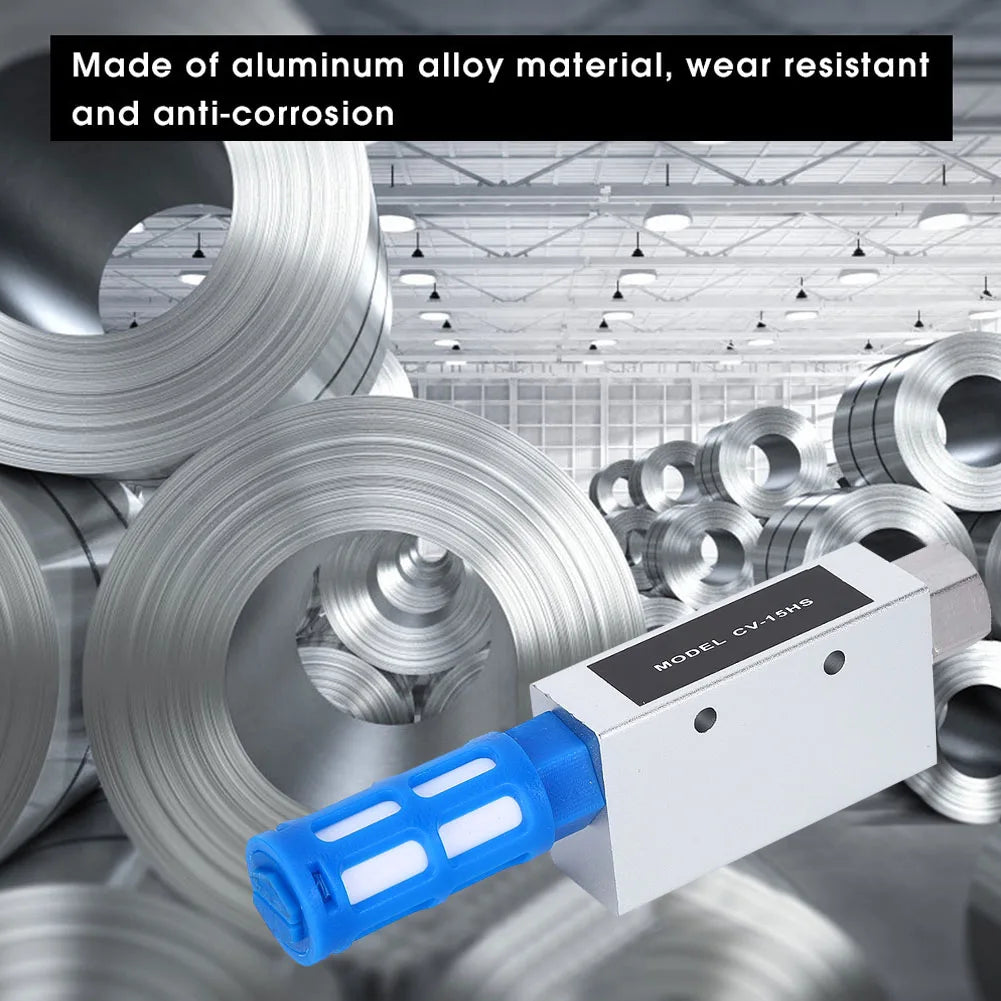

- Premium Aluminum Alloy Construction — Wear-resistant and corrosion-resistant for long-lasting industrial performance.
- Precision Threads — Ensure a secure, leak-free connection every time.
- Integrated Silencer — Reduces exhaust noise for quieter workshop operation.
- Compact & Lightweight — Simple structure makes mounting and maintenance quick and hassle-free.
- Large Air Ventilation — Efficient airflow for maximum suction performance.

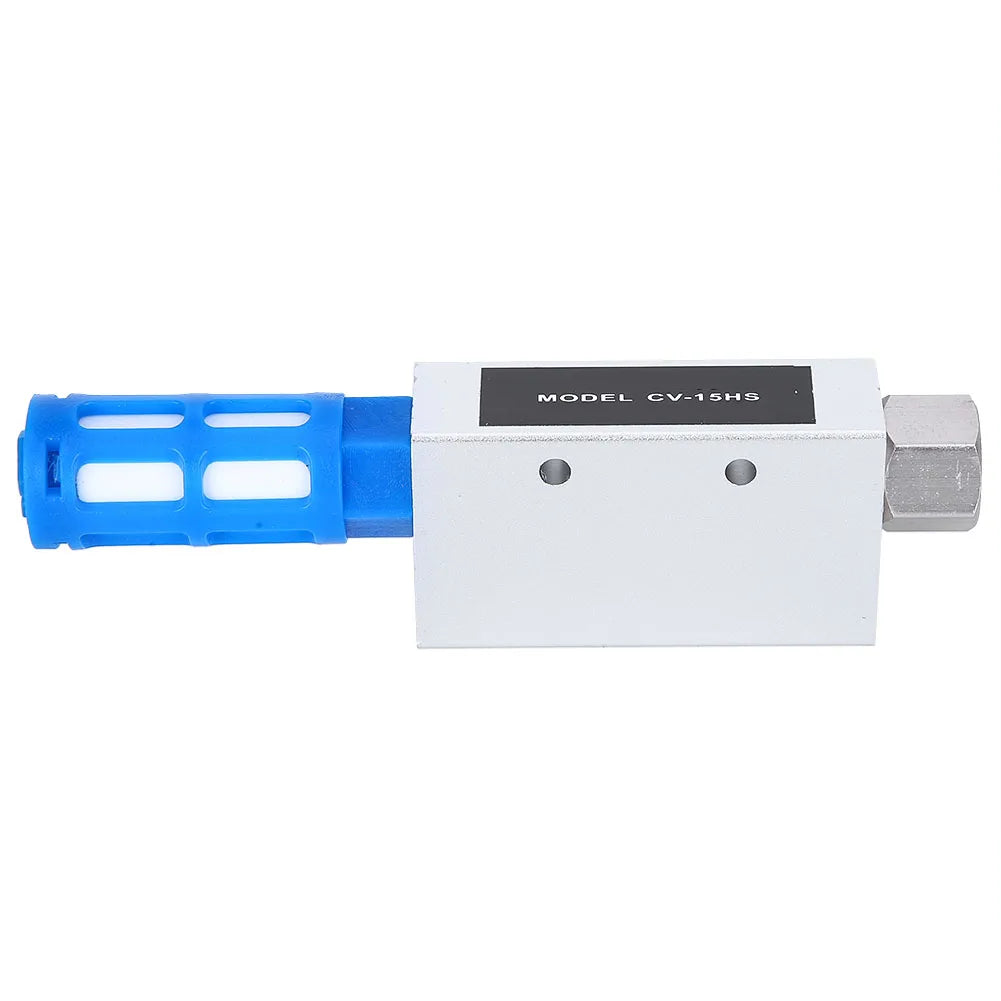

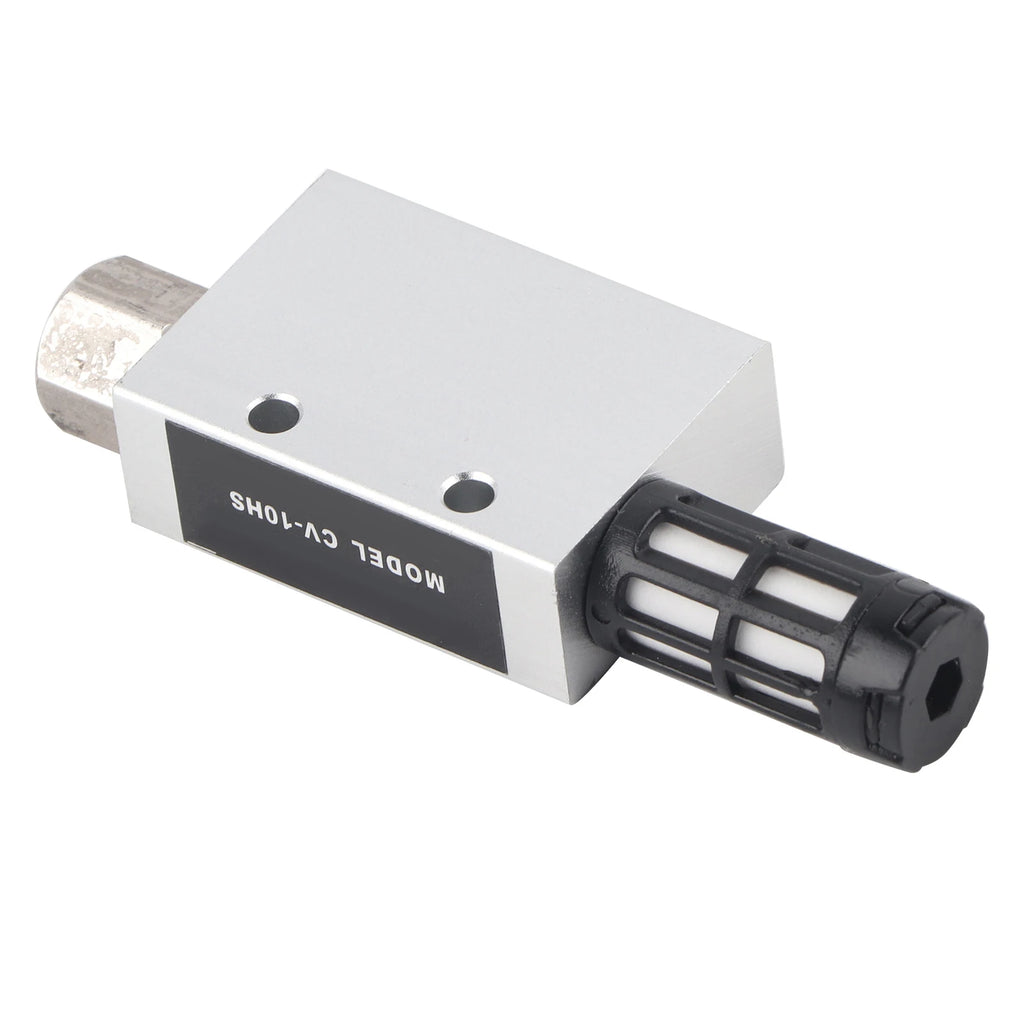

- Two Models Available — Choose CV-10HS (Black) or CV-15HS (Blue) to suit your application.
Specifications
| Models | CV-10HS / CV-15HS |
| Color | CV-10HS: Black | CV-15HS: Blue |
| Nozzle Diameter | 1.0 mm (CV-10HS) | 1.5 mm (CV-15HS) |
| Vacuum Thread Diameter | Rp1/8 (CV-10HS) | Rp1/4 (CV-15HS) |
| Inlet Thread Diameter | Rp1/8 (CV-10HS) | Rp1/4 (CV-15HS) |
| Outlet Thread Diameter | Rp1/8 (CV-10HS) | Rp1/4 (CV-15HS) |
| Flow Medium | Air |
| Working Pressure | 1–6 BAR |
| Rated Pressure | 5 BAR |
| Suction Flow Rate | 44 L/min (CV-10HS) | 63 L/min (CV-15HS) |
| Vacuum Pressure | -92 kPa |
| Working Temperature | 0–60 °C |
| Material | Aluminum Alloy |
| Package Weight | Approx. 133 g / 4.7 oz |
Package Contents
- 1× Vacuum Generator Ejector with Silencer (CV-10HS or CV-15HS)
Made in China.
Looking for more workshop and hand tools? Check out our 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel or the 10-Pc Hex Nut & Bolt Extractor Kit to keep your toolkit fully stocked.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the difference between the CV-10HS and CV-15HS vacuum generators?
A: The main difference is nozzle diameter — the CV-10HS has a 1.0 mm nozzle with Rp1/8 thread connections (Black), while the CV-15HS features a 1.5 mm nozzle with Rp1/4 thread connections (Blue) and a higher suction flow rate of 63 L/min vs. 44 L/min. Choose based on your required airflow and port sizing.
Q: What applications are these pneumatic vacuum ejectors suited for?
A: These vacuum generator ejectors are ideal for industrial automation, robotic pick-and-place systems, pneumatic clamping, suction cup lifting, and any compressed-air system requiring reliable vacuum generation without a dedicated vacuum pump.
Q: What compressed air supply pressure is required to operate these ejectors?
A: Both models operate within a working pressure range of 1–6 BAR, with a rated pressure of 5 BAR. Ensure your compressed air supply falls within this range for optimal vacuum performance.
Q: Are both the new type and old type of the product the same in terms of function?
A: Yes. Please note that the new type and old type of this product may be sent randomly. Both versions perform the same function and meet the same specifications — only the external appearance may vary slightly.
