DC 5521 to Dual 4-Pin PWM Fan Power Adapter Cable – 12V, 2-Way Split
Power two computer or router fans directly from a DC barrel jack with this handy DC 5521 to 4-Pin PWM 2-Way Adapter Cable. Designed for builders and hobbyists who need to connect standard PC-style 4-pin PWM fans to a 12V DC power source, this compact Y-splitter cable eliminates the need for a full ATX power supply in custom rigs, router mods, and open-frame builds.
Made in Mainland China.
Key Features

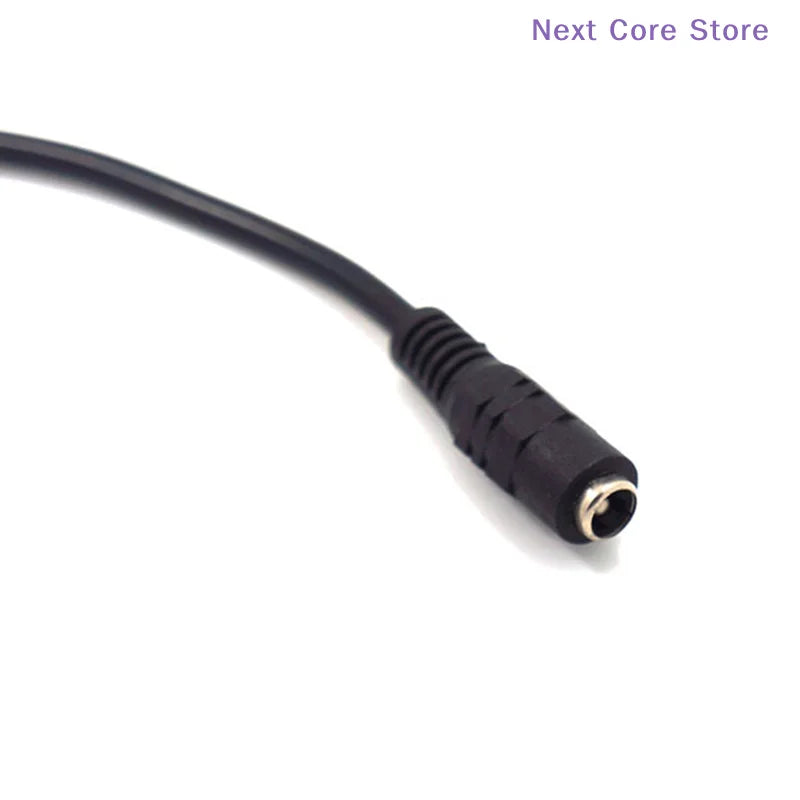

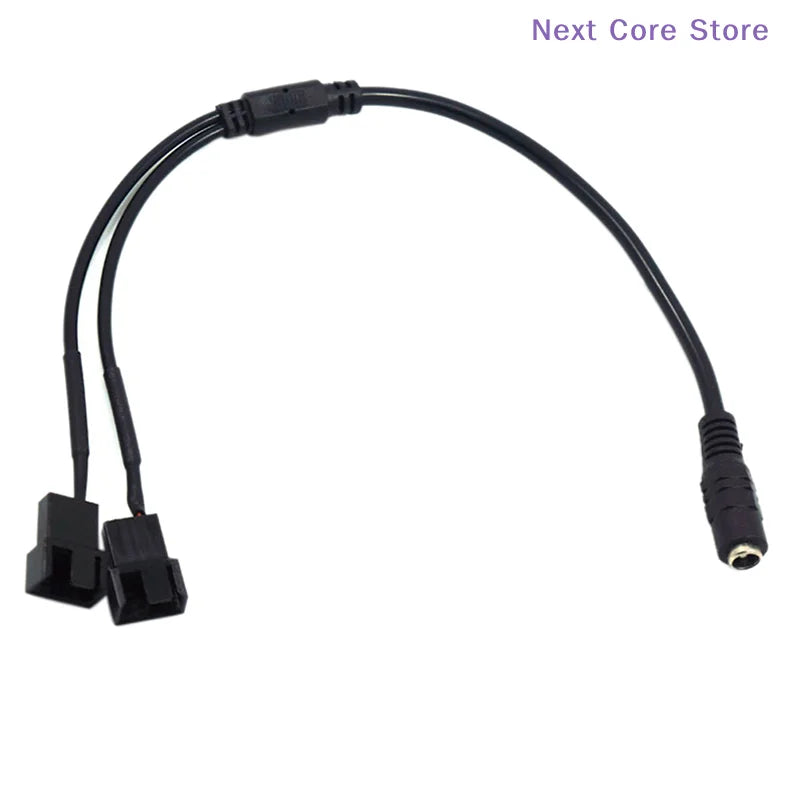

- Interface: 1× DC 5521 (5.5mm/2.1mm barrel) input, 2× 4-Pin PC fan connectors output
- Total Wire Length: 35 cm (main cable: 20 cm | branch cables: 15 cm each)
- Conductor Material: Pure copper for reliable, low-resistance power delivery
- Main Wire Gauge: 22AWG (17 × 0.12 mm strands)
- Branch Wire Gauge: 24AWG (11 × 0.12 mm strands)
- Main OD: 4.5 mm | Branch OD: 3.0 mm
- Insulation: PVC — flexible and durable
- Rated Temperature: Up to 80°C
- Wire Color: Black
- Weight: 16 g
- Operating Voltage: 12V DC
What's in the Box?
- 1× DC 5521 to Dual 4-Pin PC Fan Adapter Cable
Perfect For
- Custom PC or open-frame builds powered by a DC adapter
- Router or NAS cooling fan upgrades
- Workbench and lab cooling setups
- Any project requiring 4-pin PWM fans powered via a barrel jack supply
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What fans is this DC 5521 to 4-Pin PWM adapter cable compatible with?
A: This cable is compatible with any standard PC 4-pin PWM cooling fan — including case fans, CPU fans, and router fans — that operates at 12V DC. The DC 5521 (5.5mm × 2.1mm) barrel connector plugs into most common 12V DC wall adapters and power bricks.
Q: Does this cable support PWM fan speed control?
A: The cable passes through all four pins of the 4-pin PWM connector, so PWM speed control signals will be carried if your DC power source or controller outputs a PWM signal. Note that a standard DC barrel jack adapter does not generate a PWM control signal — you would need a separate PWM controller for variable fan speed regulation.
Q: How many fans can I connect with this adapter?
A: This is a 2-way Y-splitter cable, allowing you to connect up to two 4-pin PWM fans simultaneously from a single DC 5521 power source. Ensure your 12V DC power supply can provide sufficient current for both fans combined.
Q: What is the total length of the cable?
A: The total cable length is 35 cm — with a 20 cm main trunk from the DC 5521 connector and two 15 cm branch cables leading to each 4-pin fan connector.
